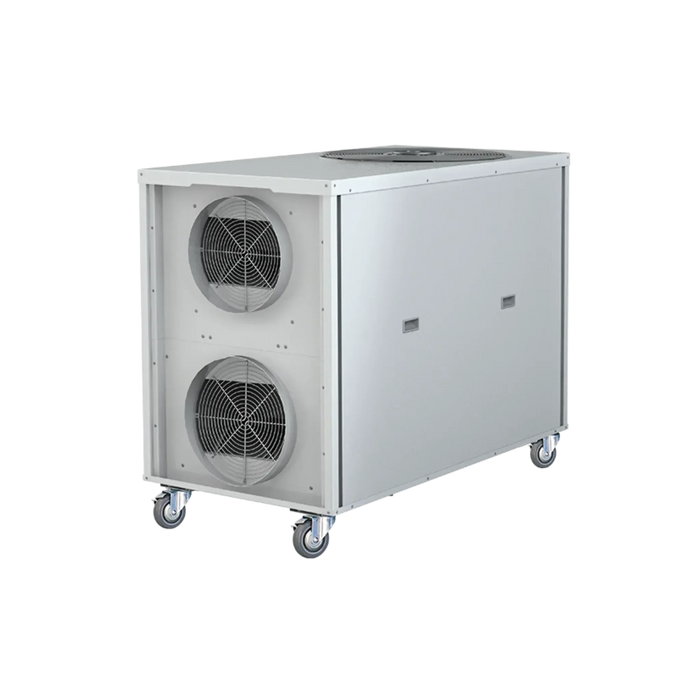

Airrex AHSC-60-480-3 5 Ton (480/3) Heat Pump
Airrex AHSC-60 portable heat pump operates in air temperatures from 65°to 113°F for cool mode and 50°to 81°F for heat mode. This heat pump utilizes eco-friendly R410A refrigerant. The Airrex AHSC-60-480-3 heat pump may require a fresh air supply for proper operation. Includes removable, washable air filters for easy maintenance. Thermostatically protected compressor includes high and low-pressure warnings has 60,000 BTU cooling feature and 60,000 BTU heating feature. 12" supply flange and 16" return flange and 26" diameter top exhaust. Optional condensate pump that plugs directly into a quick connect port inside the unit. 1 Year Warranty. 3 Year compressor warranty. Two electrical options, 220V 1 phase or 480V 3 phase
Specifications:
| BRAND | Airrex |
| MODEL | AHSC-60 480/3 |
| REFRIGERANT | R410A |
| TONS | 5 |
| COOLING CAPACITY |
60,000 BTU |
| HEATING CAPACITY |
60,000 BTU |
| APPROX SQUARE FEET COVERAGE | 2000 |
| VOLTAGE | 480V |
| POWER SUPPLY |
460V 60Hz 3Ph |
| W x D x H |
29.1 x 57.1 x 47.7 (inches) |
| WEIGHT | 550 lbs |
| CURRENT CONSUMPTION (AMPS) |
10.6 (Cool) 9.7 (Heat) |
| CIRCUIT BREAKER SIZE (AMPS) |
15 |
| RATED POWER CONSUMPTION |
6.9 (Cool) 6.1 (Heat) |
| AMP RATING |
6.9 (Cool) 6.1 (Heat) |
| COMPRESSOR INPUT |
5.7 |
| AIR FLOW (CFM, HIGH/LOW) EVAPORATOR |
1,620 |
| STATIC PRESSURE |
0.071 (psi) |
| POWER CORD | N/A |
| POWER CORD LENGTH | Designed for Hardwire |
| OPERATING CONDITIONS |
Cool: 65°F 60%RH - 113°F 40%RH Heat: 50°F 70%RH - 81°F 50%RH Dehumidifier: 50°F 60%RH - 81°F 40%RH |
| NEMA PLUG |
Designed for hardwire |
| ELECTRIC HEAT(OPTIONAL) |
N/A |
| NOISE LEVEL (DECIBEL 1M) |
75 |
| MOISTURE REMOVAL MAX (GAL/H) |
3.19 |
