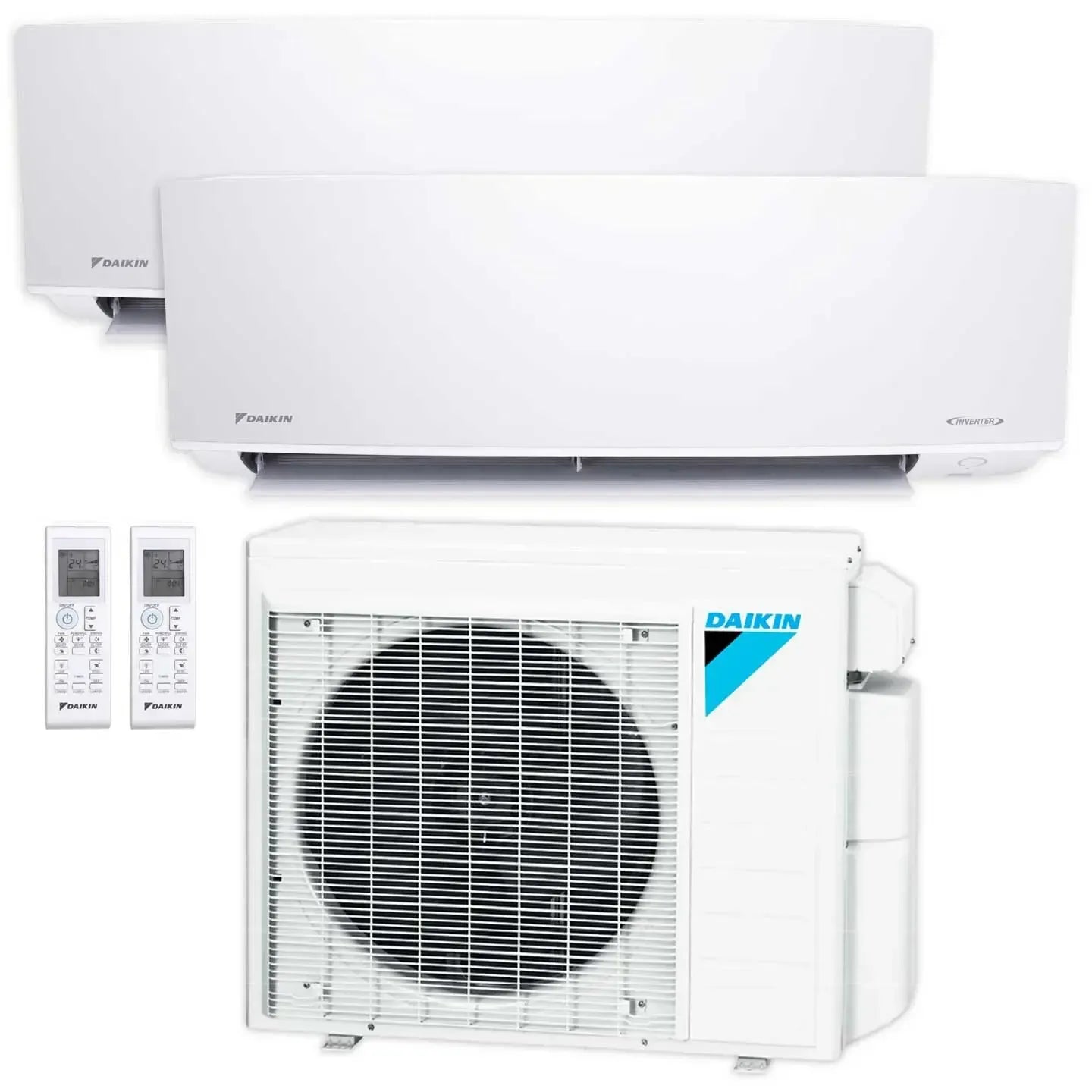

Daikin CIRRA Series 18,000 BTU 17 SEER2 2-Zone Ductless Mini Split Air Conditioner Heat Pump System 208/230V - 9K + 9K
$2,759.00$3,724.65
Call for best pricing before large-system orders.
FREE GIFTS FOR A LIMITED TIME ONLY! Order today and receive the following free with your purchase:
- Free Shipping ($100 Value)
- Free Liftgate Delivery + Freight Insurance ($150 Value)
- Expedited Processing ($50 Value)
- Website Discount of $137.95 off the current discounted price (Use Code: FLASH5) ($137.95 Value)
- Free 10-year Parts Warranty ($1000 Value)
- Free 10-year Compressor Warranty ($1000 Value)
- Free Lifetime Technical Support ($500 Value)
- Free Condenser Wall Mounting Brackets ($119.99 Value)
TO CLAIM YOUR FREE GIFT CLICK ADD TO CART
Total Extra Savings With Us Today = $3,057.94
Daikin CIRRA Series 18,000 BTU 17 SEER2 2-Zone Ductless Mini Split Air Conditioner Heat Pump System 208/230V - 9K + 9K
Daikin’s Multi-Zone Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design. With the ability to connect two wall-mounted indoor units to a single outdoor unit, this compact and simple solution can provide additional comfort to spaces where other solutions may not be viable.
In addition, with a small outdoor unit footprint, the Daikin CIRRA Multi-Zone unit takes up less space on a patio or balcony (compared to other Daikin Multi-Zone outdoor units). Suitable for new build and renovation projects, Daikin Multi-Zone Systems are an innovative, reliable solution for your home or space.
Features:
- Cooling Range: 50° - 115°F
- Heating Range: 5° - 65°F
- 10-Year Daikin Manufacturer Warranty
- Space-saving design and precision temperature control for individual rooms. One outdoor unit connects two indoor units individually controlled.
- Energy Efficient: 17 SEER2 / 9 HSPF2 / 10 EER2 for ultra-efficient cooling and heating operation. This system is designed to be highly efficient all year round, and its low energy consumption is reflected in low energy bills for you.
- Smart inverter technology: Integrated with variable-speed, inverter, compressor, Daikin systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by up to 30% or more (compared to traditional fixed-speed ducted systems). This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.
- Anti-Corrosion Treatment on Heat Exchanger
- Quick Warming Function: Preheats the compressor to shorten the time required to discharge warm air.
- Automatic Defrosting: Sensor performs automatic defrosting of the outdoor heat exchanger if necessary, ensuring optimum heating performance.
- ECO+: An intelligent feature that ensures optimum energy consumption while fulfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an optimum energy consumption level.
- Blue Fin Protection: The hydrophilic coated fin ensures the condensate water moves easily to the drain pan — thus enhancing the cleanliness and lifespan of the cooling coil.
- Simplified Maintenance: The indoor unit has been re-designed for easier removal of the drain pan, blower wheel, and indoor fan motor (compared to other wall mounted units).
What's Included:

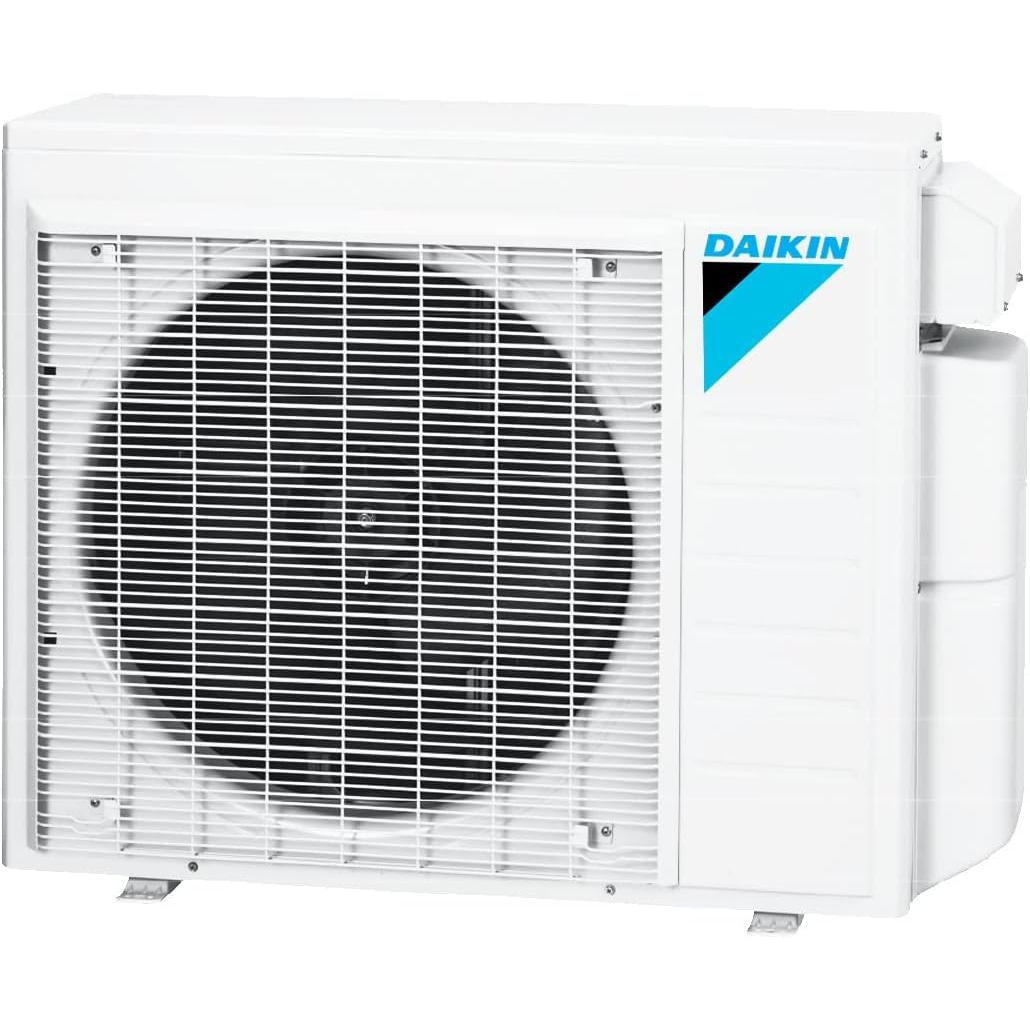

- 1x Daikin Cirra Series 18,000 BTU 17 SEER2 Multi-Zone Heat Pump Condenser

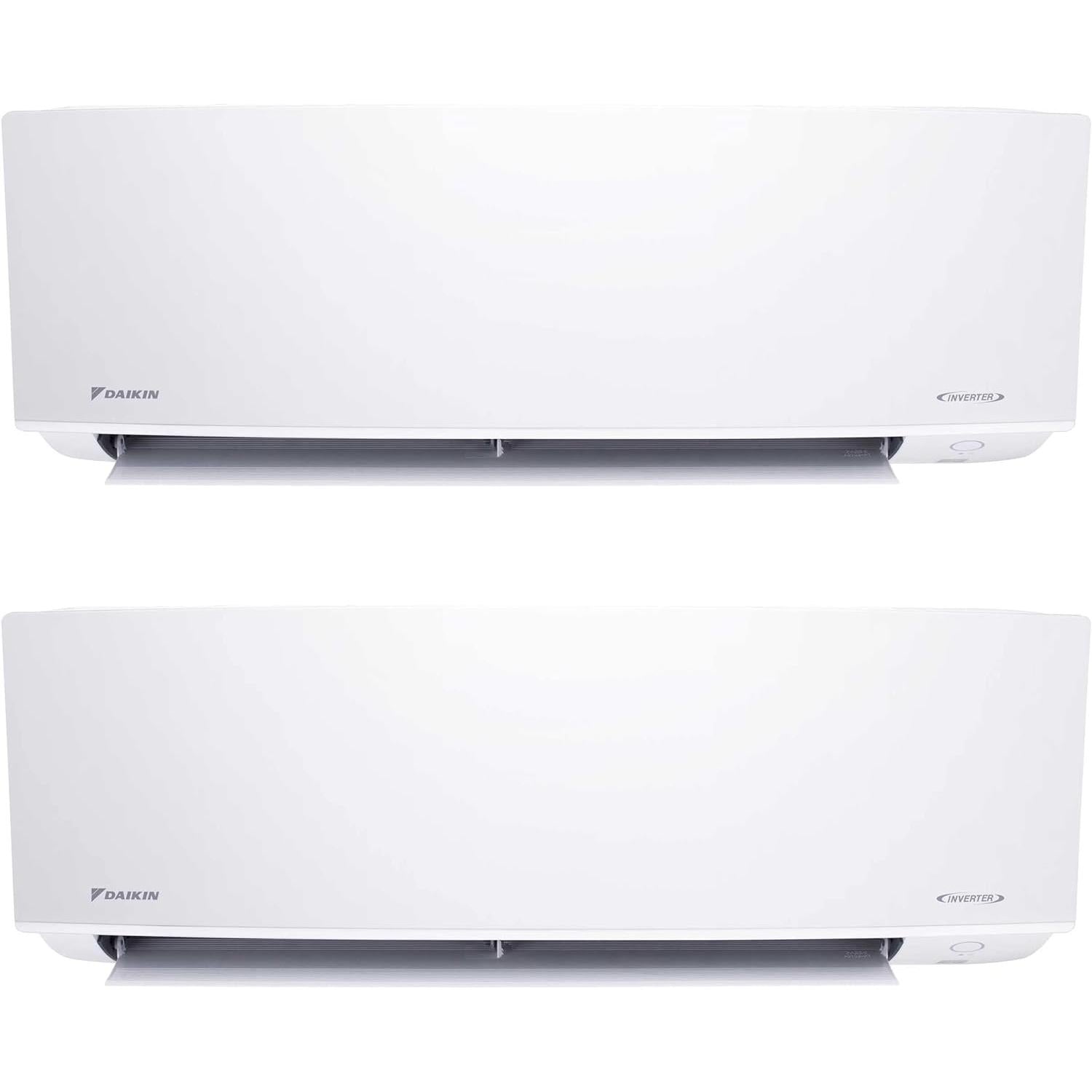

- 2x Daikin Cirra Series 9,000 BTU Wall Mount Air Handlers

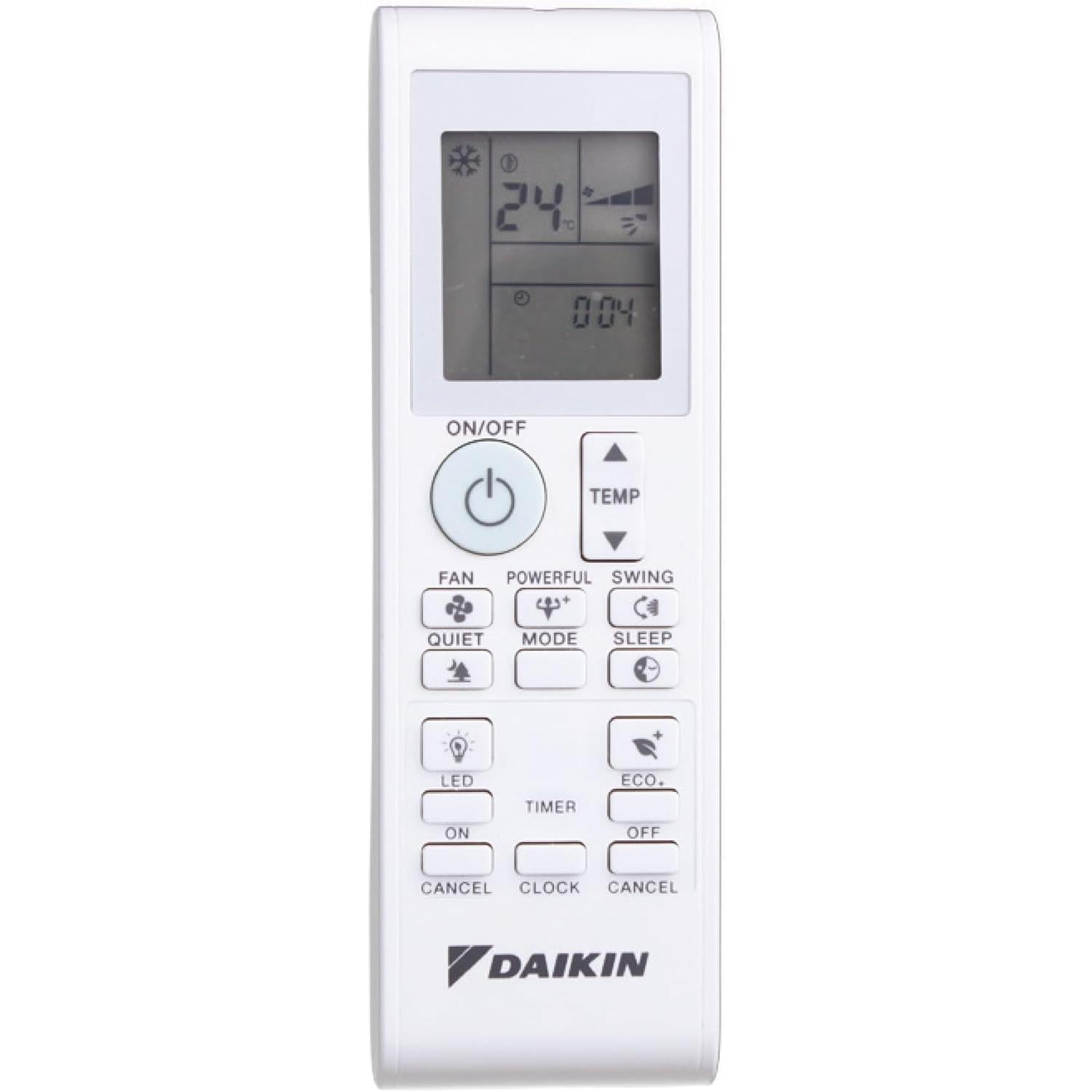

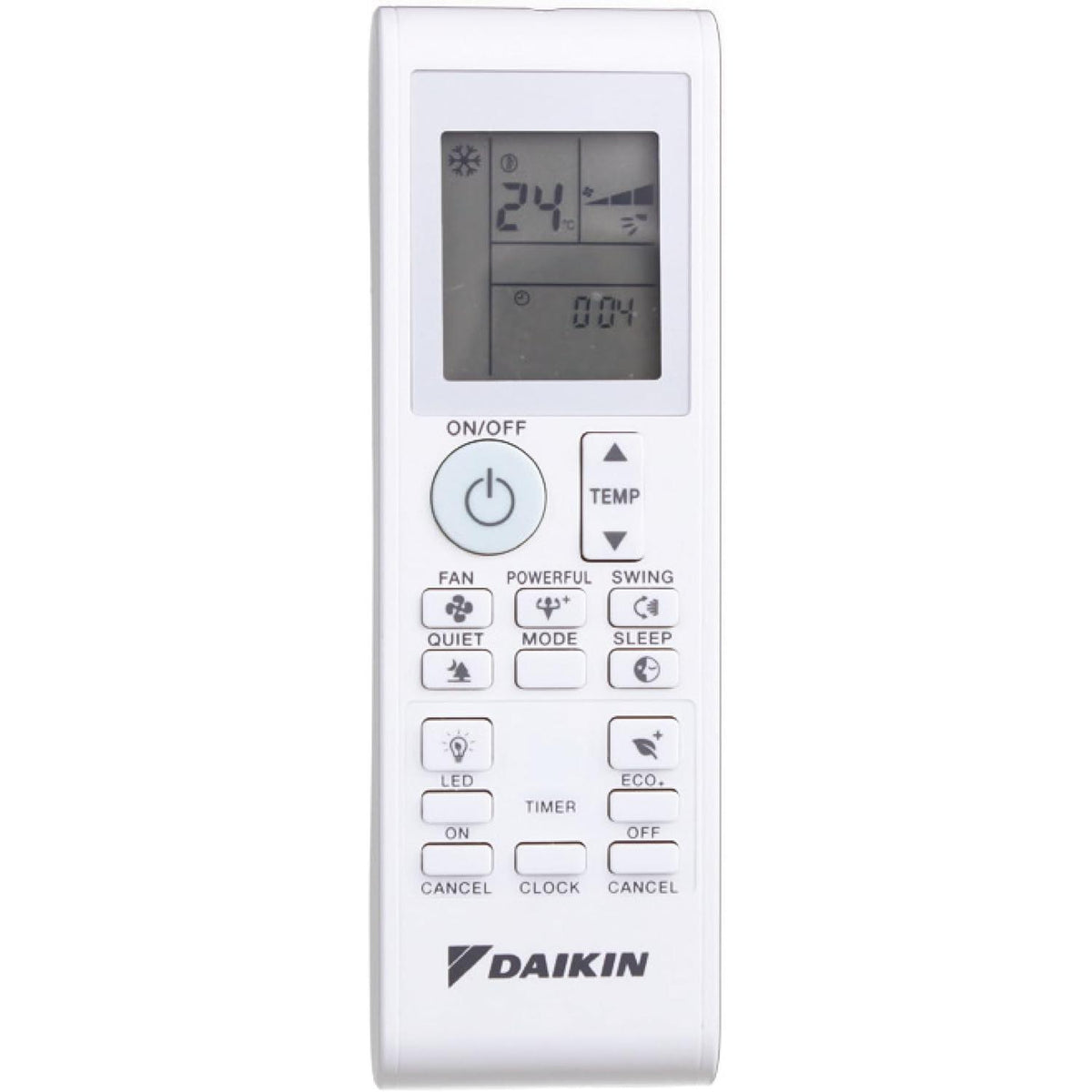

- 2x Daikin Cirra Series Wireless Remote Controls with remote control holders
- Free Condenser Wall Mounting Bracket ($119.99 Value)
- 1/4" x 3/8" Copper Line Sets (Optional)
- Control wire (Optional, included with line set)
System Specifications:
| Brand | Daikin |
| Model |
Outdoor: 2MX18AXVJU Indoor: CTX09AXVJU / CTX09AXVJU |
| Rated Capacity Cooling (Min. ~ Max.) |
kW: 4.98 (0.88 - 5.13) Btu/h: 17,000 (3,000 - 17,500) |
| Rated Capacity Heating (Min. ~ Max.) |
kW: 4.98 (0.73 - 5.28) Btu/h: 17,000 (2,500 -18,000) |
| Moisture Removal (gal/h) | 0.34 |
| Rated Running Current (A) |
Cooling: 7.91 Heating: 6.49 |
| Rated Power Consumption (W) |
Cooling: 1700 Heating: 1424 |
| EER2 | 10 |
| SEER2 | 17 |
| COP | 3.5 |
| HSPF2 | 9 |
Condenser Specifications:
| Brand | Daikin |
| Model | 2MX18AXVJU |
| Nominal Capacity | 18,000 BTU/h |
| Cooling Capacity (Rated) | 17,000 BTU/h |
| Cooling Capacity (Rated-Max) | 17,000 - 17,500 BTU/h |
| Heating Capacity (Rated) | 17,000 BTU/h |
| Heating Capacity (Rated-Max) | 17,000 - 18,000 BTU/h |
| SEER2/ EER2/ HSPF2 | 17/10/9 |
| Power Supply (V/Hz) | 208-230V/1 |
| Minimum Circuit Amps | 10.9 |
| Max Overcurrent Protection | 15 |
| Power Consumption - Cooling | 1.7 kW |
| Power Consumption - Heating | 1.4 kW |
| Operating Range - Cooling | 50 - 115°F |
| Operating Range - Heating | 5 - 65°F |
| Casing Colour | Ivory White |
| Airflow Rate (High) |
Cooling: 1170 CFM Heating: 1300 CFM |
| Sound Pressure Level |
Cooling: 51 dBA Heating: 56 dBA |
| Fan |
Type: Propeller Drive: Direct |
| Fan Motor |
Type: Direct Current Index of Protection (IP): IP 24 Insulation Grade: E Running Current (Rated):
Power Consumption (Rated)
Motor Output:
Poles: 8 |
| Compressor |
Type: Hermetic Swing Model: 2YC36HXD Oil Type: DAPHNE FVC50K Oil Amount: 22 oz |
| Heat Exchanger Type | Fin Tube |
| Starting Current | 9.50 A |
| Dimensions (H x W x D) | 21-11/16 x 26-1/2 x 11-3/16 inches |
| Packaged Dimensions (H x W x D) | 24-1/64 x 31-3/8 x 15-1/8 inches |
| Weight | 77 lbs |
| Gross Weight | 84 lbs |
| Piping Connections |
Liquid: 1/4 Gas: 3/8 |
| Refrigerant |
Type: R410A Charge: 2.65 lbs |
| Max. Interunit Piping Length ft (m) | 98-1/2 (30) - Total; 82 (25) - Each |
| Max. Interunit Height Difference ft (m) | 49-1/4 (15) |
| Chargeless | 98-1/2 ft |
Air Handler Specifications:
| Brand | Daikin |
| Model | CTX09AXVJU |
| Rated Capacity | 9 kBtu/h Class |
| Front Panel Colour | White |
| Cooling Airflow Rate |
Turbo: 402 CFM High: 350 CFM Medium: 300 CFM Low: 249 CFM Quiet: 142 CFM |
| Heating Air Flow Rate |
Turbo: 402 CFM High: 350 CFM Medium: 300 CFM Low: 249 CFM Quiet: 195 CFM |
| Sound Pressure Level (H/M/L/Q) |
Cooling: 42/36/30/19 dBA Heating: 41/35/29/24 dBA |
| Fan |
Type: Cross Flow Drive: Direct Speed: 3 Steps, Auto, Quiet, Turbo |
| Fan Motor |
Type: Direct Current Motor Output: 53W Running Current (Rated): 0.17A Power Consumption (Rated): 38W |
| Air Direction Control | Up, Down, Left, Right |
| Air Filter | Catechin |
| Dimensions (H x W x D) | 11-1/3 x 30-29/32 x 9-27/32 inches |
| Packaged Dimensions (H x W x D) | 13-7/8 x 32-3/4 x 12-3/8 inches |
| Weight | 20 lbs |
| Gross Weight | 25 lbs |
| Condensate Drain Size | 19.05 mm |
