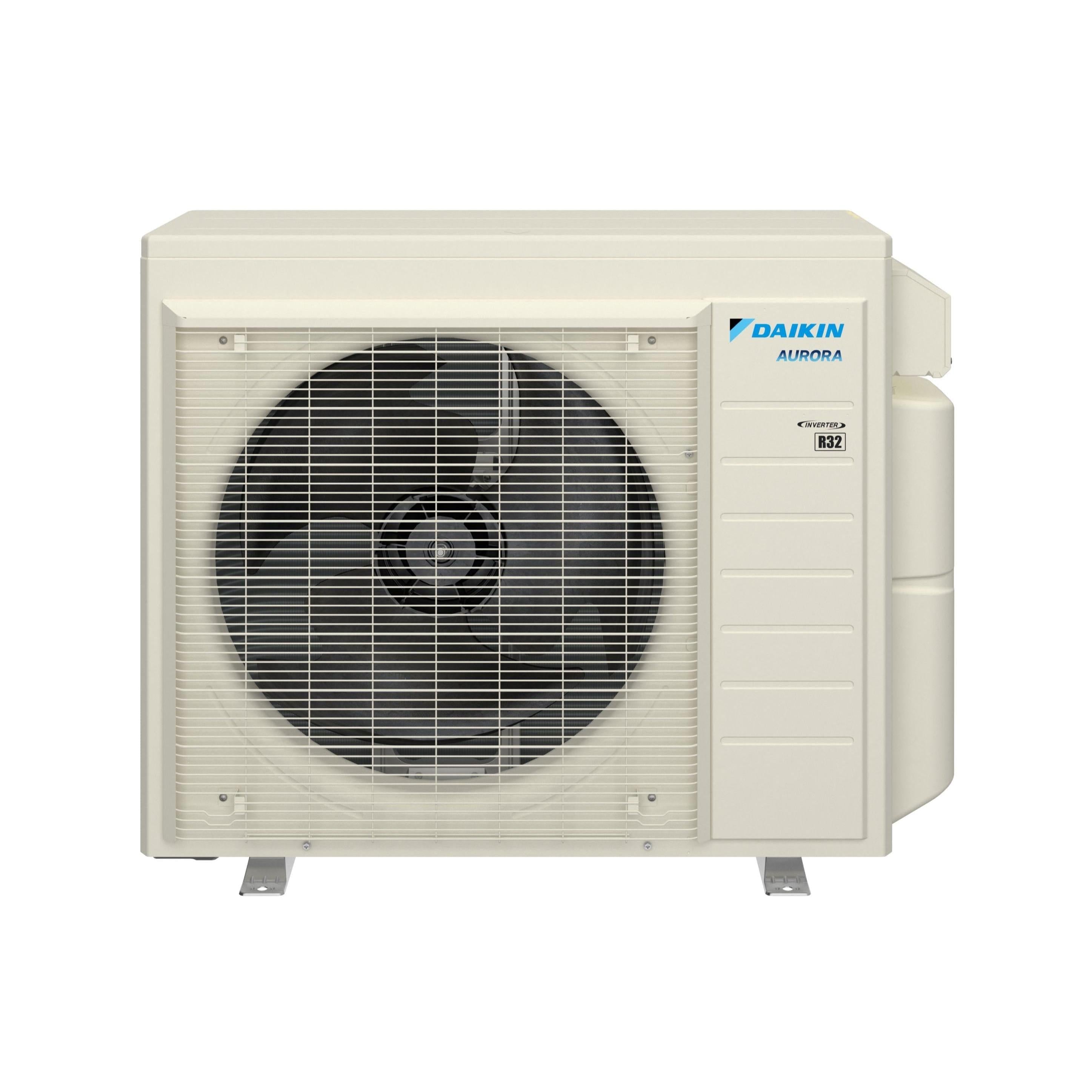

Daikin MXM 36,000 BTU (Up to 48,000 BTU) 20 SEER2 Ductless Mini Split Heat Pump and Air Conditioning Inverter Multi-Zone Condenser - 4MXM36AVJU9

SKU: 4MXM36AVJU9
Your Price:
$4,436.00 $5,589.00
You Save: $1,153.00 21%
  • FLASH SALE GOING ON NOW! Save An Extra 15% OFF with Code: FLASH15
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source
Checkout Secure

Quantity Remaining:

Only 6 Left in Stock.
Order in the next to get it by

Get Extra 15% Off With Code: FLASH15 - Flash Sale Ends:

Days
Hours
Minutes
Seconds

Daikin MXM 36,000 BTU (Up to 48,000 BTU) 20 SEER2 Ductless Mini Split Heat Pump and Air Conditioning Inverter Multi-Zone Condenser - 4MXM36AVJU9

Daikin's Multi-Split Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design, with the ability to connect two, three, or four indoor units to a single outdoor unit, The Daikin MXM 4MXM36AVJU9 offers energy efficiency levels up to 20 SEER2 and 9.5 HSPF2 for enhanced home comfort and energy savings. Suitable for both new build and renovation projects, Daikin Multi-Split Systems are the smart, reliable solution for your home.

Features:

Specifications:

Brand Daikin
Model 4MXM36AVJU9
Warranty 12 Year limited parts warranty with online registration. Click here for full warranty details
BTU 36,000 BTU (Up to 48,000 BTU) - See Combination Capacity Chart here
Power Supply
  • Phase: 1
  • Hz, V: 60 Hz, 208 - 230 V
  • MCA: 24.1
  • MOP: 25.0
COP@5°F W/W: 1.8
EER2 (Btu/W·h)

10.0

SEER2 20.0
HSPF2 9.5
Casing Color Ivory White
Compressor
  • Type: Hermetically Sealed Swing Type
  • Model: 2Y260BPAX1A
  • Motor Output (W): 2,400W
Refrigerant Oil
  • Model: FW68DA
  • Charge fl oz (L): 30.4 (0.9)
Refrigerant
  • Type: R-32
  • Charge lbs (kg): 4.9 (2.2)
  • Pre-Charge: Pre-Charged for 131.2 ft of line set length
Airflow Rates
  • Cooling: 2,402 (cfm) / 68.0 (m³/min)
  • Heating: 2,518 (cfm)  / 71.3 (m³/min)
Fan
  • Type: Propeller
  • Motor Output: 150 W
  • Running Current (Cooling / Heating): 0.44 A / 0.49 A
  • Power Consumption (Cooling / Heating): 90.9 W / 102.7 W
Starting Current 18.5 A
Dimensions (H × W × D) 29-1/2 × 34-1/4 × 12-5/8 inches (750 × 870 × 320 mm)
Packaged Dimensions (H × W × D) 32-1/16 × 40-5/16 × 16 inches (814 × 1,024 × 406 mm)
Weight (Mass) 142 lbs (65 kg)
Gross Weight (Gross Mass) 150 lbs (68 kg)
Sound Pressure Level
  • Cooling: 56 dB(A)
  • Heating: 60 dB(A)
Piping
Connection (inches)
  • Liquid: 1/4 x 4
  • Gas: 3/8 x 1, 1/2 x 2, 5/8 x 1
  • Drain: 5/8 inches
Heat Insulation Both Liquid and Gas Pipes
No. of Wiring Connections 3 for Power Supply, 4 for Interunit Wiring (Including Ground Wiring)
Max. Interunit Piping Length
  • 230 ft (70 mm) (for Total of Each Room)
  • 82 ft (25mm) (for One Room)
Amount of Additional Charge oz/ft(g/m) 0.22 (20) (131-1/4 ft (40 m) or more)
Max. Installation Height Difference
  • 49-1/4 ft (15 mm) (Between Indoor Unit and Outdoor Unit)
  • 24-5/8 ft (7.5 mm) (Between Indoor Units)
Conditions Based on Cooling
  • Indoor ; 80°FDB (26.7°CDB) / 67°FWB (19.4°CWB)
  • Outdoor ; 95°FDB (35°CDB) / 75°FWB (24°CWB)
  • Piping length: 25 ft (7.5 m)
Conditions Based on Heating
  • Indoor ; 70°FDB (21°CDB) / 60°FWB (15.6°CWB)
  • Outdoor ; 47°FDB (8.3°CDB) / 43°FWB (6°CWB)
  • Piping length: 25 ft (7.5 m)
