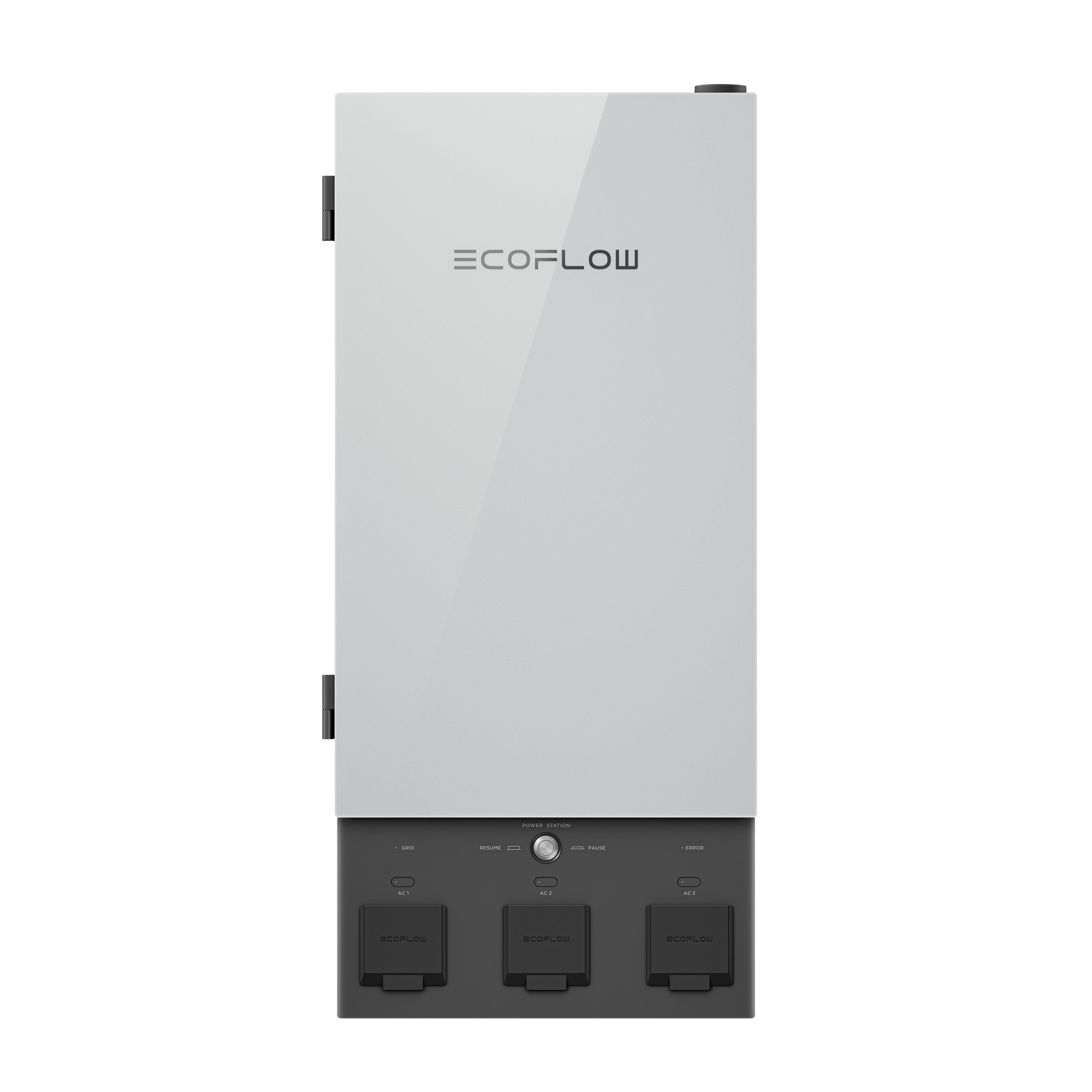

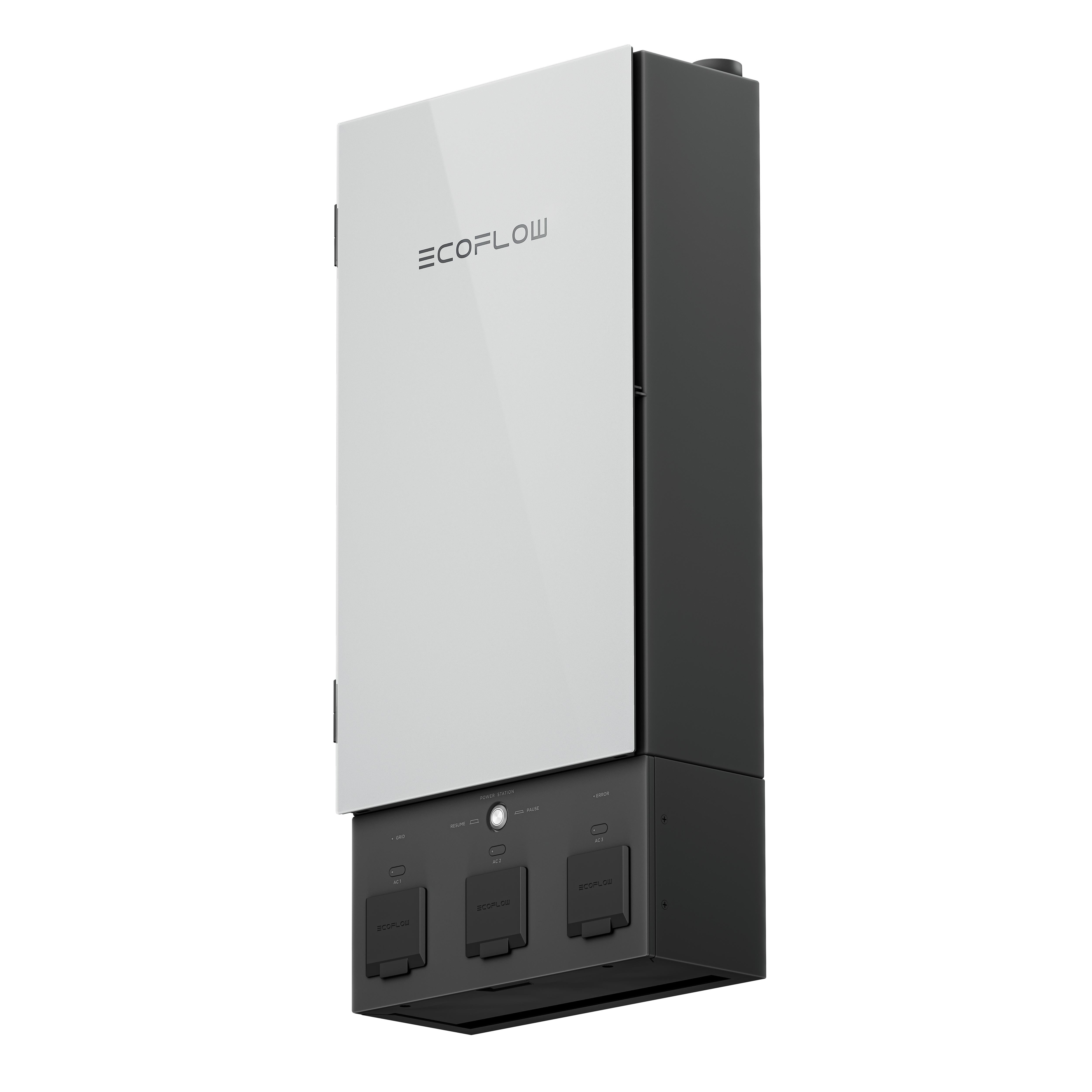

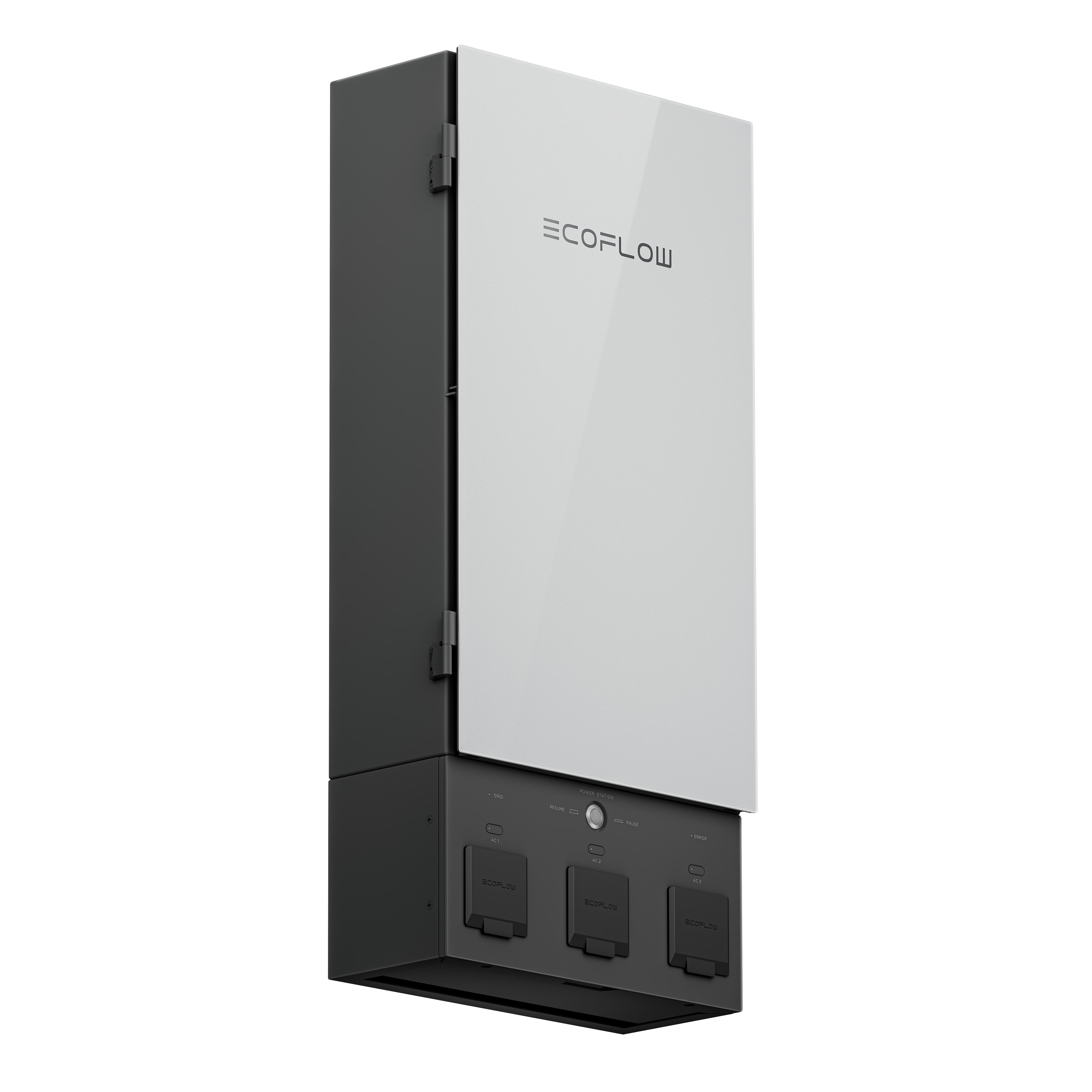

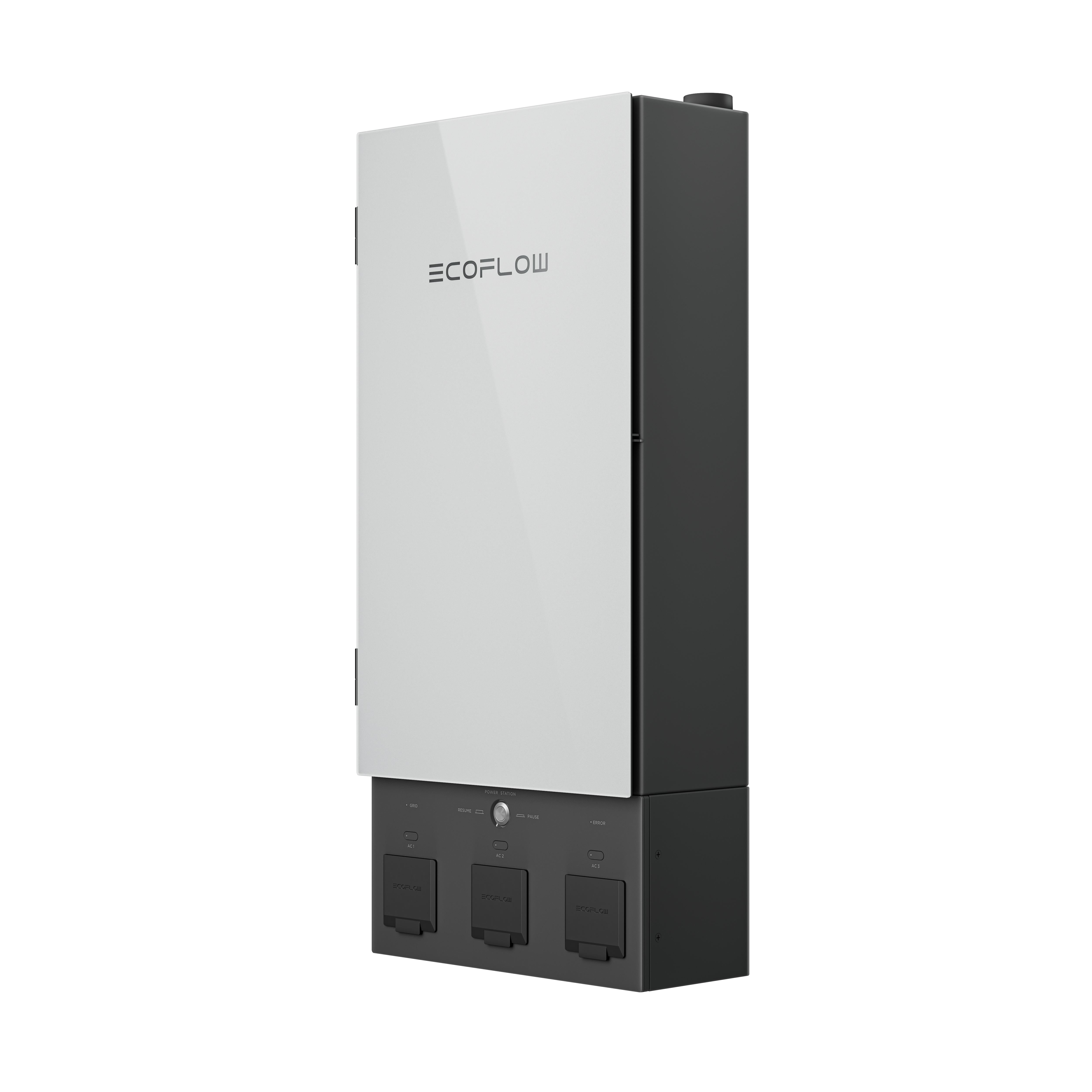

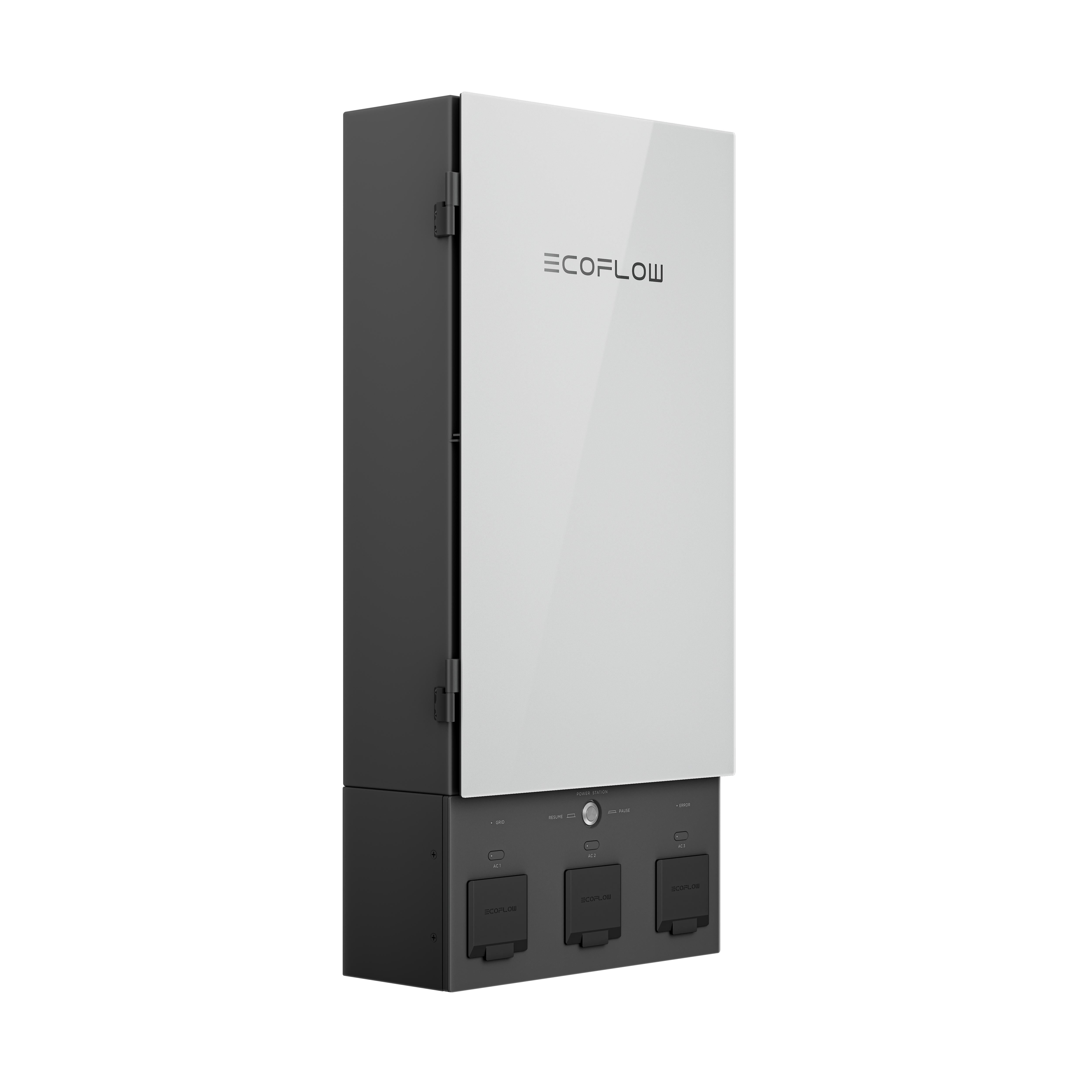

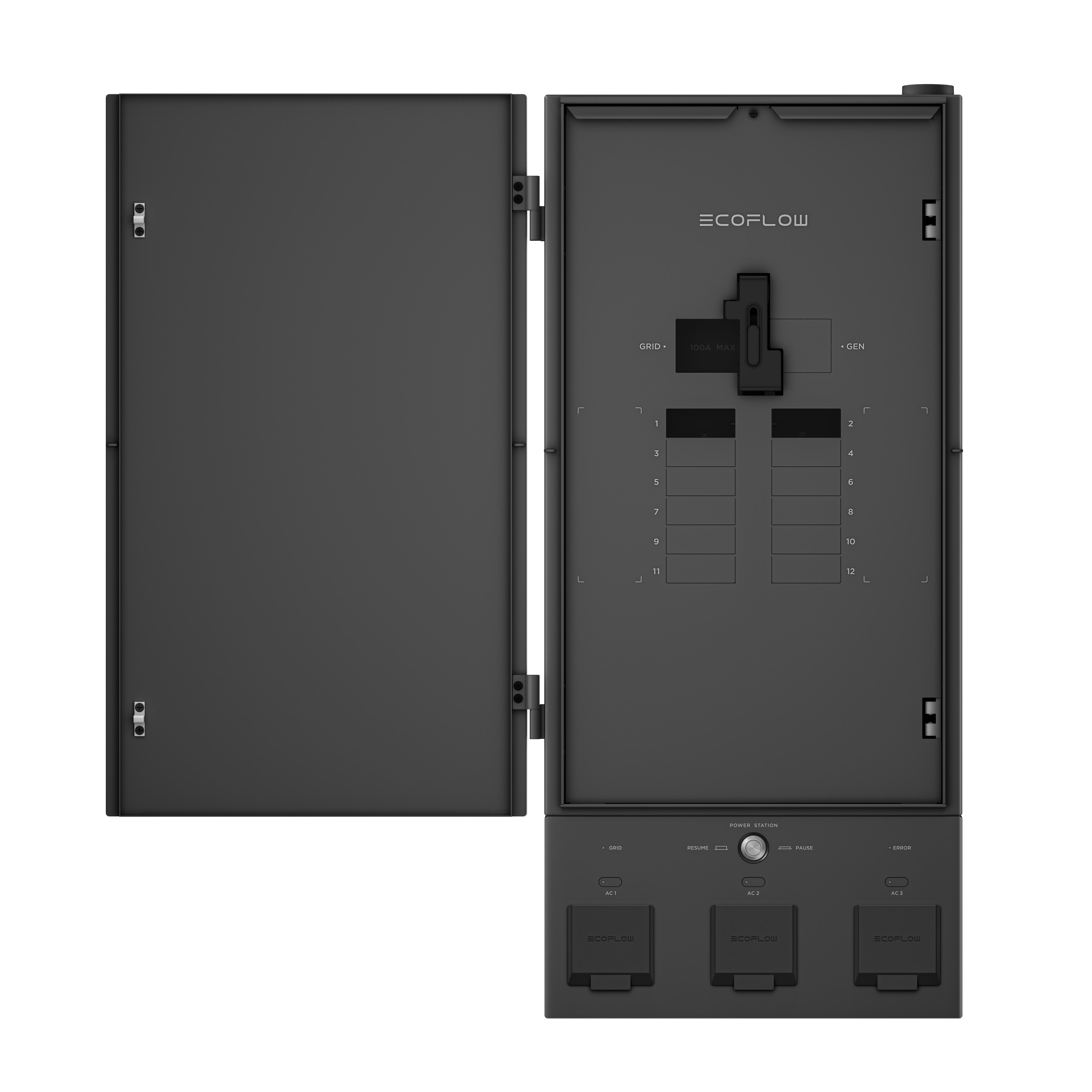

EcoFlow Smart Home Panel 2
The EcoFlow Smart Home Panel 2 is the hub of your whole-home backup system, compatible with DELTA Pro Ultra, batteries, generators, and solar panels. It ensures seamless backup with auto-switchover and serves as a 12-circuit sub-panel for efficient power distribution. Connect your home circuits with up to 3 plug-and-play inverters and 15 stackable 6kWh batteries, it not only takes care of your backup for even longer but allows you to control and run every single household appliance.
- Intelligent subpanel for home battery systems.
- 20 ms auto switchover
- EcoFlow app control
- Modular design
- 12-circuit sub-panel
An intelligent subpanel for outage protection and savings in one.
The EcoFlow Smart Home Panel 2 is the center of your whole-home backup solution, working alongside EcoFlow DELTA Pro Ultra, generators, and solar panels to protect your home. With a fast, automatic switchover, you'll have reliable backup whenever you need it. Its Smart Energy Management system extends backup duration and forecasts outages through hourly weather checks. Smart Home Panel 2 customizes your energy usage based on time-of-use rates and your home's solar energy production.
The commanding force behind your power system.

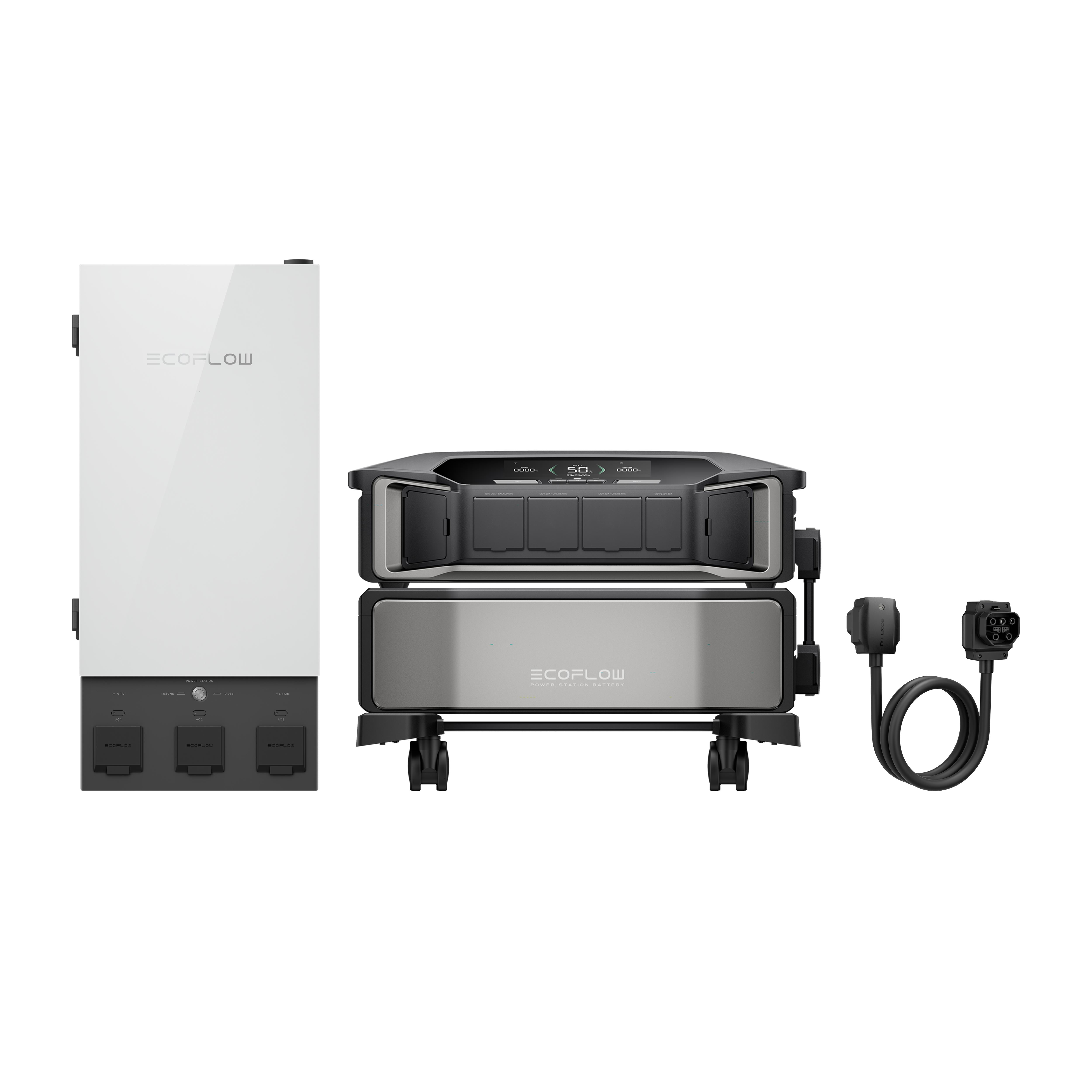

The Whole-Home Backup System Hub

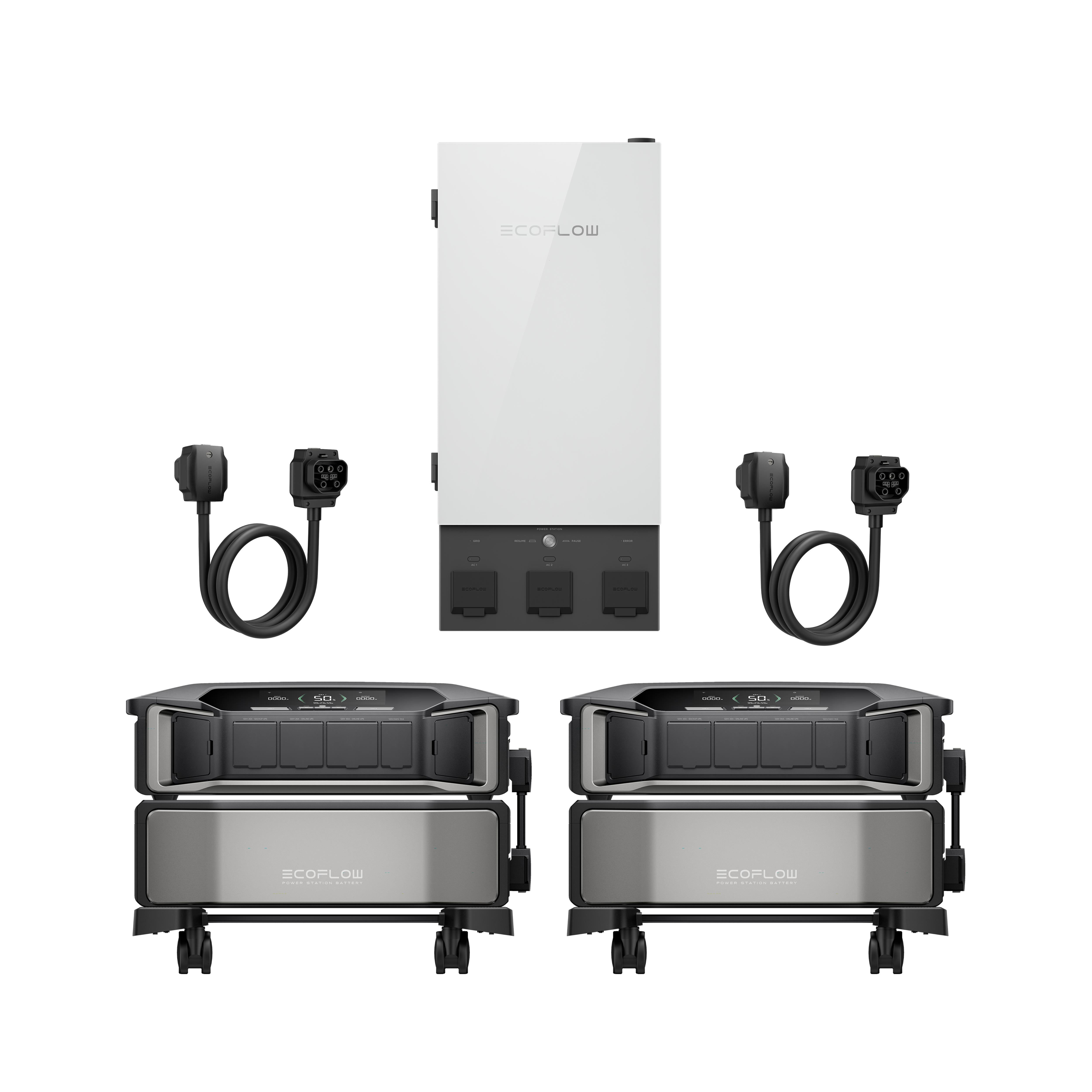

EcoFlow Smart Home Panel 2 is the hub of the powerful EcoFlow DELTA Pro Ultra that allows you to get the full potential out of your energy system. Connect your home circuits with up to 3 plug-and-play inverters and 15 stackable 6kWh batteries, it not only takes care of your backup for even longer but allows you to control and run every single household appliance.EcoFlow Smart Home Panel 2 is not only future-proofed to work with our next-gen power solutions, but it works with EcoFlow DELTA Pro, too.
Even the backup plan has a backup plan
Compatible with Solar and Gas Generators
EcoFlow Smart Home Panel 2 can manage your energy from various sources, including solar and gas. With the sun's rays, brighten your home with cost-effective green energy and dramatically reduce your electricity expenses.When the weather turns gray and you're all out of sunshine, a seamless connection to any 3-12kW portable gas generator ensures your home stays energized without a hitch.
The nights of fumbling for a torch are over.
20-ms Auto-Switchover
When an outage hits, there's no need to brave the dark, cold night to switch to your backup manually. EcoFlow Smart Home Panel 2's automatic switchover feature ensures your home remains powered even when you're away. Forget spoiled food and damaged appliances. Embrace uninterrupted power so that life never stops.
Leave the power prep to the pro.
EcoFlow App
EcoFlow Smart Home Panel 2 ensures your home is blackout-proof with ample energy at all times. Even when an outage lingers on, it's business as usual.
Backup Extension
Categorize your home circuits into three levels of power supply priority with Circuit Control mode. Ensure protection for the most mission-critical tasks and massively extend backup time.
Emergency Weather Prep
With automatic storm warnings mode, batteries fully recharge 24 hours before an extreme weather event. Locking energy until an outage occurs. EcoFlow Smart Home Panel 2 monitors the weather hourly, updating the system based on the forecast, offering a more precise backup strategy.
Savings just roll on in.
With the EcoFlow App
With Backup Reserve mode, EcoFlow Smart Home Panel 2 secures an assigned battery percentage. Fear an impending outage? Set a higher reserve for home backup. For everyday use, set a lower portion and customize your EcoFlow Smart Home Panel 2's performance using Self-Power, Scheduled Tasks, or TOU Modes to lower your energy bills.
TOU Mode
Based on Time Of Use peak and off-peak rates and your energy habits, EcoFlow Smart Home Panel 2 intelligently manages battery charge and discharge, significantly offsetting electricity costs.
Self-Power Mode
Once battery capacity exceeds the pre-set reserve, solar begins to top up energy supplies while powering the home to lower utility bills.
See your entire energy strategy at work.
EcoFlow App, PowerInsight & Web Dashboard
View real-time energy insights for your home anywhere you go. On your phone, wall-mounted dash, or even online. Get a complete home energy consumption overview as well as solar and gas input, battery capacity, and much more. With EcoFlow Smart Home Panel 2 comes PowerInsight, a wall-mounted screen, and a web dashboard, accessible anywhere online.
EcoFlow app
Monitor, control, and customize your power usage at your fingertips.
EcoFlow PowerInsight
Home Energy Manager, an all-in-one dedicated monitor.
Web dashboard
A full suite of data and customizations accessible online.

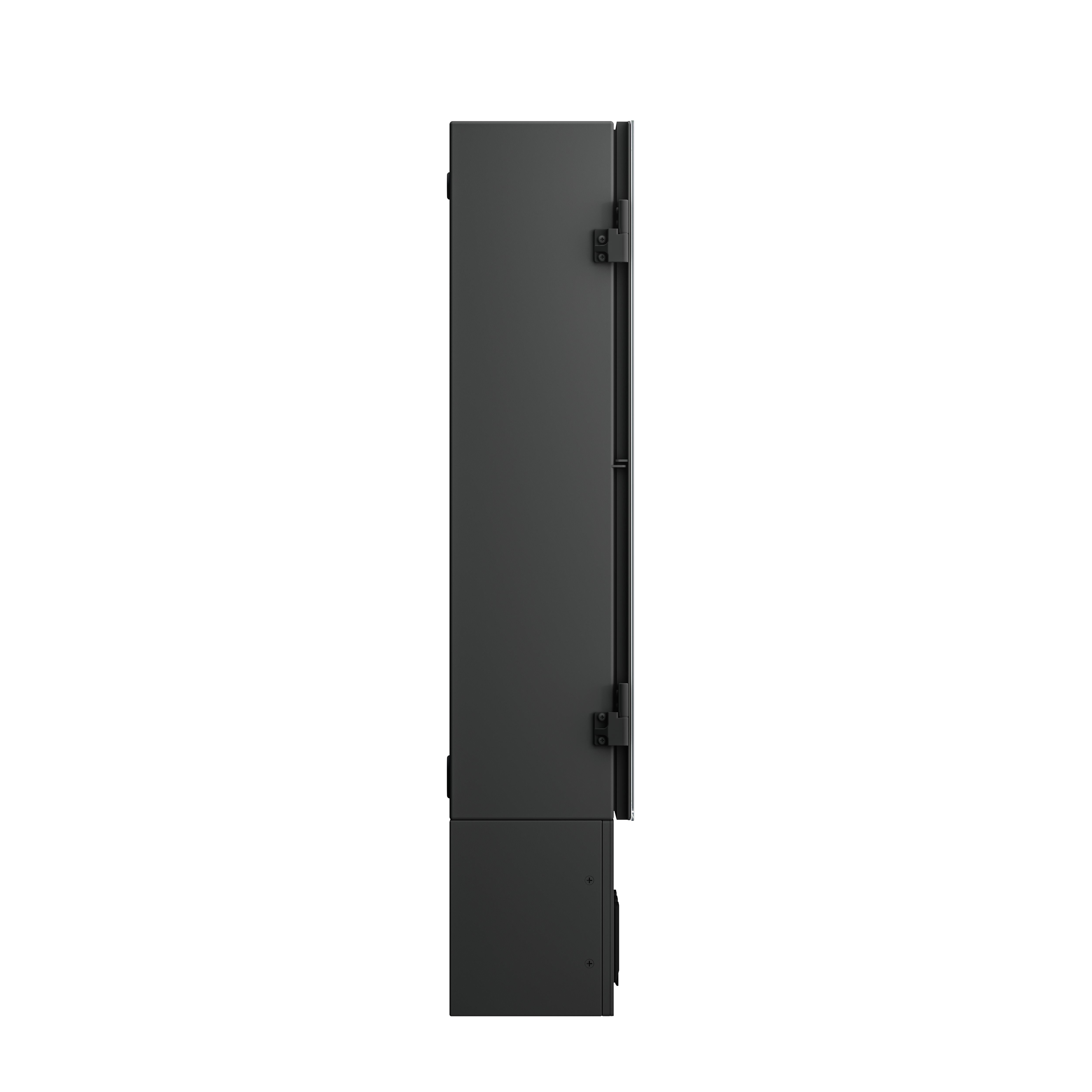

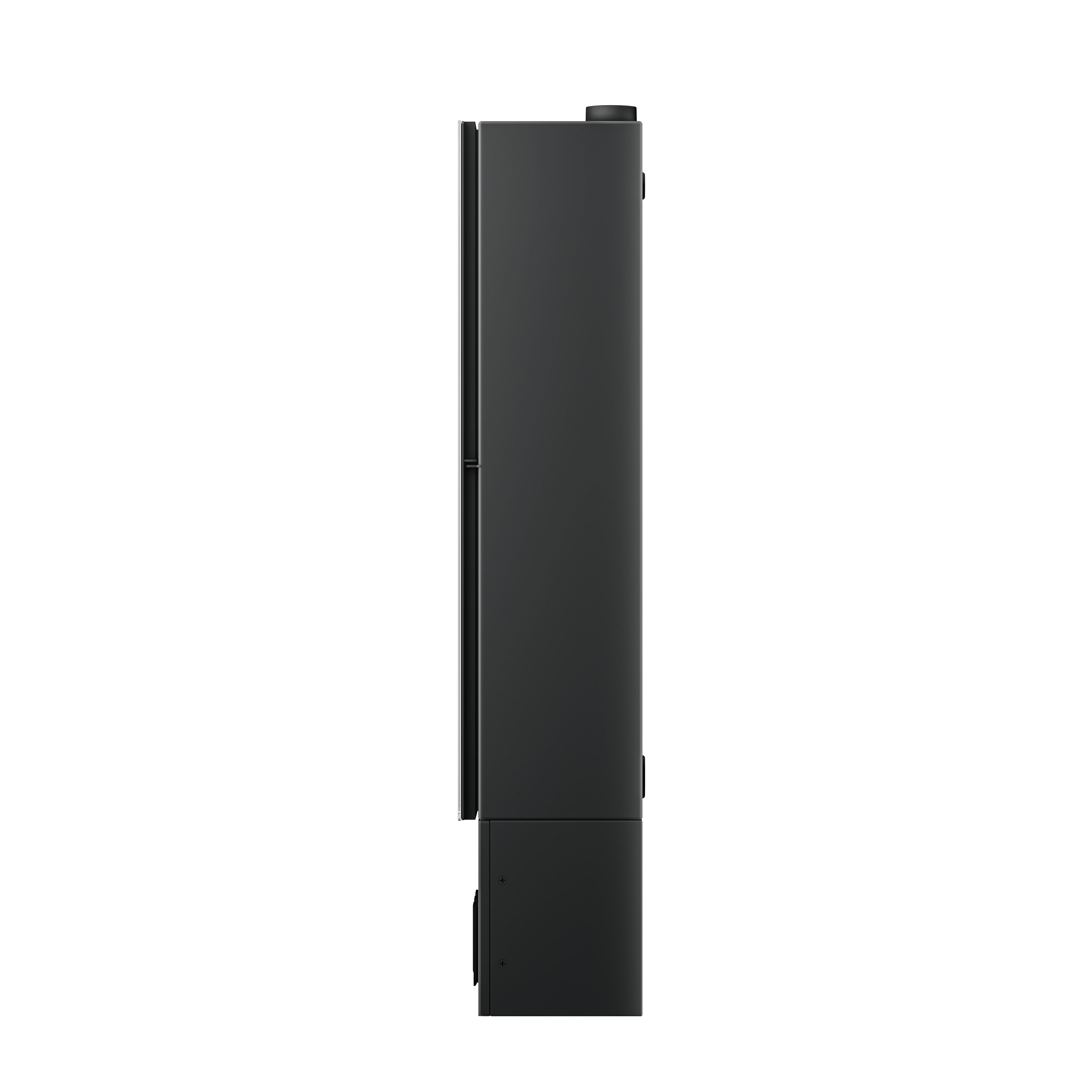

Fits into your home with ease.
Modular design
To work with your home layout, decor, and to save space, we've split EcoFlow Smart Home Panel 2 into two modules—a battery connection box and a distribution panel. Install each separately or together with less wiring and more flexibility to place your batteries.
What’s in the box
EcoFlow Smart Home Panel 2 Specifications:
| Brand | EcoFlow |
| Model | EcoFlow Smart Home Panel 2 |
| AC voltage (nominal) | 120V/240V |
| Feed-in type | Split phase |
| Maximum current rating | 100A panel / 90A storage |
| Busbar rating | 120A |
| Maximum input short-circuit current | 10kA |
| Operating temperature | −30 to 50℃ (−22°F to 122°F) |
| Operating humidity | Up to 100% RH, condensing |
| Altitude | ≤ 2000 m (6562 ft) |
| Overvoltage category | IV |
| Enclosure type |
NEMA TYPE 3R (distribution panel) NEMA TYPE 1 (battery connection box) |
| Number of load branches | 12 |
| Communication | Ethernet, Wi-Fi, Bluetooth |
| Wi-Fi |
Frequency range: 20M: 2412 - 2472 MHz / 40M: 2422- 2462 MHz Maximum output power: ≤ 16.5 dBm |
| Bluetooth |
Frequency range: 2402-2480MHz Maximum output power: ≤ 8.76 dBm |
| Weight | 52.9 lb (24 kg) |
| Dimensions | 32.4 x 14.9 x 6.7 in. (823.7 x 379 x 170 mm) |
| Compatible generator | 120V single phase / 240V split phase (3-12kW) |
EcoFlow DELTA Pro Ultra Battery Specifications:
| Brand | EcoFlow |
| Model | EFYJ751-BP |
| Net Weight | 52.7 kg (116.4 lb) |
| Dimensions | 660 × 455 × 204 mm (26 × 18 × 8 in.) |
| Capacity | 102.4V⎓60A, 6,144Wh |
| Battery | |
| Cell Material | LFP |
| Cycle Life | The battery maintains 80%+ SOH (state of health) after 3,500 cycles at 0.5C/0.5C at 25°C (77°F) |
| Protection type | Overvoltage protection, overload protection, overtemperature protection, short circuit protection, low temperature protection, low voltage protection, overcurrent protection |
| Other | |
| Temperature |
Discharging temp: −20°C to 45°C (−4°F to 113°F) Charging temp: −20°C to 45°C (−4°F to 113°F) Storage temp: −20°C to 45°C (−4°F to 113°F) (optimum: −20°C to 45°C(68°C to 86°F)) |
| Altitude | ≤3,000 m (9,842 ft.) |
| IP Rating | IP54 |
EcoFlow DELTA Pro Ultra Inverter Specifications:
| Brand | Ecoflow |
| Model | EFYJ751-PCS-US |
| Net Weight | 31.7 kg (70 lb) |
| Dimensions | 690 × 481 × 214 mm (27.2 × 18.9 × 8.4 in.) |
| Wi-Fi |
Frequency range: 2,412-2,462MHz/2,422-2,452MHz Maximum output power: 0.3597W |
| Bluetooth |
Frequency range: 2,402-2,480MHz Maximum output power: 0.0109W |
| Output | |
| AC Output |
Discharging: Pure sine, 7,200W total, 120V/240V~ 60Hz Bypass: 100-120V~30A total, 50Hz/60Hz |
| USB Ports |
USB-A (× 2): 5V⎓2.4A, 12W max per port, total 24W USB-C (× 2): 5/9/12/15/20V⎓5A, 100W max per port, total 200W |
| DC Output | 12.6V⎓30A, 378W max |
| Input | |
| AC Input |
Charging: 100-120V~15A; 200-240V~12.5A, 50/60Hz Bypass: 100-120V~15A, 50/60Hz (duration < 3hrs when the current exceeds 12A) |
| Power Input/Output | 100-120~30A; 200-240V~30A, 50/60Hz |
| High-PV | 80-450V⎓15A max, 4,000W max |
| Low-PV | 30-150V⎓15A max, 1,600W max |
| Other | |
| Temperature |
Discharging temp: −20°C to 45°C (−4°F to 113°F) Charging temp: −20°C to 45°C (−4°F to 113°F) Storage temp: −20°C to 45°C (−4°F to 113°F) (optimum: −20°C to 45°C(68°C to 86°F)) |
| Altitude | ≤3,000 m (9,842 ft.) |
| IP Rating | IP54 |
| Noise Level | <30 dB |
| UPS | Backup UPS <20 ms; online UPS 0 ms |
| Communication Method | CAN & Bluetooth & Wi-Fi & Ethernet & 4G |
