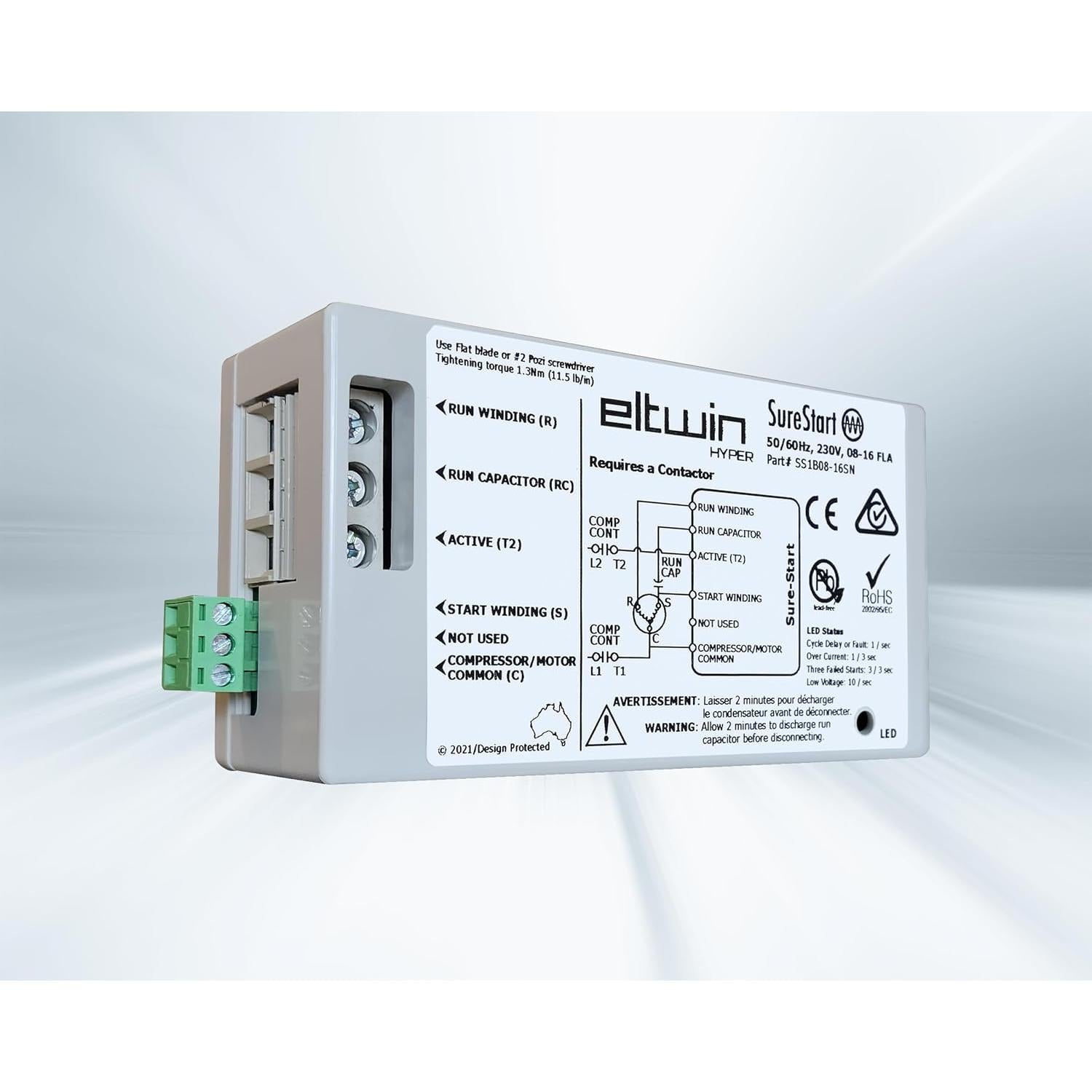

Eltwin Hyper SureStart Single Phase Soft Starter 230V (8-16 FLA) - SS1B08-16SN
Give large compressors and motors a soft start and extend their lifetime. Achieve over 60% reduction in startup current for your AC unit and pumps with our range of single phase SureStart solutions.
SureStart Series is the original single-phase soft starter specifically targeted to reduce light flicker caused by the startup of fixed speed permanent split-capacitor motors (PSC). These motors are often of the scroll compressor types which are commonly used in air-conditioning and heat pump applications.
Features
- 60-70% reduction in direct on-line (DOL) or in-rush current
- Sophisticated under voltage protection
- Motor reversal protection
- Self-adjusting up to nominal 7 hp for optimal start performance
- 50/60 Hz compatible
- ETL, CE, EMC, and RoHs compliant
- Tolerant to “dirty power” conditions
- Versions available for retrofit installations or OEM production use
- Fault LED
- Internal Current Limiting
Designed for
- Motors Between 1.5 - 7 HP
- For applications w/ 8-16 Full Load Amps (FLA)
Applications
- HVAC/R
- Irrigation/submersible pumps
- Compressors
- Marine/RV
- Solar power
- RV/trucks
- Military/government
- Backup generators
Specifications:
| SKU | SS1B08-16SN |
| Weight (in lbs) | 2.000000 |
| Brand/Manufacturer | Eltwin |
| Additional Information | Power Supply & Control voltage: Auto-Start at Power Up |
| Electrical | 208 / 230 V. 1 Phase 50Hz/60Hz |
| Amperage Requirement | 8A - 16A max FLA range |
| Temperature Control Range | -4° F to 140° F |
| Height | 2" |
| Width | 3" |
| Depth | 5 1/4" |
| Warranty | 1 Year |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
