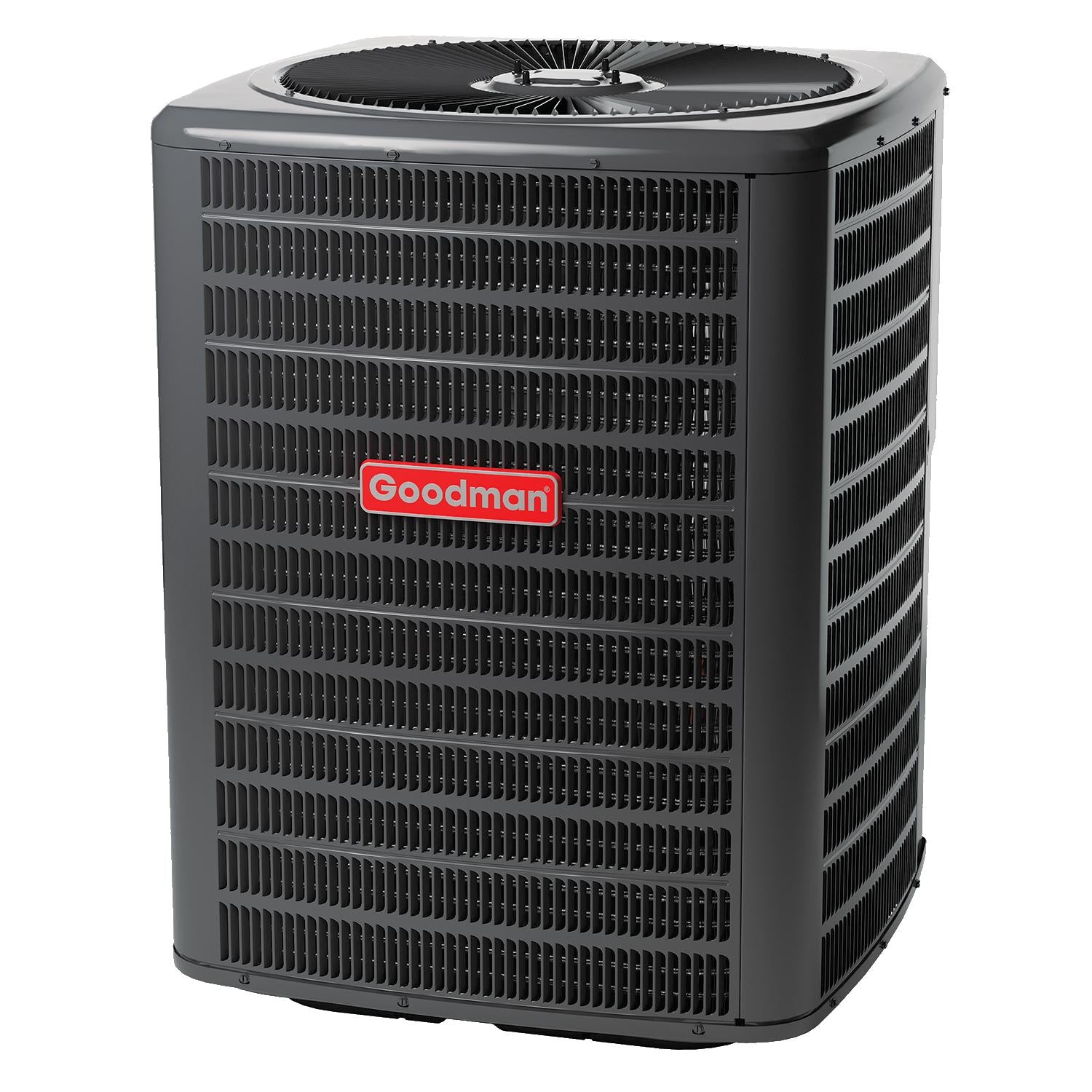

Goodman 1.5 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA1810
The Goodman 1.5 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA1810 will provide you with reliable cooling and heating at money-saving energy efficiency levels as compared to lower SEER heat pump units. Your Goodman heat pump condenser starts with an energy-efficient compressor, which operates in tandem with our high-efficiency coil. These high-quality components together cool and heat your home.
Standard Features:
- High-efficiency compressor
- SmartShift® technology to ensure quiet reliable defrost
- Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
- Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
- Single-speed PSC condenser fan motor
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Fully charged for 15’ of tubing length
- Fully enclosed contactor with lug connection
- Ground lug connection
- Capacitors with extended life
- AHRI Certified; ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman® |
| Model | GLZS4BA1810 |
| Warranty |
10 Years Parts Warranty 10 Years Compressor Warranty |
| SEER2 | 14.3 |
| HSPF2 |
7.8 |
| Nominal Capacities |
Cooling (BTU/h): 18,000 Heating (BTU/h): 18,000 Decibels: 74 |
| Compressor |
RLA: 8.2 LRA: 41.2 Stage: Single Type: Rotary |
| Condenser Fan Motor |
Motor Type: PSC Horsepower: 1/6 FLA: 0.95 |
| Refrigeration System |
Refrigerant Line Size
Refrigerant Connection Size
Refrigerant Type: R-32 Valve Connection Type: Sweat Refrigerant Charge (oz.): 70 |
| Electrical Data |
Volts/Phase (60 Hz): 208/230-1-60 Minimum Circuit Ampacity: 11.2 Max. Overcurrent Protection: 15 Min / Max Volts: 197/253 Electrical Conduit Size: 1/2" or 3/4" |
| Equipment Weight (lbs.) | 150 |
| Ship Weight (lbs) | 165 |

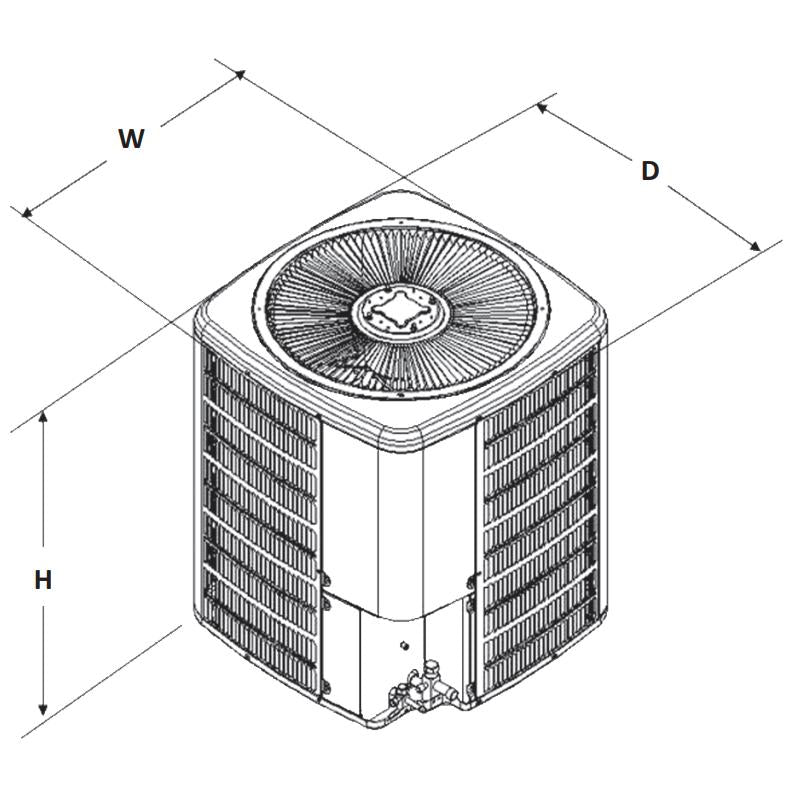

| Dimensions (W x D x H) | 29 x 29 x 32-1/2 inches |
| Resources |
