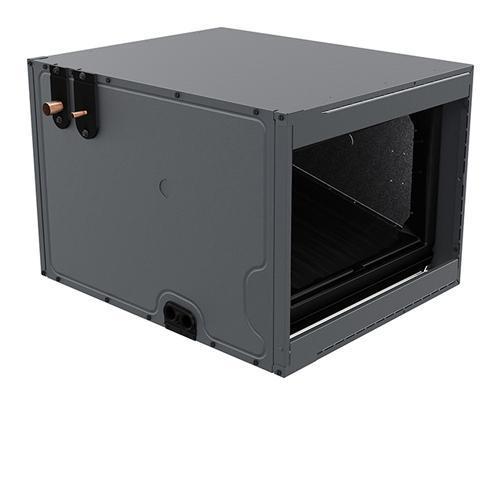

Goodman 1.5 Ton R-32 Horizontal A Evaporator Coil With Internal TXV (22" W x 21" D x 17-1/2" H) - CHPTA1822B3
Upgrade Your HVAC System: The Goodman 1.5 Ton R-32 Horizontal A Evaporator Coil With Internal TXV (22" W x 21" D x 17-1/2" H) - CHPTA1822B3 represents HVAC evolution. Constructed with corrosion-resistant aluminum, it boasts grooved tubing for better heat transfer. Rigorous helium pressure tests during its making vouch for its quality. This unit is tailored for versatile, long-standing cooling and heating needs.
Standard Features:
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- CAPTA and CHPTA models feature factory installed thermal expansion valves for cooling and heat pump applications
- CAPEA and CHPEA models feature:
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
- Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment
- Cooling and heat pump applications
- Fault recall of six most recent faults
- CAPFA models feature optimized metering devices (piston)
- Standardized copper suction tube stub length
- Vertical and horizontal models available
- 21" depth for easier attic access
- CAPFA, CAPTA, CHPTA and CAPEA, CHPEA include single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified; ETL listed
Note: Do not use these coils on oil furnaces or any applications where the temperature on the drain pan may exceed 300° F. If these coils are applied with an oil furnace or another application where high temperatures threaten or jeopardize the durability of the drain pan, you must replace the factory-installed drain pan with a high-temperature drain pan. High-temperature drain pan kits are available as field-installed accessories.
Specifications:
| Brand | Goodman |
| Model | CHPTA1822B3 |
| Warranty | 10 Years |
| Refrigerant Type | R-32 |
| Coil Application | Horizontal A |
| Cased/Uncased | Cased |
| Cabinet Dimensions (W x D x H) | 22" x 21" x 17-1/2" |
| Nominal Tons | 1-1/2 |
| Connections |
Liquid: 3/8" Suction: 3/4" |
| Ship Weight | 50 lbs |
| Resources |
