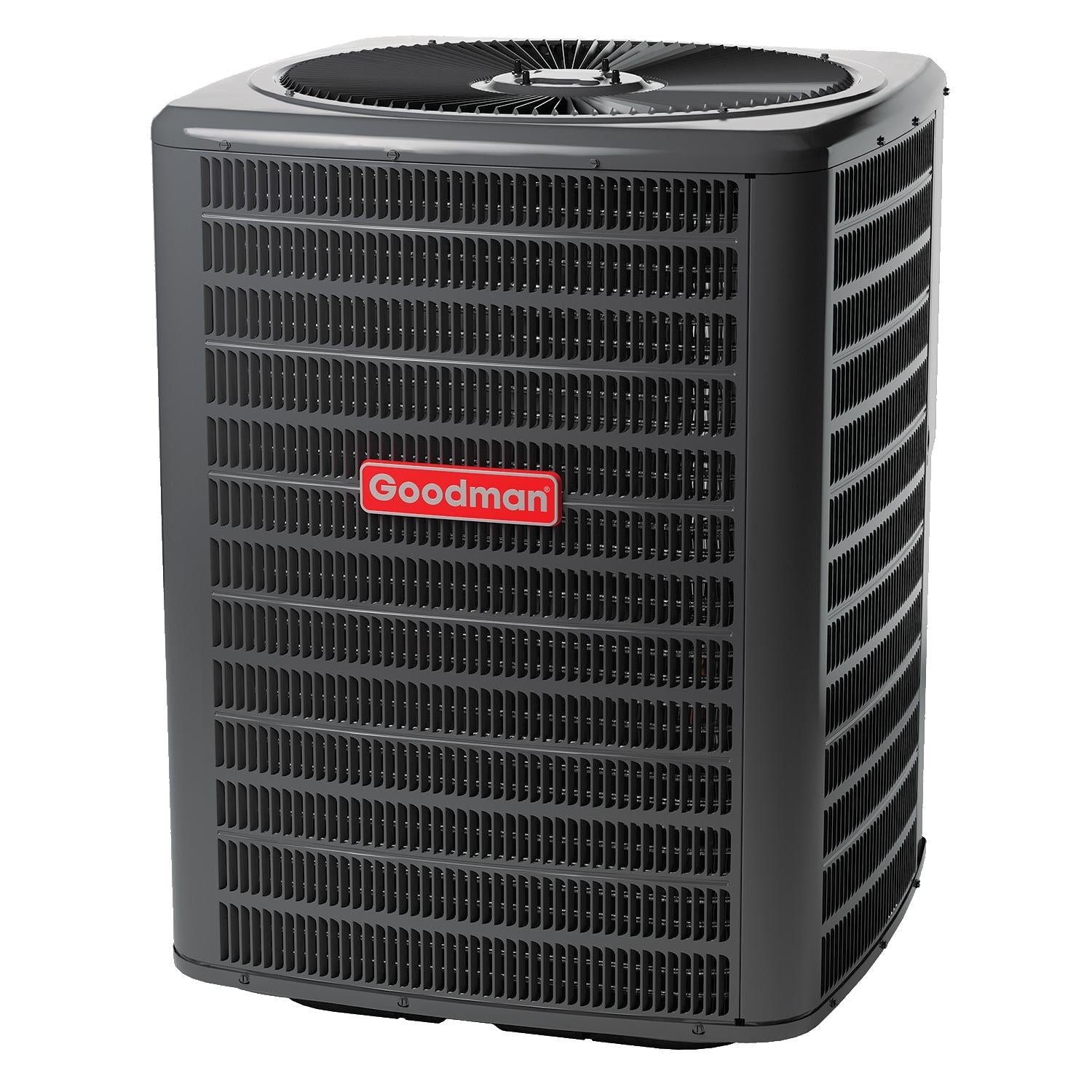

Goodman 2.5 Ton 14.3 SEER2 Multi-Family Series R-32 Air Conditioner Condenser (Scroll Compressor) - GLXS4MA3010
The Goodman 2.5 Ton 14.3 SEER2 Multi-Family Series R-32 Air Conditioner Condenser (Scroll Compressor) - GLXS4MA3010 uses the environmentally friendly refrigerant R-32 and features the unique Goodman sound control top design for quiet operation. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.
Standard Features:
- High-Efficiency Scroll Compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- 5mm diameter copper tube/ enhanced aluminum fin coil
- Service valves with sweat connections and easy-to-access gauge ports
- Enclosed contactor
- Ground lug connection
- Capacitors with extended life
- High-pressure switch
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille style top style grill design compatible with UL 60335-2-40
- Heavy-gauge galvanized-steel cabinet
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Steel louver coil guard
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GLXS4MA3010 |
| Warranty |
10 Years Parts Warranty 10 Years Compressor Warranty |
| SEER2 | 14.3 |
| Cooling Capacity |
Nominal Cooling (BTU/h): 30,000 Decibels (dBA): 70.0 |
| Compressor |
RLA: 11.5 LRA: 66.3 Stage: Single Type: Scroll |
| Condenser Fan Motor |
Motor Type: PSC Horsepower (RPM): 1/6 FLA: 0.95 |
| Refrigeration System |
Refrigerant Line Size
Refrigerant Connection Size
Valve Connection Type: Sweat Refrigerant Type: R-32 Refrigerant Charge: 64 oz |
| Electrical Data |
Voltage-Phase (60 Hz): 208/230-1-60 Minimum Circuit Ampacity: 15.4 Max. Overcurrent Protection: 25.0 Min / Max Volts: 197 / 253 Electrical Conduit Size: 1/2" or 3/4" |
| Equipment Weight (LBS) | 152 |
| Ship Weight (LBS) | 167 |

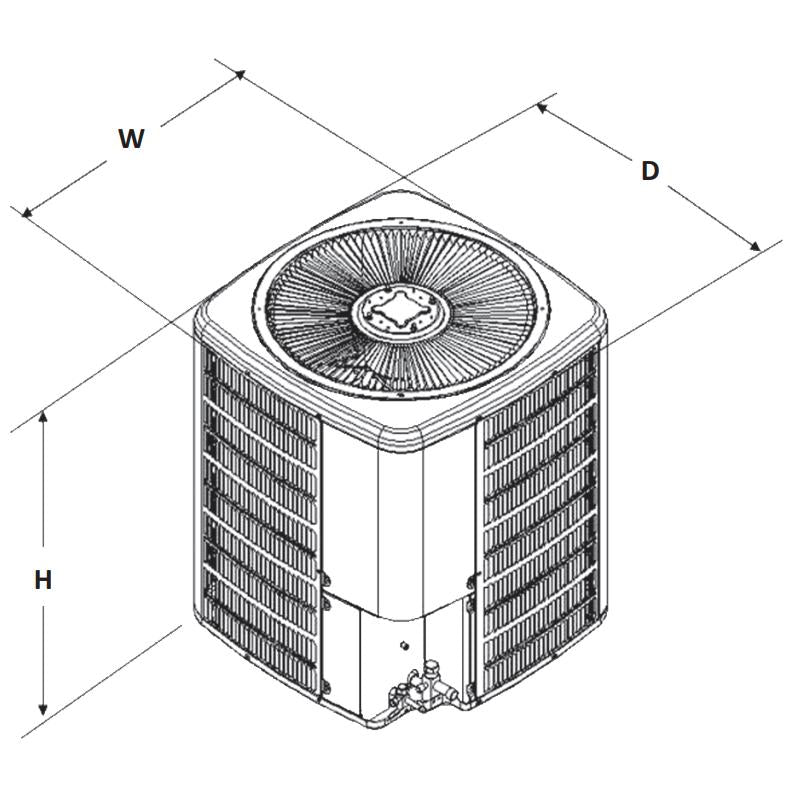

| Dimensions (W x D x H) | 29 x 29 x 35-3/4 inches |
| Resources |
