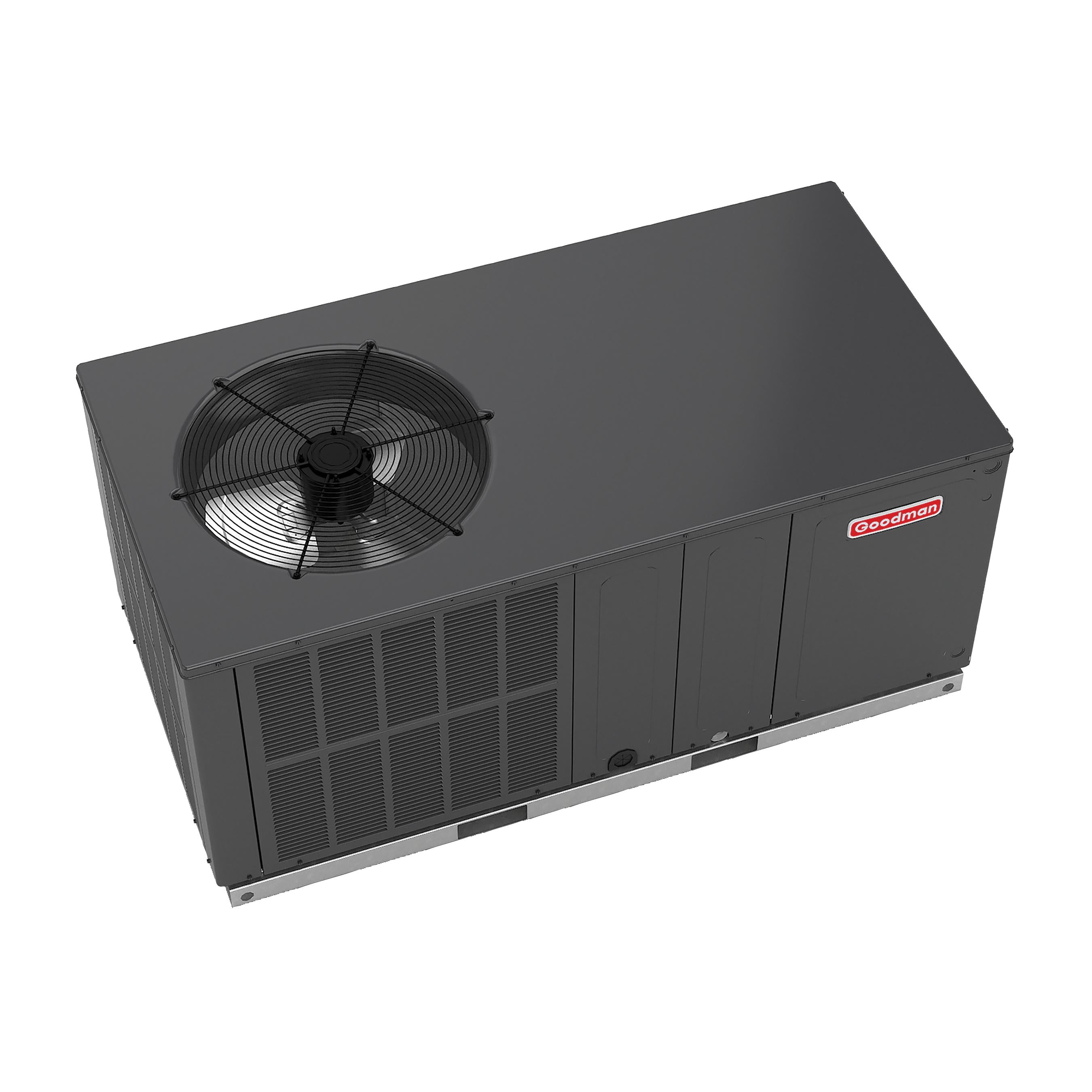

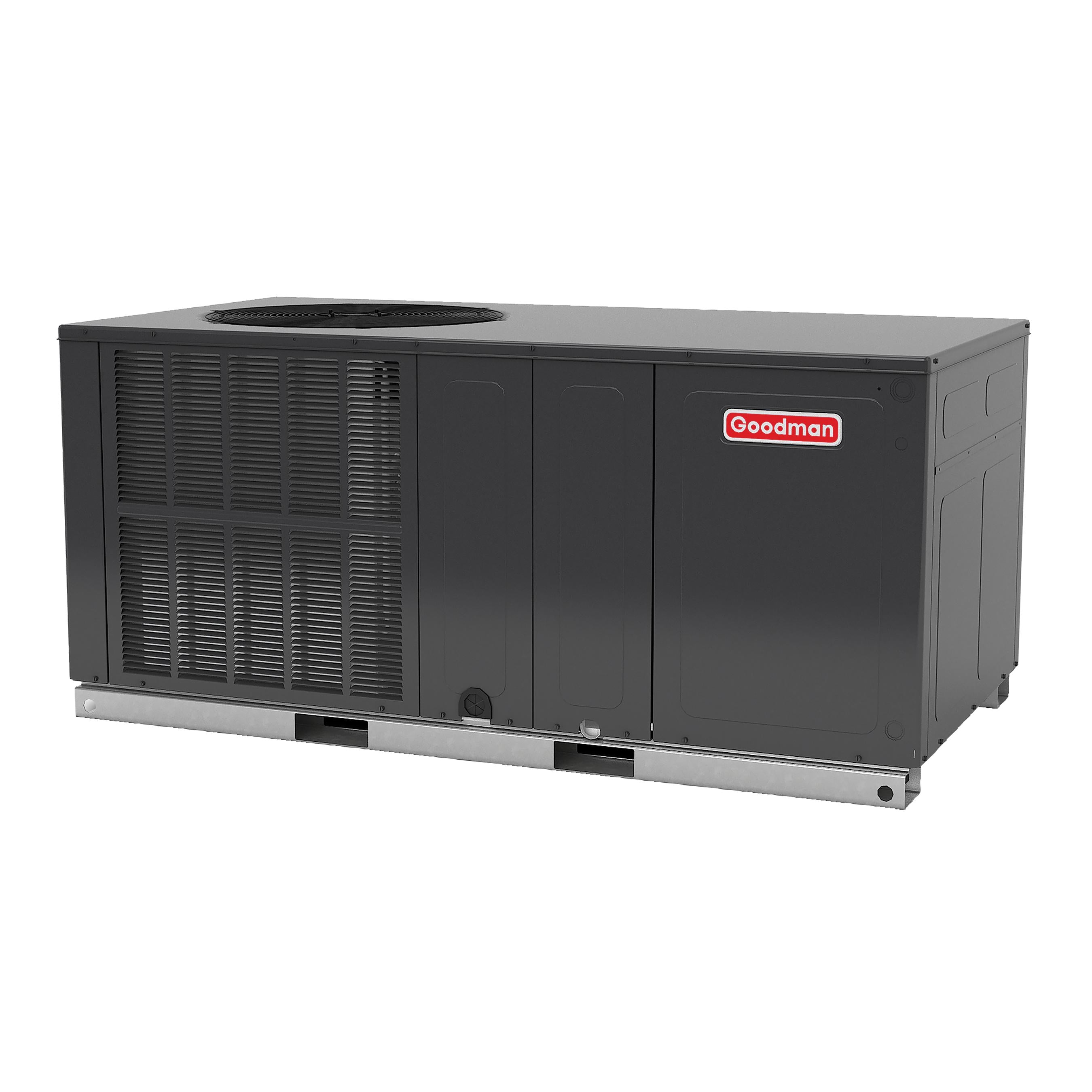

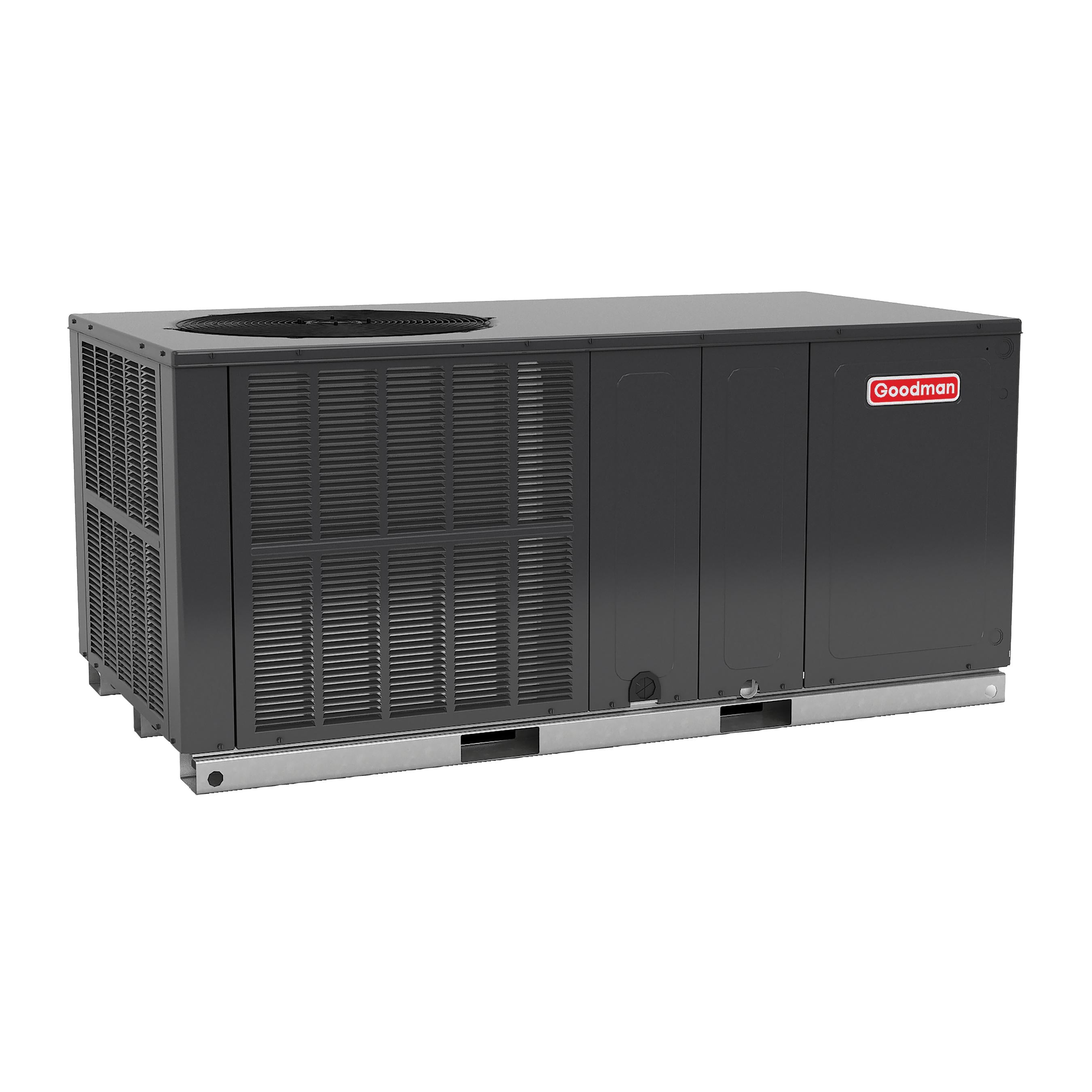

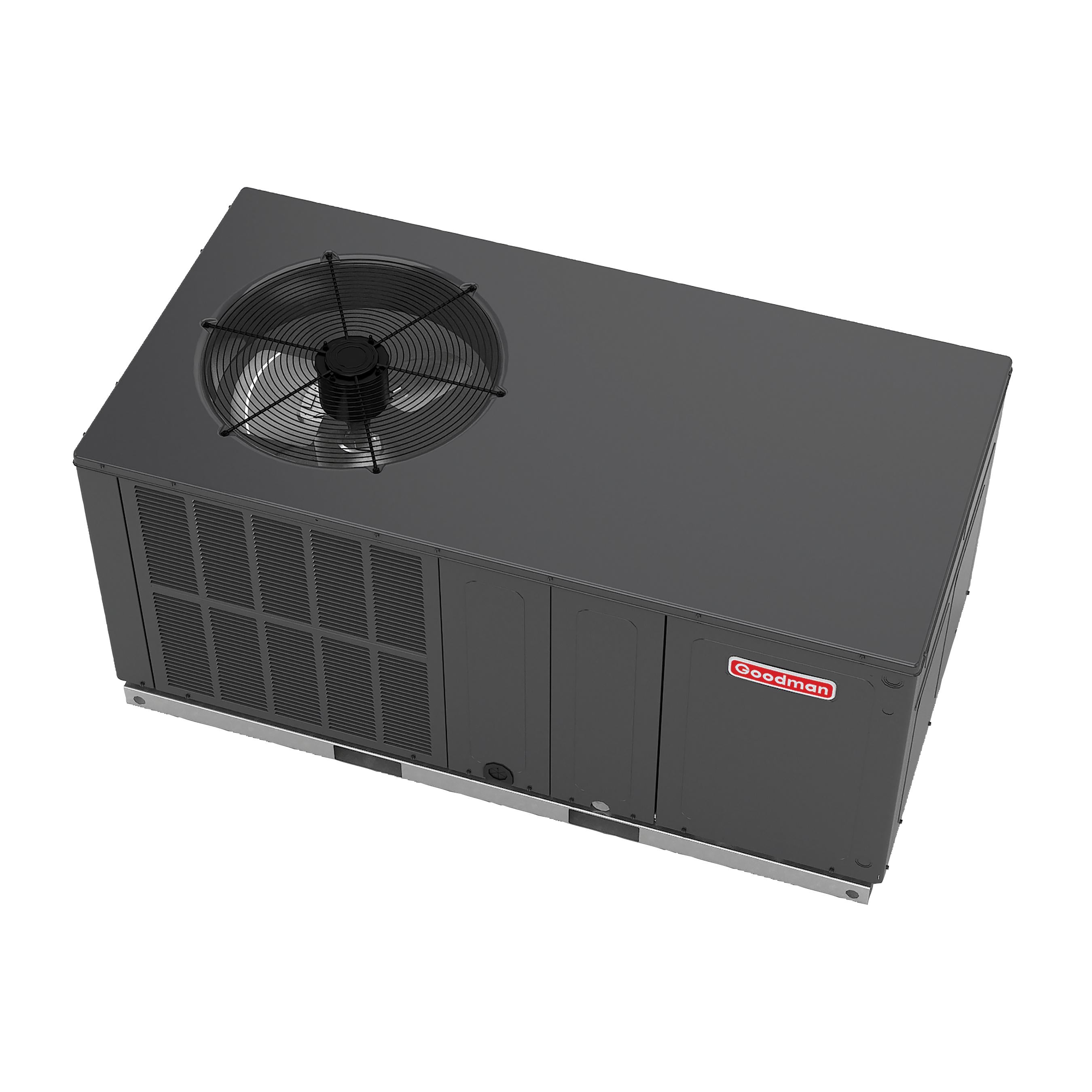

Goodman 2.5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH53041
Elevate your home comfort with Goodman's all-inclusive solution: the Goodman 2.5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH53041. Seamlessly blending efficiency and performance, this unit integrates a Goodman heat pump, evaporator coil, and Multi-speed ECM blower, ensuring optimal heating and cooling throughout the year—all from one sleek system.
Crafted with a scroll compressor for consistent refrigerant flow and Goodman's premium coil design, this unit guarantees high efficiency, whether you're warming up on chilly nights or staying cool during scorching summers. Plus, with its user-friendly access panels, installation and maintenance are a breeze, saving you time and hassle.
Upgrade your home's comfort effortlessly with the Goodman 2.5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH53041—a reliable, all-encompassing solution designed to streamline your living space's climate control needs.
Standard Features:
- High-efficiency scroll compressor
- Multi-speed ECM indoor blower motor
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Quiet horizontal discharge
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Louvered condenser coil protection
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GPHH53041 |
| Warranty | 10 Years Parts Warranty with online registration |
| Configuration | Horizontal |
| Cooling Capacity |
Total BTU/h: 27,600 Sensible BTU/h: 22,411 SEER2 / EER2: 15.2 / 11.4 AHRI Numbers: 208842423 |
| Heating Capacity |
BTU/h (47°F): 27,600 C.O.P. (47°F): 3.26 BTU/h (17°F): 14,800 C.O.P. (17°F): 2.32 HSPF2: 6.70 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10" x 8" Cooling CFM: 1,050 Fan-Only CFM: 950 No. of Speeds: 5 Horsepower - RPM: 1/2 - 1,050 |
| Evaporator Coil |
Face Area (ft²): 5.26 Rows Deep: 4 Fins per Inch: 14 Metering Device Type: TXV Drain Size (NPT): 3/4" - 14 NPT Refrigerant Charge (oz.): 116 |
| Condenser Fan |
Horsepower - RPM: 1/6 - 810 Fan Diameter: 22 # of Fan Blades: 3 |
| Condenser Coil |
Face Area (ft²): 13.92 Rows Deep: 2 Fins per Inch: 16 Metering Device Type: Piston |
| Compressor |
Quantity: 1 Type: Scroll Stage: Single |
| Sound Power (dBA) | 76 |
| Electrical Data |
Compressor RLA/LRA: 14.1 / 67.9 Voltage/Phase (60 Hz): 208-230 / 1 Indoor Blower FLA: 3.8 Outdoor Fan FLA: 0.95 M.C.A: 22.4 M.O.P: 35 |
| Operating Weight (LBS) | 315 |
| Shipping Weight (LBS) | 324 |
| Dimensions (W x D x H) | 66 x 34 x 30 inches |
| Duct Openings Dimensions |
Supply (W x H): 14 x 14 inches Return (W x H): 14 x 22 inches |
Product Information and Guides:
