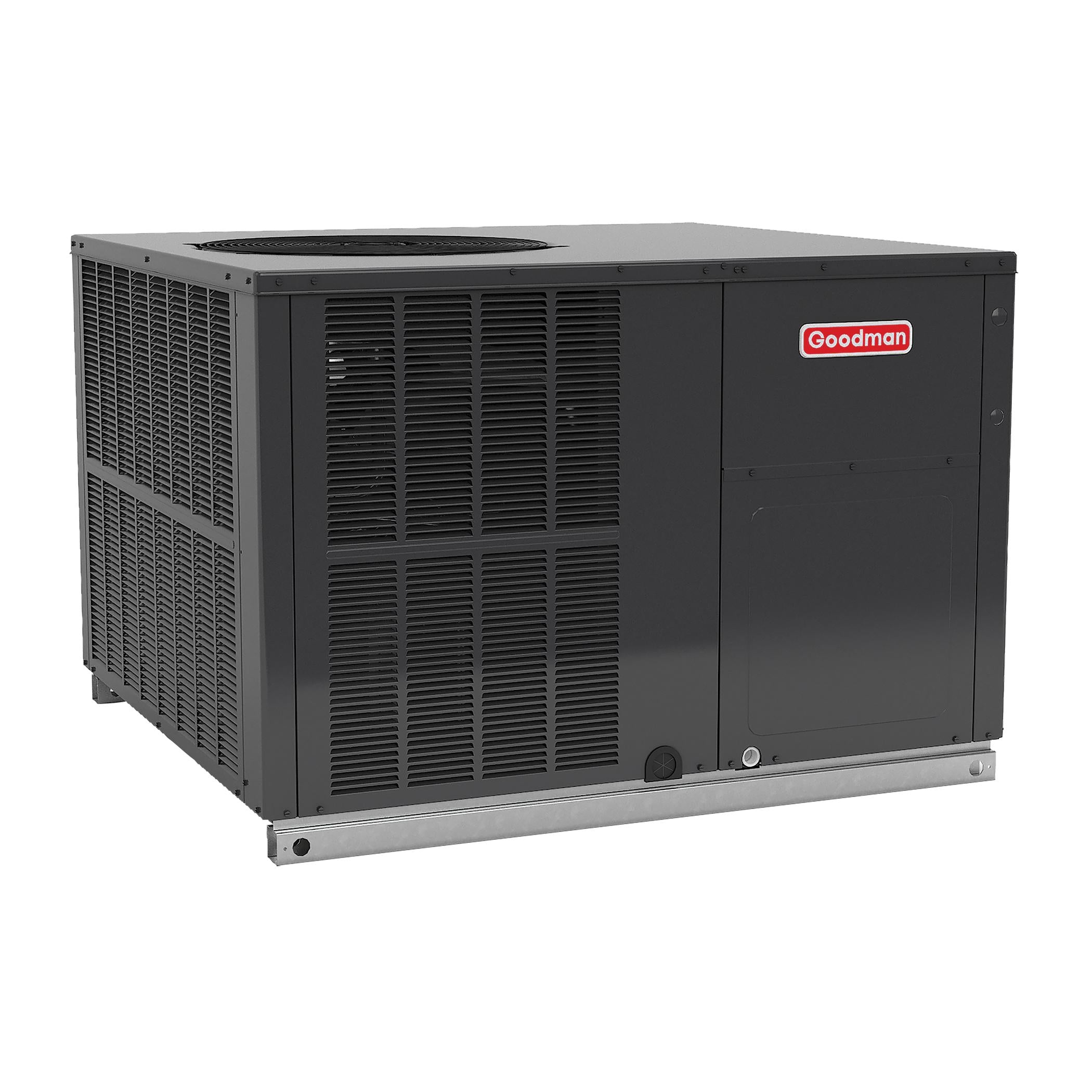

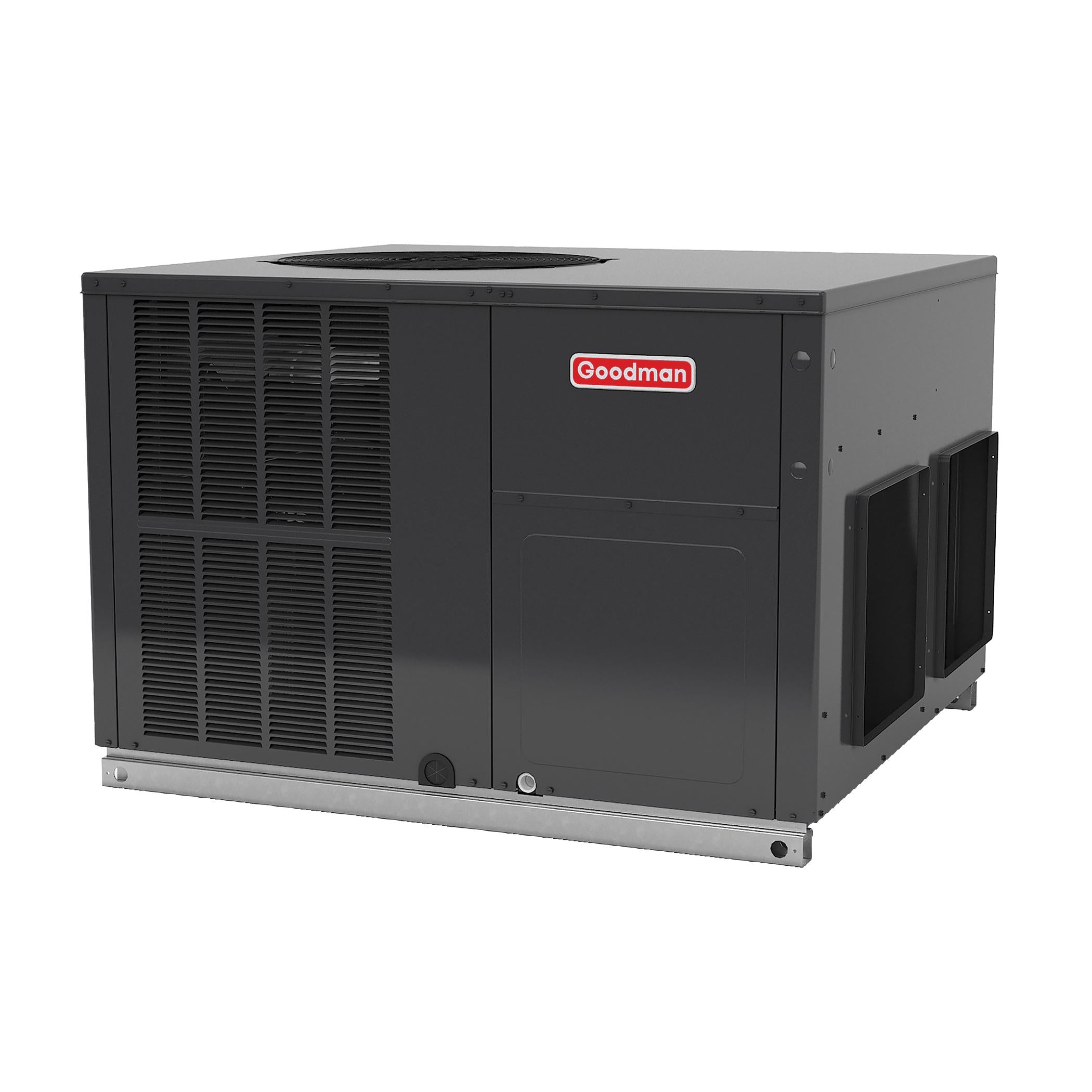

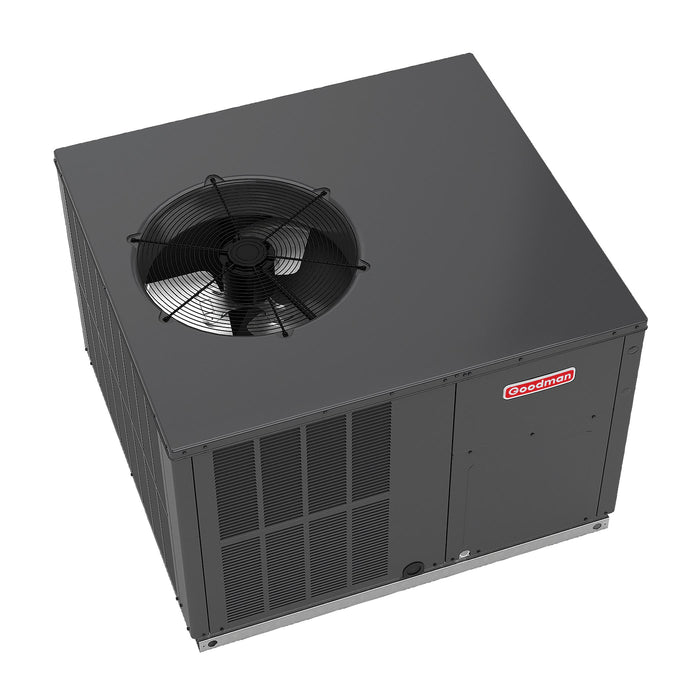

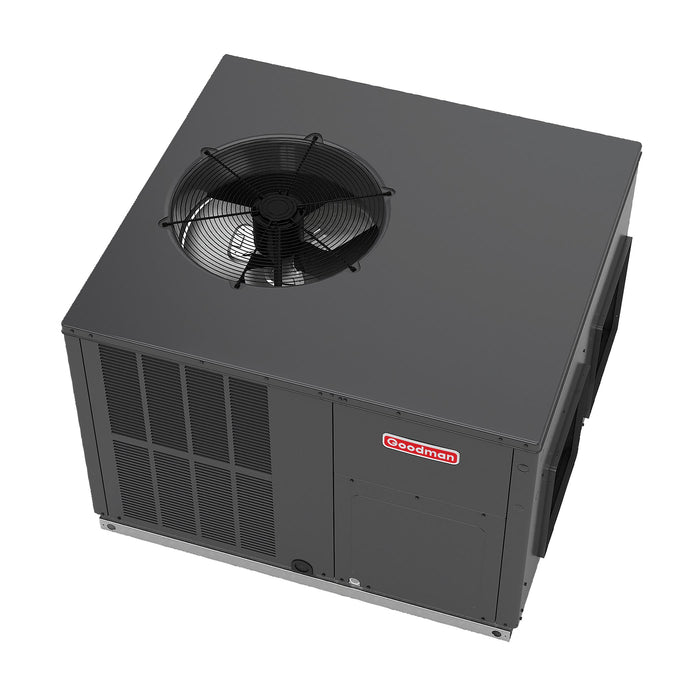

Goodman 2 Ton 13.4 SEER2 Multi-Position Packaged Air Conditioner - GPCM32441
The Goodman 2 Ton 13.4 SEER2 Multi-Position Packaged Air Conditioner - GPCM32441 features energy-efficient cooling performance in one self-contained unit. The Goodman 2 Ton 13.4 SEER2 Multi-Position Packaged Air Conditioner - GPCM32441 is housed in a heavy-gauge, galvanized-steel cabinet protected by a high-quality, UV-resistant powder-paint finish. This unit allows for ground-level or rooftop applications, and is approved for manufactured or modular homes. THIS ITEM IS NOT A HEAT PUMP.
Standard Features:
- Energy-efficient scroll compressor
- Multi-speed ECM indoor blower motor
- Convertible airflow: horizontal or downflow application
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- Louvered condenser coil protection
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
Specifications:
| Brand | Goodman |
| Model | GPCM32441 |
| Warranty | 10 Years Parts Warranty with online registration |
| Configuration | Multi-Position |
| Cooling Capacity |
Total BTU/h: 22,800 Sensible BTU/h: 17,400 SEER2 / EER2: 13.4 / 10.6 AHRI Numbers: 210286382 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10 x 9 Cooling CFM3: 800 No. of Speeds: 5 Horsepower - RPM: 1/2 - 1050 |
| Evaporator Coil |
Face Area (ft2): 4.55 Rows Deep: 4 Fins per Inch: 14 Metering Device Type: Piston Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 79 |
| Condenser Fan |
Horsepower - RPM: 1/6 - 815 Fan Diameter: 22 # of Fan Blades: 3 |
| Condenser Coil |
Face Area (ft2): 12.29 Rows Deep: 1 Fins per Inch: 24 |
| Compressor |
Quantity: 1 Type: Scroll Stage: Single |
| Sound Power (dBA) | 78 |
| Electrical Data |
Compressor RLA/LRA: 13.5 / 58.3 Voltage/Phase (60 Hz): 208/230-1 Indoor Blower FLA: 3.8 Outdoor Fan FLA: 0.95 M.C.A.1: 21.6 M.O.P.2: 35 |
| Ship Weight (LBS) | 319 |
| Dimensions (W x D x H) | 47 x 51 x 34-3/4 |
| Duct Openings Dimensions |
Supply (W x H): 16 x 16 Return (W x H): 16 x 16 |
Product Information and Guides:
