Goodman 2 Ton 15.2 SEER2 Multi-Position R-32 Heat Pump System with Air Handler (GLZS4BA2410 Condenser and AMST30BU1300 Air Handler)
High-Performance Bundle: Discover the power of the Goodman HVAC 2 ton GLZS4BA2410 heat pump condenser and AMST30BU1300 air handler bundle. With a system SEER2 rating of 15.2, this bundle combines advanced features like an energy-efficient compressor, copper tube/enhanced aluminum fin coil, and internal thermal expansion valves for reliable cooling, durability, and energy savings.
Superior Performance & Reliability: The GLZS4BA2410 heat pump features an efficient copper tube/enhanced aluminum fin coil, a suction-line accumulator, a compressor crankcase, and service valves for easy maintenance. It comes fully charged with enough refrigerant for 15ft of lineset for a simplified installation process and is AHRI Certified and ETL Listed.
Efficient Comfort & Easy Setup: Experience energy-efficient indoor comfort with the GLZS4BA2410. Its single-speed condenser fan motor ensures consistent airflow for optimized performance. The unit comes pre-charged with refrigerant for a seamless installation process. Contractors will appreciate the convenient large screw lugs for secure wiring and easy connection of the ground wire.
Efficient Cooling: The AMST30BU1300 R-32 only air handler features internal factory-installed thermal expansion valves that optimize cooling, ensuring efficient operation. The unit is equipped with appropriately sized evaporator coil tubes, ensuring effective transfer and improved cooling performance. Featuring a direct-drive, 9-speed ECM blower motor, ensuring efficient airflow and enhanced comfort. The coil mounting track enables easy repositioning and flexible installation options.
Flexible Installation: The Goodman AMST30BU1300 air handler can be installed in an upflow, horizontal right or horizontal left configuration. For downflow installation an optional downflow kit must be purchased separately. This system is registered with AHRI under certificate number 215218022.

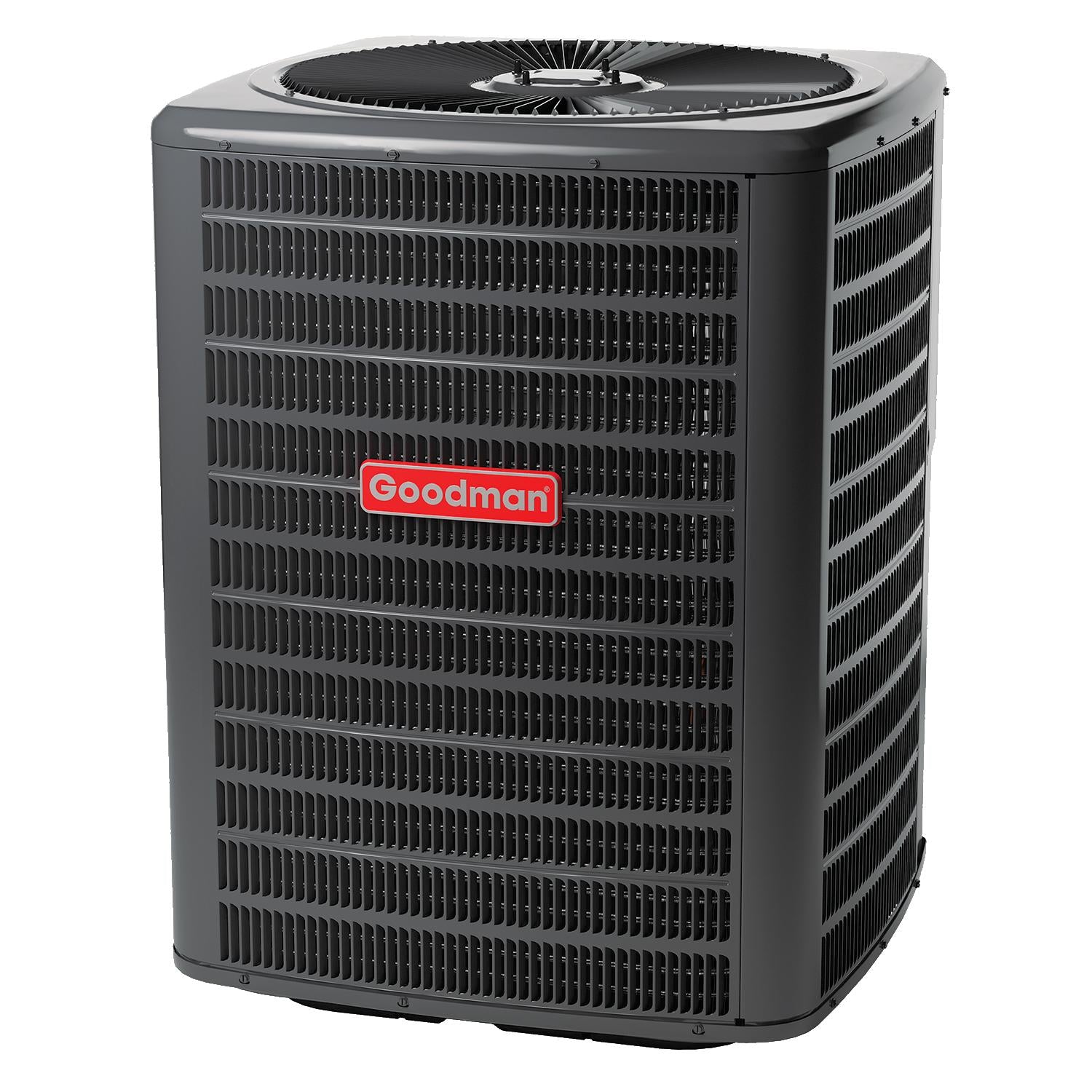

Goodman 2 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA2410
The Goodman 2 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA2410 will provide you with reliable cooling and heating at money-saving energy efficiency levels as compared to lower SEER heat pump units. Your Goodman heat pump condenser starts with an energy-efficient compressor, which operates in tandem with our high-efficiency coil. These high-quality components together cool and heat your home.
Standard Features:
- High-efficiency compressor
- SmartShift® technology to ensure quiet reliable defrost
- Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
- Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
- Single-speed PSC condenser fan motor
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Fully charged for 15’ of tubing length
- Fully enclosed contactor with lug connection
- Ground lug connection
- Capacitors with extended life
- AHRI Certified; ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

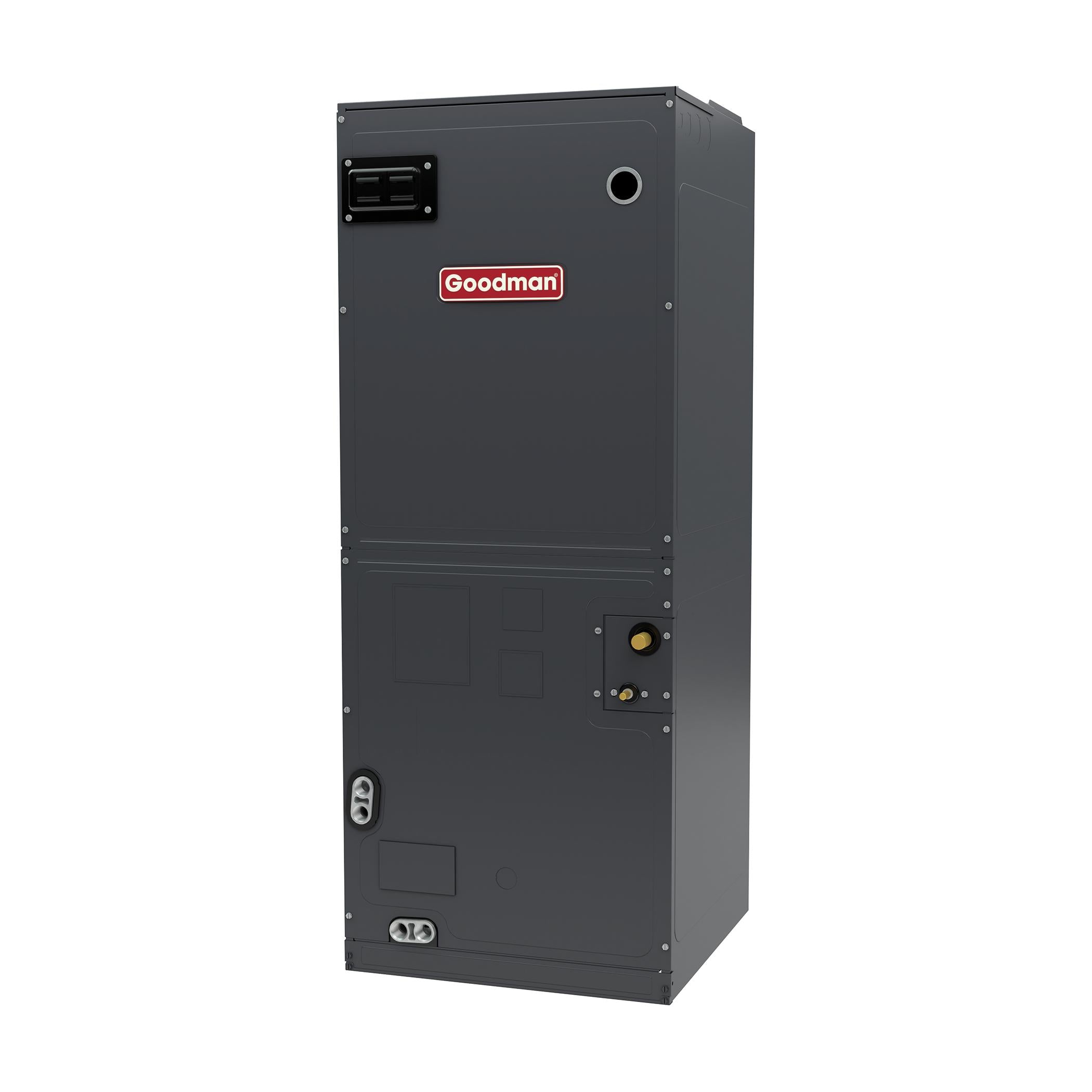

Goodman AMST30BU1300 2.5 Ton Multi-Position, Multi-Speed ECM-Based Air Handler with Internal TXV (R-32)
The Goodman AMST30BU1300 R-32 only air handler features internal factory-installed thermal expansion valves that optimize cooling, ensuring efficient operation. The unit is equipped with appropriately sized evaporator coil tubes, ensuring effective transfer and improved cooling performance. Featuring a direct-drive, 9-speed ECM blower motor, ensuring efficient airflow and enhanced comfort. The coil mounting track enables easy repositioning and flexible installation options
Features:
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Direct drive, multi-speed ECM blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Optimized for use with R-32 refrigerant
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
- AHRI certified; ETL listed
- UL 60335 2-40 Compliant
- Factory installed R32 sensor designed for lifespan of coil
- Rigid SmartFrame™ cabinet
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
- Field Installed 3 kW – 25 kW electric heater kits available
What's Included:
- 1x Goodman 2 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA2410
- 1x Goodman AMST30BU1300 2.5 Ton Multi-Position, Multi-Speed ECM-Based Air Handler with Internal TXV (R-32)
- 1x FREE DiversiTech Condenser Mounting Pad ($139.99 Value)
Heat Pump Condenser Specifications:
| Brand | Goodman® |
| Model | GLZS4BA2410 |
| Warranty |
10 Years Parts Warranty 10 Years Compressor Warranty |
| SEER2 | 14.3 |
| HSPF2 |
7.8 |
| Nominal Capacities |
Cooling (BTU/h): 24,000 Heating (BTU/h): 24,000 Decibels: 74 |
| Compressor |
RLA: 8.2 LRA: 41.2 Stage: Single Type: Rotary |
| Condenser Fan Motor |
Motor Type: PSC Horsepower: 1/6 FLA: 0.95 |
| Refrigeration System |
Refrigerant Line Size
Refrigerant Connection Size
Refrigerant Type: R-32 Valve Connection Type: Sweat Refrigerant Charge (oz.): 70 |
| Electrical Data |
Volts/Phase (60 Hz): 208/230-1-60 Minimum Circuit Ampacity: 11.2 Max. Overcurrent Protection: 15 Min / Max Volts: 197/253 Electrical Conduit Size: 1/2" or 3/4" |
| Equipment Weight (lbs.) | 150 |
| Ship Weight (lbs) | 165 |
| Dimensions (W x D x H) | 29 x 29 x 32-1/2 inches |
| Resources |
Air Handler Specifications:
| Brand | Goodman |
| Model | AMST30BU1300 |
| Warranty | 10 Years Parts Warranty |
| Refrigerant Type | R-32 |
| Nominal Ratings |
Cooling (Btu/h): 30,000 Nominal Tons: 2.5 Ton |
| Configuration | Multi-Positional |
| Blower |
Diameter: 10" Width: 6" |
| Cabinet Width | 17.5" |
| Coil Connections |
Liquid: 3/8" Suction: 3/4” Coil Drain Connect (FPT): 3/4” |
| Electrical Data |
Voltage, Phase, Hz: 208/240 V, 1 Phase, 60 Hz Minimum Circuit Ampacity: 5.6 Max. Overcurrent Device (Amps): 15 Min. / Max VAC: 197 / 253 |
| Blower Motor |
Full Load Amps (FLA): 4.5 Horsepower (HP): 3/4 |
| Dimensions (W x D x H) | 17-9/16" x 21" x 53-7/16" |
| Ship Weight (LBS) | 129 |
| Resources |
