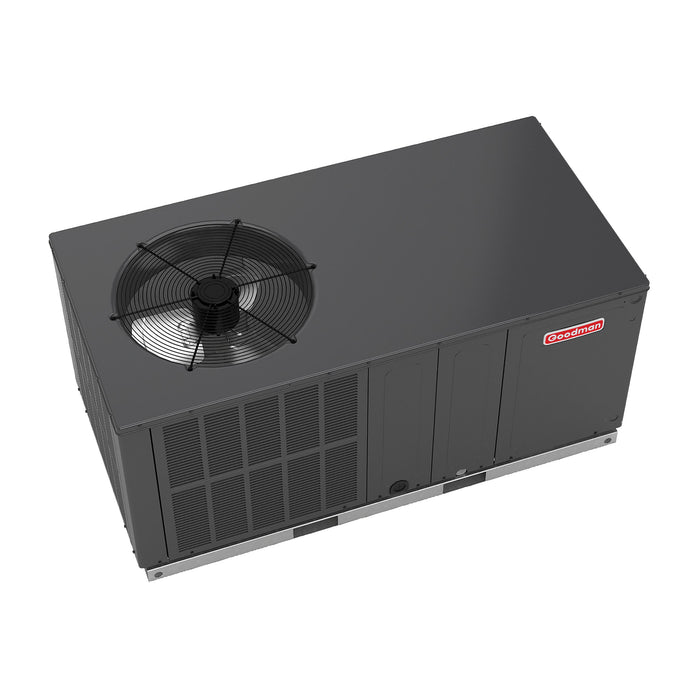

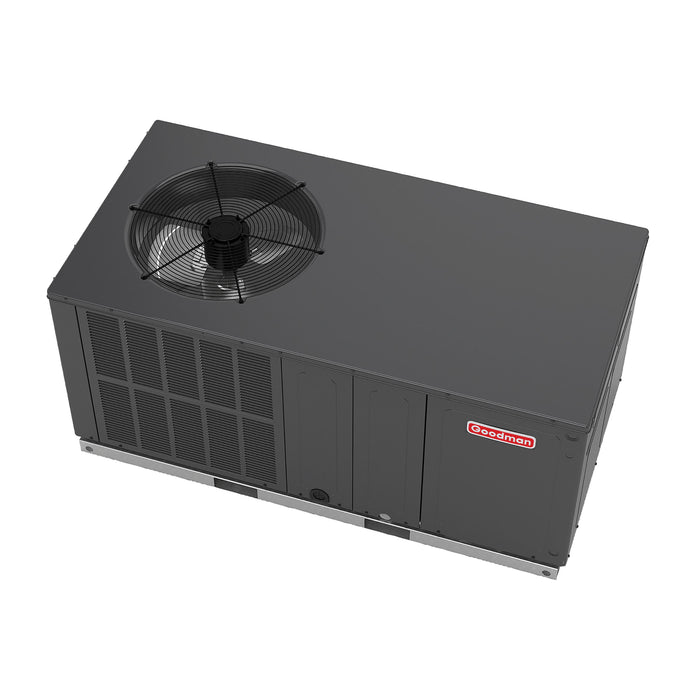

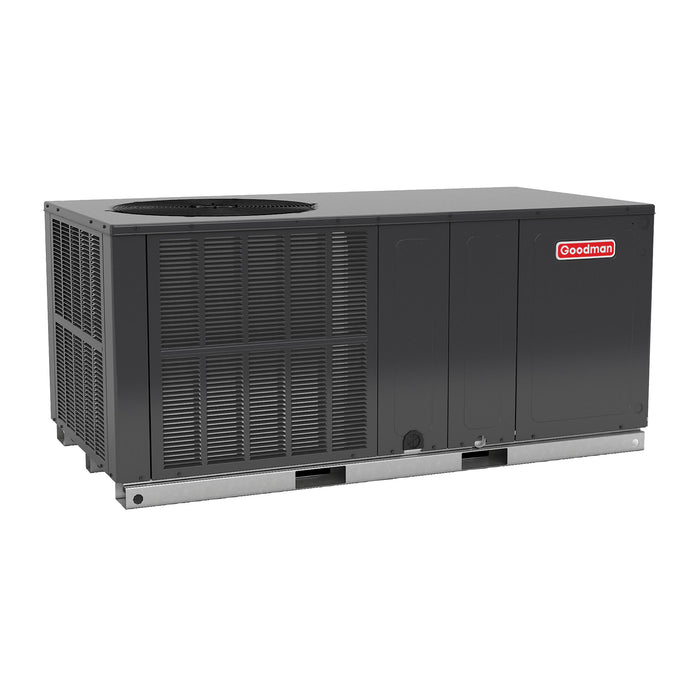

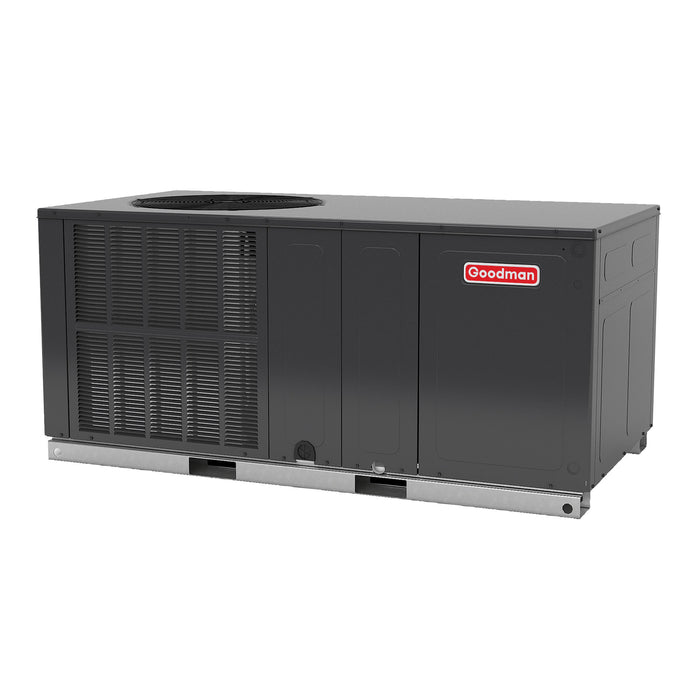

Goodman 2 Ton 15 SEER2 Packaged Heat Pump - GPHH52441
Introducing the Goodman 2 Ton 15 SEER2 Packaged Heat Pump - GPHH52441, your all-in-one solution for year-round comfort. Engineered for reliability and efficiency, this unit brings dependable cooling and heating performance right to your home.
Crafted with a heavy-gauge, galvanized-steel cabinet, and coated with a high-quality, UV-resistant powder-paint finish, durability is at the forefront of its design. Say goodbye to worries about wear and tear, as this unit promises years of trouble-free operation.
Experience powerful performance without the hefty energy bills. With its highly efficient operation, both homeowners and small businesses can enjoy optimal comfort while cutting down on energy costs.
Versatility meets convenience with the Goodman 2 Ton 15 SEER2 Packaged Heat Pump - GPHH52441. Whether you prefer ground-level or rooftop installation, this unit is designed to adapt to your needs seamlessly. Plus, installation is a breeze, requiring only basic connections such as supply and return ducts, line and low-voltage wiring, and drain connection.
Upgrade your comfort experience with the Goodman 2 Ton 15 SEER2 Packaged Heat Pump - GPHH52441. It's not just a unit; it's a promise of performance, durability, and efficiency, all bundled into one sleek package.
Standard Features:
- High-efficiency scroll compressor
- Multi-speed ECM indoor blower motor
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Quiet horizontal discharge
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Louvered condenser coil protection
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GPHH52441 |
| Warranty | 10 Years Parts Warranty with online registration |
| Configuration | Horizontal |
| Cooling Capacity |
Total BTU/h: 24,000 Sensible BTU/h: 18,288 SEER2 / EER2: 15.0 / 11.4 AHRI Numbers: 208842422 |
| Heating Capacity |
BTU/h (47°F): 22,800 C.O.P. (47°F): 3.73 BTU/h (17°F): 13,000 C.O.P. (17°F): 2.48 HSPF2: 6.70 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10" x 8" Cooling CFM: 875 Fan-Only CFM: 800 No. of Speeds: 5 Horsepower - RPM: 1/2 - 1,050 |
| Evaporator Coil |
Face Area (ft²): 5.26 Rows Deep: 4 Fins per Inch: 14 Metering Device Type: TXV Drain Size (NPT): 3/4" - 14 NPT Refrigerant Charge (oz.): 116 |
| Condenser Fan |
Horsepower - RPM: 1/6 - 810 Fan Diameter: 22 # of Fan Blades: 3 |
| Condenser Coil |
Face Area (ft²): 14.4 Rows Deep: 2 Fins per Inch: 16 Metering Device Type: Piston |
| Compressor |
Quantity: 1 Type: Scroll Stage: Single |
| Sound Power (dBA) | 76 |
| Electrical Data |
Compressor RLA/LRA: 12.8 / 58.3 Voltage/Phase (60 Hz): 208-230 / 1 Indoor Blower FLA: 3.8 Outdoor Fan FLA: 0.95 M.C.A: 20.8 M.O.P: 30 |
| Operating Weight (LBS) | 315 |
| Shipping Weight (LBS) | 324 |
| Dimensions (W x D x H) | 66 x 34 x 30 inches |
| Duct Openings Dimensions |
Supply (W x H): 14 x 14 inches Return (W x H): 14 x 22 inches |
Product Information and Guides:
