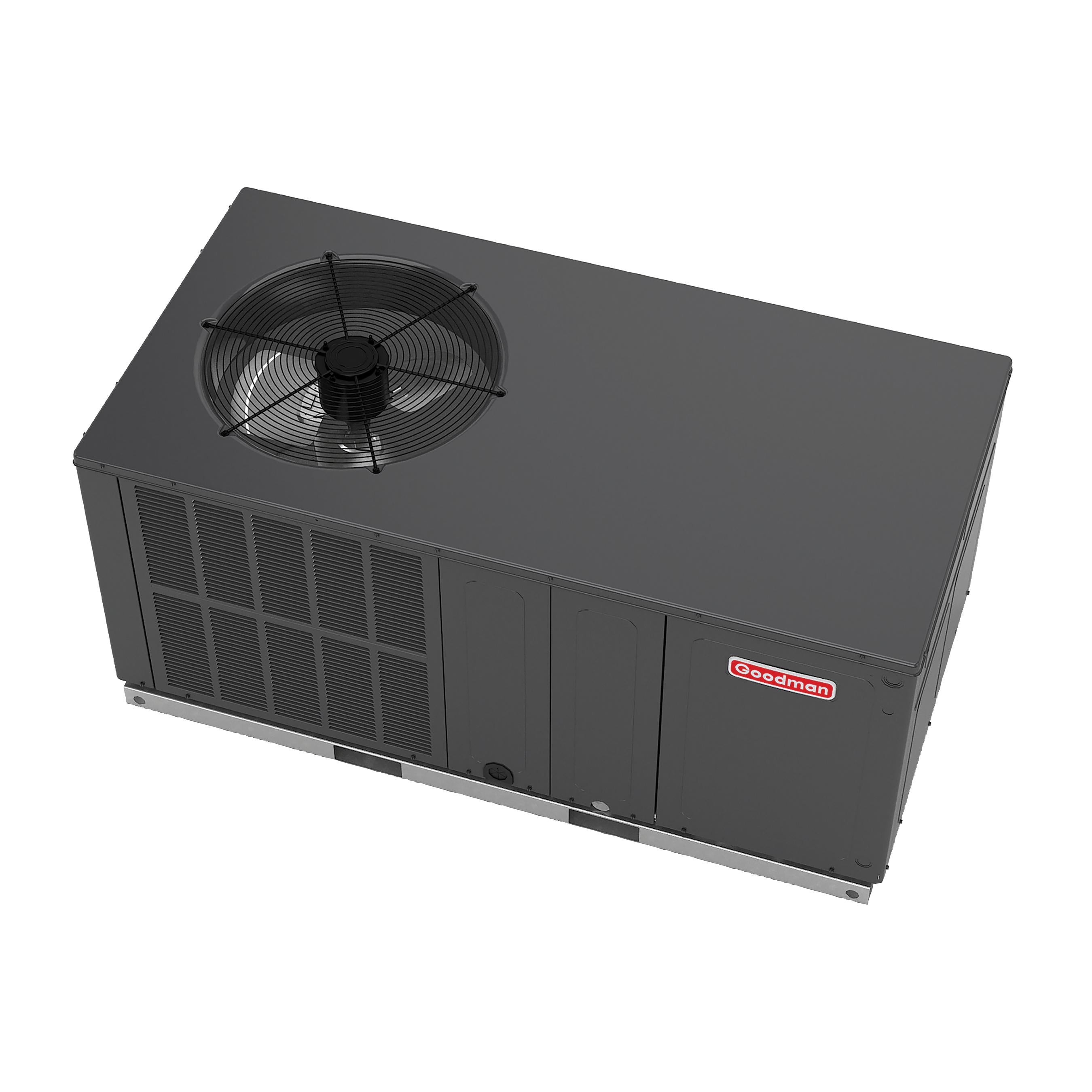

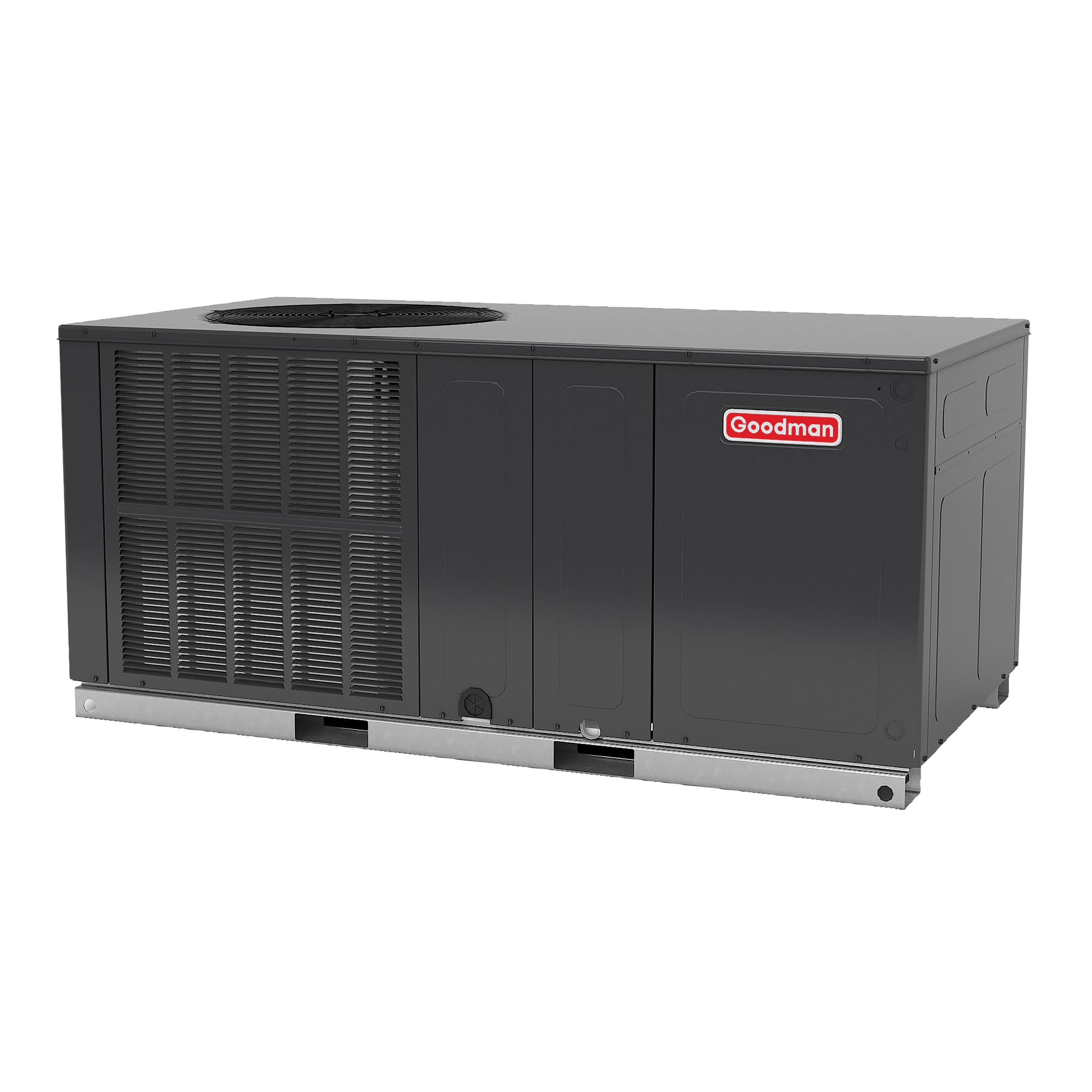

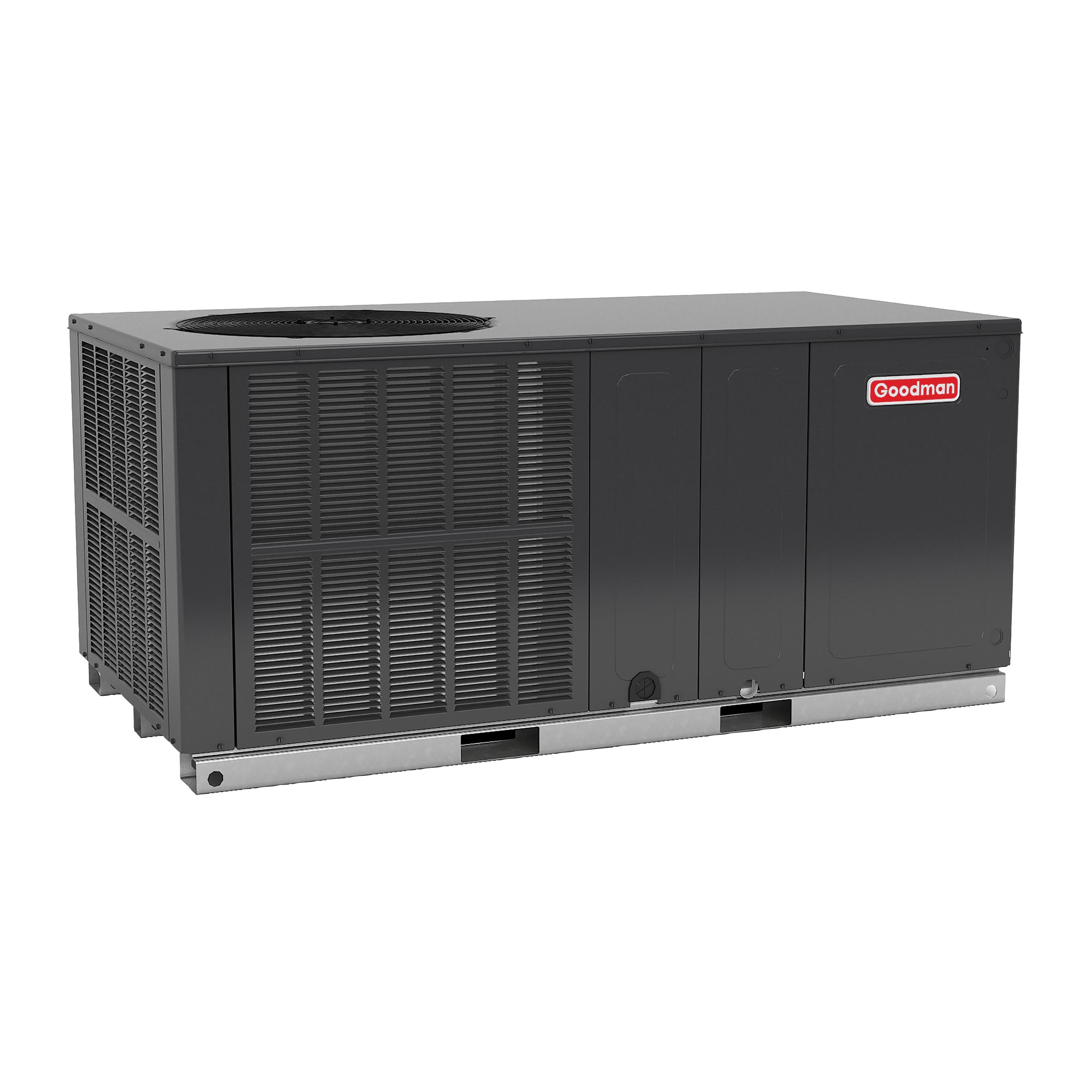

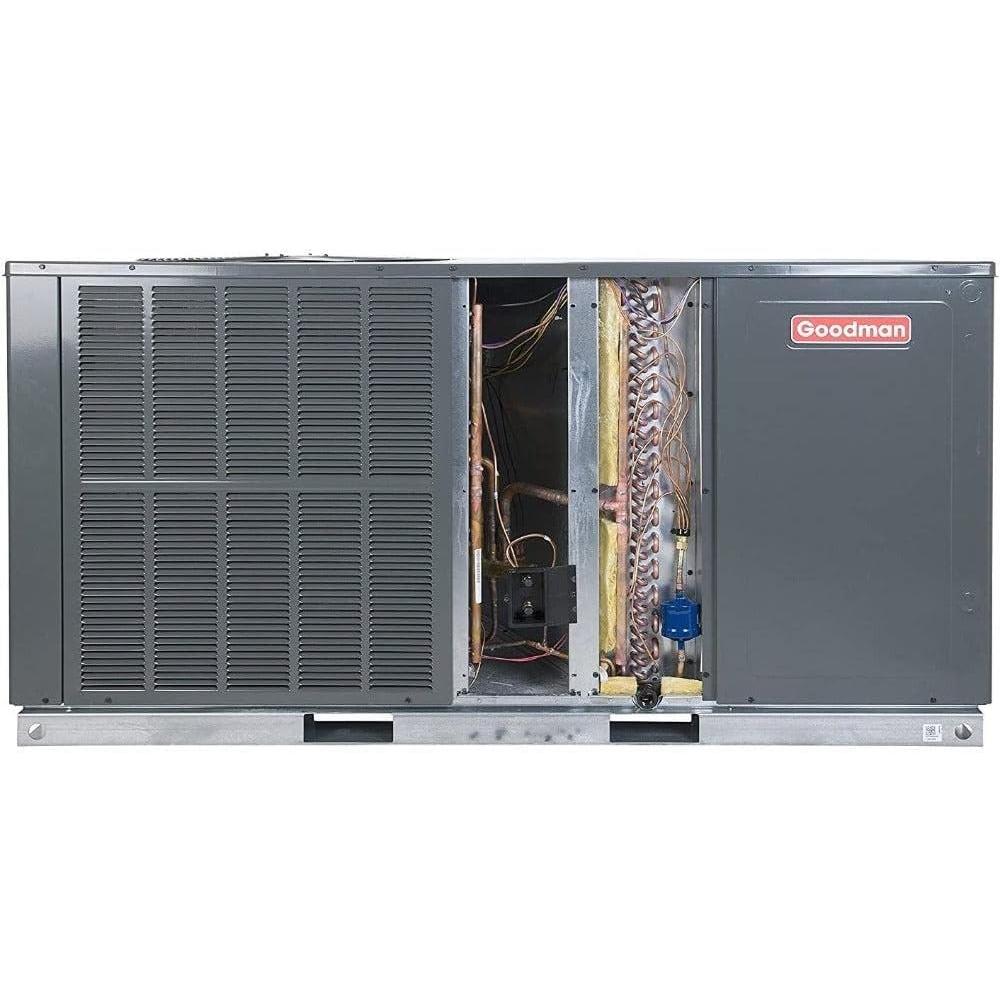

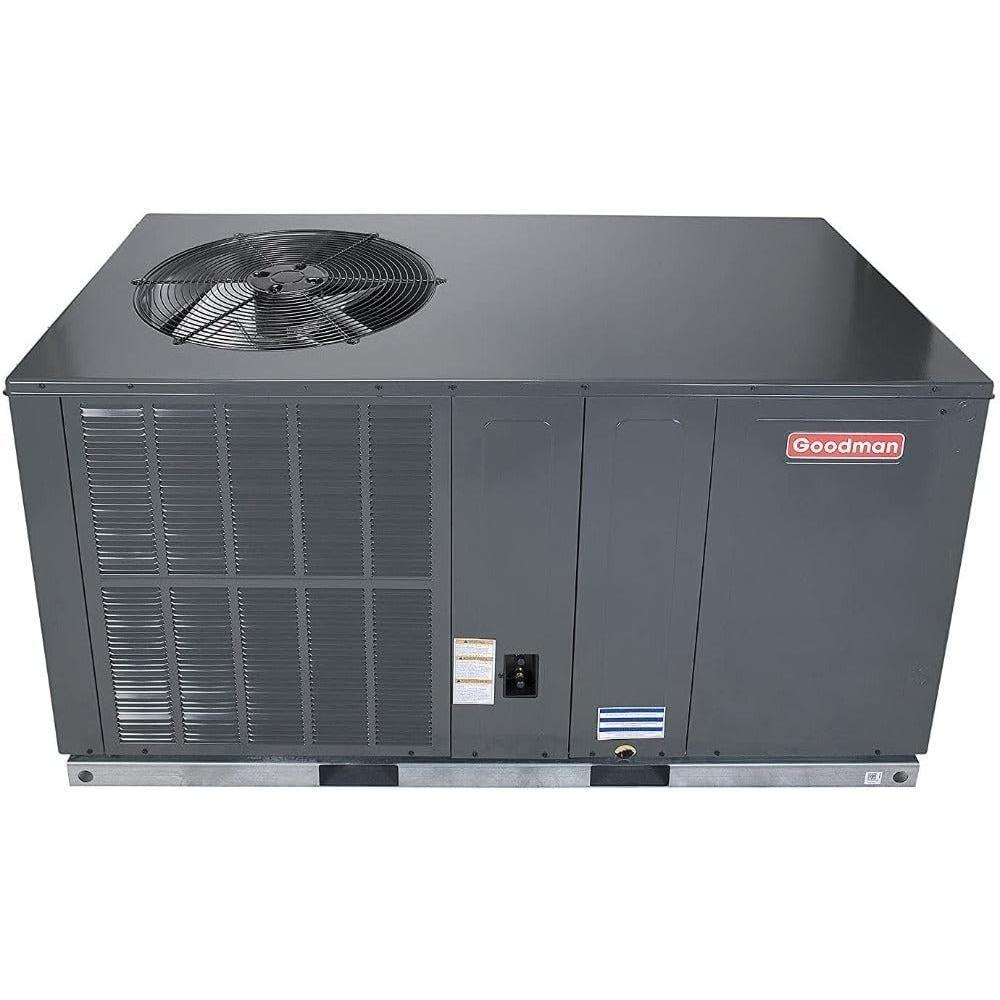

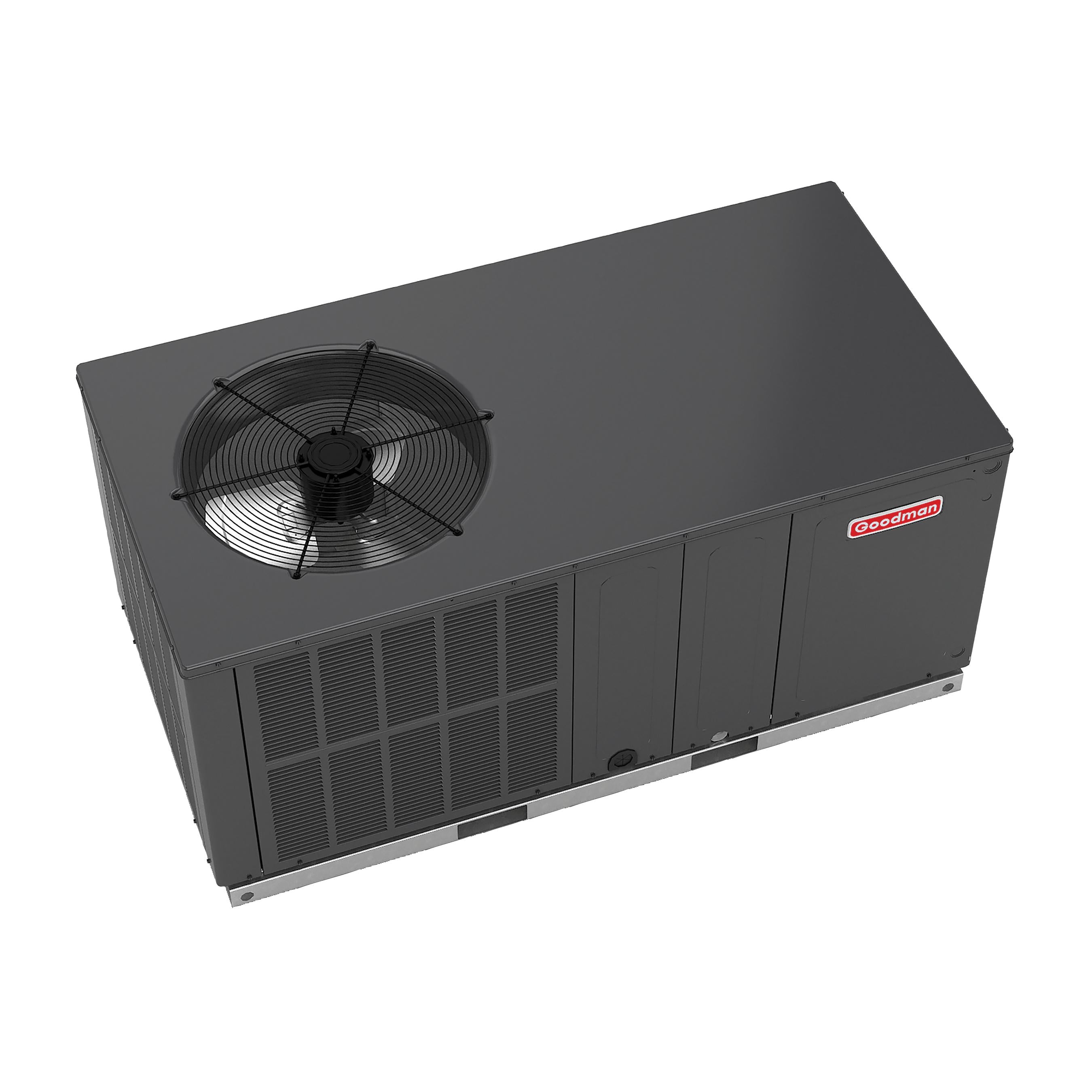

Goodman 3 Ton 13.4 SEER2 Horizontal Package Air Conditioner - GPCH33641
The Goodman 3 Ton 13.4 SEER2 Horizontal Package Air Conditioner - GPCH33641 features energy-efficient cooling performance in one self-contained unit. The GPCH33641 is housed in a heavy-gauge, galvanized-steel cabinet protected by a high-quality, UV-resistant powder-paint finish. This unit allows for ground-level or rooftop applications, and is approved for manufactured or modular homes. THIS ITEM IS NOT A HEAT PUMP.
Standard Features:
- Energy-efficient compressor
- Multi-speed ECM indoor blower motor
- Quiet horizontal discharge
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- 5 kW to 20 kW electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Louvered condenser coil protection
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GPCH33641 |
| Warranty |
10 Year Parts Warranty 10 Year Compressor Warranty |
| Refrigerant Type | R-410A |
| Cooling Capacity |
Total BTU/h: 35,600 Sensible BTU/h: 27,732 SEER2 / EER2: 13.4 / 10.6 AHRI Number: 208842378 |
| Evaporator Motor |
Type: EEM Wheel (D x W): 10 x 8 Cooling CFM³: 1,200 Fan-Only CFM: 1,100 No. of Speeds: 5 Horsepower - RPM: ½ - 1050 |
| Evaporator Coil |
Face Area (ft²): 5.25 Rows Deep: 3 Fins per Inch: 14 Metering Device Type: Piston Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 57 |
| Condenser Fan |
Horsepower - RPM: ¼ - 830 Fan Diameter: 22 # of Fan Blades: 3 |
| Condenser Coil |
Face Area (ft²): 12.3 Rows Deep: 1 Fins per Inch: 26 |
| Compressor |
Quantity / Type: 1 / Scroll Stage: Single |
| Sound Power | dBA: 78 |
| Electrical Data |
Compressor RLA/LRA: 15.4 / 83.9 Voltage/Phase (60 Hz): 208/230-1-60 Indoor Blower FLA: 3.8 Outdoor Fan FLA: 1.3 M.C.A.¹: 24.4 M.O.P.²: 35 |
| Operating Weight | 375 lbs |
| Ship Weight | 387 lbs |
| Dimensions (W x D x H) | 66 x 34 x 30 inches |
| Duct Opening Dimensions (W x H) |
Supply: 14 x 14 inches Return: 14 x 22 inches |
| Resources |
