Goodman 3 Ton Cooling / 60,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM33606041

SKU: GPGM33606041
  • FLASH SALE GOING ON NOW! Save An Extra 15% OFF with Code: FLASH15
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source

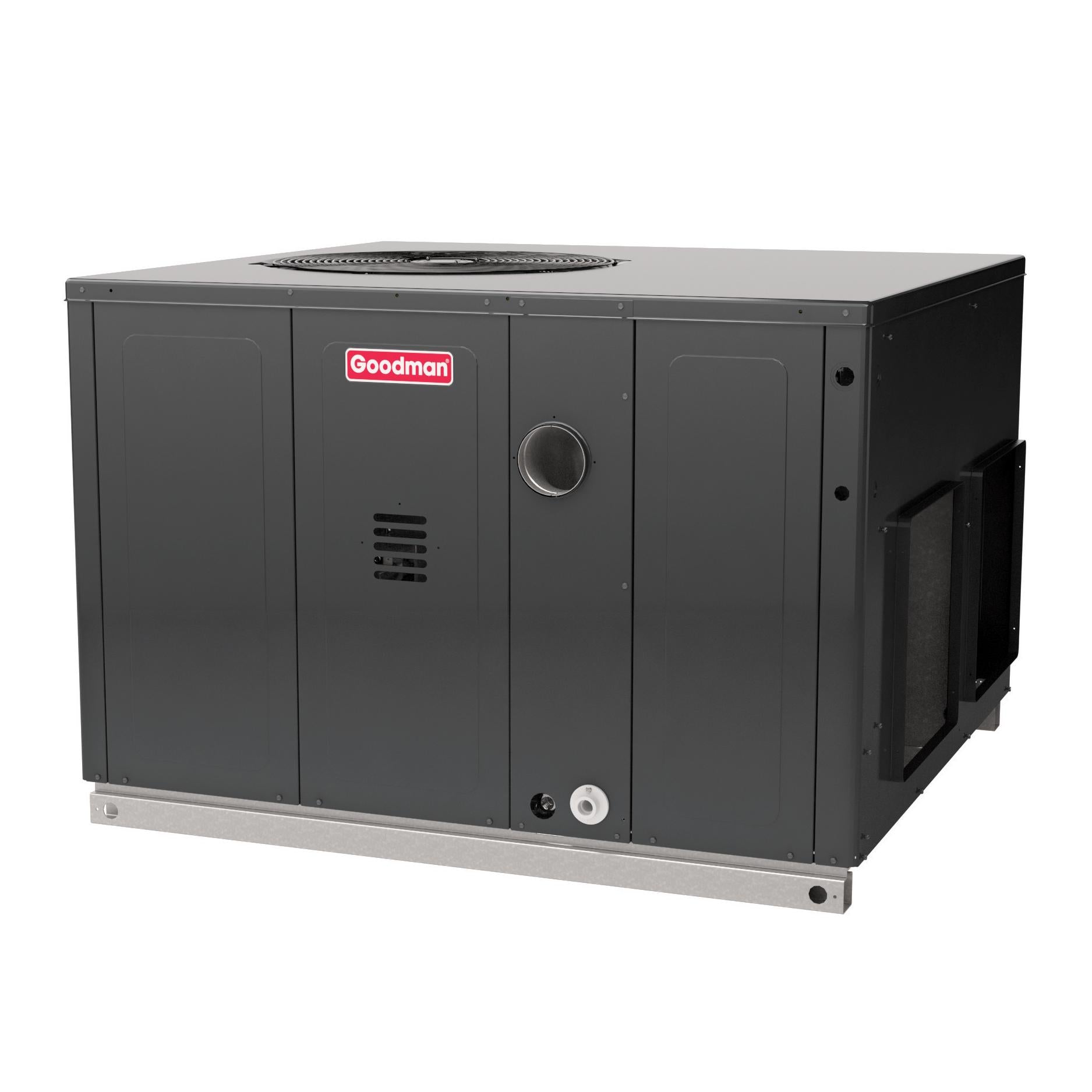

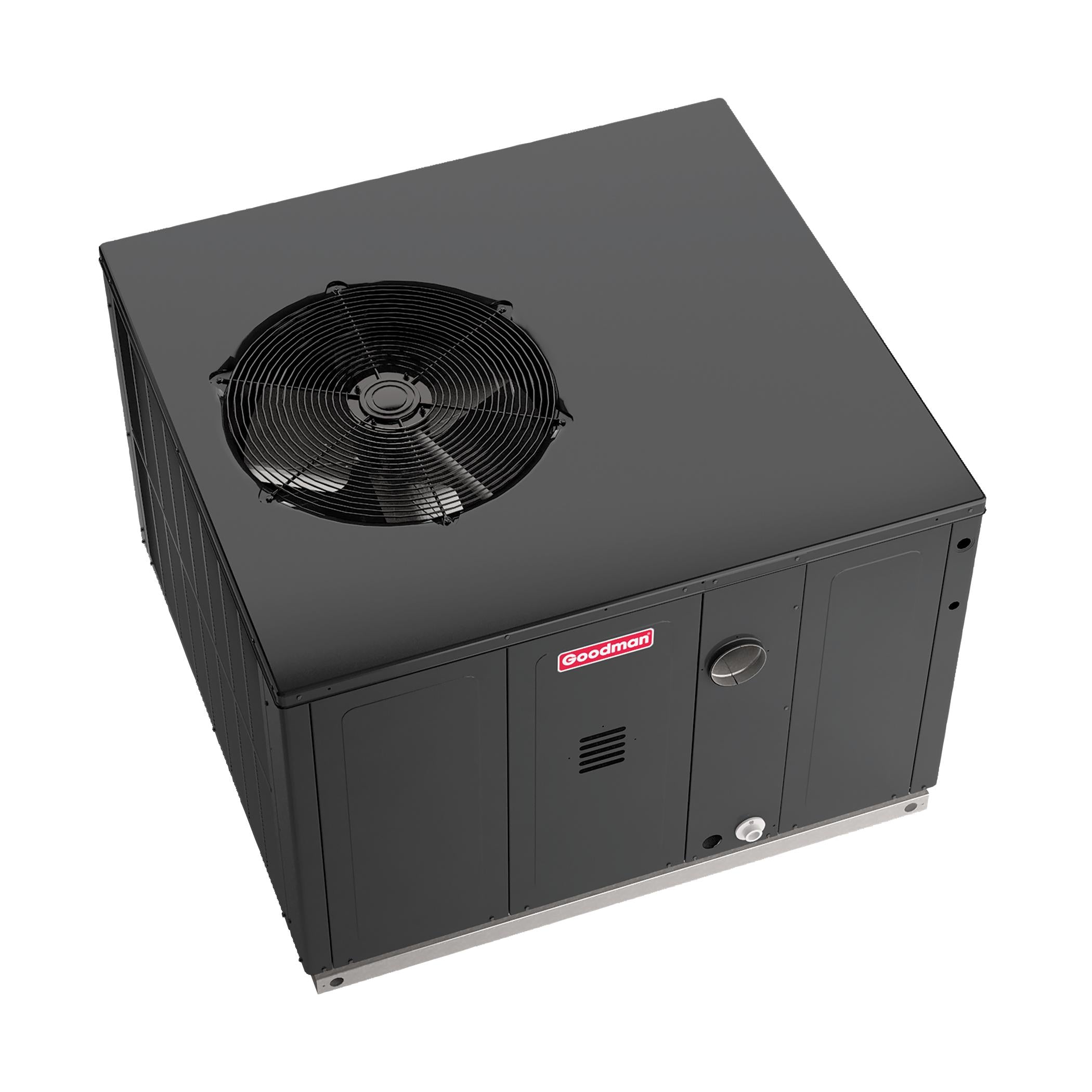

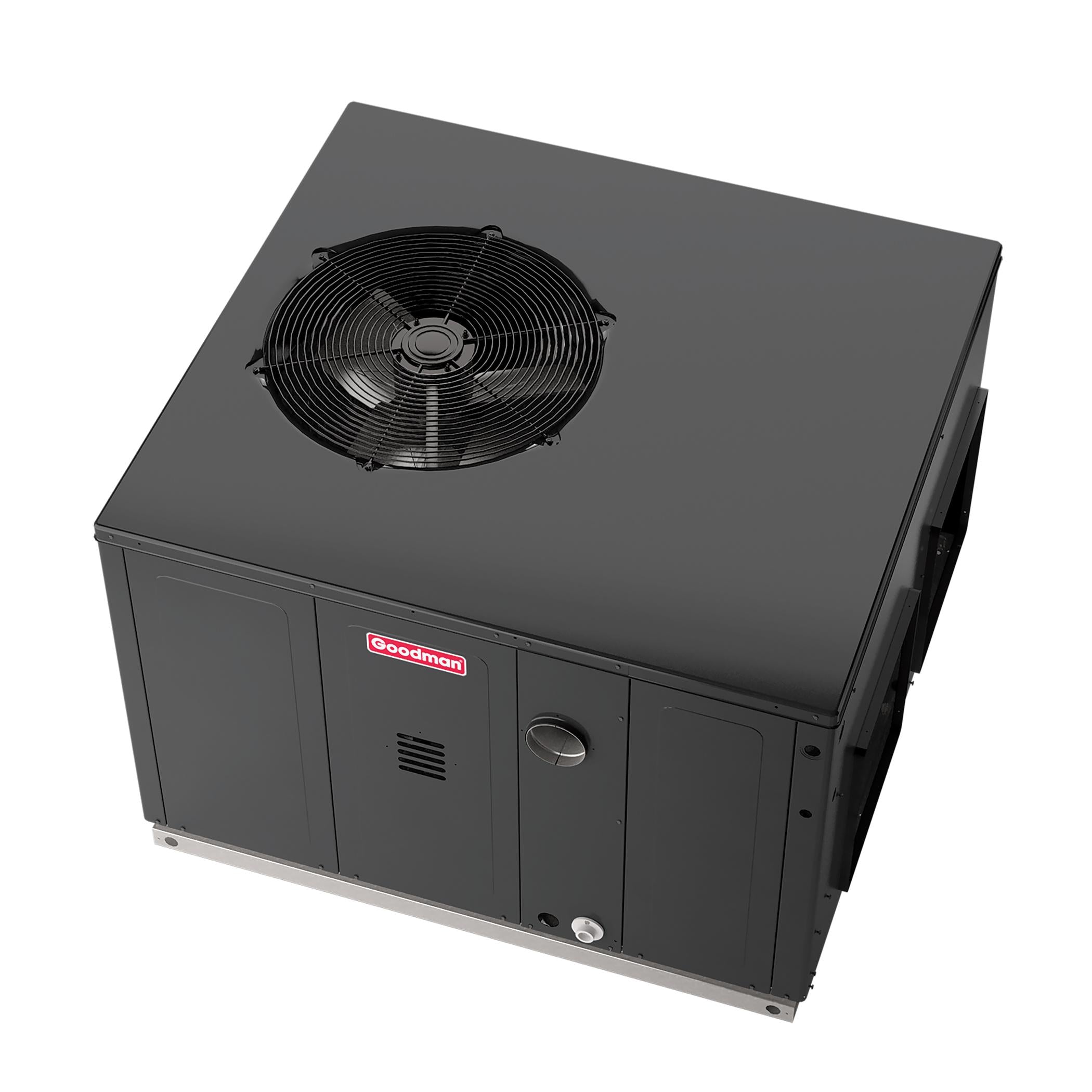

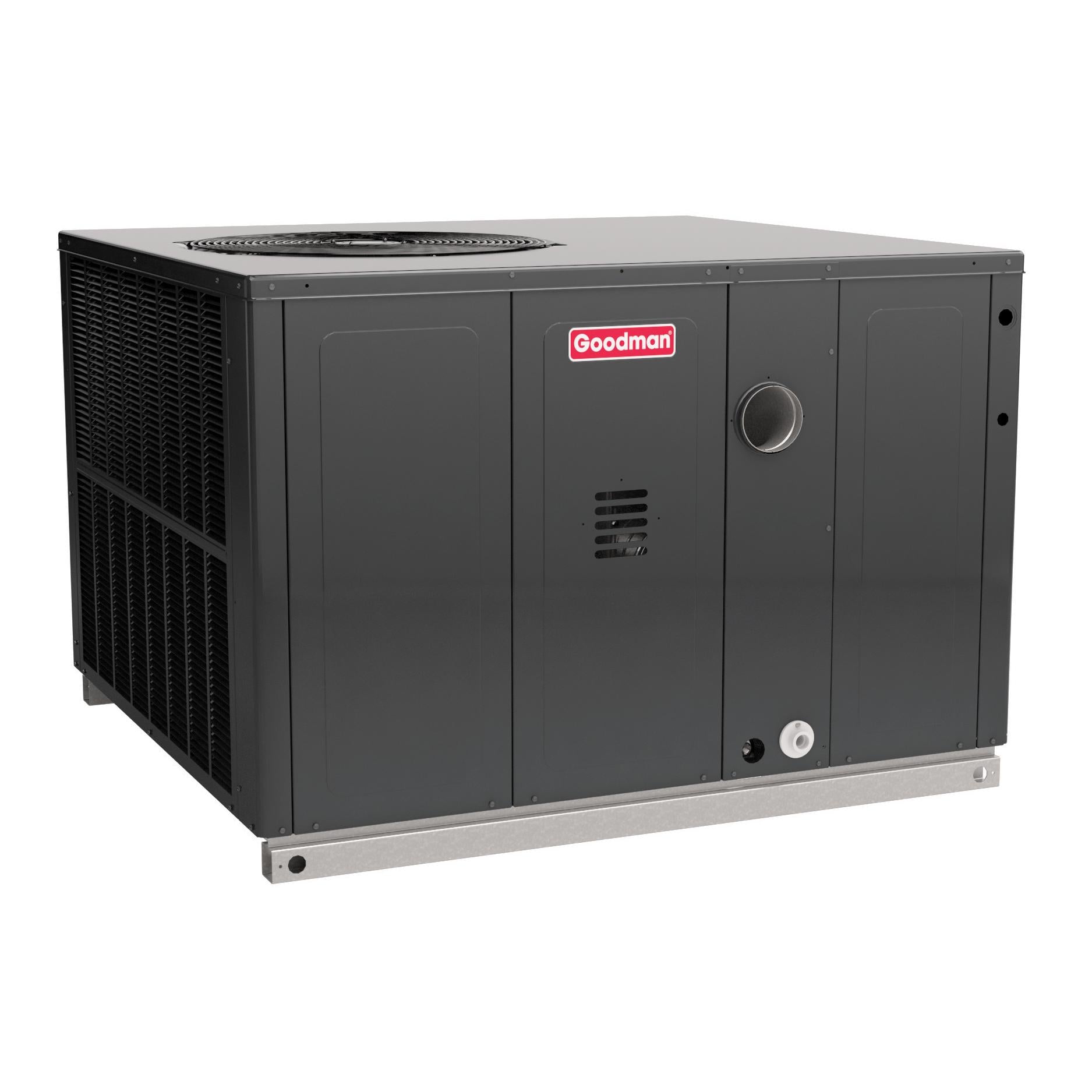

Goodman 3 Ton Cooling / 60,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM33606041

The Goodman 3 Ton Cooling / 60,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM33606041 features energy-efficient cooling and heating performance in one self-contained unit. The GPGM33606041 is housed in a heavy-gauge, galvanized-steel cabinet with a high-quality, UV-resistant powder-paint finish and allows for a ground-level or rooftop mount and horizontal or downflow applications.

Standard Features:

  • Energy-efficient scroll compressor
  • Multi-speed ECM indoor blower motor
  • Convertible airflow: horizontal or downflow application
  • All-aluminum evaporator coil
  • Power-assisted combustion
  • Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
  • All models comply with California Low NOx standards (40ng/J NOx)
  • This furnace does not comply with the SCAQMD Rule 1111 nor the SJVAPCD Rule 4905 14 ng/J NOx emission limit and therefore is not eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) nor the San Joaquin Valley Air Pollution Control District (SJVAPCD)
  • AHRI Certified; ETL Listed

Cabinet Features:

  • High-quality UV-resistant powder-paint finish
  • Aluminum foil-facing internal insulation reinforced with fiberglass scrim
  • Convenient access panels
  • One roof curb fits all units
  • Fully insulated cabinet
  • Bottom, 2” high base rails for easier handling
  • Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
  • One footprint for all tonnages

Specifications:

Brand Goodman
Model GPGM33606041
Warranty

10 Years Parts Warranty with online registration

10 Years Compressor Warranty with online registration

20 Year Heat Exchanger Warranty with online registration

Refrigerant R-410A
Configuration Downflow / Horizontal
Energy Star Certified No
Cooling Capacity

Total BTU/h: 34,200

Sensible BTU/h: 28,160

SEER2 / EER2: 13.4 / 10.6

Decibels: 78

AHRI Number: 209319532

Heating Capacity

Input BTU/h: 60,000

Output BTU/h: 48,600

AFUE: 81

Temperature Rise Range: 30 - 60

No. of Burners: 3

Evaporator Motor

Type: ECM

Wheel (D x W): 10” x 9”

Indoor Nominal CFM: 1,200

No. of Speeds: 5

Horsepower: 1/2

Evaporator Coil

Face Area (ft²): 4.35

Rows Deep/Fins per Inch: 4/14

Piston Size (Cooling): 0.068

Drain Size (NPT): 3/4"

Refrigerant Charge (oz.): 92

Condenser Fan/Coil

Horsepower - RPM: 1/4 - 1,075

Diameter / # of Blades: 22” / 3

Outdoor Nominal CFM: 2,250

Face Area (ft²): 11.13

Rows Deep/Fins per Inch: 2/27

Compressor

Quantity / Type: 1 / Scroll

Stage: Single

Compressor RLA/LRA: 14.1 / 77.0

Electrical Data

Voltage-Phase (Frequency 60Hz): 208/230-1-60

Indoor Blower FLA: 3.8

Outdoor Fan FLA/LRA: 1.4 / 3.2

Min. Circuit Ampacity: 22.8

Max. Overcurrent Protection: 35 amps

Operating / Ship Weights (lbs) 453 / 475
Dimensions (W x D x H) 47 x 51 x 34-1/2 inches
Duct Openings Dimensions

Supply (W x H): 16 x 16 inches

Return (W x H): 16 x 16 inches
