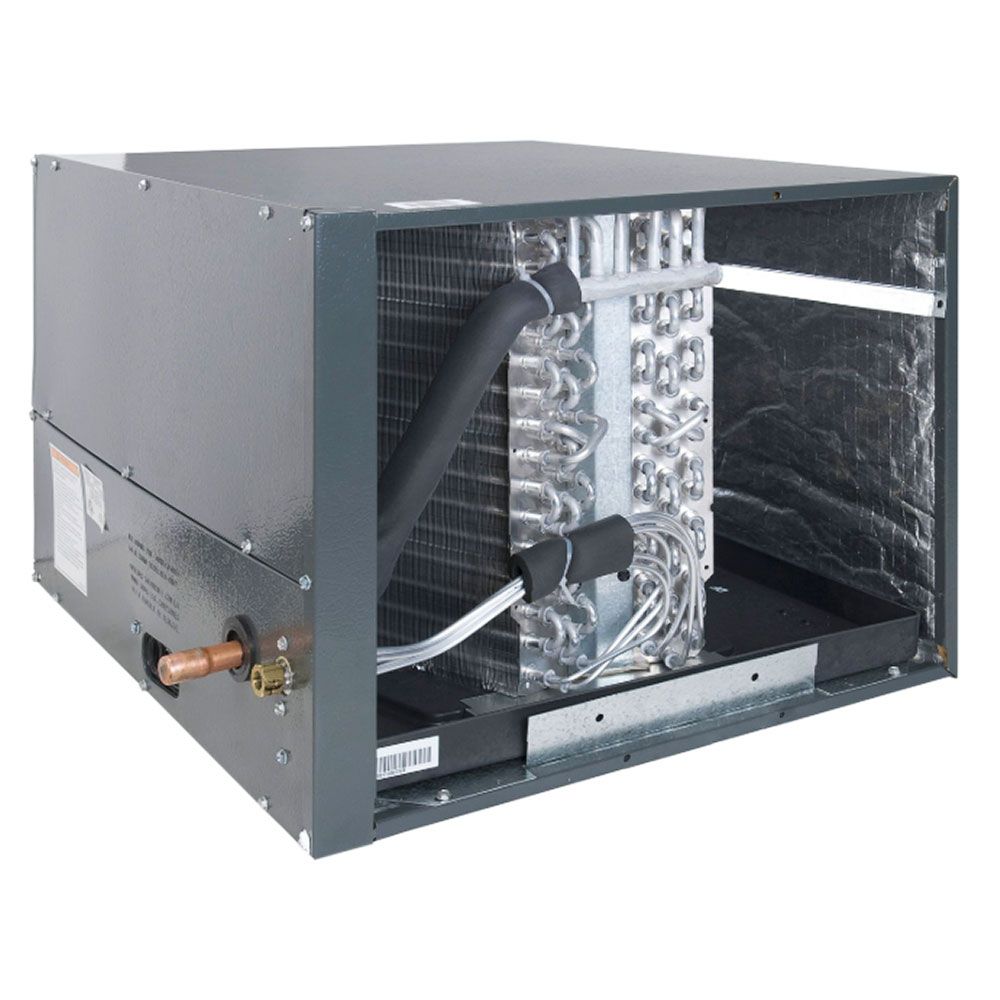

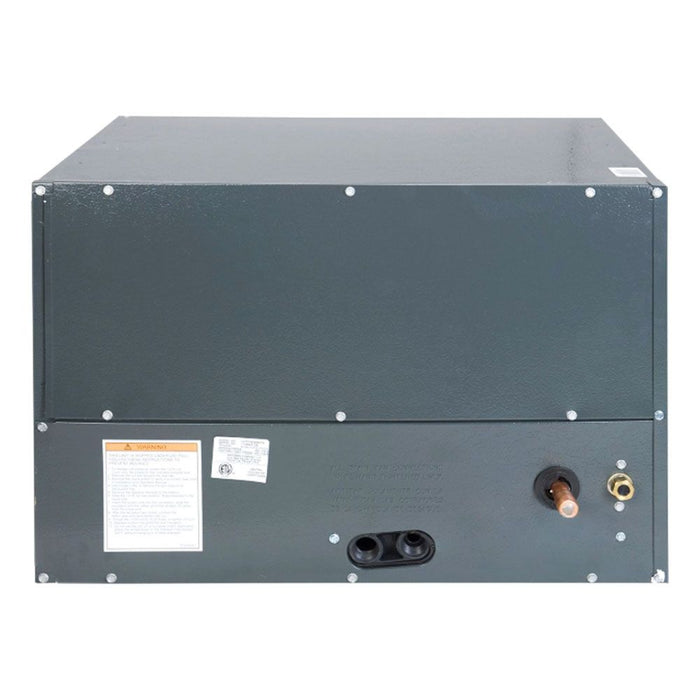

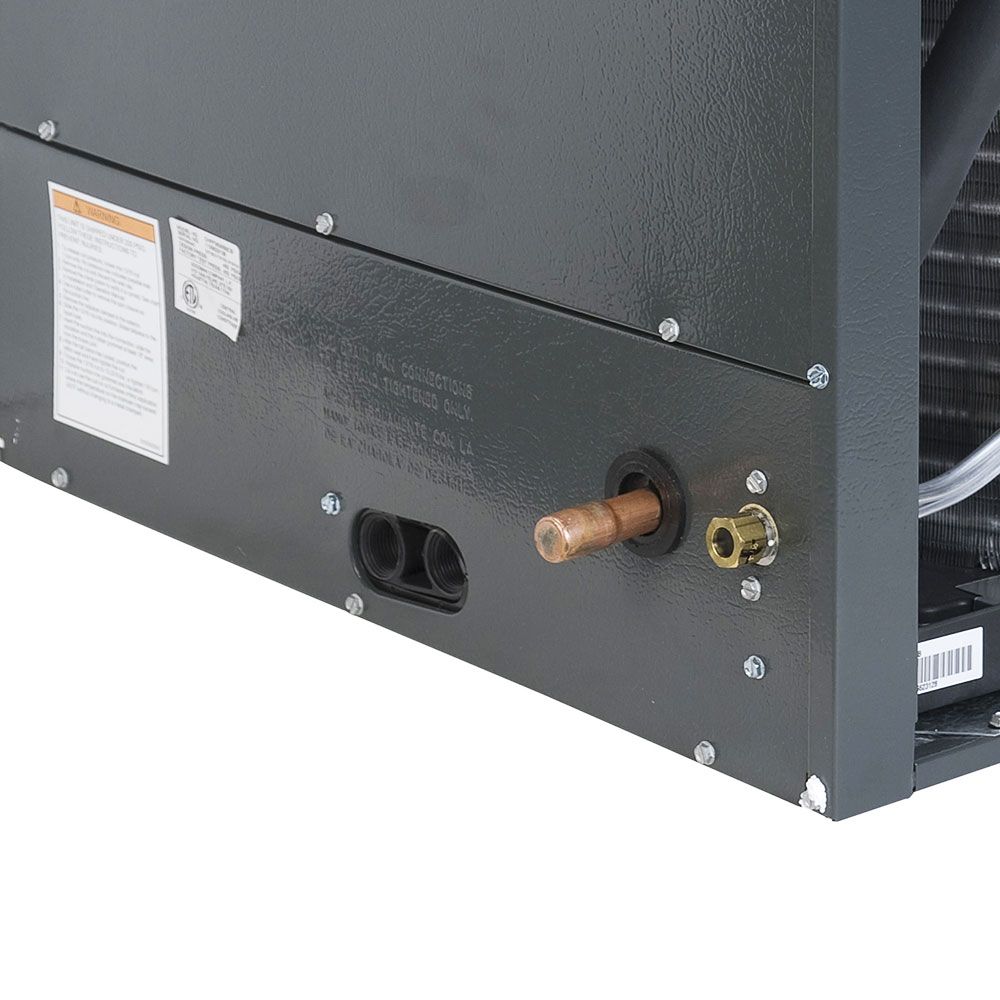

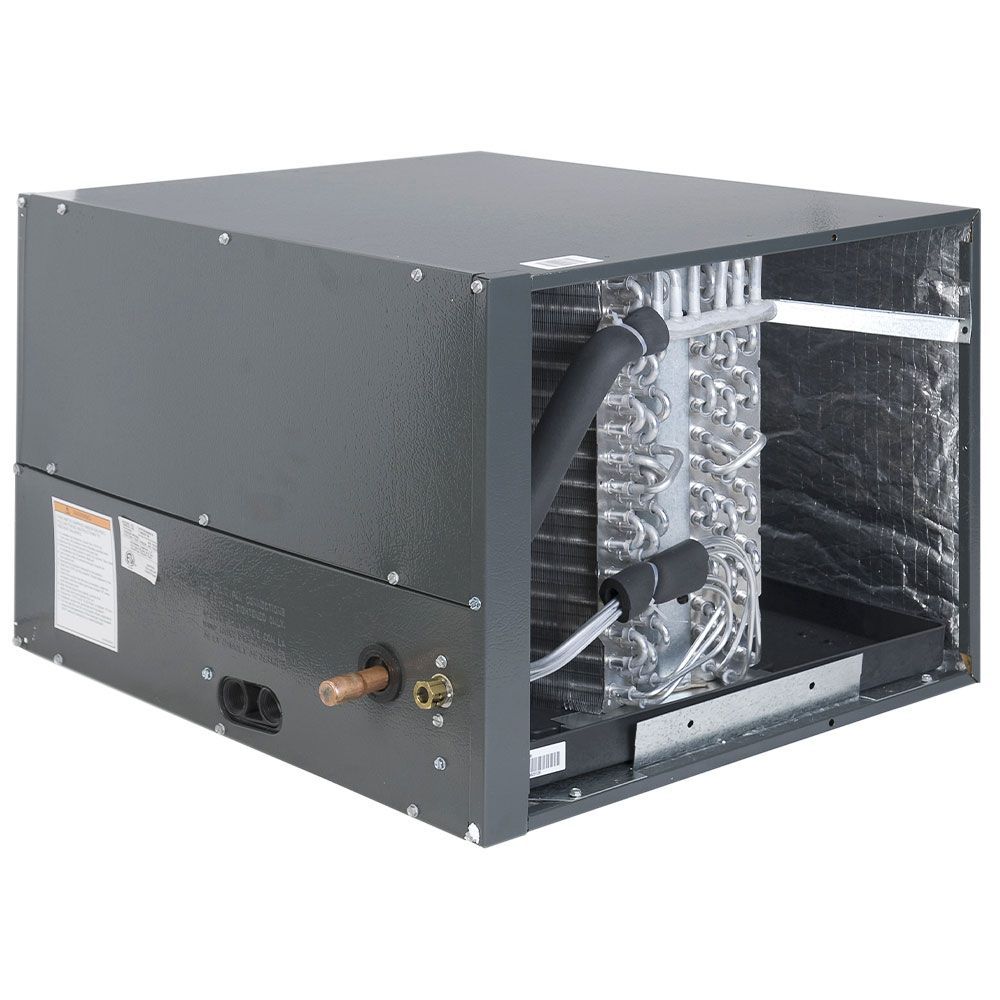

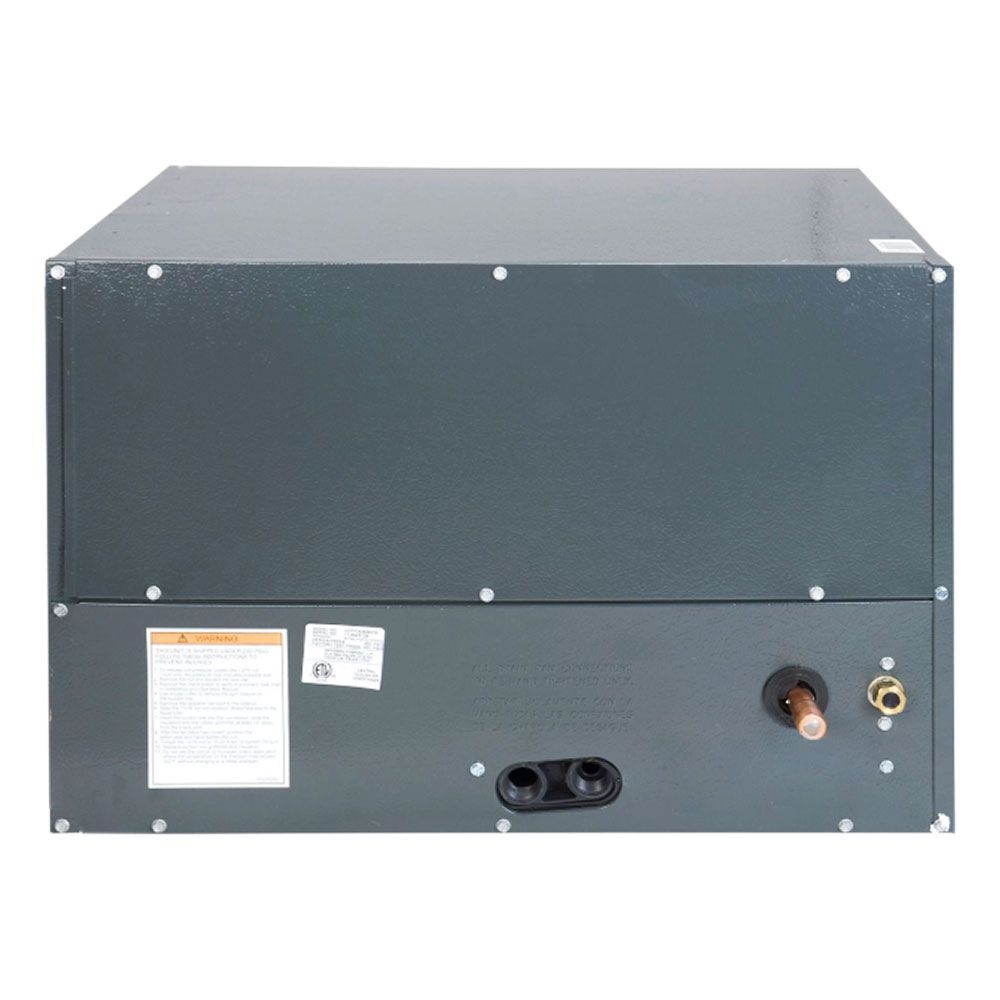

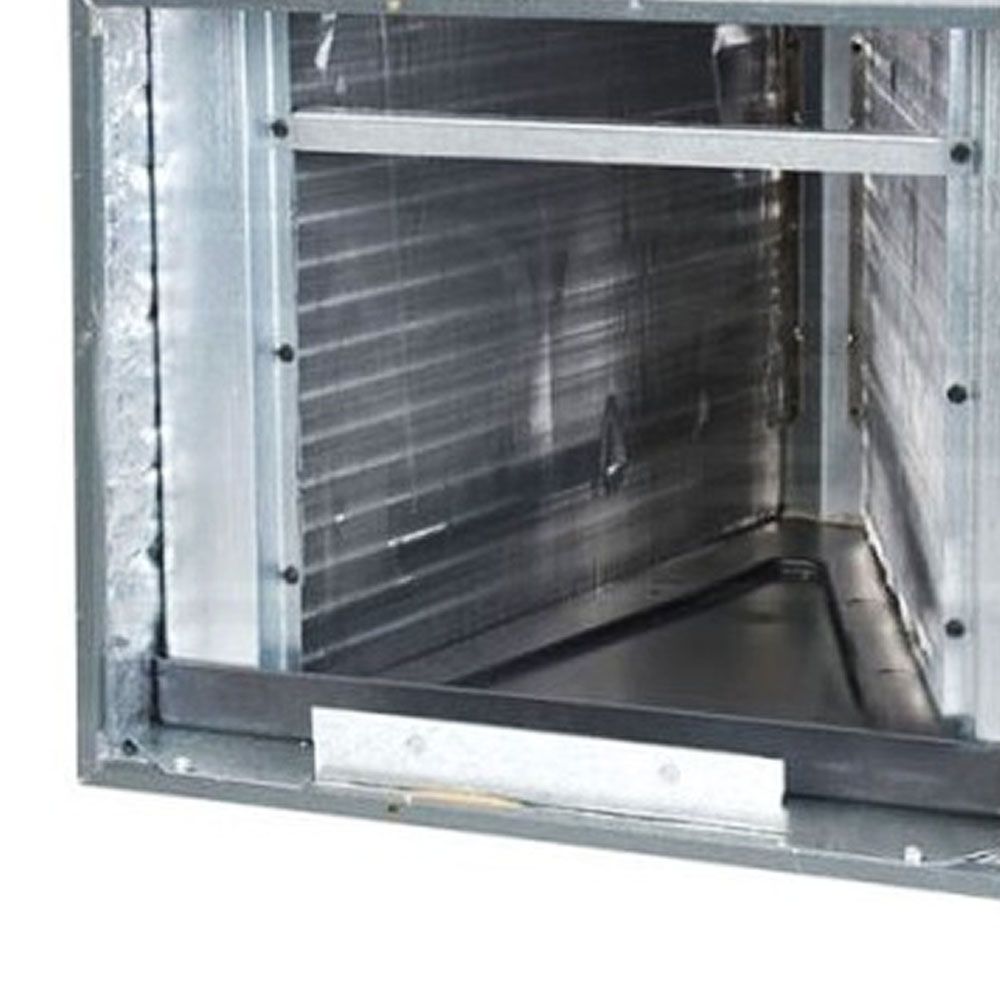

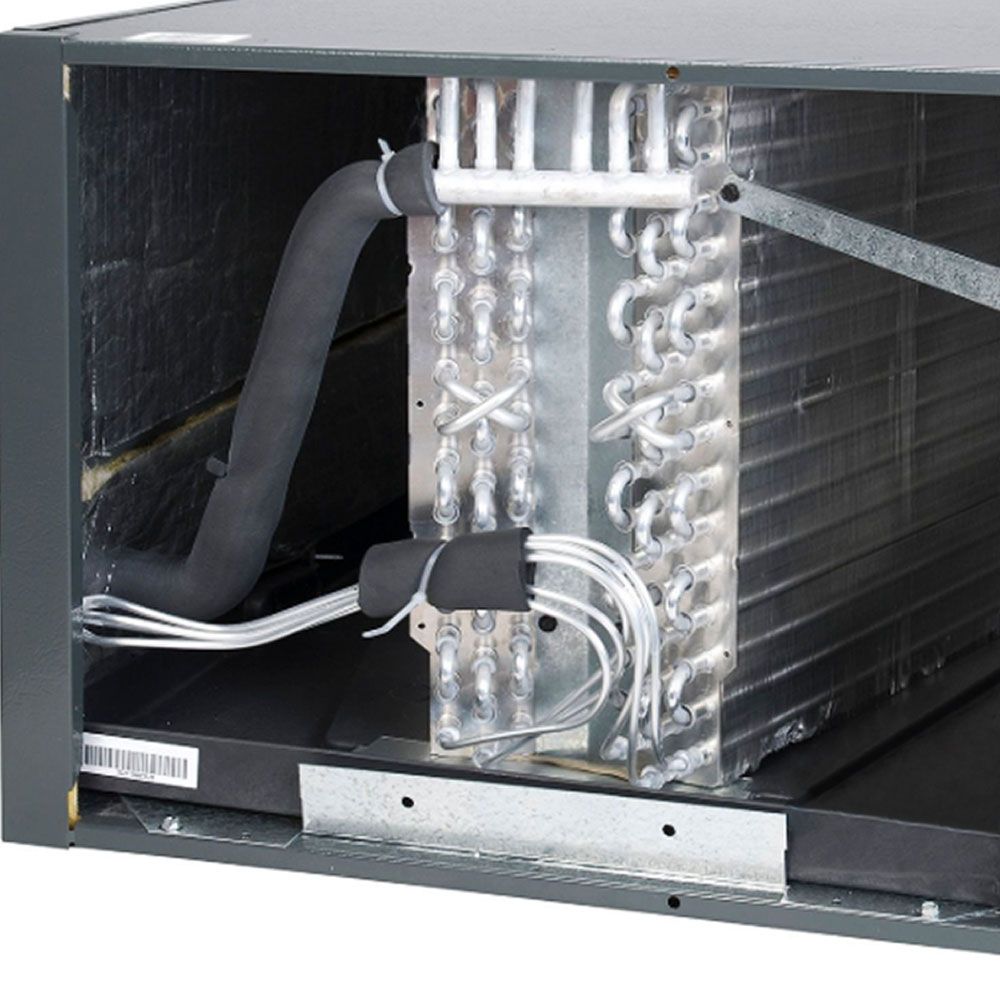

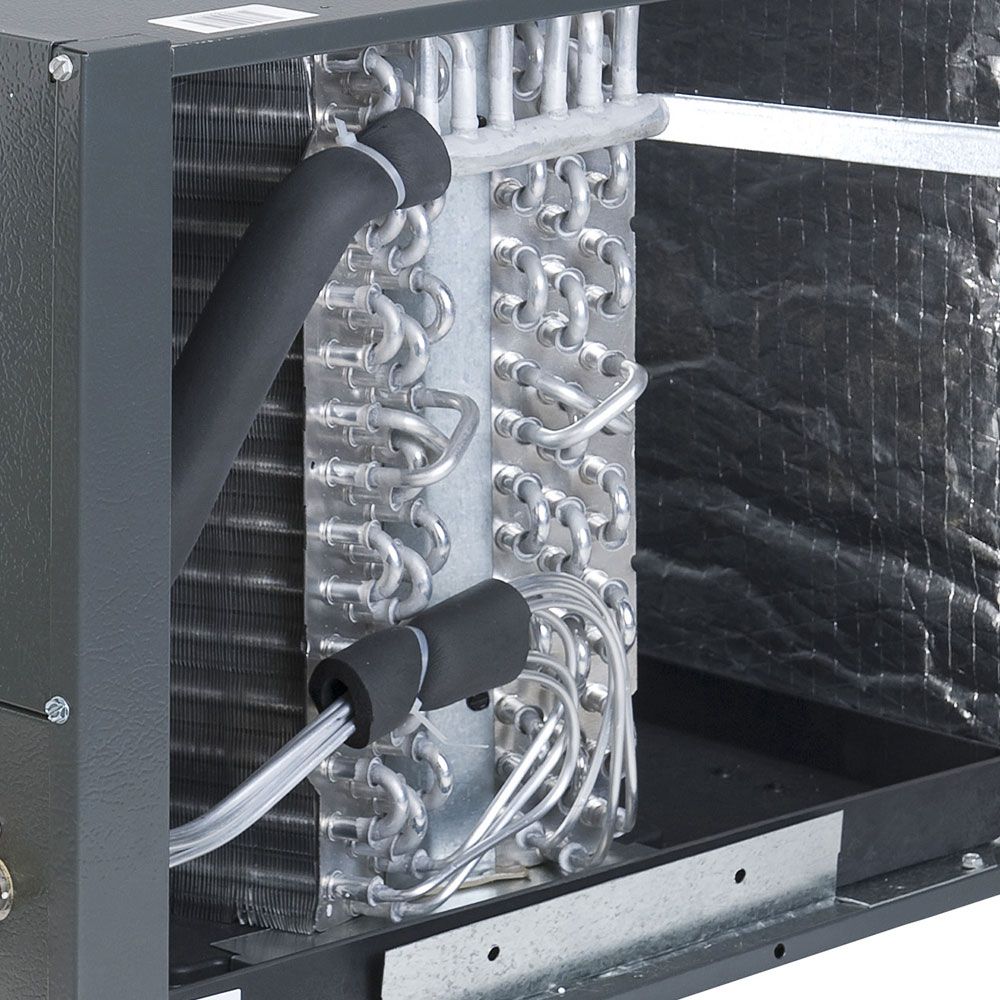

Goodman 4-5 Ton CHPF Horizontal Evaporator Coil CHPF4860D6
The Goodman All-aluminum CHPF Cased Horizontal “A” Coils are made for split system air conditioners and heat pumps. Each coil is made of quality galvanized steel with a painted, leather grain-embossed finish. This cabinet is painted Architectural Gray.
Features:
- All-Aluminum evaporator coil
- Optimized for use with R-22 and R-410A refrigerant
- Check flowrator for cooling and heat pump applications
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust-resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- UV-resistant drain pan
- AHRI certified; ETL listed
Warranty:
- 10 Year Parts Warranty
Specifications:
| Brand | Goodman |
| Model | CHPF4860D6 |
| Refrigerant Type | R410A |
| Casing | Cased |
| Style | A Coil |
| Configuration | Horizontal |
| TXV Installed | No |
| Cabinet Dimensions | 21 1/8 x 26 x 24 1/2 (Depth x Width x Height) |
| Plenum Dimensions | 19" x 23 1/2" (Depth x Height) |
| Nominal Tons | 4--5 |
| Connection |
Liquid: 3/8 Suction: 7/8 |
| Piston Size | .093 inches (in.)² |
| Ship Weight | 77 lbs |
| Certifications | AHRI Certified, ETL Listed |
| Warranty | 10 Years with Online Registration |
| Proposition 65 Warning | Yes |
Product Information and Guides:
