Goodman

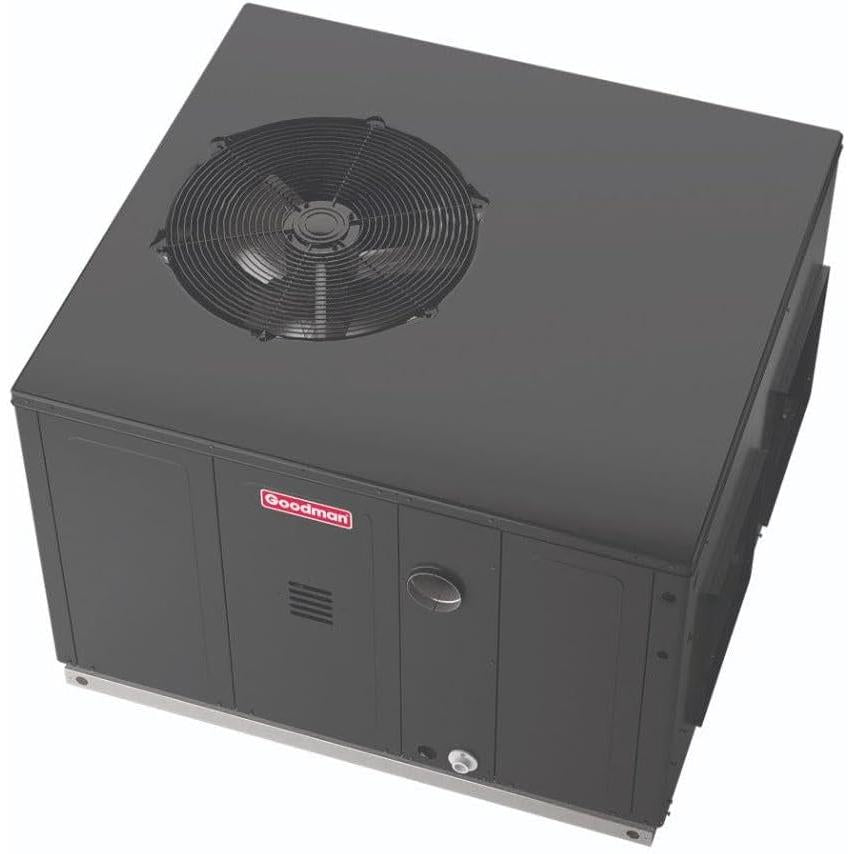

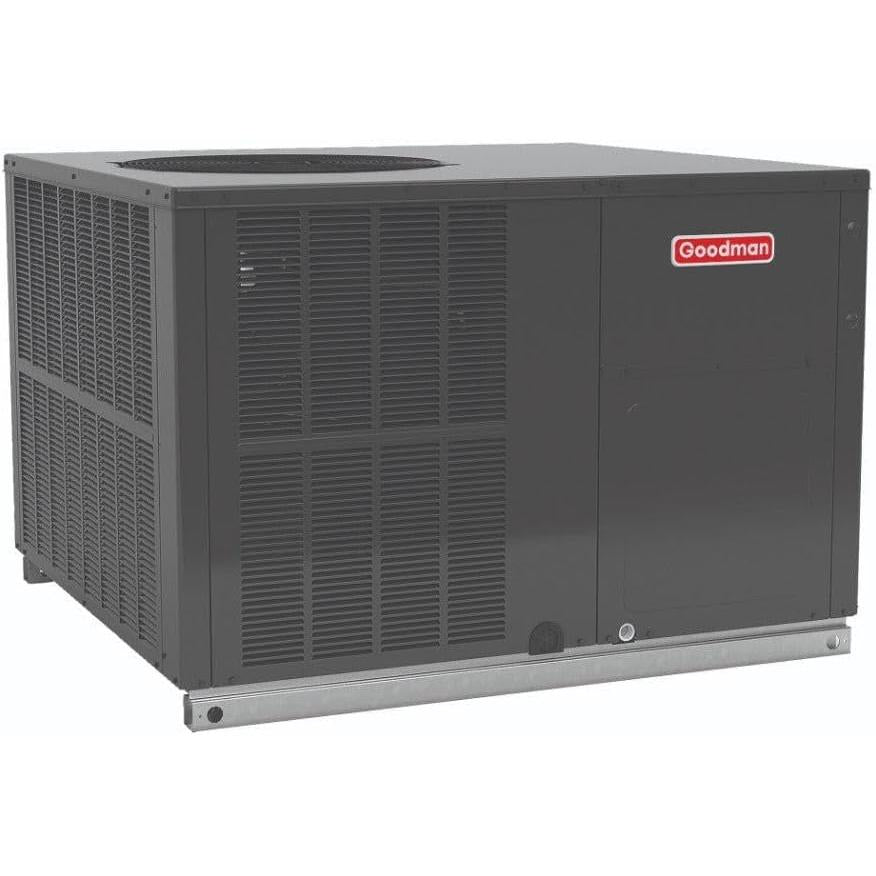

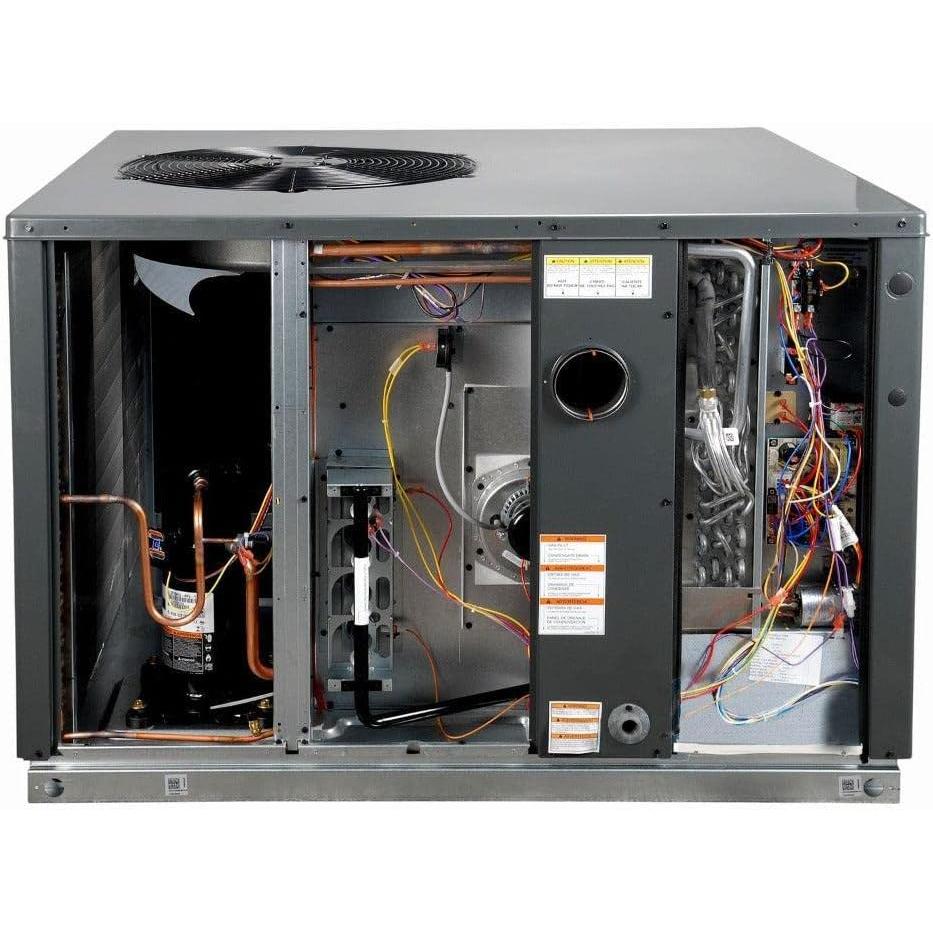

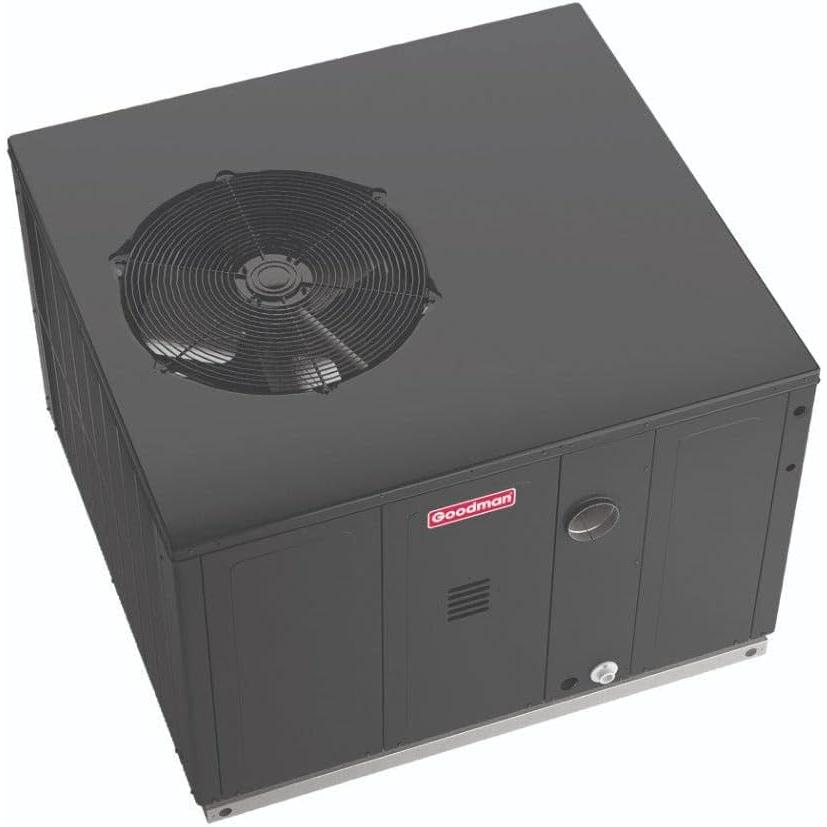

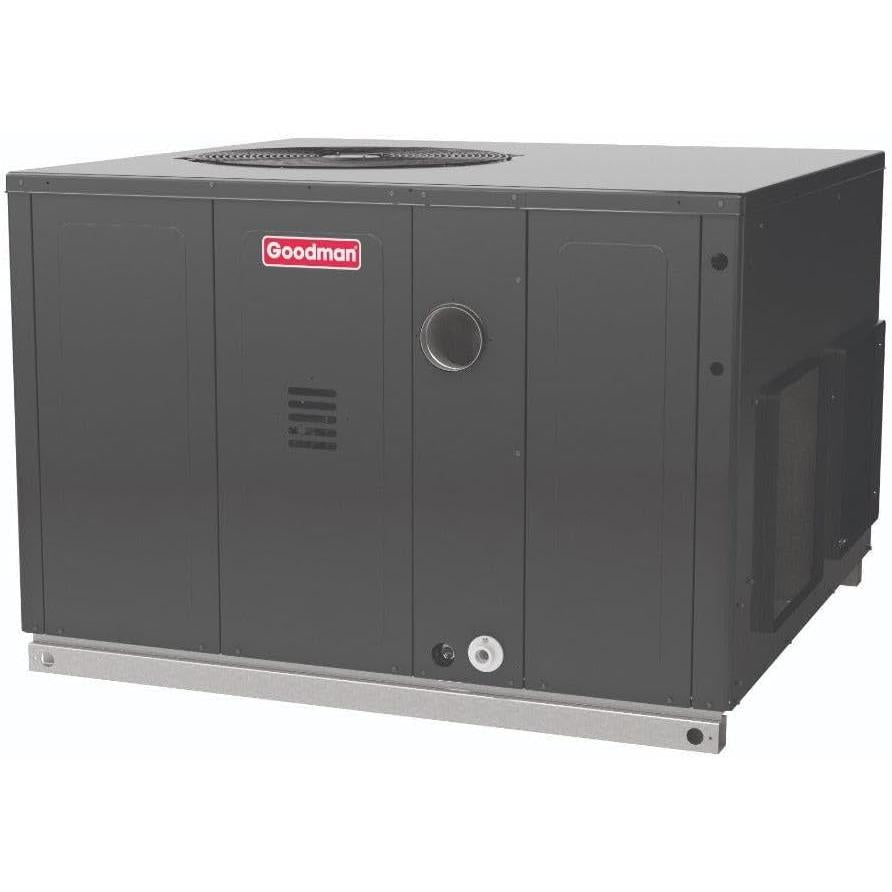

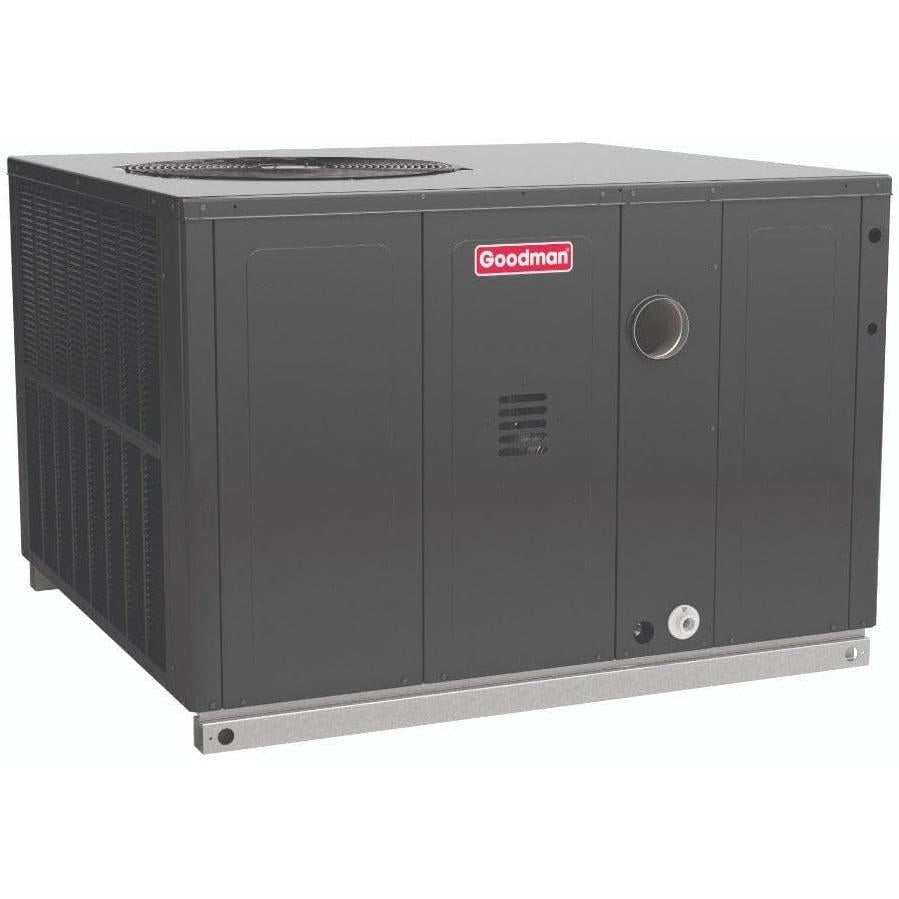

Goodman 4 Ton 13.4 SEER2 Heat Pump Packaged Unit (Multi-Position) - GPHM34841
$4,980.00$6,723.00
Call for best pricing before large-system orders.
Goodman 4 Ton 13.4 SEER2 Heat Pump Packaged Unit (Multi-Position) - GPHM34841
The Goodman 4 Ton 13.4 SEER2 Heat Pump Packaged Unit (Multi-Position) - GPHM34841 provides refreshingly-affordable value to homeowners and small businesses. Goodman brand Packaged Units deliver quiet, year-round comfort from a single, self-contained unit. These energy-efficient units operate as an air conditioner during warm weather, and in the winter deliver heat pump-generated warmth. The energy-efficient Goodman 4 Ton 13.4 SEER2 Heat Pump Packaged Unit (Multi-Position) - GPHM34841 provides economical air conditioning, then, by reverse cycle, delivers economical heating during colder periods. Supplementary electric heat is added at predetermined temperatures during severe cold spells.
Standard Features:
- Energy-efficient scroll compressor
- Multi-speed ECM indoor blower motor
- Convertible airflow: horizontal or downflow
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated air-handling compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- Louvered condenser coil protection
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GPHM34841 |
| Warranty |
10 Years Parts Warranty with online registration 10 Years Compressor Warranty with online registration |
| Refrigerant | R-410A |
| Configuration | Multi-Position |
| Cooling Capacity |
Total BTU/h: 47,500 Sensible BTU/h: 35,500 SEER2 / EER2: 13.4/10.6 AHRI Numbers: 210288033 |
| Heating Capacity |
BTU/h (47°F): 46,000 C.O.P. (47°F): 3.54 BTU/h (17°F): 26,500 C.O.P. (17°F): 2.26 HSPF2: 6.70 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10 x 9 Cooling CFM3: 1,600 No. of Speeds: 5 Horsepower - RPM: 3/4 - 1050 |
| Evaporator Coil |
Face Area (ft2): 6.2 Rows Deep: 4 Fins per Inch: 14 Metering Device Type: Piston Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 163 |
| Condenser Fan |
Horsepower - RPM: 1/3 - 1,122 Fan Diameter: 22 # of Fan Blades: 3 |
| Condenser Coil |
Face Area (ft2): 19.05 Rows Deep: 2 Fins per Inch: 16 Metering Device Type: Piston |
| Compressor |
Quantity: 1 Type: Scroll Stage: Single |
| Sound Power (dBA) | 79 |
| Electrical Data |
Compressor RLA/LRA: 19.6 / 130 Voltage/Phase (60 Hz): 208/230-1 Indoor Blower FLA: 5.4 Outdoor Fan FLA: 2 M.C.A.1: 31.9 M.O.P.2: 50 |
| Shipping Weight (LBS) | 495 |
| Dimensions (W x D x H) | 47 x 51 x 42-3/4 inches |
| Duct Openings Dimensions |
Supply (W x H): 16 x 18 inches Return (W x H): 16 x 18 inches |
