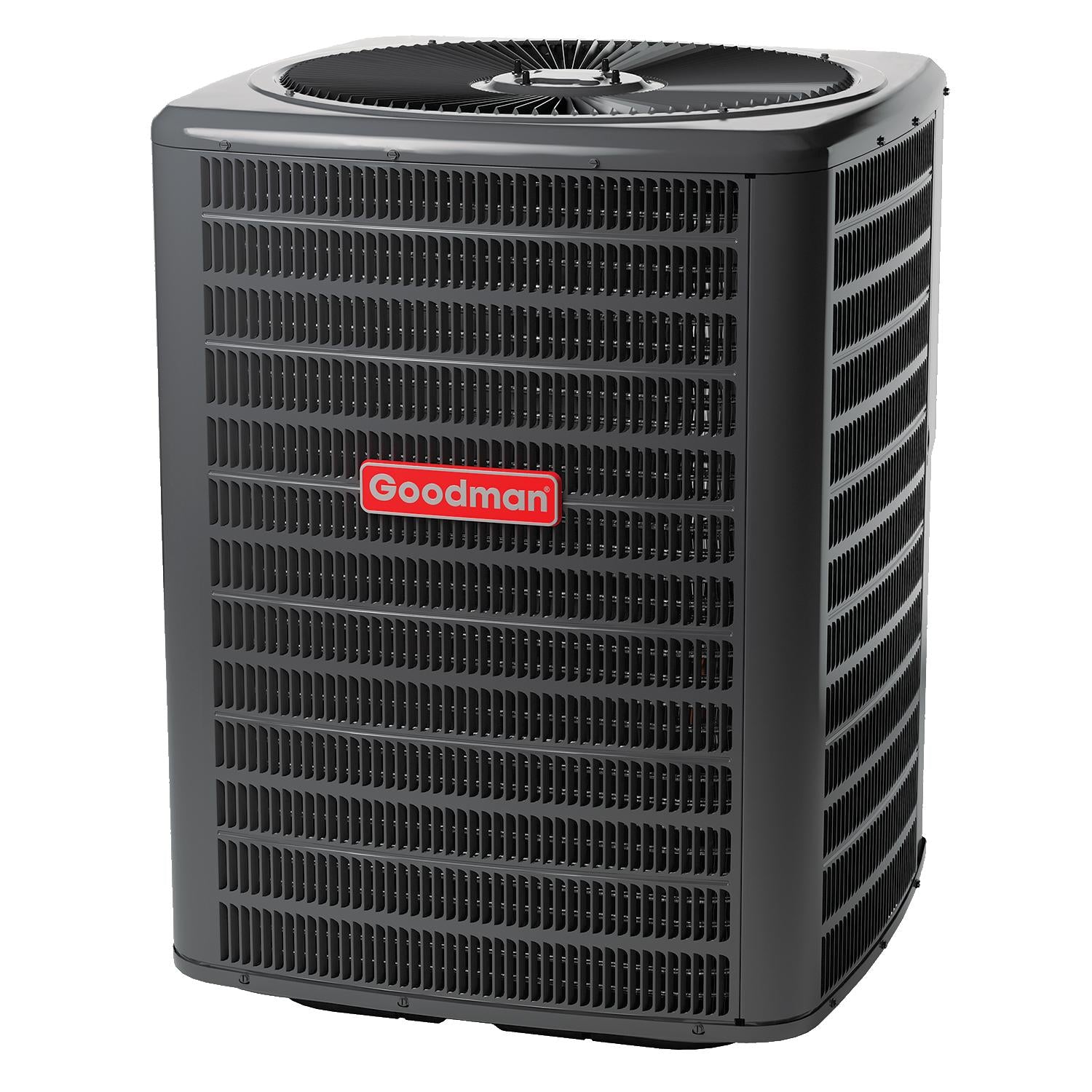

Goodman 4 Ton 15.2 SEER2 Heat Pump Condenser (R-32 Refrigerant) - GLZS5BA4810
The Goodman 4 Ton 15.2 SEER2 Heat Pump Condenser (R-32 Refrigerant) - GLZS5BA4810 provides reliable cooling and heating at money-saving energy efficiency levels compared to lower SEER heat pump units.
The Goodman GLZS5BA4810 heat pump features an efficient copper tube/enhanced aluminum fin coil, a suction-line accumulator, a compressor crankcase, and service valves for easy maintenance. It comes fully charged with enough refrigerant for 15ft of lineset for a simplified installation process and is AHRI Certified and ETL Listed.
Its single-speed condenser fan motor ensures consistent airflow for optimized performance. The unit comes pre-charged with refrigerant for a seamless installation process. Contractors will appreciate the convenient large screw lugs for secure wiring and easy connection of the ground wire. You can never go wrong with a Goodman, upgrade your HVAC system today and enjoy energy-efficient heating and cooling, reliability from a long-time brand, and peace of mind with the 10-year parts, and 10-years compressor warranty.
Standard Features:
- High-efficiency scroll compressor
- SmartShift® technology to ensure quiet reliable defrost
- Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5 ton
- Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
- Single-speed PSC condenser fan motor
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Fully charged for 15’ of tubing length
- Ground lug connection
- Fully enclosed contactor
- Capacitor with extended life
- AHRI Certified; ETL Listed
Cabinet Features:
- Removable grille style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Single panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman® |
| Model | GLZS5BA4810 |
| Energy Star Certified | Yes |
| Warranty |
10 Years Parts Warranty 10 Years Compressor Warranty |
| Nominal Capacities |
Cooling (BTU/h): 48,000 Heating (BTU/h): 48,000 SEER2: 15.2 HSPF2: 8.2 Decibels: 73.6 |
| Compressor |
RLA: 19.4 LRA: 127.7 Stage: Single Type: Scroll |
| Condenser Fan Motor |
Horsepower: 1/4 FLA: 1.3 |
| Refrigeration System |
Refrigerant Line Size
Refrigerant Connection Size
Refrigerant Type: R-32 Valve Connection Type: Sweat Refrigerant Charge (oz.): 174 |
| Electrical Data |
Volts/Phase (60 Hz): 208/230-1-60 Minimum Circuit Ampacity: 25.5 Max. Overcurrent Protection: 40 Min / Max Volts: 197/253 Electrical Conduit Size: 1/2" or 3/4" |
| Unit Weight (lbs) |
Equipment Weight: 264 Shipping Weight: 284 |

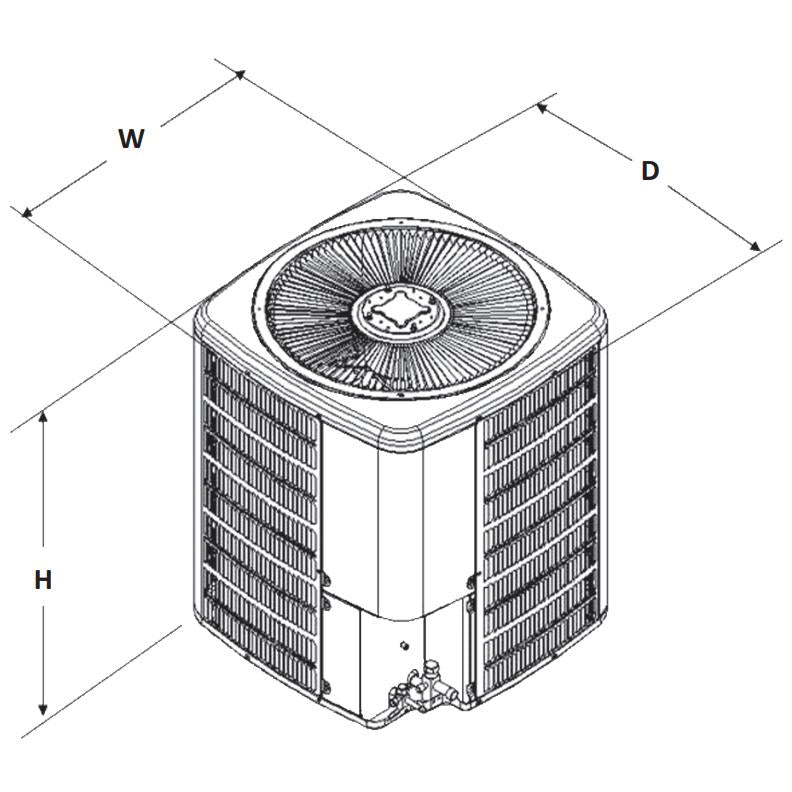

| Dimensions (W x D x H) | 35-1/2 x 35-1/2 x 36-1/2 inches |
| Resources |
