Goodman 5 Ton 13.8 SEER2 R-32 Central Air Conditioner Split System - Multi-Position (GLXS3BN6010 Condenser and AMST60DU1300 Air Handler)
Discover the power of the Goodman 5 Ton 13.8 SEER2 R-32 Central Air Conditioner Split System - Multi-Position (GLXS3BN6010 Condenser and AMST60DU1300 Air Handler). With a system SEER2 rating of 13.8, this bundle combines advanced features like an energy-efficient compressor, copper tube/enhanced aluminum fin coil, and internal thermal expansion valves for reliable cooling, durability, and energy savings.
Goodman 5 Ton 13.4 SEER2 Air Conditioner Condenser (R-32) - GLXS3BN6010
The Goodman 5 Ton 13.4 SEER2 Air Conditioner Condenser (R-32) - GLXS3BN6010 uses the environmentally friendly refrigerant R-32 and features the unique Goodman sound control top design for quiet operation. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.
Standard Features:
- Energy-efficient compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

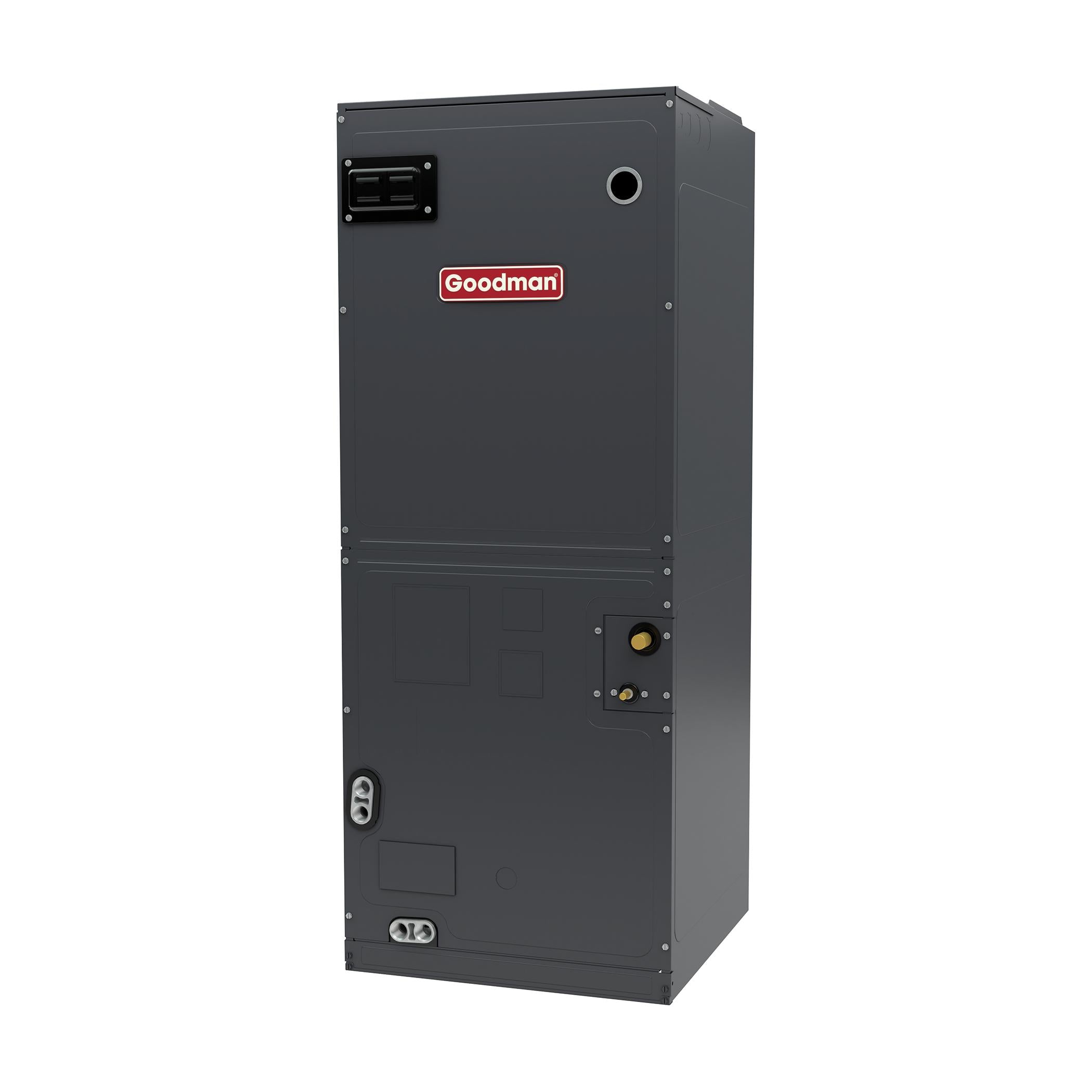

Goodman AMST60DU1300 5 Ton Multi-Position, Multi-Speed ECM-Based Air Handler with Internal TXV (R-32)

The Goodman AMST60DU1300 R-32 only air handler features internal factory-installed thermal expansion valves that optimize cooling, ensuring efficient operation. The unit is equipped with appropriately sized evaporator coil tubes, ensuring effective transfer and improved cooling performance. Featuring a direct-drive, 9-speed ECM blower motor, ensuring efficient airflow and enhanced comfort. The coil mounting track enables easy repositioning and flexible installation options
Features:
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Direct drive, multi-speed ECM blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Optimized for use with R-32 refrigerant
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
- AHRI certified; ETL listed
- UL 60335 2-40 Compliant
- Factory installed R32 sensor designed for lifespan of coil
- Rigid SmartFrame™ cabinet
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
- Field Installed 3 kW – 25 kW electric heater kits available
What's Included:
- 1x Goodman 5 Ton 13.4 SEER2 Air Conditioner Condenser (R-32) - GLXS3BN6010
- 1x Goodman AMST60DU1300 5 Ton Multi-Position, Multi-Speed ECM-Based Air Handler with Internal TXV (R-32)
- 1x FREE DiversiTech Condenser Mounting Pad ($139.99 Value)
Heat Pump Condenser Specifications:
| Brand | Goodman |
| Model | GLXS3BN6010 |
| Warranty |
10 Years Parts Warranty 10 Years Compressor Warranty |
| SEER2 | 13.4 |
| Cooling Capacity |
Nominal Cooling (BTU/h): 60,000 Decibels (dBA): 74.0 |
| Compressor |
RLA: 23.9 LRA: 148.0 Stage: Single Type: Scroll |
| Condenser Fan Motor |
Motor Type: PSC Horsepower (RPM): 1/4 FLA: 1.3 |
| Refrigeration System |
Refrigerant Line Size
Refrigerant Connection Size
Valve Connection Type: Sweat Refrigerant Type: R-32 Refrigerant Charge: 91 oz |
| Electrical Data |
Voltage-Phase (60 Hz): 208/230-1-60 Minimum Circuit Ampacity: 31.1 Max. Overcurrent Protection: 50.0 Min / Max Volts: 197 / 253 Electrical Conduit Size: 1/2" or 3/4" |
| Equipment Weight (LBS) | 229 |
| Ship Weight (LBS) | 244 |
| Dimensions (W x D x H) | 35-1/2 x 35-1/2 x 39-1/2 inches |
| Resources |
Air Handler Specifications:
| Brand | Goodman |
| Model | AMST60DU1300 |
| Warranty | 10 Years Parts Warranty |
| Refrigerant Type | R-32 |
| Nominal Ratings |
Cooling (Btu/h): 60,000 Nominal Tons: 5 Ton |
| Configuration | Multi-Positional |
| Blower |
Diameter: 11" Width: 10" |
| Cabinet Width | 24.5" |
| Coil Connections |
Liquid: 3/8" Suction: 7/8” Coil Drain Connect (FPT): 3/4” |
| Electrical Data |
Voltage, Phase, Hz: 208/240 V, 1 Phase, 60 Hz Minimum Circuit Ampacity: 8.6 Max. Overcurrent Device (Amps): 15 Min. / Max VAC: 197 / 253 |
| Blower Motor |
Full Load Amps (FLA): 6.9 Horsepower (HP): 1 |
| Dimensions (W x D x H) | 24-5/8" x 21" x 58 |
| Ship Weight (LBS) | 167 |
| Resources |
