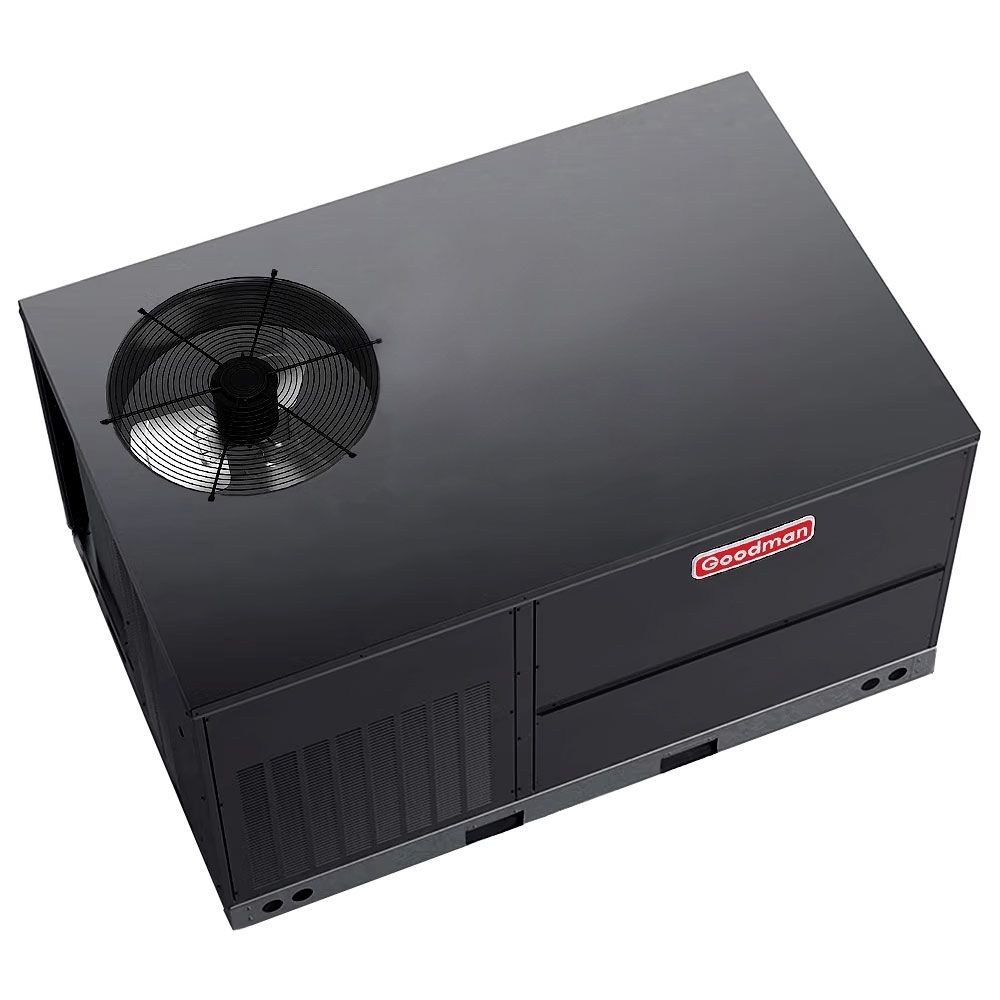

Goodman 5 Ton 15.2 SEER2 Package Heat Pump (Multi-Position) - GPHM56041
The Goodman 5 Ton 15.2 SEER2 Package Heat Pump (Multi-Position) - GPHM56041 provides refreshingly-affordable value to homeowners and small businesses while helping keep energy bills to a minimum. Goodman Packaged Units sit on the ground or rooftop outside your home or business and deliver quiet, year-round comfort from a single, self-contained unit. The high-efficiency Goodman 5 Ton 15.2 SEER2 Package Heat Pump (Multi-Position) - GPHM56041 operates as an air conditioner during warm weather, and in the winter delivers heat pump-generated warmth. All units come fully charged and tested with environmentally-friendly R-410A refrigerant - direct from the factory.
Standard Features:
- High-efficiency two-stage scroll compressor
- Two-stage heating and cooling
- Multi-Speed ECM indoor blower motor
- Copper tube/aluminum fin condenser coils
- All-aluminum evaporator coil on 2- to 4-ton units
- Aluminum-copper evaporator coil on 5-ton units
- Liquid-line filter drier
- Convertible airflow: horizontal or downflow
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive two-tone Architectural Gray powder-paint finish
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated air-handling compartment with convenient access panels
- Louvered condenser coil protection
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
Specifications:
| Brand | Goodman |
| Model | GPHM56041 |
| Warranty |
10 Years Parts Warranty 10 Years Compressor Warranty |
| Refrigerant Type | R-410A |
| Configuration | Multi-position |
| Cooling Capacity |
Total BTU/h: 56,500 Sensible BTU/h: 44,000 SEER2 / EER2: 15.2 / 11.2 AHRI Number: 210288052 |
| Heating Capacity |
BTU/h (47°F): 58,500 C.O.P. (47°F): 3.73 BTU/h (17°F): 32,000 C.O.P. (17°F): 2.45 HSPF2: 6.80 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 11" x 10" Nominal Cooling CFM: 2000 No. of Speeds: 5 Horsepower - RPM: 1 - 1,200 |
| Evaporator Coil |
Face Area (ft²): 9.16 Rows Deep: 4 Fins per Inch: 16 Metering Device Type: TXV Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 225 |
| Condenser Fan |
Horsepower - RPM: 1/3 - 1,090 Fan Diameter: 22 # of Fan Blades: 3 |
| Condenser Coil |
Face Area (ft²): 19.01 Rows Deep: 2 Fins per Inch: 16 Metering Device Type: TXV |
| Compressor |
Quantity: 1 Type: Scroll Stage: Two |
| Sound Power (dBA) | 78 |
| Electrical Data |
Compressor RLA/LRA: 22.9 / 147.2 Voltage/Phase (60 Hz): 208-230 / 1 Indoor Blower FLA: 6.9 Outdoor Fan FLA: 3.5 Min. Circuit Ampacity: 39 Max. Overcurrent Protection: 60 |
| Operating Weight (LBS) | 630 |
| Shipping Weight (LBS) | 688 |
| Dimensions (W x D x H) | 47-5/8 x 73-3/8 x 43-1/2 inches |
| Duct Openings Dimensions |
Supply (W x H): 12 x 17 inches Return (W x H): 11 x 25 inches |
| Resources |
