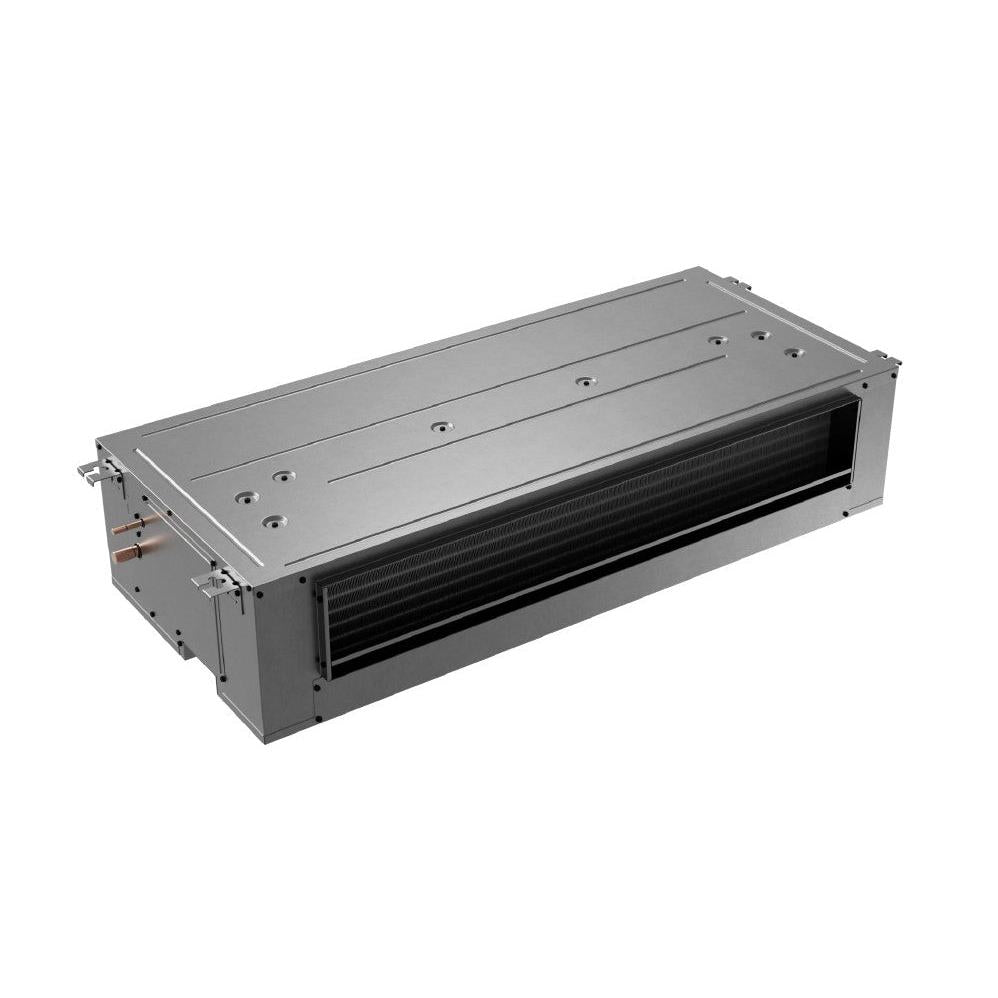

Goodman ACST Ducted Ceiling Mounted Air Handler, Multi Speed ECM Motor, 2 Ton, 54.2 in Cabinet with TXV Expansion, Non-Communicating - ACST24LU1310
- Unit Height: 11 in
- Unit Width: 54.2 in
- Communication Feature Type: Non-Communicating
- Cooling Capacity Nominal: 24000 Btu/H
- Max Overcurrent Protection: 50/60 A
- Power Phase: 1 Ph
- Power Voltage: 208/230 V
- Motor Speed Type: Multi Speed ECM
- Unit Weight: 97 lb
- Tonnage: 2
- Unit Depth: 22.2 in
- Product Benefits:
- Factory installed TXV for heat pump and cooling-only applications
- All-Aluminum tube/aluminum fin coil
- Direct-drive, resilient-mount, multi-speed motor
- Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
- High-efficiency evaporator coil
- Quiet operation
- AHRI Certified
- Suitable for both front and bottom return
- Factory installed casing
- UL 2-40 cerified
- . ETL Listed
- . Suitable for free-return installation (non-ducted return air)
- . Galvanized-steel construction
- . Factory-installed pull-type disconnect
- . Easy service access
- Cabinet Features:
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
- Suitable for both front and bottom return
- Factory installed casing
