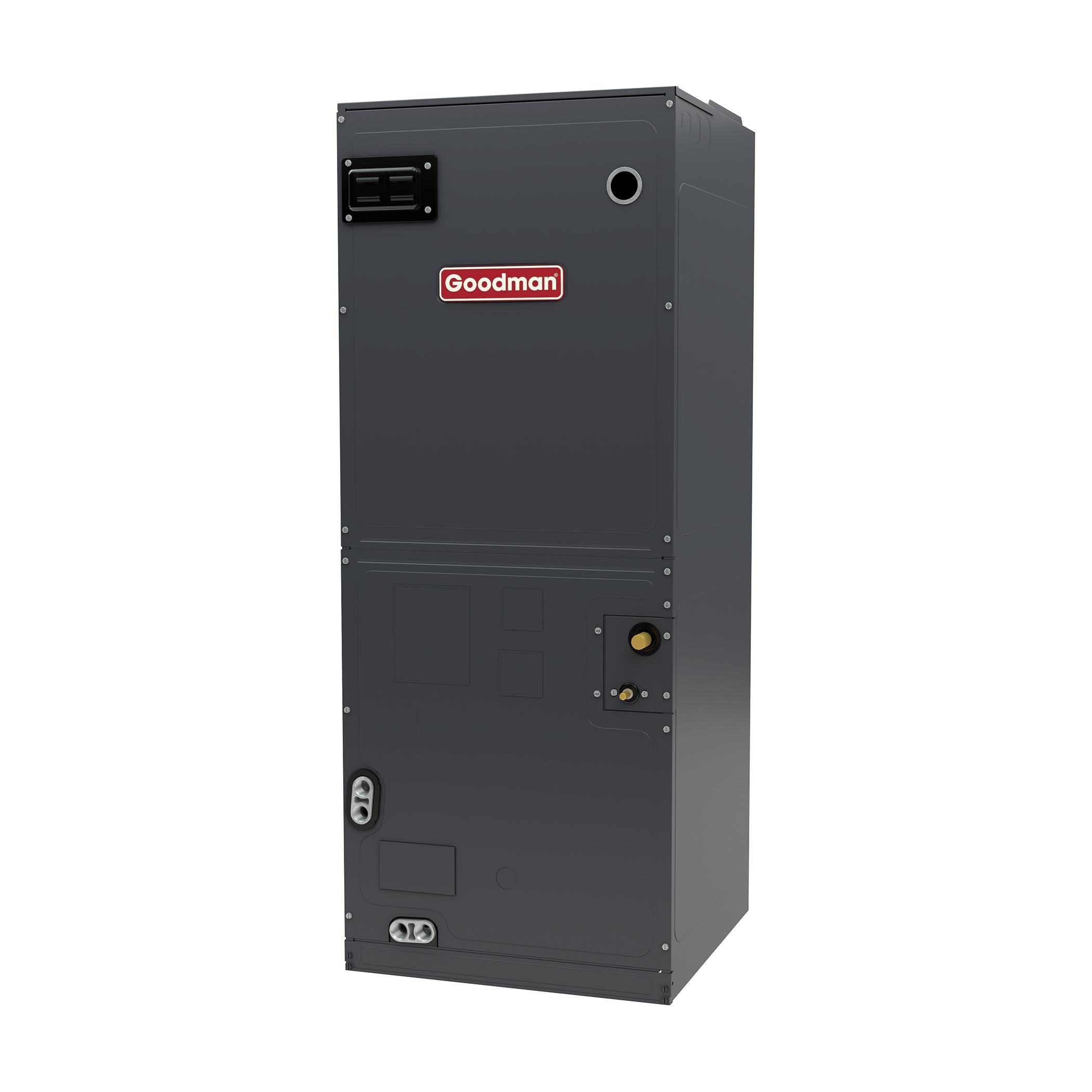

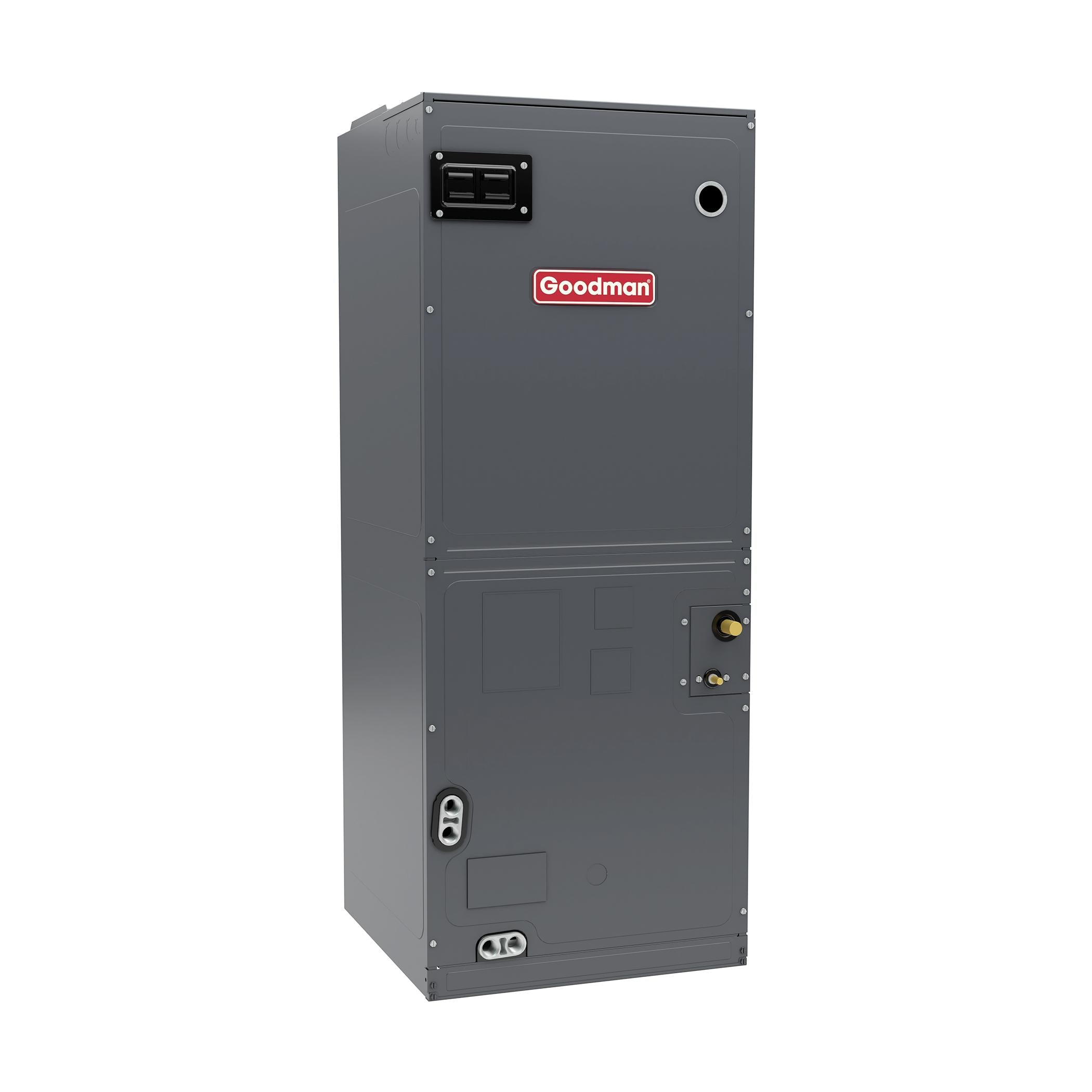

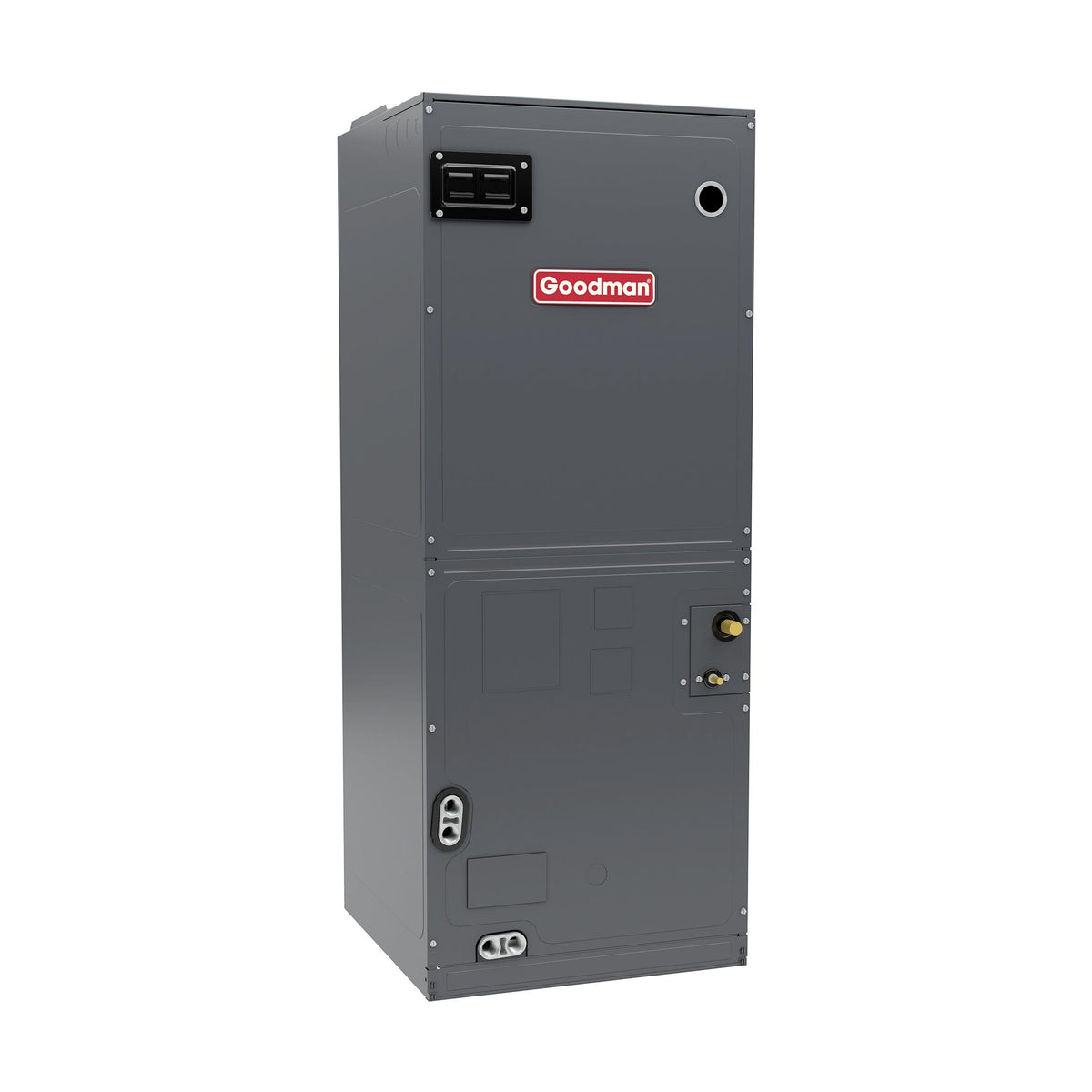

Goodman AMST42CU1300 3.5 Ton Multi-Position, Multi-Speed ECM-Based Air Handler with Internal TXV (R-32)
$1,802.00$2,432.70
Call for best pricing before large-system orders.
Goodman AMST42CU1300 3.5 Ton Multi-Position, Multi-Speed ECM-Based Air Handler with Internal TXV (R-32)
The Goodman AMST42CU1300 R-32 only air handler features internal factory-installed thermal expansion valves that optimize cooling, ensuring efficient operation. The unit is equipped with appropriately sized evaporator coil tubes, ensuring effective transfer and improved cooling performance. Featuring a direct-drive, 9-speed ECM blower motor, ensuring efficient airflow and enhanced comfort. The coil mounting track enables easy repositioning and flexible installation options
Features:
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Direct drive, multi-speed ECM blower motor
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Optimized for use with R-32 refrigerant
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
- AHRI certified; ETL listed
- UL 60335 2-40 Compliant
- Factory installed R32 sensor designed for lifespan of coil
- Rigid SmartFrame™ cabinet
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
- Field Installed 3 kW – 25 kW electric heater kits available
Specifications:
| Brand | Goodman |
| Model | AMST42CU1300 |
| Warranty | 10 Years Parts Warranty |
| Refrigerant Type | R-32 |
| Nominal Ratings |
Cooling (Btu/h): 42,000 Nominal Tons: 3.5 Ton |
| Configuration | Multi-Positional |
| Blower |
Diameter: 10" Width: 8" |
| Cabinet Width | 21" |
| Coil Connections |
Liquid: 3/8" Suction: 3/4” Coil Drain Connect (FPT): 3/4” |
| Electrical Data |
Voltage, Phase, Hz: 208/240 V, 1 Phase, 60 Hz Minimum Circuit Ampacity: 5.9 Max. Overcurrent Device (Amps): 15 Min. / Max VAC: 197 / 253 |
| Blower Motor |
Full Load Amps (FLA): 5.7 Horsepower (HP): 3/4 |
| Dimensions (W x D x H) | 21-1/8" x 21" x 53-7/16" |
| Ship Weight (LBS) | 153 |
| Resources |
