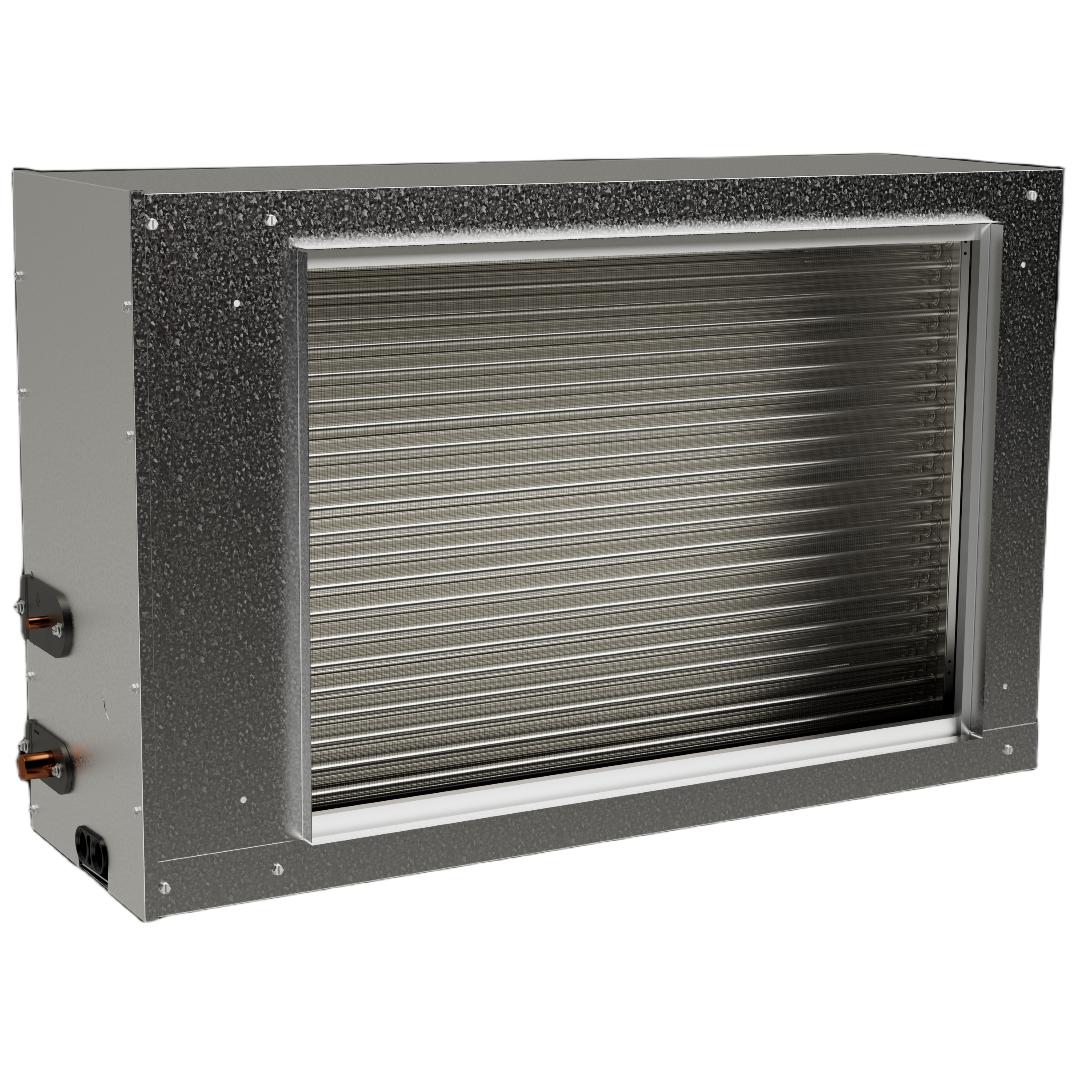

Goodman CSCT6012L3 4 - 5 Ton Horizontal Slab Evaporator Coil with TXV, 39.5" Cabinet, Cased, Unpainted, R-32
The Goodman CSCT6012L3 R-32 Horizontal Slab Evaporator Coil is a high-efficiency coil designed for horizontal applications, delivering reliable performance and long-lasting durability. Built with Goodman’s commitment to quality, this coil is engineered to maximize system efficiency while using environmentally friendly R-32 refrigerant. Customers choose Goodman because of its reputation for dependable HVAC equipment backed by excellent support. With proper installation and registration within 60 days, this unit comes with a 10-year limited parts warranty, giving you peace of mind and confidence in your investment.
Standard Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- CAPTA, CHPTA CAUTA models feature factory installed thermal expansion valves for cooling and heat pump applications
- CSCT models feature a factory-installed thermal expansion valve for cooling applications
- CAPEA, CHPEA and CAHEA models feature:
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
- Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment
- Cooling and heat pump applications
- Fault recall of six most recent faults
- CAPFA models feature optimized metering devices (piston)
- Standardized copper suction tube stub length
- Vertical and horizontal models available
- 21" depth for easier attic access
- CAPFA, CAPTA, CHPTA, CAPEA and CHPEA include single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified; ETL listed
Note: Do not use these coils on oil furnaces or any applications where the temperature on the drain pan may exceed 300° F. If these coils are applied with an oil furnace or another application where high temperatures threaten or jeopardize the durability of the drain pan, you must replace the factory-installed drain pan with a high-temperature drain pan. High-temperature drain pan kits are available as field-installed accessories.
Warranty:
- 10-Year Parts Limited Warranty
- See the warranty document here for full warranty details
Goodman CSCT6012L3 4 - 5 Ton Horizontal Slab Evaporator Coil with TXV, 39.5" Cabinet, Cased, Unpainted, R-32 Specifications:
| Brand | Goodman |
| Model | CSCT6012L3 |
| Warranty |
|
| Refrigerant Type | R-32 |
| Configuration | Horizontal |
| Cased | Yes |
| Cabinet Dimensions (W x D x H) | 39½" x 12" x 25" |
| Plenum Opening (W x H) | 30" x 21" |
| Nominal Tons | 4 - 5 Tons |
| Coil Dimensions (W x H) | 34" x 24" |
| Service Valve |
Liquid: 3/8" Suction: 7/8" |
| Ship Weight | 58 lbs |
| Resources |
