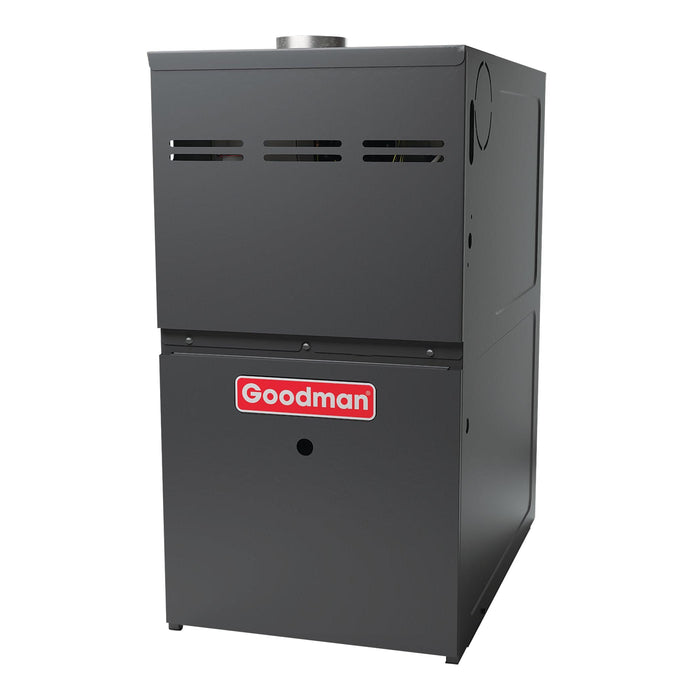

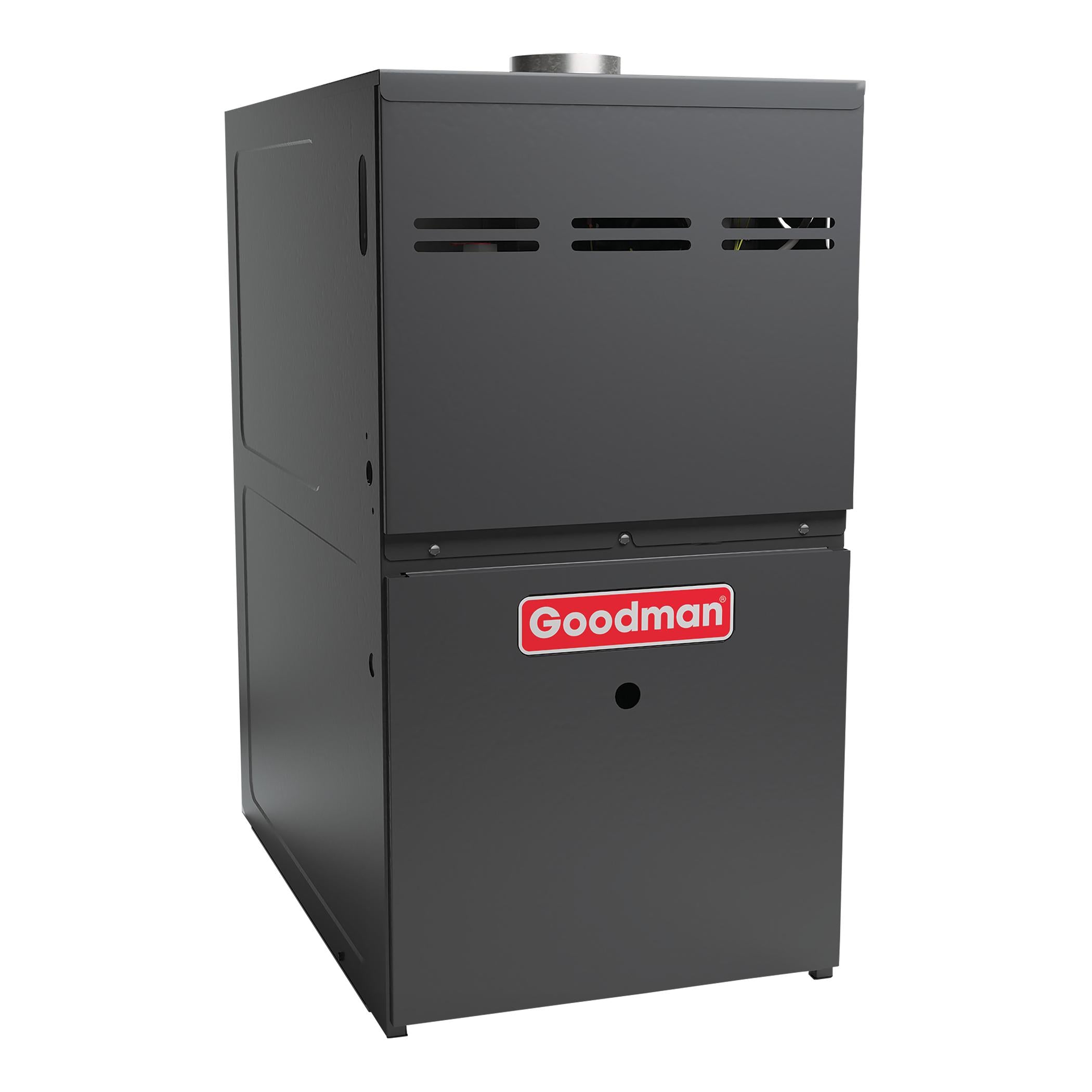

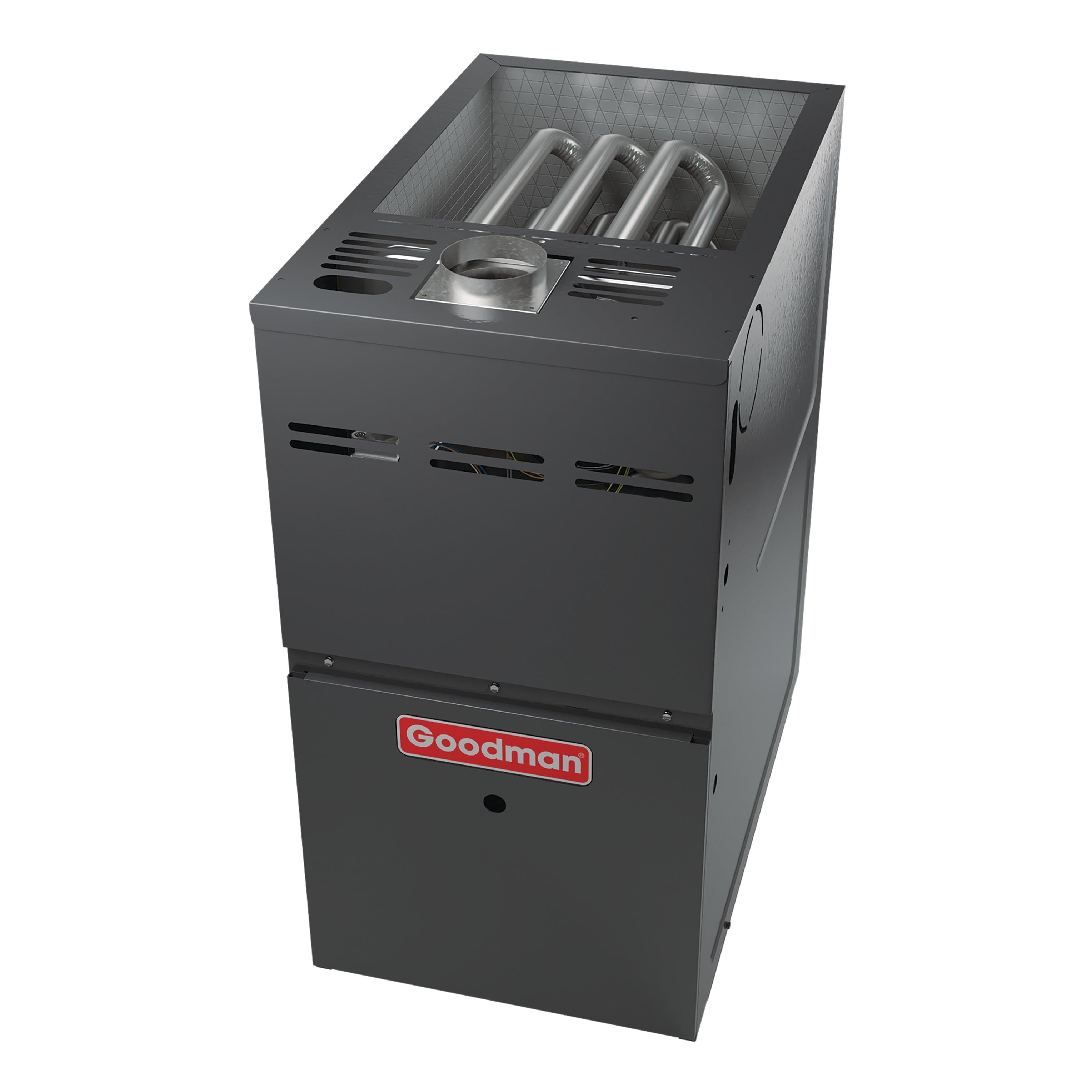

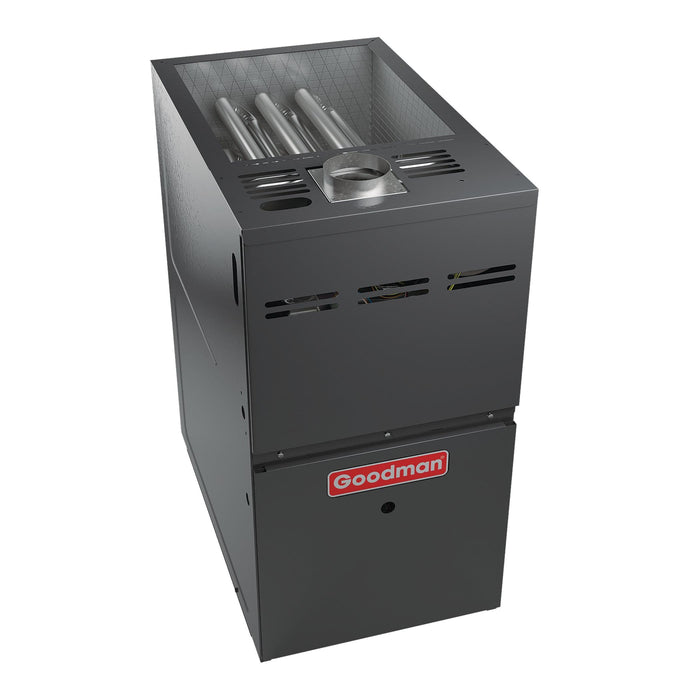

Goodman® GM9S800403AN 40K BTU 80% AFUE Single-Stage Multi-Speed ECM Gas Furnace

SKU: GM9S800403AN
Your Price:
$1,024.00 $1,243.35
You Save: $219.35 18%
  • FLASH SALE GOING ON NOW! Save An Extra 15% OFF with Code: FLASH15
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source
Checkout Secure

Quantity Remaining:

Only 145 Left in Stock.
Order in the next to get it by

Get Extra 15% Off With Code: FLASH15 - Flash Sale Ends:

Days
Hours
Minutes
Seconds

Goodman GM9S800403AN 40K BTU 80% AFUE Single-Stage Multi-Speed ECM Gas Furnace

The best gas furnace is the kind you don’t have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all winter long as needed. The Goodman® GM9S80 is loaded with features designed to provide outstanding performance for years to come. Goodman use's advanced techniques and materials so you know the cozy, even heat you feel in every corner of your home is an energy-efficient warming trend that’s designed to stay for many years.

Standard Features:

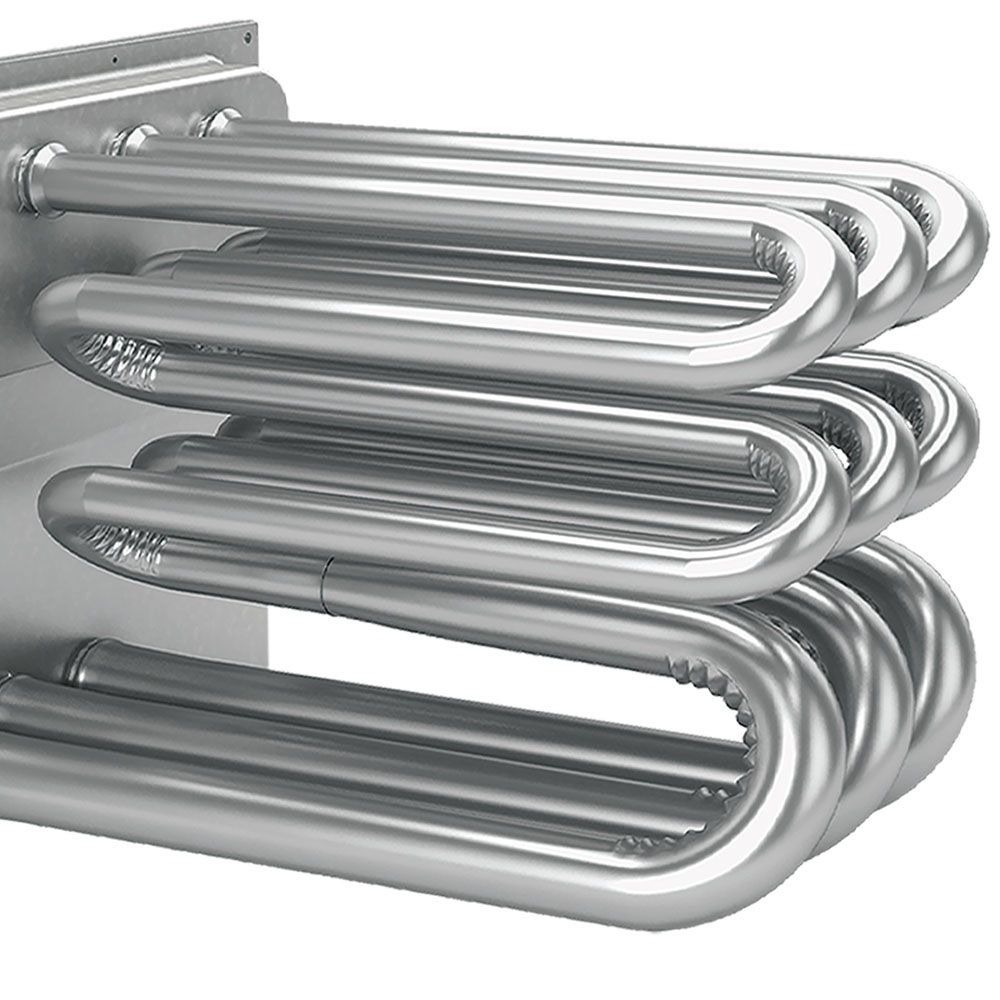

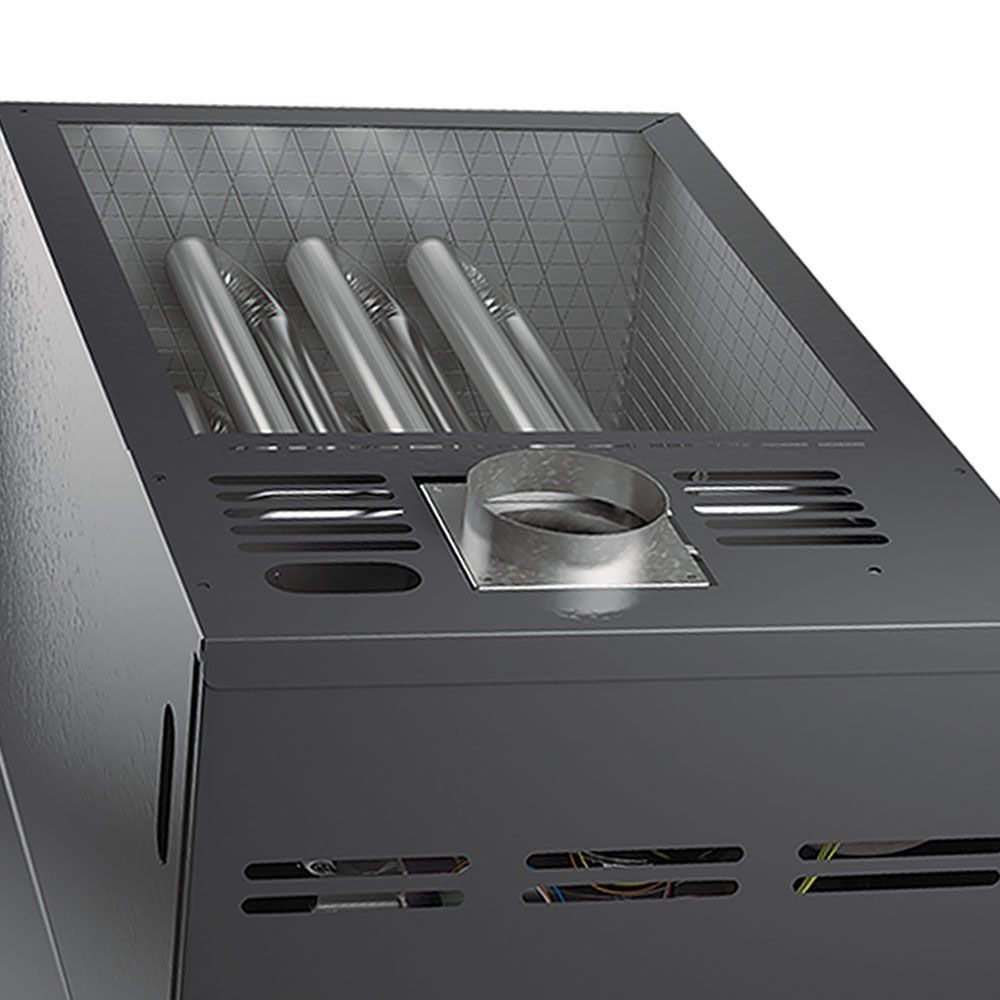

  • Heavy-duty aluminized-steel dual-diameter tubular heat exchanger
  • Single-stage gas valve
  • Durable Hot-surface igniter
  • Quiet, single-speed draft induced
  • Self-diagnostic control board
  • Color-coded low-voltage terminals
  • Multi-speed ECM blower motor
  • California Low NOx emissions models available
  • Can no longer be installed in California’s South Coast Air Quality Management District (SCAQMD) on or after October 1, 2019. Please see our high-efficiency Goodman furnaces (models GMS9, GCS9, GMV9, GCV9, GMH) which are compliant with California laws.
  • AHRI Certified; ETL Listed

Cabinet Features:

  • Installation: Upflow, Horizontal left or right
  • Convenient left or right connection for gas and electrical service
  • Heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil faced insulated heat exchanger

Warranty:

In addition to covering the heat exchanger with a Lifetime Limited Warranty, if the heat exchanger fails within its first 2 years of ownership, we will replace the entire unit. This furnace also has a 10-Year Limited Parts Warranty on all functional parts. For more information, please review the warranty sheet in the "Product Infomation and Guides" section at the bottom of the page.

Specifications:

Brand Goodman®
Model GM9S800403AN
GTIN 663051627703
AHRI Number 207254775
Warranty 10-Year Parts, Lifetime Heat Exchanger
Fuel Type
Natural Gas, LP Capable (With LP Kit)
Configuration Upflow, Horizontal left or right

Heating Capacity

Input: 40,000

Natural Gas Output: 32,000

LP Gas Output: 32,000

AFUE: 80

Available AC @ 0.5” ESP: 3

Temperature Rise Range (°F): 25-55

Circulator Blower

Size (D x W): 10" x 6"

Horsepower @1075 RPM: 0.5

Speed: 9

Vent Diameter: 4"

No. of Burners: 2

Electrical Data

Frequency: 60 Hz

Voltage Phase: 1

Min. Circuit Ampacity: 8.7

Max. Overcurrent Device (amps): 15

Voltage: 115 / 120 Volts

Dimensions

Unit Size: 28 x 14 x 33 3/8 inches (L x W x H)

Vent Connection: 4 inches

Supply Air Opening Size: 12.5 x 19.5 inches

Return Air Opening Size: 15 x 23 inches

Flue Pipe Diameter: 4

Ship Weight 86 lbs

Product Information and Guides:
