This Goodman 2 Ton Dual Fuel System pairs the GZV6SA2410 variable-speed inverter-driven R-32 heat pump condenser with the CAPEA3022B3 cased evaporator coil featuring an electronic expansion valve (EEV) and the GRVM970803BN 97% AFUE modulating gas furnace with Variable-Speed ECM blower motor. The system is AHRI certified (Certificate #215487298) and rated at 18.0 SEER2, 8.5 HSPF2, and 10.2 EER2 for verified cooling and heating performance.
This configuration may qualify for federal tax credits under the Inflation Reduction Act (IRA) when applicable efficiency thresholds are met.
Note: If you would like to review the manufacturer Product Specifications, Warranty, Brochure, etc., for this system, please refer to the 'Resources (System Manuals and Warranty)' Tab above on this page.

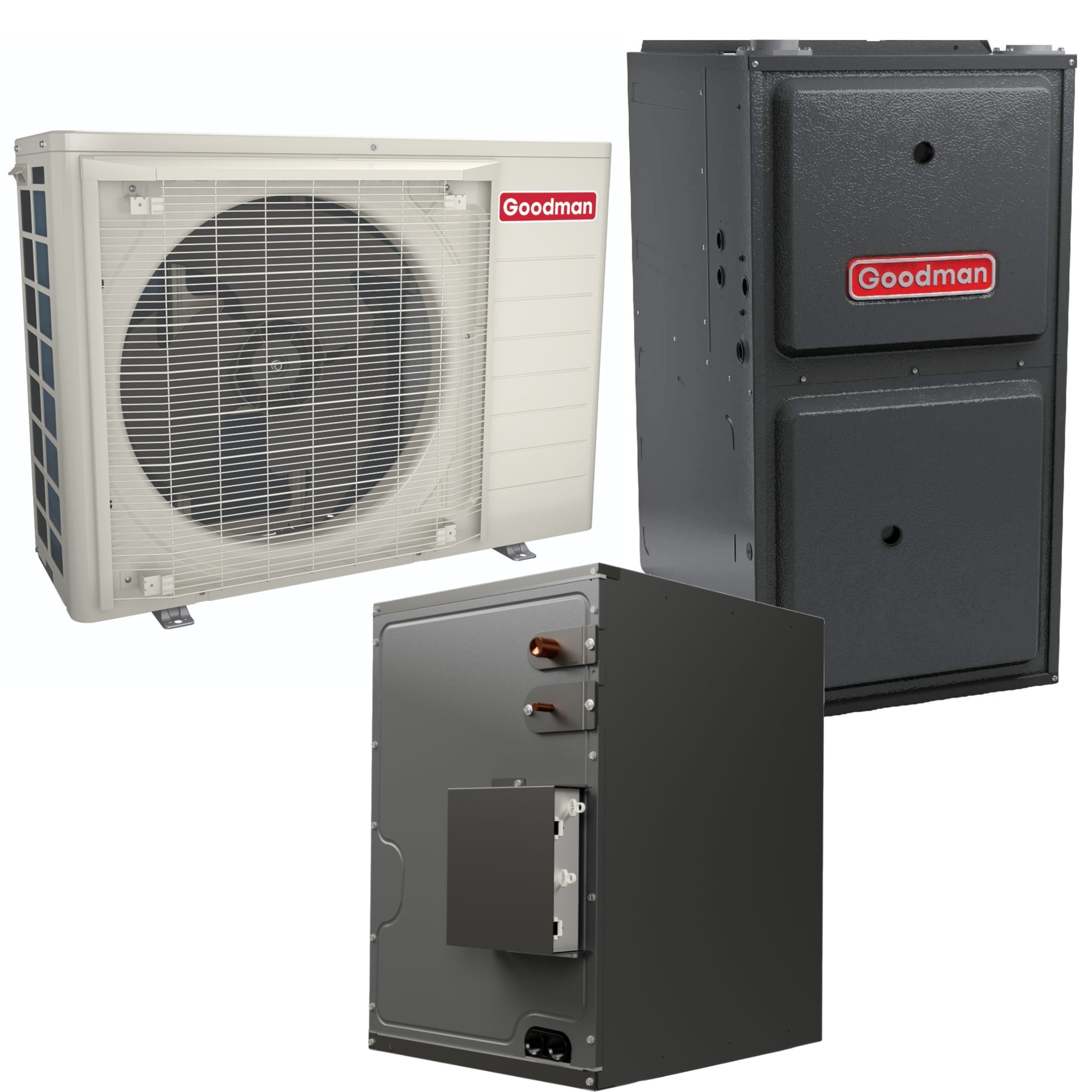

System Components

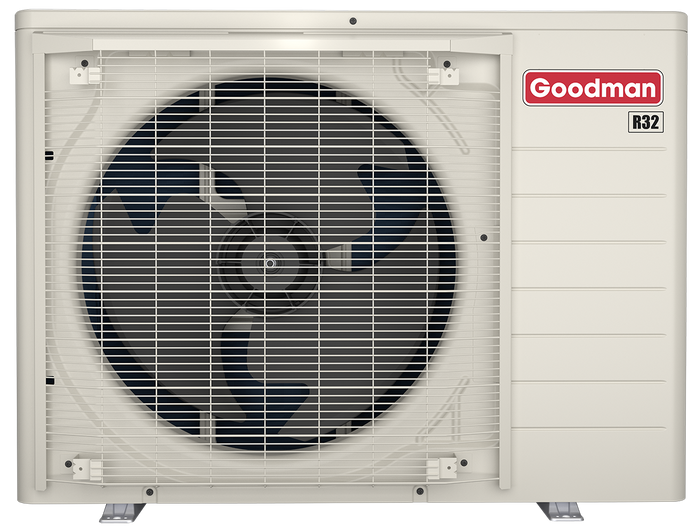

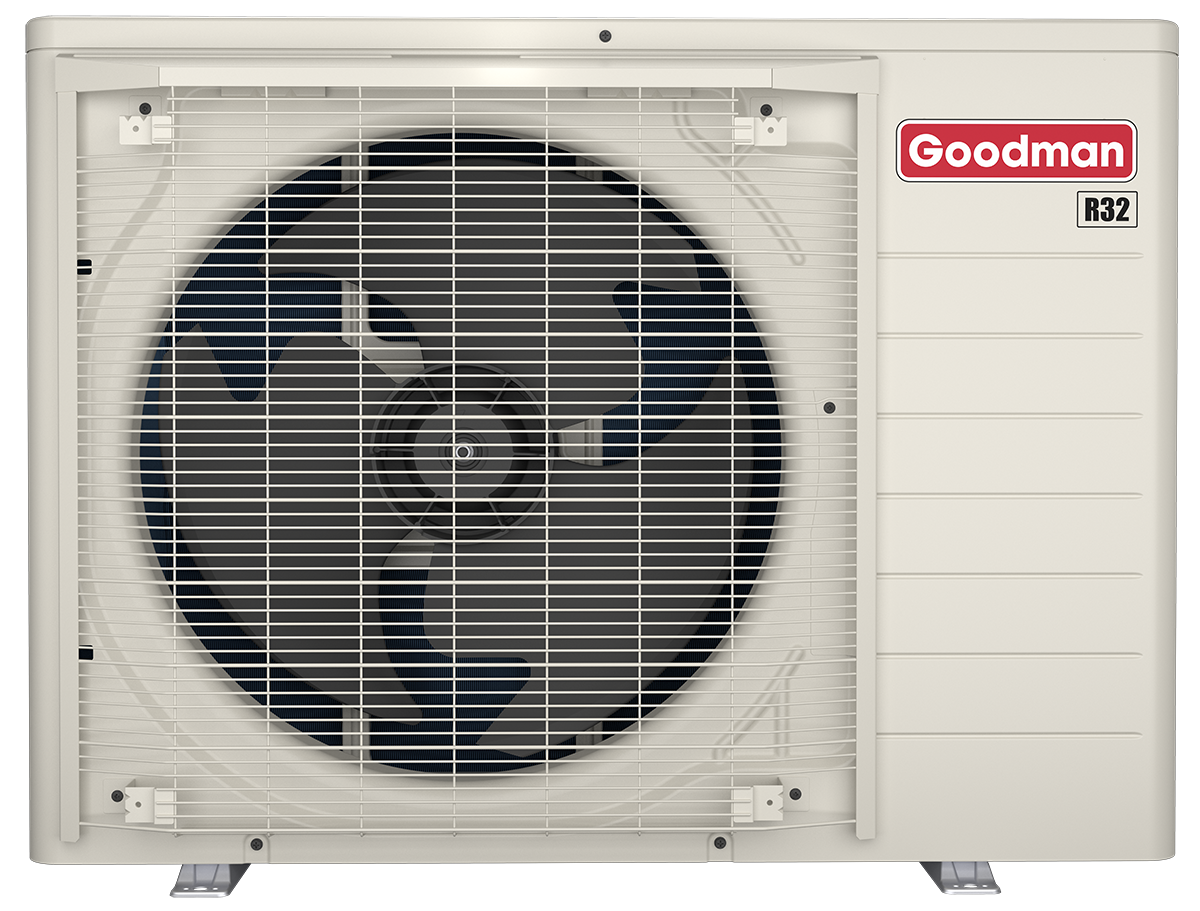

- Outdoor Heat Pump Condenser: Goodman GZV6SA2410 — 2 Ton, Variable-Speed Inverter-Driven, R-32, Side-Discharge Heat Pump. Rated for 23,200 BTU/h max cooling and 23,200 BTU/h max heating at 47°F. Cold Climate ENERGY STAR® Most Efficient certified.
- Evaporator Coil: Goodman CAPEA3022B3 — Upflow/Downflow, Cased, All-Aluminum Coil with factory-installed Electronic Expansion Valve (EEV). 17-1/2" cabinet width, 21" depth. Optimized for R-32 refrigerant.
- Gas Furnace: Goodman GRVM970803BN — Upflow/Horizontal, Modulating, Variable-Speed ECM Blower Motor. 80,000 BTU/h input / 77,600 BTU/h output, 97% AFUE, Natural Gas.
Pro-Installer Tip
Technical Friction: The GZV6SA2410 uses R-32 refrigerant with EEV metering, and the GRVM970803BN is a condensing furnace with PVC venting. In retrofit applications where the existing vent penetration was sized for a conventional 80% furnace (B-vent), installers must re-route to PVC flue and intake — verify slope, termination clearances, and local code requirements for combustion air before startup.
Long-Term Prevention: After brazing, pull the system down to 350 microns or lower and hold for 20 minutes. R-32 is less tolerant of moisture contamination than R-410A. A proper deep vacuum prevents acid formation in the EEV and compressor, eliminating nuisance lockouts 6-12 months post-install.
Expert Validation: Use a digital micron gauge (e.g., BluVac+ or Yellow Jacket 69086) rather than a compound gauge to verify evacuation. Confirm subcooling at the service valve reads 12±1°F using a refrigerant charging calculator calibrated for R-32.
Professional Standard: R-32 is classified as A2L (mildly flammable) under ASHRAE 34. Ensure compliance with local adoption of UL 60335-2-40 safety standards. EPA Section 608 certification is required for handling. The field-installed bi-flow filter drier must be verified for R-32 compatibility.
Key System Benefits
- Verified Efficiency: AHRI-certified 18.0 SEER2 / 8.5 HSPF2 / 10.2 EER2 ratings ensure consistent, tested performance in both cooling and heating modes.
- Variable-Speed Inverter Compressor: The swing compressor modulates output to match the actual load, reducing temperature swings and energy consumption compared to fixed-speed systems.
- Low-GWP R-32 Refrigerant: R-32 has a Global Warming Potential (GWP) of 675, which is approximately 68% lower than R-410A (GWP 2,088), aligning with EPA AIM Act requirements and future refrigerant regulations.
- Quiet Operation: The outdoor unit features a high-density compressor sound blanket, digitally commutated fan motor, and a selectable quiet mode that reduces sound output to as low as 45 dBA — suitable for installations near bedrooms or patios.
- Dual Fuel Flexibility: The system automatically switches between electric heat pump operation and gas furnace heating based on outdoor temperature, optimizing operating cost and comfort across the full range of seasonal conditions.
- All-Aluminum Evaporator Coil: The indoor coil uses an all-aluminum construction with an R-32 sensor designed for the life span of the coil, paired with a factory-installed EEV for precise refrigerant metering.
Technical Specifications
| Specification | Value |
|---|---|
| AHRI Certificate # | 215487298 |
| System Type | Dual Fuel System |
| Nominal Capacity | 2 Ton (24,000 BTU/h) |
| SEER2 | 18.0 |
| EER2 | 10.2 |
| HSPF2 | 8.5 |
| Cooling Capacity (AHRI Rated) | 23,200 BTU/h |
| Heating Capacity @ 47°F (AHRI Rated) | 23,200 BTU/h |
| Heating Capacity @ 5°F | 14,600 BTU/h |
| Refrigerant | R-32 |
| Refrigerant Charge | 74 oz |
| Expansion Device | Electronic Expansion Valve (EEV) |
| Compressor Type | Variable-Speed Swing |
| Outdoor Unit Dimensions (W×D×H) | 36-5/8" × 13-3/4" × 27-3/8" |
| Outdoor Unit Weight | 122 lbs (137 lbs shipping) |
| Electrical (Outdoor) | 208-230V / 1 Phase / 60 Hz |
| MCA / Max Overcurrent | 16.8A / 20A |
| Liquid Line / Suction Line | 3/8" / 3/4" |
| Coil Dimensions (W×D×H) | 17-1/2" × 21" × 22" |
| Coil Shipping Weight | 48 lbs |
| Coil Configuration | Upflow/Downflow, Cased |
| Furnace Input / Output | 80,000 / 77,600 BTU/h |
| AFUE | 97% |
| Furnace Configuration | Upflow/Horizontal |
| Gas Valve | Modulating |
| Blower Motor | Variable-Speed ECM |
| Furnace Dimensions (W×D×H) | 17-1/2" × 28-7/8" × 34-1/2" |
| Furnace Shipping Weight | 121 lbs |
| NOx Emissions | Natural Gas |
| Note: See 'Resources (System Manuals and Warranty)' Tab above for full specifications. | |
Compliance & Environmental Data
| Category | Details |
|---|---|
| Refrigerant Type | R-32 (Difluoromethane) |
| Global Warming Potential (GWP) | 675 (approximately 68% lower than R-410A at 2,088 GWP) |
| ASHRAE Safety Classification | A2L (Lower Flammability) |
| EPA Section 608 | Technician certification required for refrigerant handling, recovery, and disposal |
| Regional Compliance | Meets EPA AIM Act phasedown requirements; compliant with DOE 2023 efficiency standards (SEER2/HSPF2 metrics) |
| AHRI Certification | Certificate #215487298 — independently tested and verified |
| ENERGY STAR® Status | ENERGY STAR® certified (Cold Climate Heat Pump Most Efficient when properly matched) |
| Tax Credit Eligibility | This system may qualify for federal tax credits under the Inflation Reduction Act (IRA). Consult a tax professional for eligibility based on your specific installation and filing status. |
Warranty & Registration
Each component in this system carries its own manufacturer warranty. Online registration at www.goodmanmfg.com must be completed within 60 days of installation to activate the full registered warranty coverage. Registration is not required in California, Florida, or Québec.
- Outdoor Heat Pump (GZV6SA2410): Unregistered: 5-year parts limited warranty from the installation date. Registered (within 60 days): 10-year parts limited warranty; if the compressor fails within 10 years, Daikin will furnish a new equivalent unit to replace the entire outdoor unit (one-time replacement). Warranty applies to owner-occupied residences only.
- Evaporator Coil (CAPEA3022B3): Unregistered: 5-year parts limited warranty from the installation date. Registered (within 60 days): 10-year parts limited warranty. Warranty applies to owner-occupied residences only.
- Gas Furnace (GRVM970803BN): Unregistered: 20-year heat exchanger limited warranty and 5-year parts limited warranty from the installation date. Registered (within 60 days): Lifetime heat exchanger limited warranty (for as long as the original registered owner resides in the home) and 10-year parts limited warranty. Warranty applies to owner-occupied residences only.
Labor, refrigerant, freight, and other service costs are not covered under these warranties. Refer to each component's full warranty document for complete terms, conditions, limitations, and exclusions.
