This Goodman Dual Fuel System pairs the GZV7SA3610 3-Ton R-32 variable-speed heat pump condenser with the GRVT800805CN 80% AFUE 80,000 BTU two-stage gas furnace and the CAPEA4830C3 cased evaporator coil. Rated at 18.5 SEER2, 8.5 HSPF2, and 10.5 EER2, this AHRI-certified combination (Certificate #215434205) delivers efficient year-round comfort with the flexibility of gas heat backup for extreme cold. This system uses R-32 refrigerant (GWP 675), a lower-GWP alternative that supports the EPA’s AIM Act phase-down schedule. It qualifies for ENERGY STAR® Cold Climate certification and may be eligible for federal tax credits under the Inflation Reduction Act (IRA) — consult a qualified tax professional for details.
Note: If you would like to review the manufacturer Product Specifications, Warranty, Brochure, etc., for this system, please refer to the ‘Resources (System Manuals and Warranty)’ Tab above on this page.
System Components

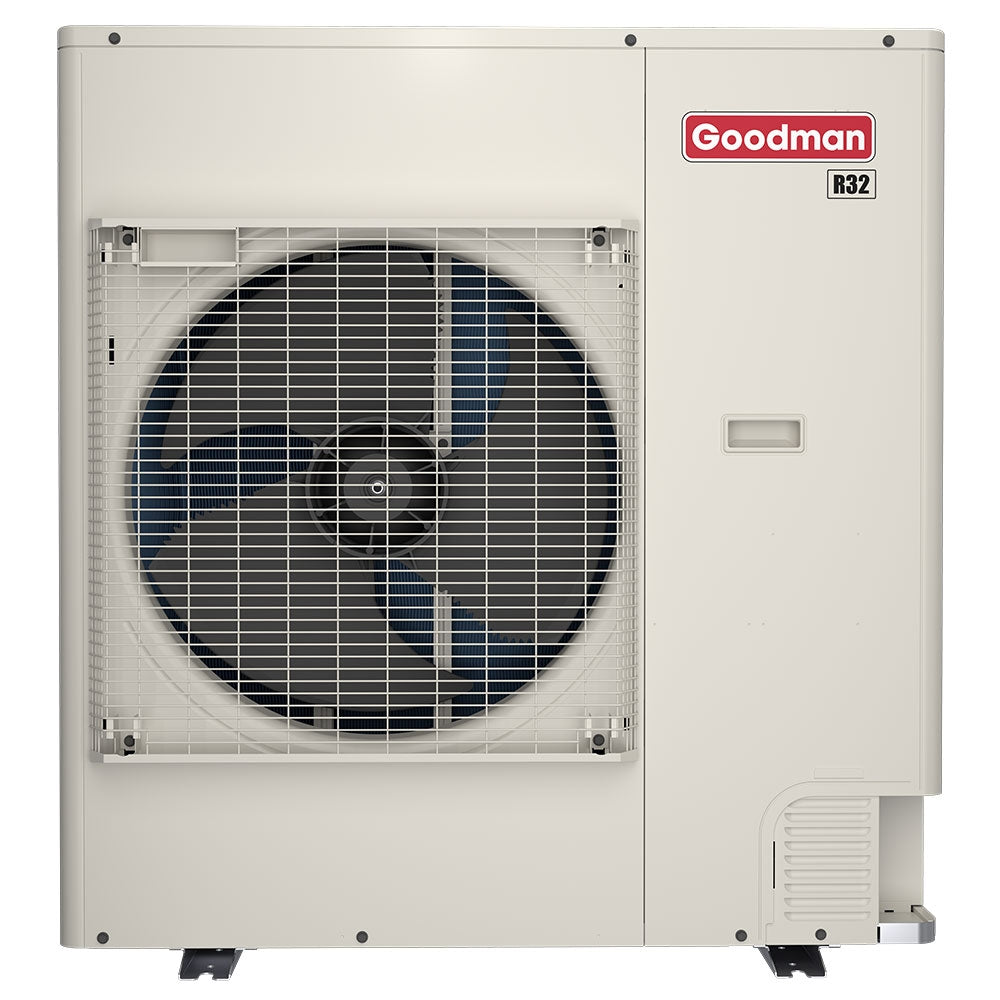

- GZV7SA3610 — Goodman 3-Ton, Variable-Speed, Inverter-Driven, Side-Discharge R-32 Heat Pump Condenser (208-230V/1Ph/60Hz)
- GRVT800805CN — Goodman 80% AFUE, 80,000 BTU, Two-Stage, Variable-Speed ECM Gas Furnace (Upflow/Horizontal, Natural Gas)
- CAPEA4830C3 — Goodman Cased Upflow/Downflow Evaporator Coil with EEV (21" W × 21" D × 30" H)
Pro-Installer Tip: Dual Fuel Switchover & R-32 Charge Verification
The Technical Friction: Dual fuel systems with R-32 require precise outdoor thermostat lockout calibration. The GZV7S communicates with the furnace control board to manage switchover, but if the balance point is set too high, the gas furnace cycles unnecessarily — costing the homeowner on utility bills. If set too low, the heat pump runs below its rated COP threshold, struggling in temperatures where gas heat would be more efficient.
The Long-Term Prevention: After final charge adjustment per the Installation Instructions, verify subcooling at the service valve target of 9±1°F using a calibrated digital manifold gauge. Log the charge weight and subcooling reading on the unit’s startup checklist. Six months post-install, a routine check at the service valves confirms no slow leak has degraded system efficiency or triggered nuisance fault codes on the 7-segment LED display.
The Expert Validation: Use a Testo 557s or Fieldpiece SMAN460 digital manifold with R-32 refrigerant profiles loaded. Cross-reference superheat and subcooling against the expanded performance data tables in the GZV7S engineering spec sheet for the actual outdoor ambient at time of commissioning.
The Professional Standard: R-32 is classified as A2L (mildly flammable) under ASHRAE 34. Ensure the installation complies with UL 60335-2-40, and verify your jurisdiction has adopted the 2024 UMC or applicable local mechanical code provisions for A2L refrigerants. The GZV7S ships with a factory-installed R-32 sensor on the outdoor unit, but confirm the indoor unit sensor (if applicable) is properly positioned per the installation manual. Document EPA Section 608 technician certification and R-32 charge weight on the permit paperwork.
Key Benefits
- High-Efficiency Rated Performance: This AHRI-certified system achieves 18.5 SEER2 and 8.5 HSPF2, delivering measurable energy savings compared to minimum-efficiency (14.3 SEER2) systems. The variable-speed inverter compressor in the GZV7SA3610 modulates capacity to match the actual load, reducing short-cycling and improving humidity control.
- R-32 Low-GWP Refrigerant: R-32 has a Global Warming Potential (GWP) of 675 — approximately 68% lower than R-410A (GWP 2,088). This supports compliance with EPA AIM Act phase-down requirements and positions this system for long-term refrigerant availability. R-32 also has higher volumetric cooling capacity, meaning smaller charge quantities for equivalent performance.
- ENERGY STAR® Cold Climate Certified: This combination meets the stringent ENERGY STAR Cold Climate criteria, verifying effective heating performance at outdoor temperatures down to 5°F. The GZV7SA3610 delivers 22,000 BTU/h at 5°F, maintaining heat pump operation well below typical balance points.
- Dual Fuel Flexibility: The GRVT800805CN gas furnace provides 80,000 BTU/h backup at 80% AFUE, automatically engaging when outdoor temperatures drop below the heat pump’s economic balance point. This combination optimizes utility costs by using the most efficient heat source for each temperature range.
- Quiet Operation with Sound Control: The GZV7SA3610 features a high-density compressor sound blanket, quiet digitally commutated fan motor, and field-selectable Quiet Mode with up to 3 sound levels (as low as 45 dBA). The side-discharge cabinet design with grille-style sound control further reduces perceived noise at the property line.
- Diagnostic Intelligence & Communicating Control: The system includes a 7-segment LED display with fault code storage, proprietary Inside Intelligence for diagnostics, and full communicating capability requiring only two low-voltage wires between indoor and outdoor units. Compatible with the Goodman GTST connected thermostat for enhanced monitoring.
Technical Specifications
| Specification | Value |
|---|---|
| AHRI Certificate Number | 215434205 |
| System Type | Dual Fuel System |
| Nominal Capacity | 3 Ton (36,000 BTU/h) |
| SEER2 | 18.5 |
| EER2 | 10.5 |
| HSPF2 | 8.5 |
| Cooling Capacity (AHRI Rated) | 34,800 BTU/h |
| Heating Capacity @ 47°F | 35,000 BTU/h |
| Heating Capacity @ 5°F | 22,000 BTU/h |
| Outdoor Unit: GZV7SA3610 | |
| Dimensions (W × D × H) | 37” × 12⅝” × 39” |
| Equipment Weight | 168 lbs |
| Voltage / Phase | 208-230V / 1 Phase / 60 Hz |
| MCA / MOP | 31.8A / 35A |
| Refrigerant Charge (Factory) | 100 oz (⅜” liquid line, 15 ft) |
| Evaporator Coil: CAPEA4830C3 | |
| Dimensions (W × D × H) | 21" × 21" × 30" |
| Ship Weight | 68 lbs |
| Configuration | Upflow/Downflow |
| Connections (Liquid / Suction) | ⅜" / ⅞" or 1⅛" |
| Gas Furnace: GRVT800805CN | |
| Heating Input | 80,000 BTU/h |
| AFUE | 80% |
| Gas Valve | Two-Stage |
| Blower Motor | Variable-Speed ECM |
| Configuration | Upflow/Horizontal |
| Cabinet Width | 24½" |
| NOx Compliance | Natural Gas |
| Note: See ‘Resources (System Manuals and Warranty)’ Tab above for full specifications. | |
Compliance & Environmental Data
| Category | Details |
|---|---|
| Refrigerant Type | R-32 (Difluoromethane) |
| Refrigerant GWP | 675 (vs. R-410A at 2,088 — 68% reduction) |
| ASHRAE Safety Classification | A2L (Lower Flammability) |
| EPA Section 608 Requirement | Technician certification required for handling R-32. Recovery equipment must be A2L-rated. |
| Regional Compliance | All Regions (DOE 2023 minimum efficiency standards met). Verify local A2L adoption status with your AHJ. |
| ENERGY STAR® Status | Cold Climate Certified; Most Efficient 2025 (when matched per ENERGY STAR system requirements) |
| Tax Credit Eligibility (IRA) | May qualify for federal energy efficiency tax credits under 25C. Consult IRS guidance and a qualified tax professional for current eligibility and caps. |
| UL Compliance | UL 60335-2-40 (applies to A2L refrigerant systems); ETL Listed |
| AHRI Certification | Certificate #215434205 |
| Furnace NOx Compliance | Natural Gas |
Warranty & Registration
- GZV7SA3610 Heat Pump Condenser: 10-Year Parts Limited Warranty and 10-Year Unit Replacement Limited Warranty when registered online within 60 days of installation at www.goodmanmfg.com. If the compressor fails within the first 10 years, Goodman will furnish a new equivalent outdoor unit (one-time replacement). Without registration, warranty coverage is limited to 5 years on all parts. One-time Compressor Replacement coverage is available for years 11–99 through an ASURE Extend Service Plan (available from ASURE dealers). Online registration is not required in California, Florida, or Québec.
- GRVT800805CN Gas Furnace: 20-Year Heat Exchanger Limited Warranty, 10-Year Unit Replacement Limited Warranty (on heat exchanger failure within first 10 years, a new equivalent unit is provided), and 10-Year Parts Limited Warranty when registered online within 60 days at www.goodmanmfg.com. Without registration: 20-Year Heat Exchanger, 5-Year Parts. One-time Heat Exchanger Replacement coverage is available for years 21–99 after the installation date when properly registered.
- CAPEA4830C3 Evaporator Coil: 10-Year Parts Limited Warranty when registered online within 60 days of installation at www.goodmanmfg.com. Without registration, warranty coverage is limited to 5 years on all parts. Registration is not required in California, Florida, or Québec.
All warranties provided by Daikin Comfort Technologies Manufacturing, Inc. Warranty applies to heating and air conditioning units installed in owner-occupied residences. Labor, refrigerant, freight, and associated installation costs are not covered. Refer to full warranty documents for complete terms, conditions, and exclusions.
