System Overview
This Goodman 5-Ton system pairs the GZV7SA6010 variable-speed, inverter-driven R-32 heat pump condenser with the CAPEA6030D3 cased evaporator coil and the MBVK20DP1X00 communicating modular blower. The system is AHRI certified (Certificate #216835314) and rated at 17.0 SEER2 / 9.8 EER2 / 8.8 HSPF2, qualifying for the ENERGY STAR Cold Climate Certified designation.
The modular blower provides variable-speed airflow management with communicating capability for precise system control, while the separate coil allows flexible installation configurations.
Note: If you would like to review the manufacturer Product Specifications, Warranty, Brochure, etc., for this system, please refer to the 'Resources (System Manuals and Warranty)' Tab above on this page.

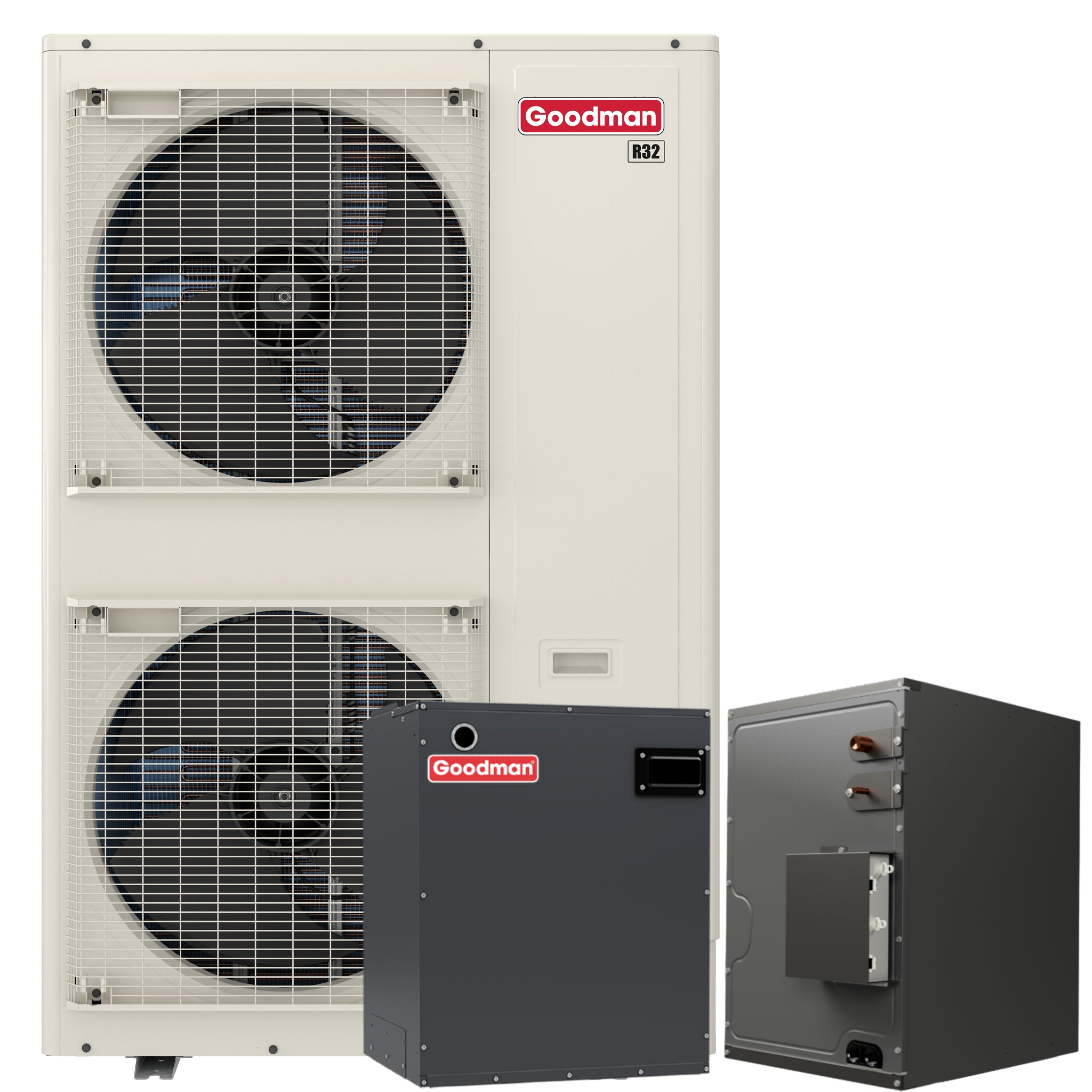

What’s Included

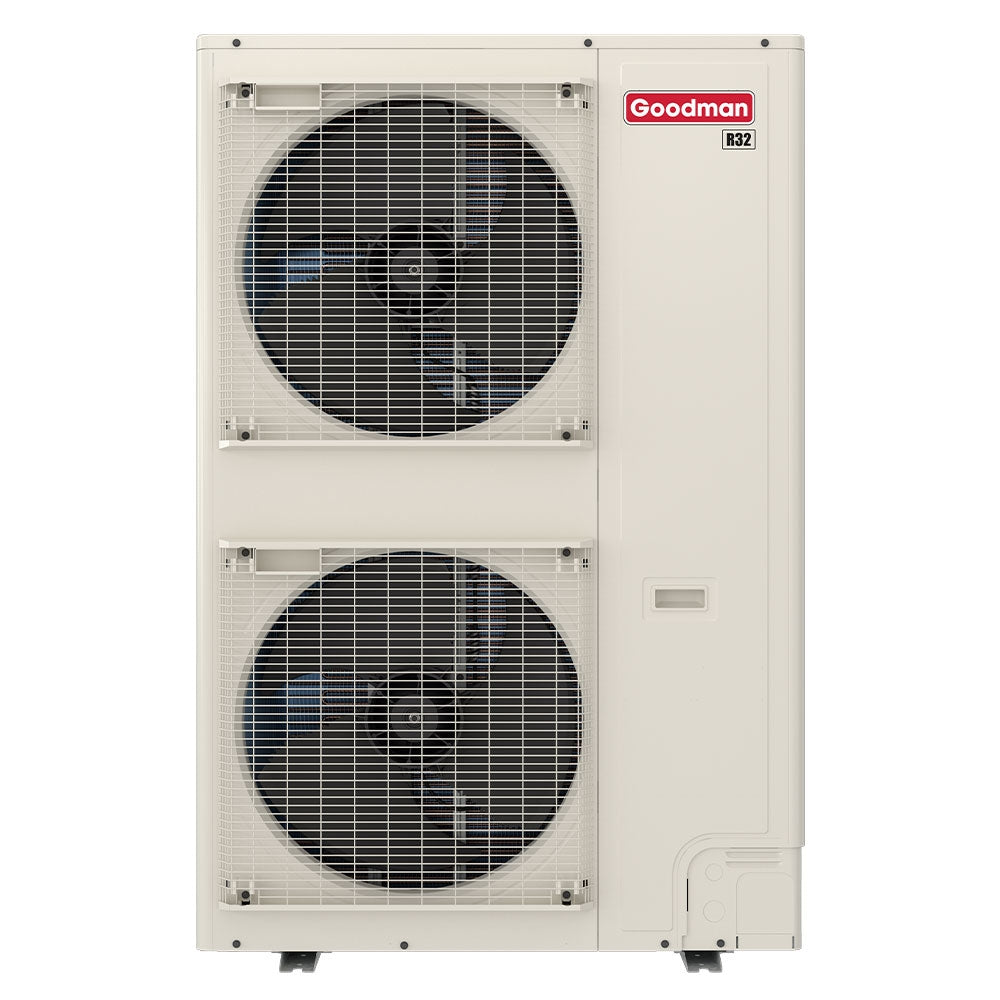

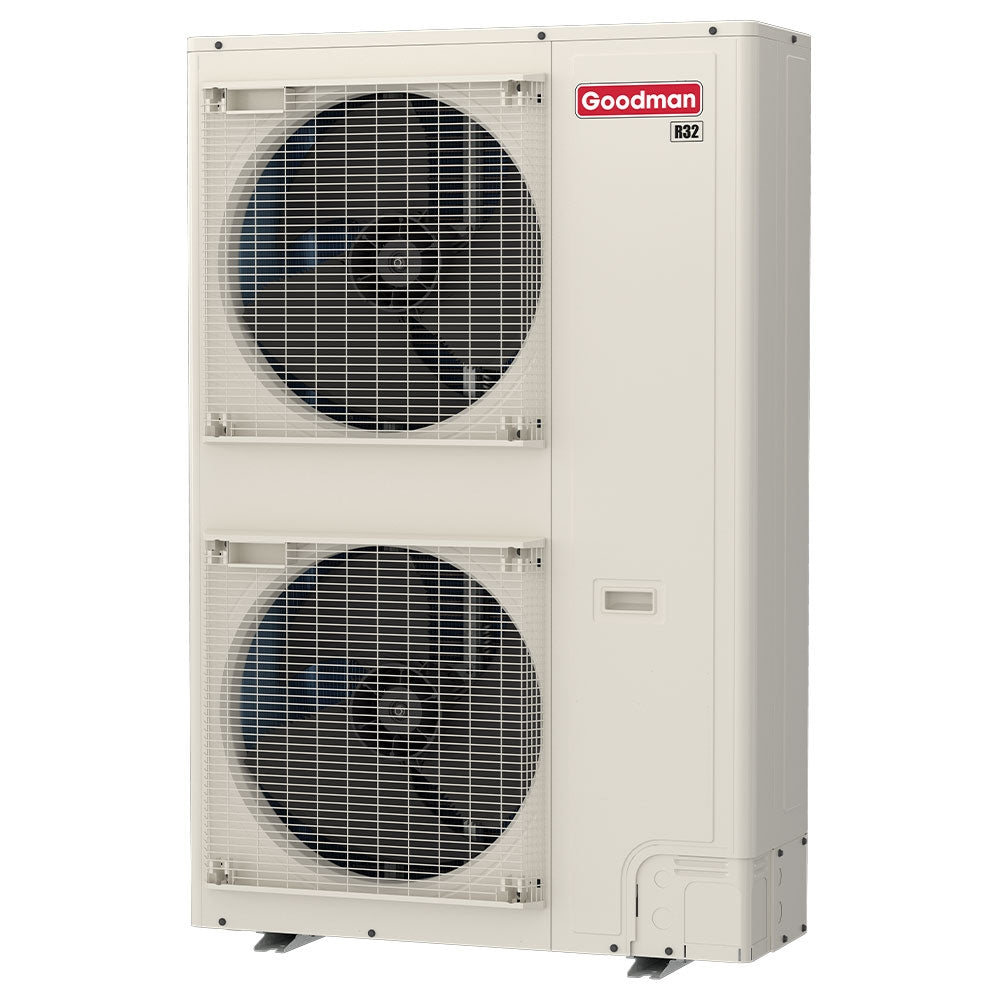

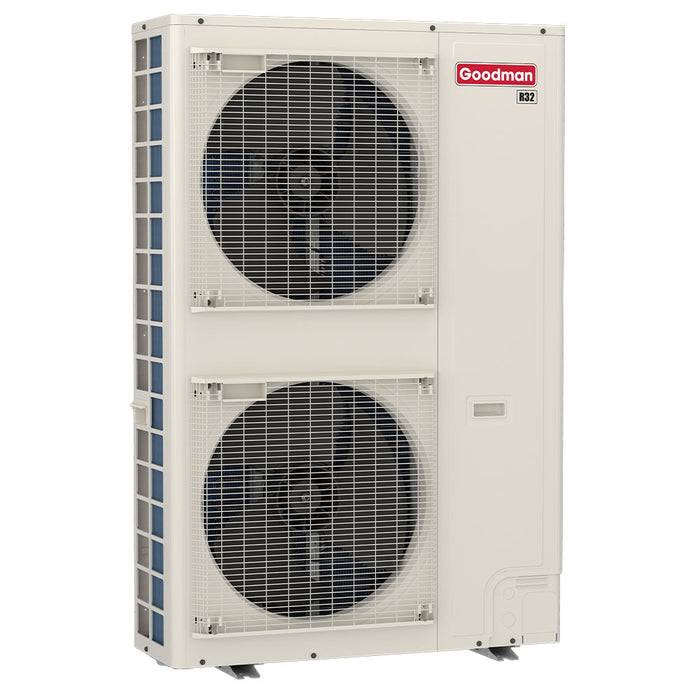

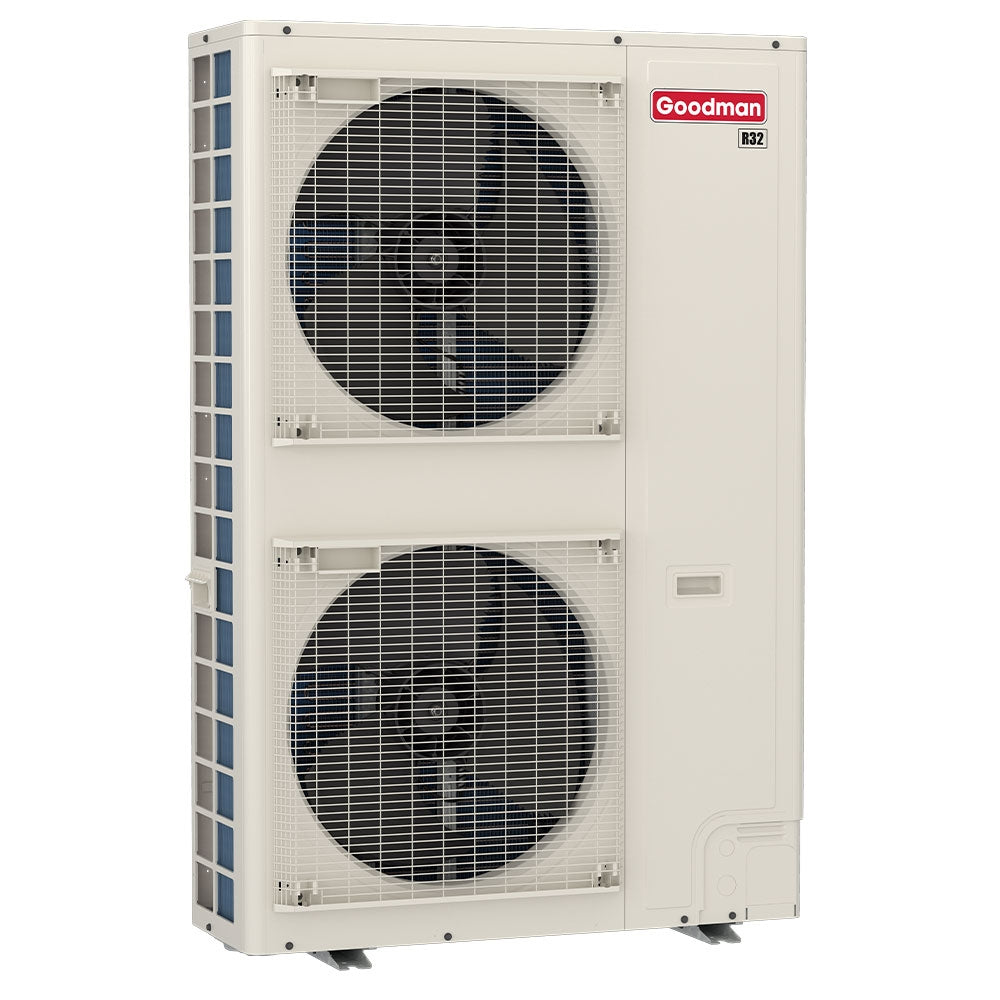

- GZV7SA6010 — Goodman 5-Ton Variable-Speed Inverter-Driven R-32 Side-Discharge Heat Pump Condenser (52,000 BTU/h Cooling / 54,000 BTU/h Heating @ 47°F)
- CAPEA6030D3 — Goodman 5-Ton Cased Upflow/Downflow Evaporator Coil, Upflow/Downflow, 24½" Cabinet Width, Internal EEV, All-Aluminum
- MBVK20DP1X00 — Goodman Multi-Position Variable-Speed Modular Blower, Communicating, 24½" Cabinet Width, ¾ HP Variable-Speed ECM
Pro-Installer Tip: Coil Orientation and Refrigerant Line Routing
The Technical Friction: The CAPEA6030D3 coil has a 21" depth designed for easier attic access, but confirm that the upflow/downflow orientation clears drain trap heights and ductwork transitions. On replacement jobs, the all-aluminum coil and R-32-specific EEV require a complete system evacuation—never reuse R-410A refrigerant or line set components without thorough cleaning and leak testing.
The Long-Term Prevention: Ensure the coil drain pan is properly pitched and the secondary drain connection is routed to a visible location. Clogged condensate drains are the number-one nuisance service call in the first year; install a condensate trap and verify flow before leaving the job.
The Expert Validation: After final charge, verify 11±1°F subcooling at the outdoor unit service valve using a digital manifold gauge with R-32 pressure-temperature charts. The GZV7SA6010 uses auto-controlled superheat via the inverter, so focus subcooling verification at the liquid service valve.
The Professional Standard: R-32 is classified as A2L (mildly flammable, GWP 675). All installations must comply with EPA Section 608 certification requirements and ASHRAE 15/34 safety standards. The coil includes a factory-installed R-32 sensor. Ensure adequate ventilation in confined installation spaces per local mechanical code.
Key System Benefits
- Variable-Speed Inverter Technology: The GZV7SA6010 uses a variable-speed swing compressor with inverter drive, modulating capacity from partial load to full output. This reduces short-cycling, lowers sound levels (as low as 45 dBA in Quiet Mode), and improves humidity control compared to single-speed systems.
- ENERGY STAR Cold Climate Certified: This system meets the EPA’s stringent Cold Climate Heat Pump criteria, meaning it maintains effective heating capacity at temperatures well below freezing—delivering 46,000 BTU/h at 5°F and supporting operation down to -10°F.
- R-32 Low-GWP Refrigerant: R-32 has a Global Warming Potential of 675, approximately 68% lower than R-410A (GWP 2,088). This supports AIM Act and EPA Phasedown compliance while delivering improved thermodynamic efficiency per pound of refrigerant.
- Electronic Expansion Valve (EEV) Metering: Both the outdoor unit and the indoor coil utilize EEV technology for precise superheat and subcooling control across all operating conditions, reducing energy waste at part-load compared to fixed-orifice systems.
- Communicating System Architecture: When paired with a Goodman GTST connected thermostat, the system uses two-wire communicating protocol between indoor and outdoor components for coordinated staging, fault diagnostics, and field-selectable boost mode.
Technical Specifications
| Specification | Value |
|---|---|
| AHRI Certificate Number | 216835314 |
| System Type | Central Heat Pump Split System with Evaporator Coil & Modular Blower |
| Nominal Capacity | 5 Ton (60,000 BTU/h) |
| SEER2 | 17.0 |
| EER2 | 9.8 |
| HSPF2 | 8.8 |
| Refrigerant | R-32 (Charge: 162 oz.) |
| Outdoor Unit — GZV7SA6010 | |
| Max Cooling Capacity | 52,000 BTU/h @ 95°F |
| Max Heating Capacity | 54,000 BTU/h @ 47°F |
| Max Heating Capacity (Low Temp) | 46,000 BTU/h @ 5°F |
| Compressor Type | Variable-Speed Swing |
| Dimensions (W x D x H) | 37"W x 12⅝"D x 56⁵⁄₁₆"H |
| Unit Weight | 236 lbs |
| Electrical | 208-230V / 1 Phase / 60 Hz |
| MCA / MOCP | 34.4A / 40A |
| Ambient Operating Range (Cooling) | 0°F to 115°F |
| Ambient Operating Range (Heating) | -10°F to 70°F |
| Evaporator Coil — CAPEA6030D3 | |
| Configuration | Upflow/Downflow (Cased) |
| Dimensions (W x D x H) | 24½" x 21" x 30" |
| Expansion Device | EEV (Electronic Expansion Valve) |
| Coil Material | All-Aluminum |
| Ship Weight | 78 lbs |
| Modular Blower — MBVK20DP1X00 | |
| Configuration | Multi-Position |
| Dimensions (W x D x H) | 24½" x 21" x 30" |
| Motor | ¾ HP Variable-Speed ECM |
| Ship Weight | 86 lbs |
Note: See 'Resources (System Manuals and Warranty)' Tab above for full specifications.
Compliance & Environmental
| Requirement | Details |
|---|---|
| Refrigerant Type | R-32 (Difluoromethane) |
| GWP (Global Warming Potential) | 675 |
| ASHRAE Safety Classification | A2L (Lower Flammability) |
| EPA Section 608 Certification | Required for all technicians handling R-32 |
| AIM Act Compliance | R-32 supports EPA HFC phasedown targets (GWP well below the 700 threshold for residential AC/HP) |
| ENERGY STAR® | ENERGY STAR Cold Climate Certified |
| Regional Compliance | All Regions (A-Rating) |
| Federal Tax Credit Eligibility | Systems meeting the highest efficiency tier (CEE) may qualify for federal tax credits under the Inflation Reduction Act (25C). Verify current requirements at energystar.gov. |
Warranty & Registration
- Outdoor Unit (GZV7SA6010): 5-Year Initial Term Parts Limited Warranty. With online registration within 60 days of installation: 10-Year Unit Replacement Limited Warranty (if compressor fails, entire outdoor unit is replaced, one time) and 10-Year Parts Limited Warranty for the original registered homeowner. Registration at www.goodmanmfg.com.
- Evaporator Coil (CAPEA6030D3): 5-Year Initial Term Parts Limited Warranty. With online registration within 60 days of installation: 10-Year Parts Limited Warranty for the original registered homeowner. Registration at www.goodmanmfg.com.
- Modular Blower (MBVK20DP1X00): 5-Year Initial Term Parts Limited Warranty. With online registration within 60 days of installation: 10-Year Parts Limited Warranty for the original registered homeowner. Registration at www.goodmanmfg.com.
Warranty terms vary by state and province. Online registration is not required in California, Florida, or Québec. The duration of warranty coverage in Texas and Florida may differ. Complete warranty details are available at www.goodmanmfg.com. A licensed contractor must install the system for warranty eligibility.
