This Goodman Central Heat Pump Split System with Evaporator Coil & Modular Blower pairs the GZV6SA1810A variable-speed inverter-driven heat pump condenser with the CAPEA3022C3 evaporator coil and the MBVK16CP1X00 modular blower for flexible all-electric heating and cooling. Rated at 19 SEER2 and 8.8 HSPF2, this 1.5-ton R-32 communicating system uses an Electronic Expansion Valve (EEV) for precise refrigerant control. The modular blower design offers multi-positional installation flexibility and variable-speed ECM operation for consistent comfort and efficiency. AHRI Certificate Number: 215439770.
Note: If you would like to review the manufacturer Product Specifications, Warranty, Brochure, etc., for this system, please refer to the 'Resources (System Manuals and Warranty)' Tab above on this page.

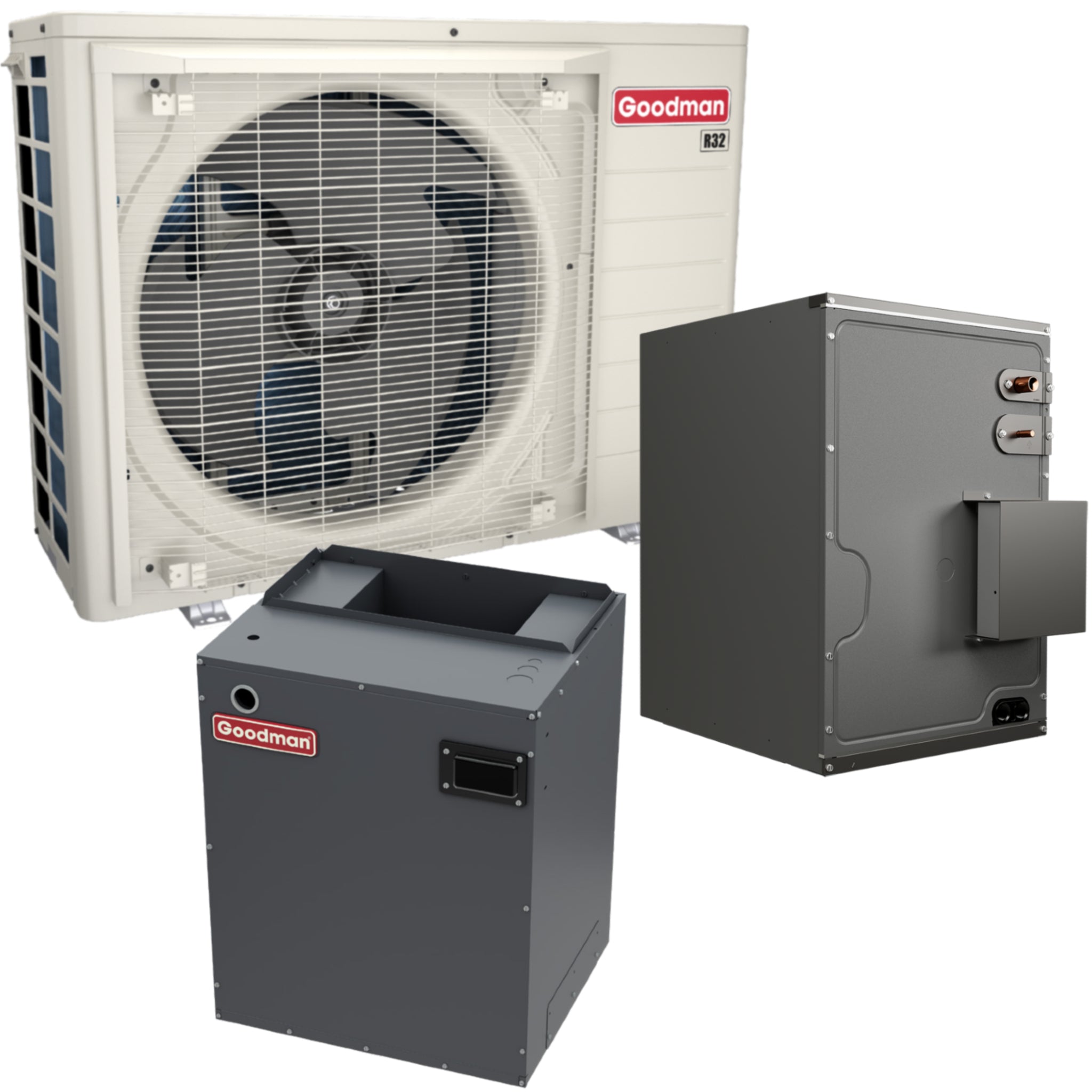

System Components

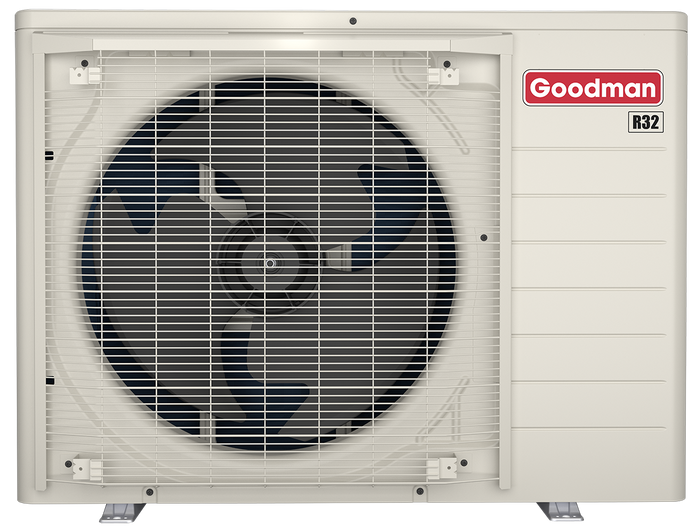

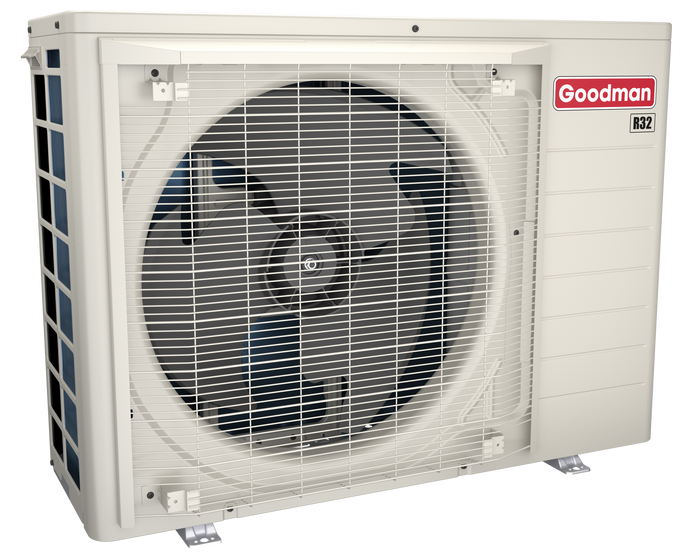

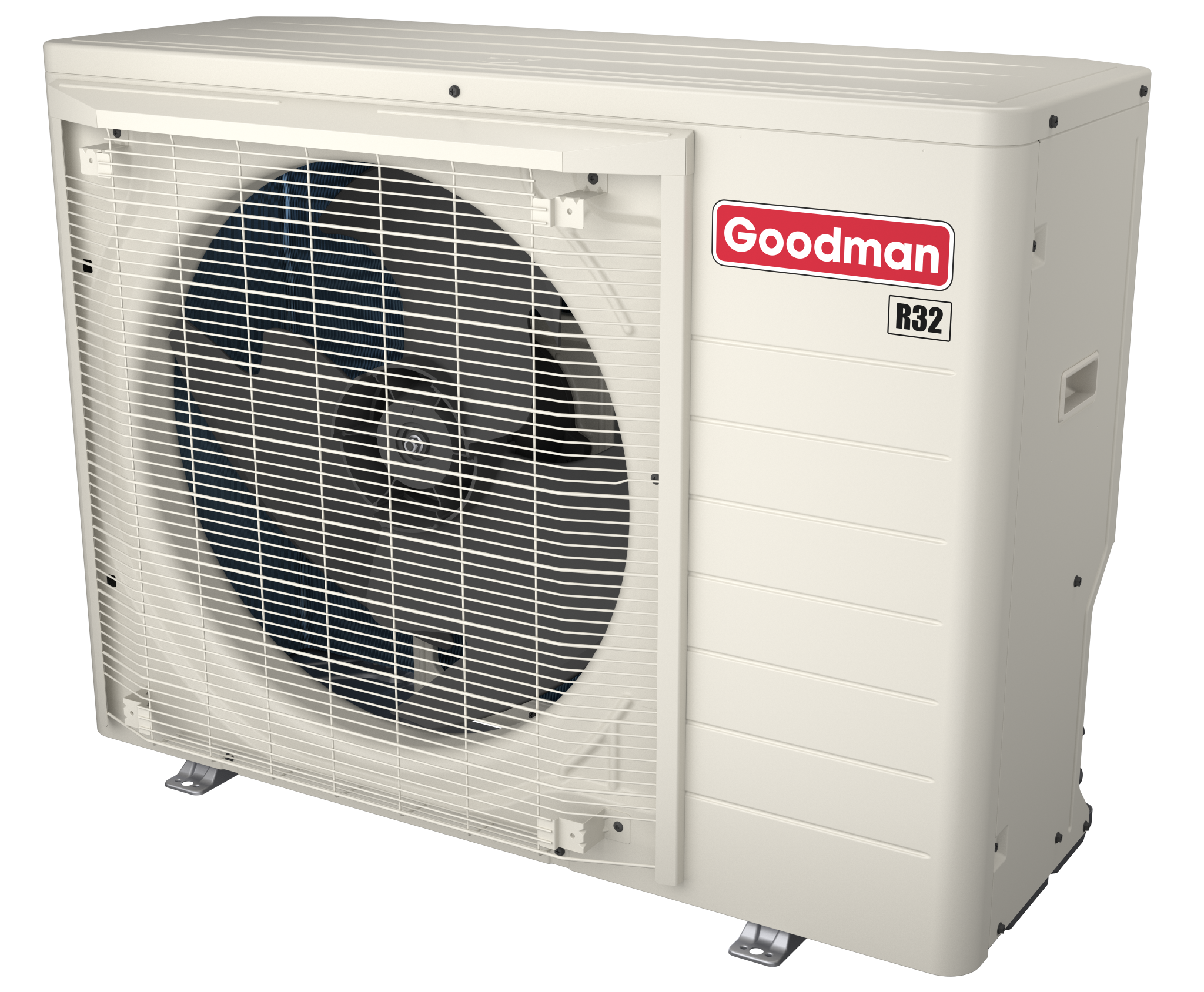

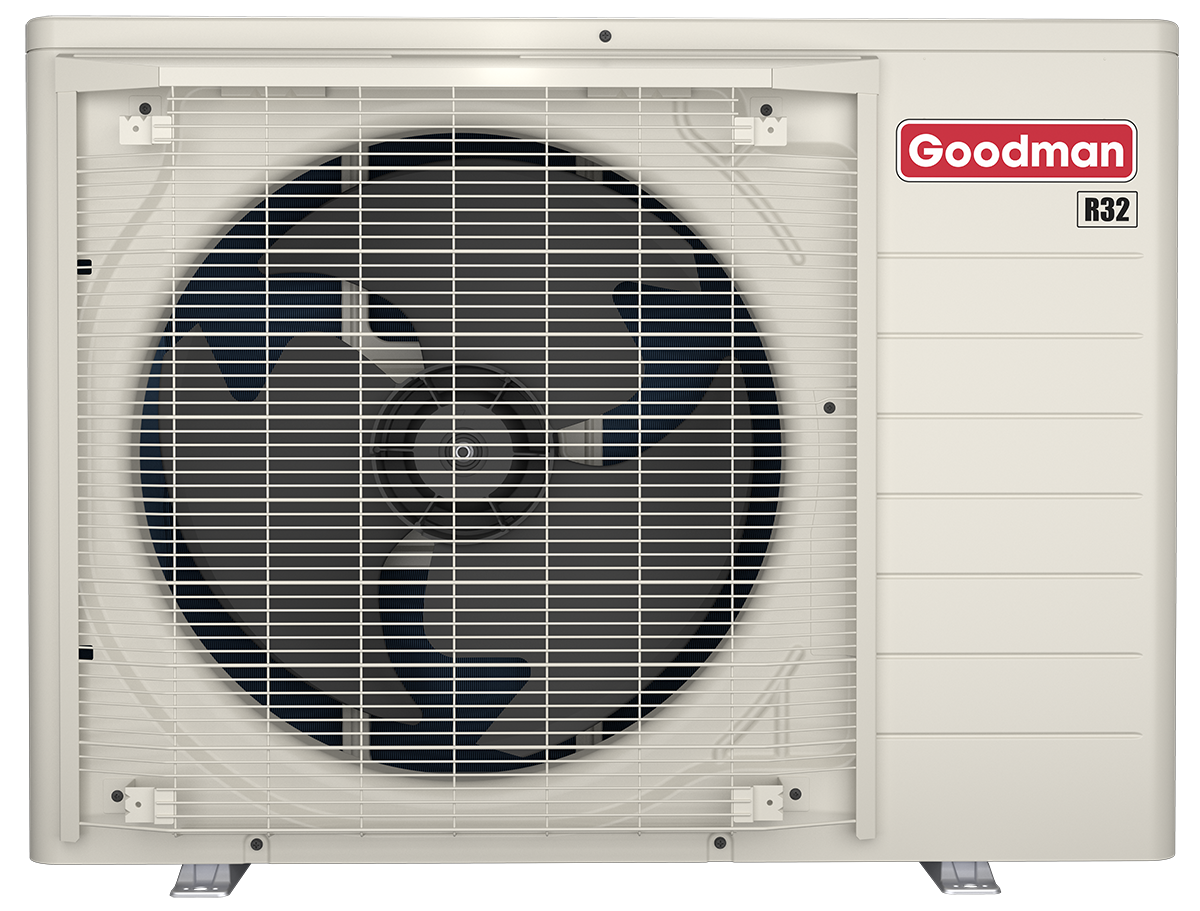

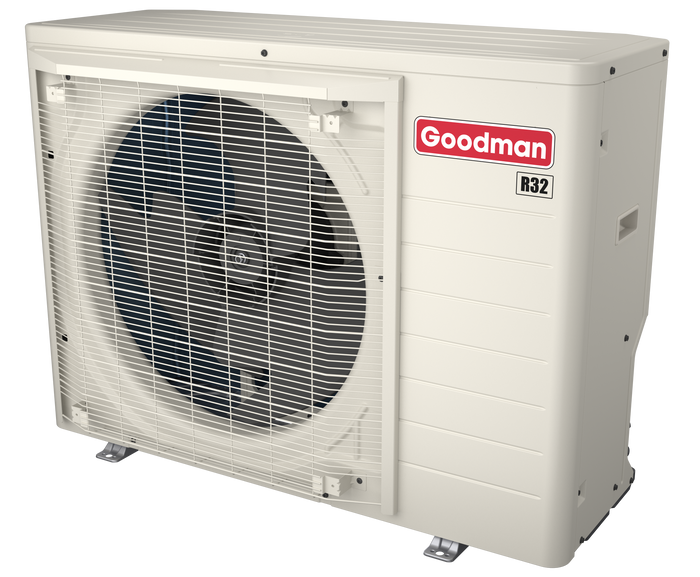

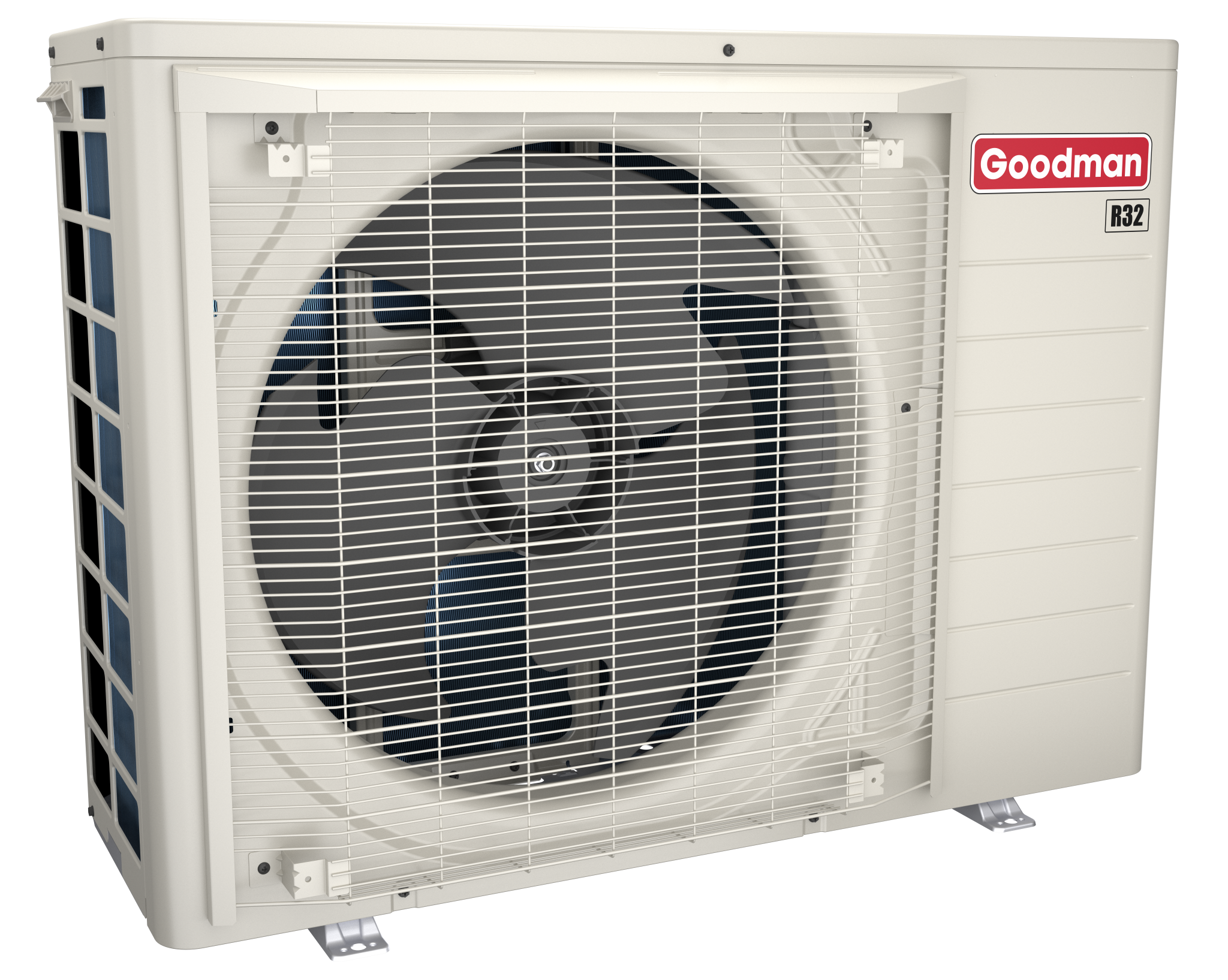

- GZV6SA1810A — Goodman 1.5-Ton Variable-Speed Inverter-Driven R-32 Heat Pump Condenser (19 SEER2 / 8.8 HSPF2 / 12 EER2)
- CAPEA3022C3 — Goodman Cased Upflow/Downflow Evaporator Coil with Internal EEV (21" W x 21" D x 22" H, All-Aluminum, R-32 Optimized)
- MBVK16CP1X00 — Goodman Multi-Positional Variable-Speed ECM Modular Blower (21" W x 21" D x 30" H, ¾ HP)
Pro-Installer Tip
Technical Friction: The two-piece air handler configuration (evaporator coil + modular blower) requires precise alignment of the coil section on the blower cabinet. The 21" depth on both components simplifies attic installations, but ensure the coil-to-blower seal is airtight — any bypass air at the junction will reduce effective SEER2 and cause nuisance humidity complaints.
Long-Term Prevention: Commission the communicating controls by confirming the modular blower's control board is reading the outdoor unit's inverter speed signals correctly. The MBVK blower's built-in dehumidification feature requires proper tonnage and airflow configuration through the communicating thermostat — if left at default settings, the dehumidification mode may not engage, leading to comfort callbacks in humid climates 3–6 months after installation.
Expert Validation: Use a digital manifold with R-32 tables to verify subcooling at the outdoor unit service valve (10±1°F for the 1.5-ton GZV6SA1810A). Confirm the EEV in the coil is modulating by monitoring superheat stability across a 10-minute run cycle at steady-state conditions.
Professional Standard: R-32 refrigerant (A2L, GWP 675) requires EPA Section 608 certification. The modular blower requires a separate R-32 integration kit for R-32 compatibility — confirm this kit is installed before charging. All flare connections must be torqued to manufacturer specifications using a calibrated torque wrench.
Key Benefits
- High-Efficiency R-32 Refrigerant: R-32 has a Global Warming Potential (GWP) of 675, approximately 68% lower than R-410A (GWP 2088), reducing the system's direct environmental impact while maintaining equivalent cooling and heating performance at 19 SEER2 / 8.8 HSPF2.
- Variable-Speed Inverter Compressor: The swing compressor in the GZV6SA1810A modulates capacity from minimum to maximum output, reducing temperature swings, improving humidity control, and lowering energy consumption compared to single-speed or two-stage systems during partial-load conditions.
- Quiet Operation with Quiet Mode: Normal operating sound level of 61 dBA, with a three-level Quiet Mode that can reduce sound output to as low as 40 dBA — suitable for installations near bedrooms, patios, or property lines with noise ordinance concerns.
- Cold Climate Heat Pump Capability: ENERGY STAR® Cold Climate certified, the GZV6SA1810A operates in heating mode down to -10°F ambient, providing 13,000 BTU/h at 5°F outdoor temperature for reliable heat pump operation in northern climates without auxiliary heat dependency.
- Modular Installation Flexibility: The two-piece indoor configuration (coil + modular blower) allows independent positioning and replacement of components, simplifying service access and enabling installation in spaces where one-piece air handlers cannot fit.
- Electronic Expansion Valve (EEV): The EEV provides continuous, precise refrigerant metering that adjusts in real-time to changing load conditions — a significant upgrade over fixed-orifice pistons or standard TXVs for maintaining optimal system efficiency across the full operating range.
Technical Specifications
| AHRI Certificate Number | 215439770 |
| Outdoor Unit — GZV6SA1810A | |
|---|---|
| Cooling Capacity (AHRI Rated) | 17,100 BTU/h |
| Heating Capacity @ 47°F (AHRI Rated) | 17,400 BTU/h |
| Heating Capacity @ 5°F | 13,000 BTU/h |
| SEER2 | 19.0 |
| EER2 | 12.0 |
| HSPF2 | 8.8 |
| Compressor Type | Variable-Speed Swing |
| Refrigerant | R-32 |
| Expansion Device | EEV |
| Electrical | 208-230V / 1 Phase / 60 Hz |
| Min. Circuit Ampacity | 12.8A |
| Max. Overcurrent Protection | 15A |
| Dimensions (W x D x H) | 36⅝" x 13¾" x 27⅜" |
| Equipment Weight | 122 lbs |
| Sound Level (Cooling/Heating) | 61 / 61 dBA |
| Liquid / Suction Line | ⅜" / ¾" |
| Factory Refrigerant Charge | 74 oz |
| Evaporator Coil — CAPEA3022C3 | |
| Configuration | Upflow/Downflow, Cased |
| Cabinet Dimensions (W x D x H) | 21" x 21" x 22" |
| Nominal Capacity | 2.5 Ton |
| Ship Weight | 51 lbs |
| Modular Blower — MBVK16CP1X00 | |
| Configuration | Multi-Positional |
| Electrical | 208/230V / 1 Phase / 60 Hz |
| Blower Motor | Variable-Speed ECM, ¾ HP |
| Dimensions (W x D x H) | 21" x 21" x 30" |
| Ship Weight | 80 lbs |
Note: See 'Resources (System Manuals and Warranty)' Tab above for full specifications.
Compliance & Environmental Data
| Refrigerant Type | R-32 |
| Refrigerant GWP | 675 (approximately 68% lower than R-410A) |
| Refrigerant Safety Classification | A2L (Mildly Flammable) |
| EPA 608 Certification Required | Yes — Required for purchase, handling, and servicing |
| AHRI Certified | Yes — Certificate #215439770 |
| ENERGY STAR® Certified | Cold Climate Certified |
| Regional Compliance | Meets DOE 2023 regional efficiency standards for all U.S. regions |
| ASHRAE 15 Compliance | Required — Charge limits apply for A2L refrigerant in occupied spaces |
| Federal Tax Credit Eligibility | This system may qualify for federal energy efficiency tax credits under the Inflation Reduction Act (IRA). Consult a qualified tax professional and visit energystar.gov for current eligibility requirements. |
Warranty & Registration
-
Outdoor Unit (GZV6SA1810A) Warranty:
- Unregistered: 5-Year Parts Limited Warranty
- Registered (within 60 days of installation at goodmanmfg.com): 10-Year Parts Limited Warranty and 10-Year Unit Replacement Limited Warranty
- Compressor: If the compressor fails within the first 10 years (registered unit), Goodman will furnish a new equivalent replacement unit at no charge (one-time)
- Optional: One-time compressor replacement coverage for years 11–99 available through an ASURE Extend Service Plan
-
Evaporator Coil (CAPEA3022C3) Warranty:
- Unregistered: 5-Year Parts Limited Warranty
- Registered (within 60 days of installation at goodmanmfg.com): 10-Year Parts Limited Warranty
-
Modular Blower (MBVK16CP1X00) Warranty:
- Unregistered: 5-Year Parts Limited Warranty
- Registered (within 60 days of installation at goodmanmfg.com): 10-Year Parts Limited Warranty
Important: Online registration must be completed within 60 days of installation to receive the full extended warranty coverage. Registration is not required in California, Florida, or Québec. Warranty durations in Texas and Florida may differ. All warranties apply to owner-occupied residential installations only. Complete warranty details are available at goodmanmfg.com.
