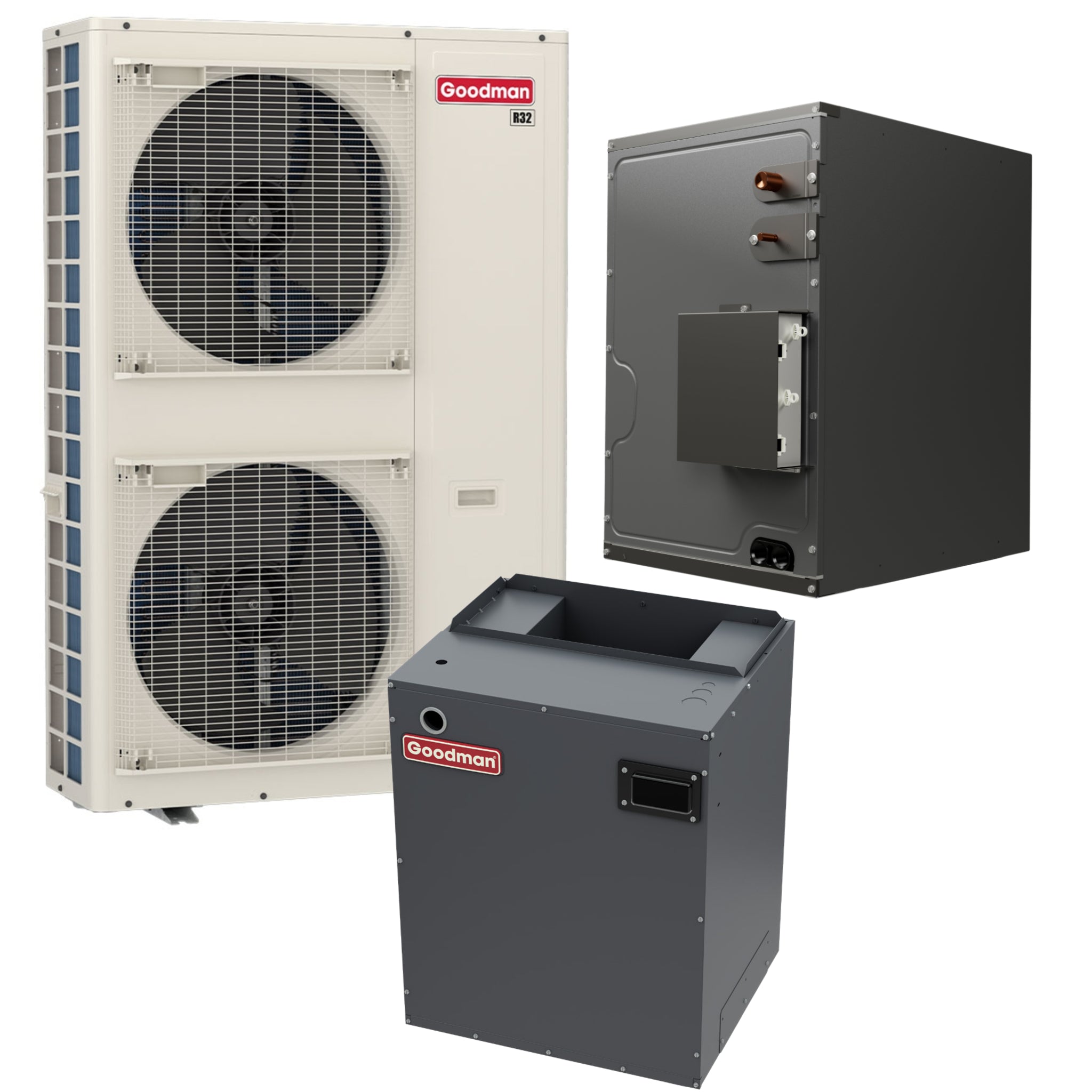

This Goodman 4 Ton 17.0 SEER2 Central Heat Pump Split System with Evaporator Coil and Modular Blower pairs the GZV9SA4810 variable-speed inverter-driven heat pump condenser with the CHPEA4830D3 evaporator coil and MBVK16CP1X00 modular blower for all-electric heating and cooling using R-32 refrigerant. The system achieves up to 17.0 SEER2 / 11.0 EER2 in cooling and 8.5 HSPF2 in heating. AHRI Certificate Number: 217989207. Energy Star Cold Climate Certified.
Note: If you would like to review the manufacturer Product Specifications, Warranty, Brochure, etc., for this system, please refer to the 'Resources (System Manuals and Warranty)' Tab above on this page.
System Components
- GZV9SA4810 — Goodman 4 Ton Variable-Speed Inverter-Driven R-32 Heat Pump Condenser (Side Discharge). Max Cooling: 46,000 BTU/h; Max Heating @47°F: 48,000 BTU/h. EEV metering, 208-230V / 1 Phase / 60 Hz.
- CHPEA4830D3 — Goodman 4 Ton Cased Horizontal Indoor Coil. Horizontal configuration, all-aluminum coil with factory-installed EEV, R-32 sensor. Cabinet: 30" W x 21" D x 24½" H.

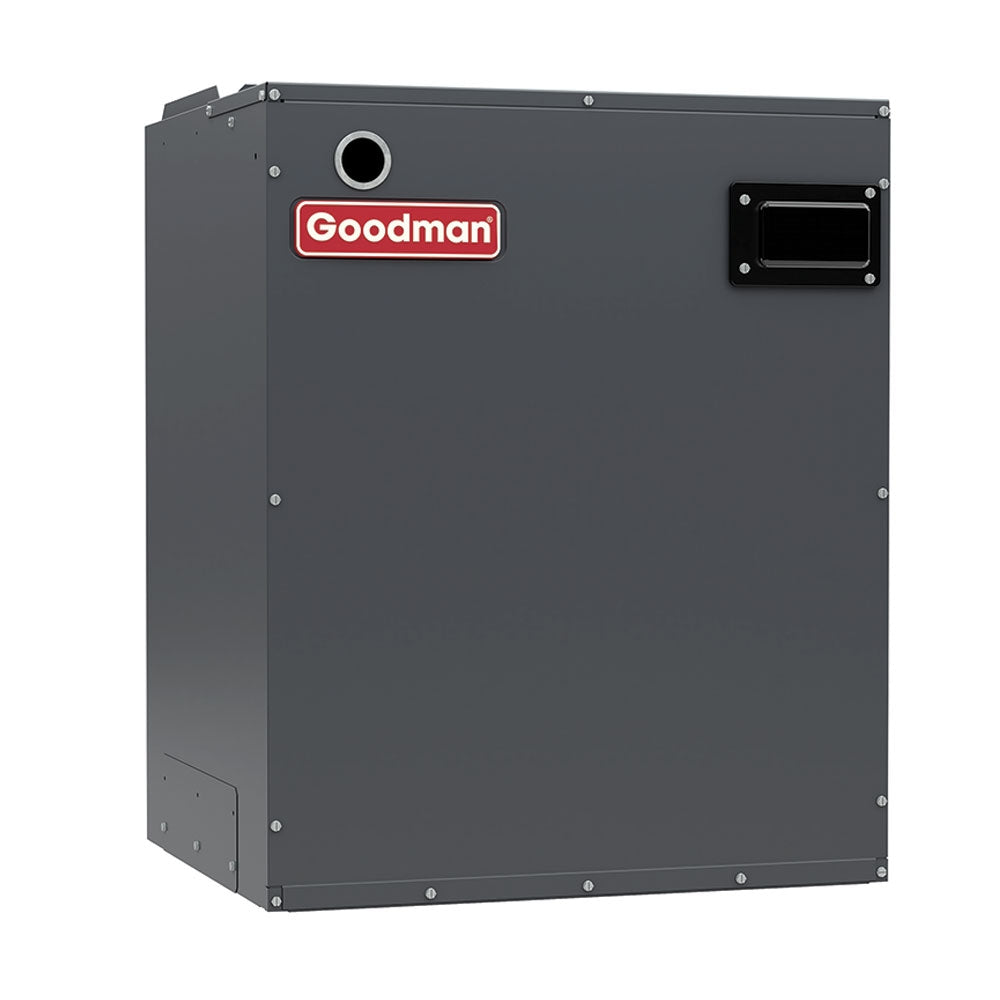

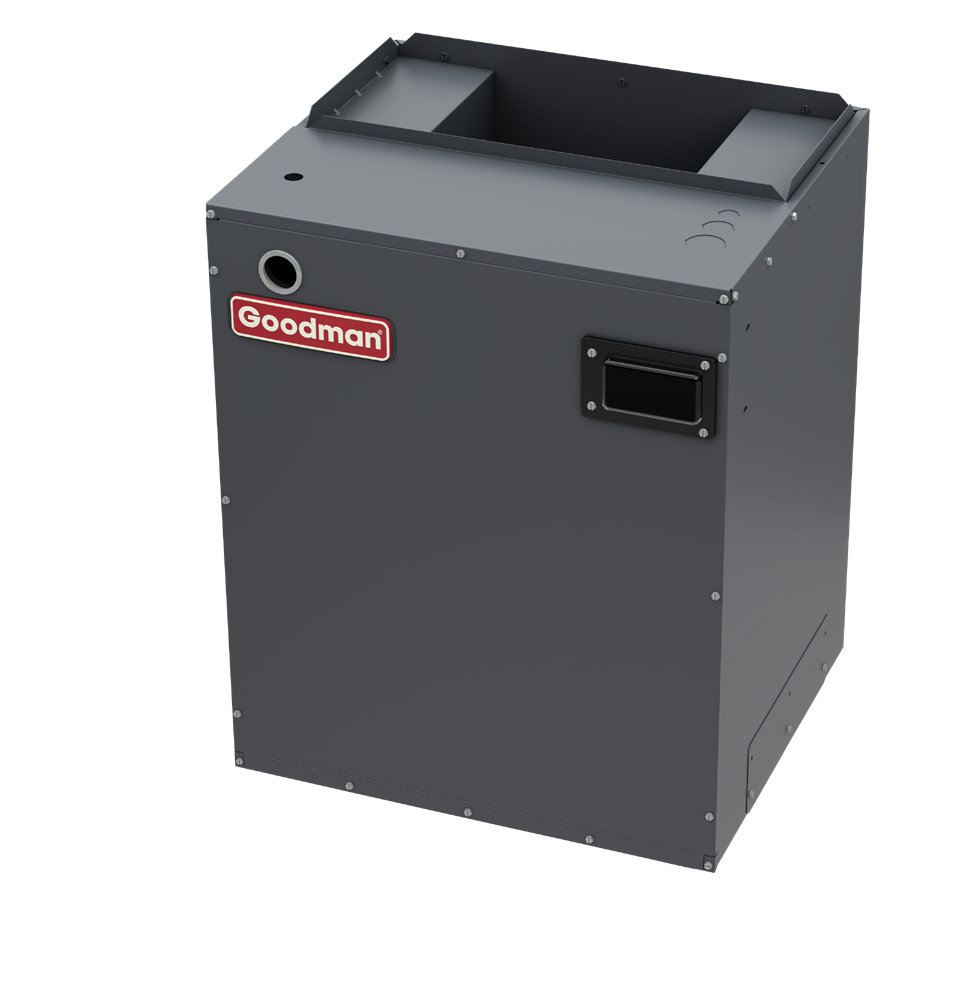

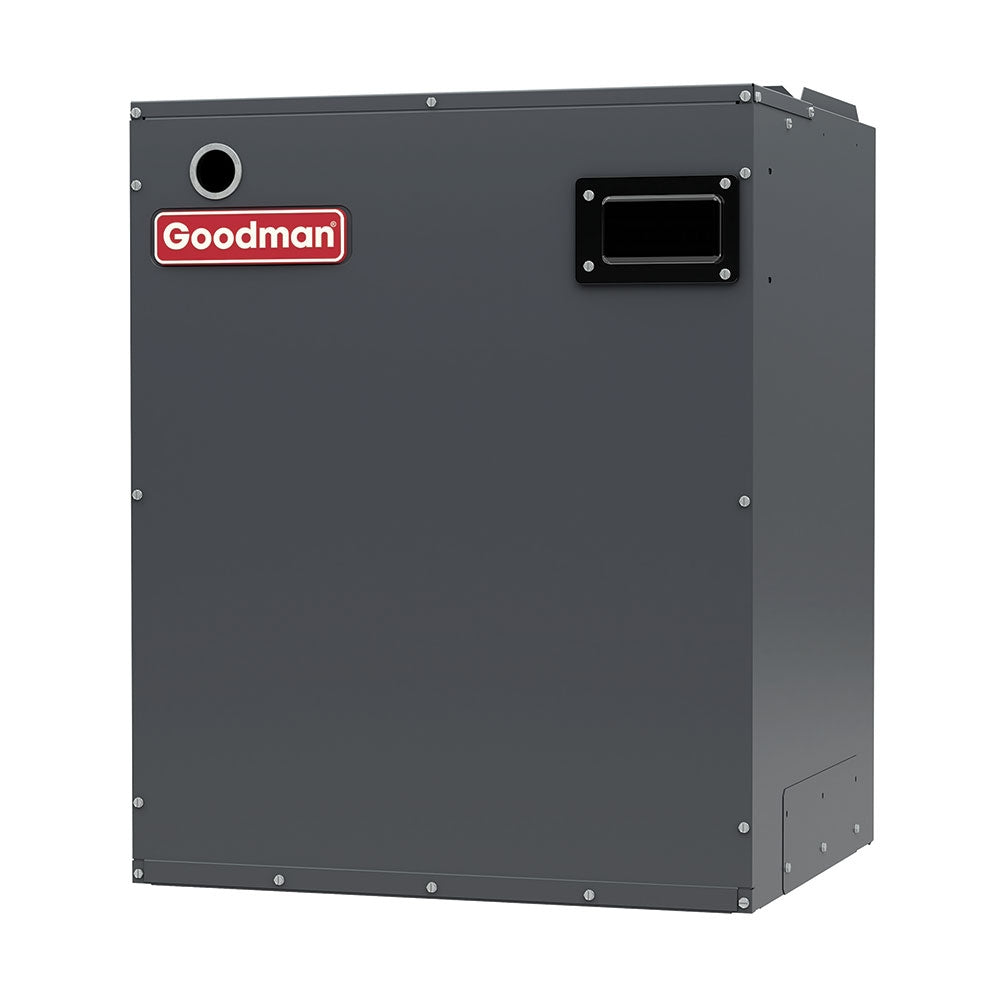

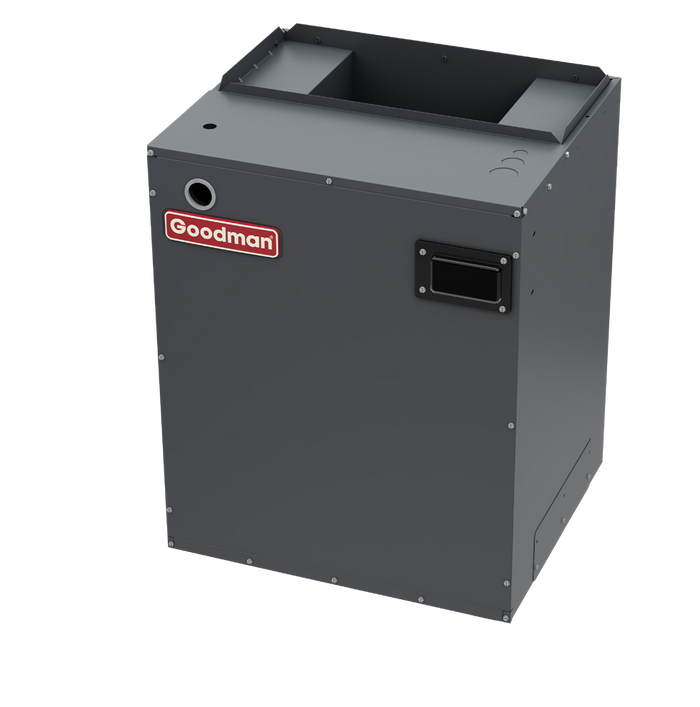

- MBVK16CP1X00 — Goodman Multi-Position Variable-Speed ECM Modular Blower. Multi-Positional configuration, ¾ HP ECM motor, 208/230V. Cabinet: 21" W x 21" D x 30" H.
Pro-Installer Tip: Coil-Blower Stack Height & Refrigerant Line Sizing
The Technical Friction: When stacking the evaporator coil on a modular blower, total assembled height must be verified against available closet or attic clearance before finalizing the install. The GZV9S condenser ships with ⅞" suction service valves — field-supplied ⅞" to 1⅛" adapters are required for the line set connection.
The Long-Term Prevention: Verify subcooling at the service valve targets 11±1°F using the factory charge (162 oz R-32 for 15 ft of ⅜" liquid line). Adjust charge per the installation manual's final charge procedure for actual line set length. Improper charge leads to reduced capacity and compressor wear, often manifesting as performance complaints 6–12 months post-install.
The Expert Validation: Use a digital manifold gauge calibrated for R-32 and a pipe-clamp thermometer at the liquid service valve. Confirm EEV superheat is in auto-control mode via the CoolCloud™ app.
The Professional Standard: R-32 is classified A2L (mildly flammable) under ASHRAE 34. EPA Section 608 certification is required. Follow local mechanical codes for charge limits in enclosed spaces. R-32's GWP of 675 (vs. R-410A's 2088) aligns with EPA AIM Act phase-down schedules.
Key Benefits
- Variable-Speed Inverter Efficiency: The GZV9S condenser modulates compressor speed to match real-time load, achieving up to 17.0 SEER2 in this configuration — reducing energy consumption compared to fixed-speed systems while maintaining tighter temperature control.
- Cold Climate Heat Pump Performance: With max heating capacity of 48,000 BTU/h at 47°F and operational down to -20°F ambient, this system qualifies as Energy Star Cold Climate Certified, extending efficient heat pump operation deeper into the heating season.
- R-32 Refrigerant (Low GWP): R-32 carries a Global Warming Potential of 675 — approximately 68% lower than R-410A (GWP 2088). This supports EPA AIM Act compliance and may help qualify for IRA/25C federal tax credits for eligible high-efficiency equipment.
- Quiet Operation: The GZV9S outdoor unit operates at 77 dBA in normal cooling mode (4-ton) and offers a selectable Quiet Mode with up to 3 sound levels (as low as 45 dBA for the GZV9S platform), minimizing neighborhood noise impact.
Technical Specifications
| Specification | Value |
|---|---|
| AHRI Certificate Number | 217989207 |
| System Type | Central Heat Pump Split System with Evaporator Coil & Modular Blower |
| Nominal System Capacity | 4 Ton |
| SEER2 | 17.0 |
| EER2 | 11.0 |
| HSPF2 | 8.5 |
| Refrigerant | R-32 |
| Cooling Capacity (AHRI Rated) | 45,500 BTU/h |
| Heating Capacity — High Heat (Furnace) | 46,000 BTU/h |
| Heating Capacity — Heat Pump @47°F | 48,000 BTU/h (max) |
| Heating Capacity — Heat Pump Low | 29,400 BTU/h |
| Outdoor Unit — GZV9SA4810 | |
| Compressor Type | Variable-Speed Inverter-Driven Swing |
| Expansion Device | EEV |
| Dimensions (W x D x H) | 37" x 12⅝" x 56-5/16" |
| Equipment Weight | 230 lbs |
| Electrical | 208-230V / 1 Phase / 60 Hz |
| MCA / MOCP | 34.4A / 40A |
| Sound Level (Cooling/Heating) | 77 / 75 dBA |
| Ambient Range (Cool/Heat) | 0°F to 115°F / -20°F to 70°F |
| Refrigerant Charge | 162 oz (for 15 ft of ⅜" liquid line) |
| Liquid / Suction Line | ⅜" / 1⅛" |
| Evaporator Coil — CHPEA4830D3 | |
| Configuration | Horizontal |
| Nominal Capacity | 4 Ton |
| Dimensions (W x D x H) | 30" x 21" x 24½" |
| Ship Weight | 78 lbs |
| Modular Blower — MBVK16CP1X00 | |
| Configuration | Multi-Positional |
| Dimensions (W x D x H) | 21" x 21" x 30" |
| Blower Motor | ¾ HP Variable-Speed ECM |
| Voltage | 208/230V |
| Ship Weight | 80 lbs |
| Note: See 'Resources (System Manuals and Warranty)' Tab above for full specifications. | |
Compliance & Environmental Data
| Item | Detail |
|---|---|
| Refrigerant Type | R-32 (HFC, A2L — Mildly Flammable) |
| Global Warming Potential (GWP) | 675 (vs. R-410A at 2,088 — ~68% reduction) |
| EPA Section 608 Certification | Required for purchase, handling, and recovery of R-32 |
| ASHRAE Classification | A2L per ASHRAE Standard 34 |
| Safety Compliance | UL 60335-2-40 (outdoor unit and indoor components) |
| Regional Code Compliance | Meets DOE 2023 federal minimum efficiency standards; verify local Title 24 (CA), SCAQMD, or equivalent requirements |
| Energy Star Certified | Cold Climate (Heat Pump) |
| IRA / 25C Tax Credit Eligibility | Potential — Consult IRS Form 5695 and EnergyStar.gov for current SEER2/HSPF2/AFUE thresholds |
Warranty & Registration
- GZV9SA4810 (Heat Pump Condenser): Covered under Goodman warranty Part No. PWGACHPMTSDC. Without registration: 5-Year Parts Limited Warranty. With registration (within 60 days of installation): 10-Year Parts Limited Warranty; if the compressor fails within the first 10 years, Daikin will furnish a new equivalent replacement unit (one-time unit replacement). Registration at www.goodmanmfg.com.
- CHPEA4830D3 (Evaporator Coil): Covered under Goodman coil warranty. Without registration: 5-Year Parts Limited Warranty. With registration (within 60 days of installation): 10-Year Parts Limited Warranty. Registration at www.goodmanmfg.com.
- MBVK16CP1X00 (Modular Blower): Covered under Goodman warranty Part No. PWCAHPQK. Without registration: 5-Year Parts Limited Warranty. With registration (within 60 days of installation): 10-Year Parts Limited Warranty. Registration at www.goodmanmfg.com.
Note: Online registration must be completed within 60 days of installation to receive the extended warranty terms described above. Online registration is not required in California, Florida, or Québec. The duration of warranty coverage in Texas and Florida differs in some cases. Complete warranty details are available at www.goodmanmfg.com. Labor, refrigerant, freight, and other service costs are not covered.
