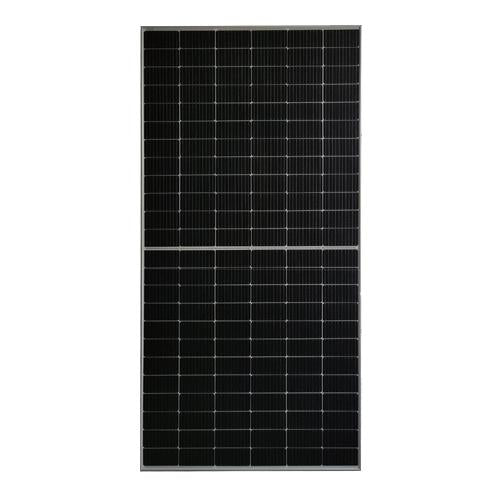

Hyperion Runergy 540W P Type Bifacial Dual Glass HY-DH144P8-540 Solar Panel
Pallet Only: 36 panels/pallet
Maximize your energy production with the Runergy Hyperion 540W Bifacial Dual Glass P-Type Solar Panel. This Tier 1 solar panel is engineered for high performance and long-term reliability, ideal for a variety of solar installations. Featuring bifacial technology and dual-glass construction, this panel offers exceptional power output and durability.
Key Benefits:
- Bifacial Technology: Captures sunlight on both sides for increased energy yield.
- Dual Glass Design: Enhances durability and longevity, protecting against harsh weather conditions.
- High Power Output: Up to 540W, maximizing energy production per square foot.
- Excellent Low-Light Performance: P-Type cell technology ensures efficient power generation even in cloudy conditions.
-
Durable and Reliable: Designed to withstand heavy snow and wind loads.
Warranty:
- 12-year product warranty.
-
30-year linear power output warranty, guaranteeing long-term performance.
Best Uses:
- Residential and commercial rooftop solar systems.
- Ground-mounted solar power plants.
- Agricultural solar installations.
- Projects in environments with high temperatures or harsh weather conditions.
About Hyperion Runergy:
Hyperion Solar Energy, founded in 2013 and based in Pasadena, California, specializes in providing advanced solar energy technologies and customer service to facilitate clients' transition to renewable energy. As a SunPower Master Dealer, the company offers high-quality solar products. However, as of October 2024, Hyperion Solar Energy has ceased operations.
Technical Specifications:
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 540W |
| Cell Type | Mono PERC |
| Number of Cells | 144 |
| Module Efficiency | Up to 20.9% |
| Dimensions | 2278 mm x 1134 mm x 30 mm (89.69" x 44.65" x 1.18") |
| Weight | 31.6 kg (69.66 lbs) |
| Operating Temperature | -40°C to +85°C |
| Max. System Voltage | 1500V DC |
| Frontside Max. Loading | 5400 Pa |
| Backside Max. Loading | 2400 Pa |
| Power Tolerance | 0 ~ +5W |
| Connector | MC4-Evo2 or compatible |
| Temperature Coefficient (Pmax) | -0.35%/°C |
| Fire Resistance | IEC Class A |
| Resources | Data Sheet |
FAQs
Q: What is the power output of the Hyperion HY-DH144P8-540 panel?
The Hyperion HY-DH144P8-540 panel delivers a rated power output of 540 watts, making it suitable for both residential and commercial solar installations.
Q: What is the efficiency of the Hyperion HY-DH144P8-540 panel?
This panel boasts a module efficiency of approximately 20.9%, achieved through advanced cell technology and manufacturing processes.
Q: What are the dimensions and weight of the Hyperion HY-DH144P8-540 panel?
The panel measures approximately 2,278 mm (89.69 inches) in length, 1,134 mm (44.65 inches) in width, and has a depth of 35 mm (1.38 inches). Its weight is approximately 32 kg (70.5 lbs).
Q: What type of solar cells does the Hyperion HY-DH144P8-540 panel use?
The panel utilizes 144 half-cut monocrystalline PERC bifacial cells, enhancing efficiency and performance by capturing sunlight on both sides.
Q: What kind of warranty does Hyperion offer for this panel?
Hyperion provides a 12-year product warranty and a 30-year linear performance warranty for the HY-DH144P8-540 panel, ensuring long-term reliability and efficiency.
Q: Is the Hyperion HY-DH144P8-540 panel suitable for low-light conditions?
Yes, the panel's advanced cell technology enhances performance in low-light environments, such as cloudy days, mornings, and evenings.
Q: How durable is the Hyperion HY-DH144P8-540 panel in extreme weather conditions?
The panel is certified to withstand heavy snow loads up to 5,400 Pa and wind loads up to 2,400 Pa, ensuring durability across various climates.
Q: Can the Hyperion HY-DH144P8-540 panel help reduce energy costs?
Absolutely! With its high efficiency and bifacial design, the panel can generate more electricity per square meter, potentially lowering energy costs.
Q: How many panels do I need for my home or business?
The number of panels required depends on your energy consumption and available space. For a household using 10,000 kWh/year, approximately 19 Hyperion HY-DH144P8-540 panels may be needed. Consult a certified installer for an accurate assessment.
Q: How many panels are in each pallet?
Each pallet contains 36 Hyperion HY-DH144P8-540 panels, facilitating efficient bulk installations.
