ICM Controls ICM517 Single Phase Surge Protector
$99.00$159.99
Call for best pricing before large-system orders.

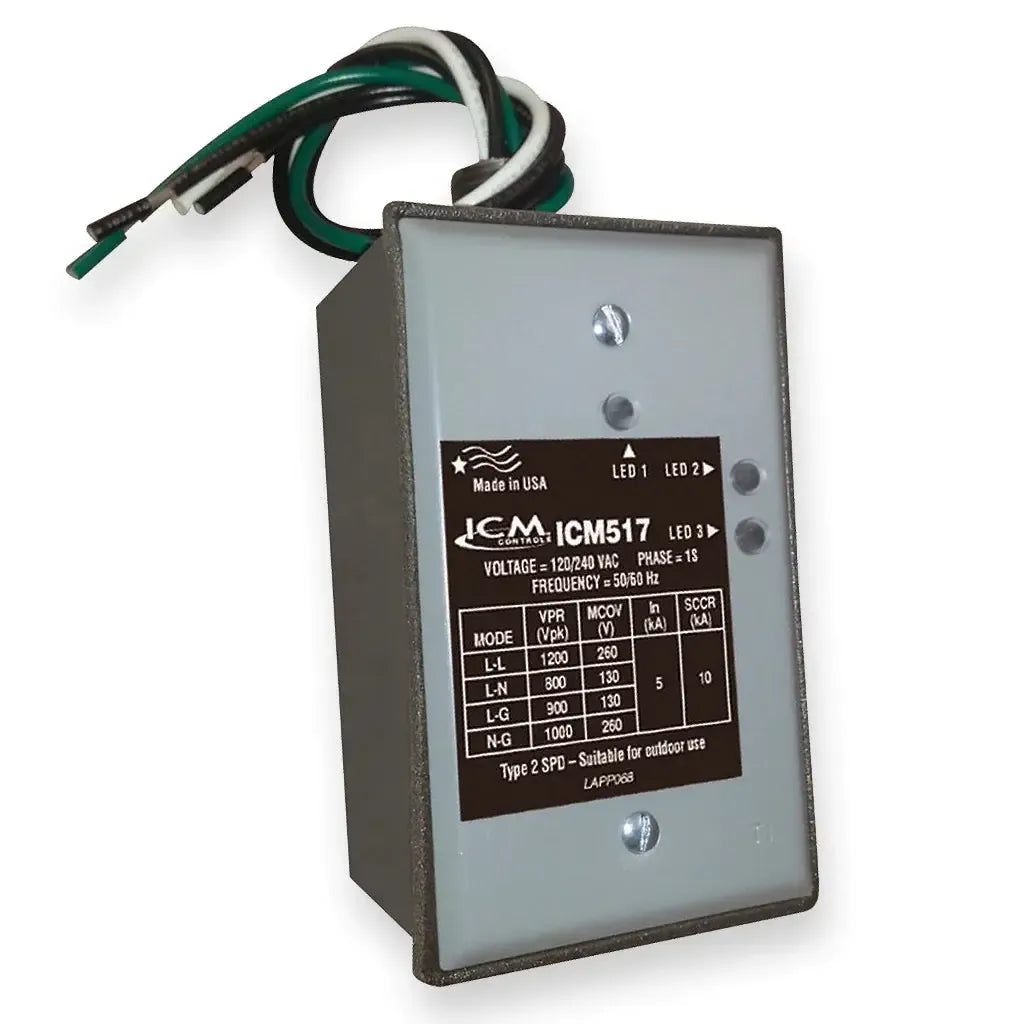

ICM Controls ICM517 Single Phase Surge Protector
Protect your investment from power surges and electrical noise. Limited LIFETIME Protection warranty from the manufacturer For 110-120 VAC and 208-230 VAC Systems. Can be installed at the main panel or the disconnect box. Energy Dissipation: 1020 Joules Max Surge Current: 100,000 Amps
- Easy installation
- Low cost, high performance
- Rugged, reliable
- UL Listed, Type 2 device
- NEMA Type 3R enclosure
Technical Information
Specifications
- Service Voltage: 120/240 volt, single phase
- Maximum Surge Current: 100,000 Amps
- Maximum Energy Dissipation: 1,020 Joules
- Installation Point: Electrical panel, electrical disconnect
- Diagnostics: Green light indicates surge suppression present
- AC Protection Modes: L-L, L-N, L-G, N-G
- Conduit Connection: 3/4”
- Dimensions: 5.0” L x 2.78” W x 2.16” D
