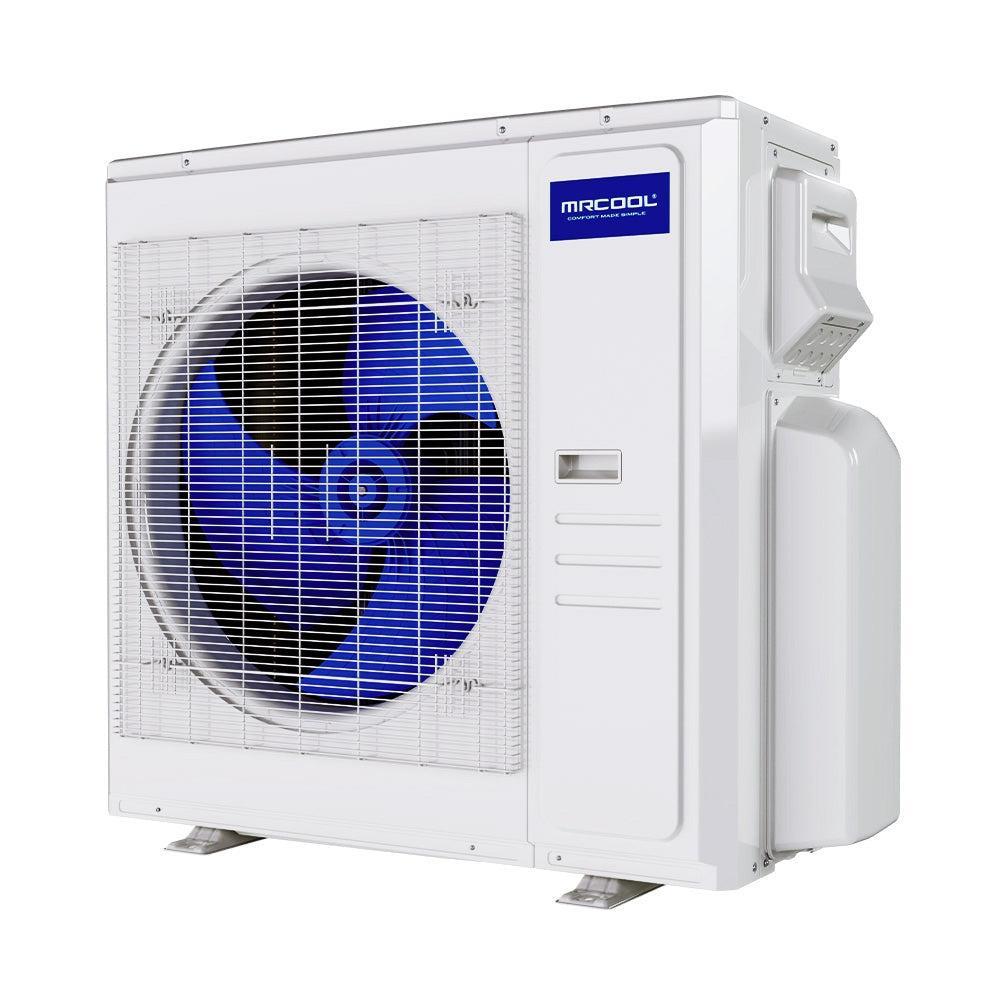

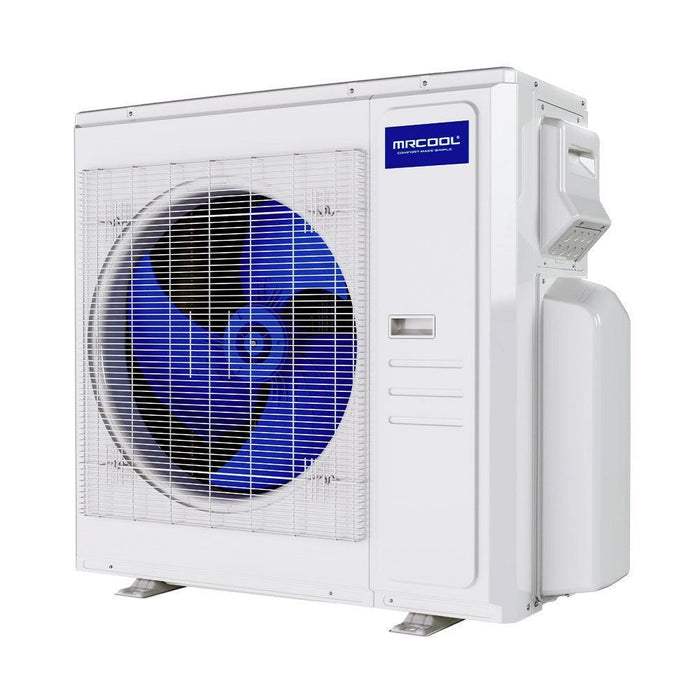

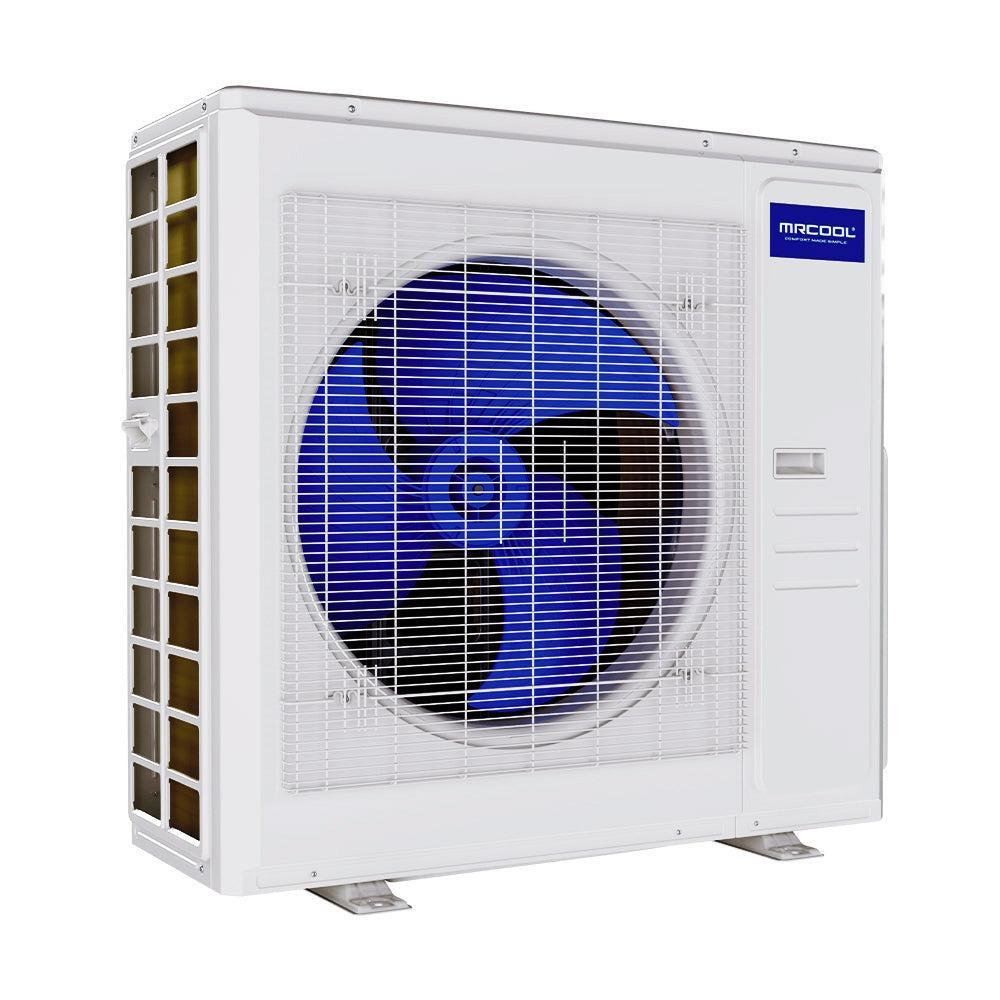

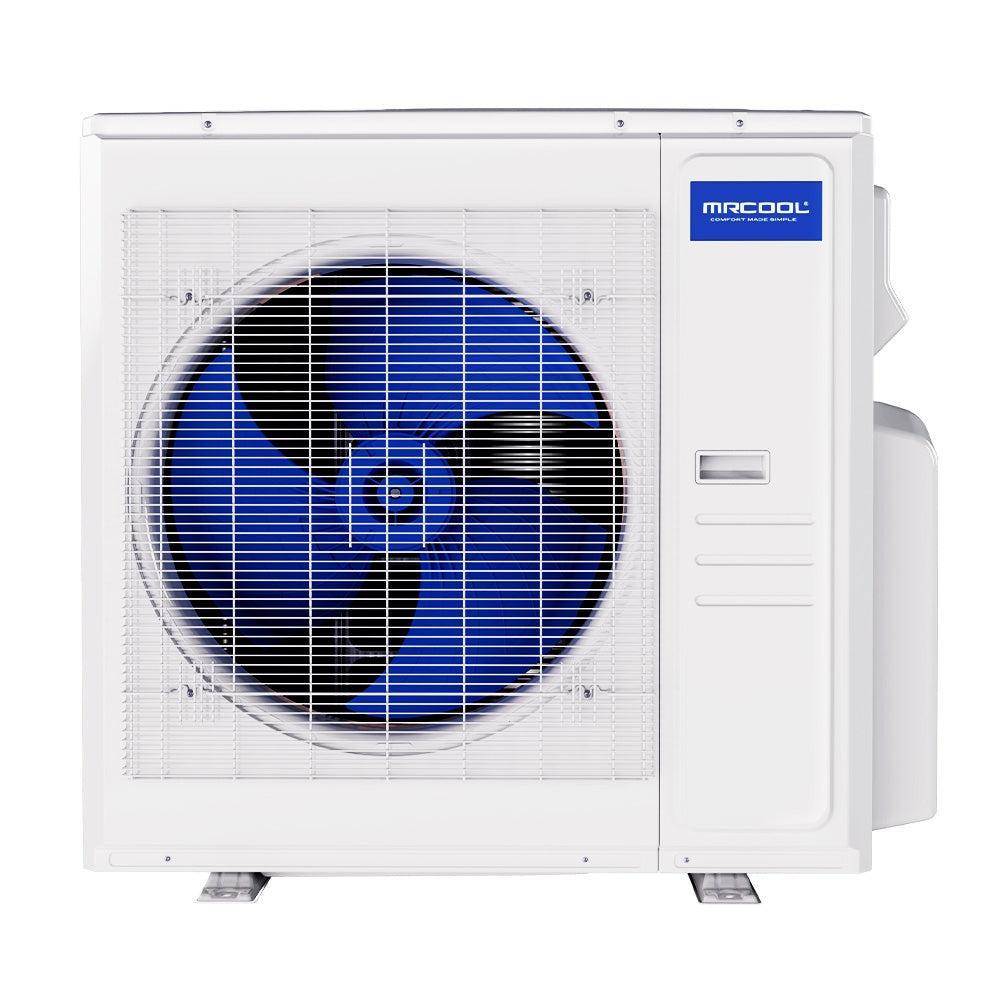

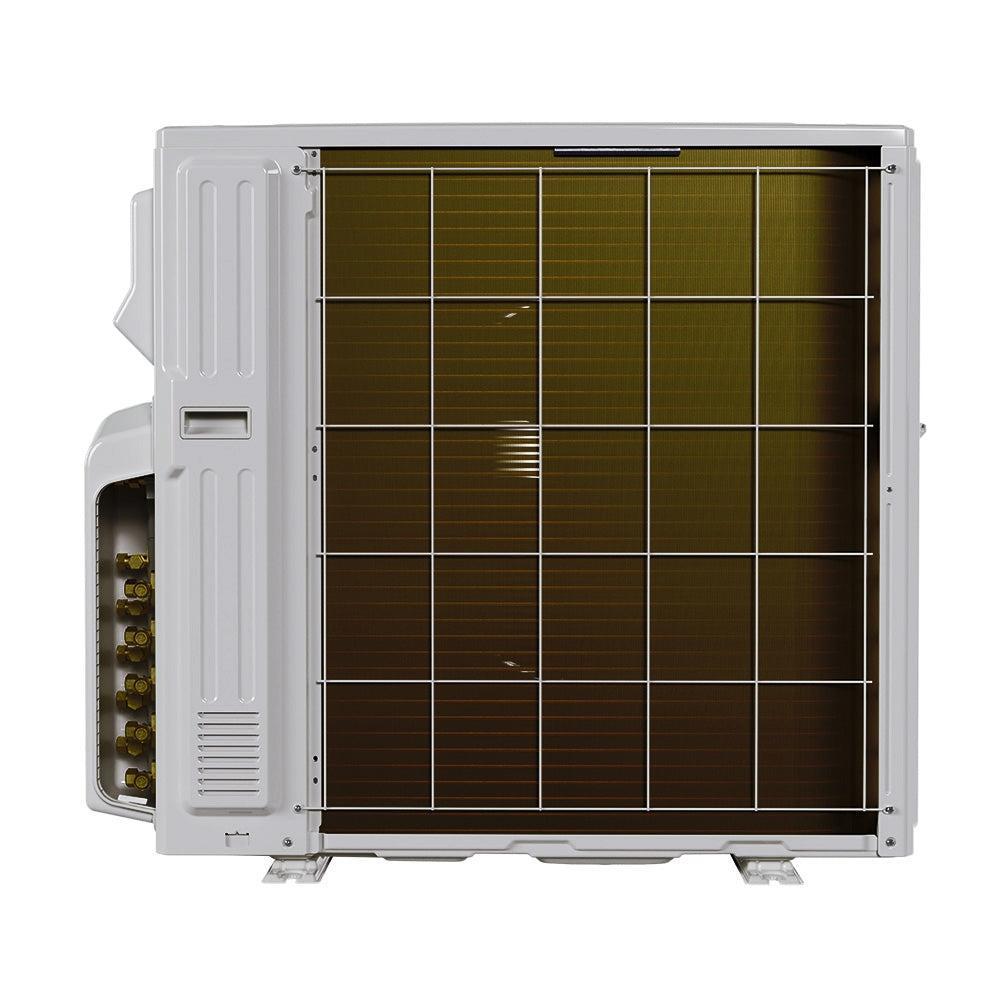

MRCOOL® Olympus 4th Gen 36,000 BTU Multi-Zone 5-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser - 230V/60Hz - MULTI5-36HP230C-O
The MRCOOL® Olympus 36,000 BTU multi-zone heat pump condenser is a high-capacity, heat pump condenser built to power up to five indoor units simultaneously. Designed for homeowners who want efficient and individualized temperature control across multiple rooms, this ductless system delivers tailored comfort to every zone—making it an excellent fit for modern, multi-room living spaces. Featuring cutting-edge inverter technology, the system provides exceptional energy performance, with SEER2 ratings up to 24 and HSPF2-4 up to 9.5. It operates reliably even in extreme outdoor conditions, functioning in temperatures as low as 5°F to keep your home comfortable year-round. Compatibility with a variety of MRCOOL indoor units—including wall-mounted, ceiling cassette, and concealed duct options—means it’s easy to customize the setup to suit your home’s layout and aesthetic. Smart control options enhance everyday convenience, offering seamless operation through the MRCOOL SmartHVAC app, included remote control, or voice commands via Amazon Alexa and Google Assistant. Additional features like sleep mode, auto restart, and built-in refrigerant leak detection further improve safety, energy efficiency, and peace of mind. Backed by a 7-year limited warranty on the compressor and a 5-year parts warranty (when installed by a professional), the MRCOOL® Olympus MULTI5-36HP230C-O is a reliable, energy-efficient choice for those looking to achieve flexible, zone-specific heating and cooling throughout their home.
Note: This product is not a full system, this product is the outdoor unit/heat pump condenser, if you need a full system, please click here.
Click here for the Brochure and Multi Zone Matchup Guide(The Multi Zone Matchup Guide begins on the last page of the Brochure - All SKU Numbers/Model Numbers are searchable on our website).
Warranty:
- 5 Year Parts Warranty, 5 Year Remote Warranty, 7 Year Compressor Warranty
- See full warranty details here
MRCOOL® Olympus 4th Gen 36,000 BTU Multi-Zone 5-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser - 230V/60Hz - MULTI5-36HP230C-O Specifications:
BRAND NAME |
MRCOOL |
SERIES |
Olympus 4th Gen Multi-Zone Condensers |
MODEL |
MULTI5-36HP230C-O |
GTIN |
00840255587808 |
UPC |
840255587808 |
UNIT TYPE |
Mini-Split |
SHORT DESCRIPTION |
Olympus 36,000 BTU Mini-Split Condenser - 230V/60Hz |
LONG DESCRIPTION |
The MRCOOL® Olympus 36,000 BTU multi-zone heat pump condenser is a high-capacity, heat pump condenser built to power up to five indoor units simultaneously. Designed for homeowners who want efficient and individualized temperature control across multiple rooms, this ductless system delivers tailored comfort to every zone—making it an excellent fit for modern, multi-room living spaces. Featuring cutting-edge inverter technology, the system provides exceptional energy performance, with SEER2 ratings up to 24 and HSPF2-4 up to 9.5. It operates reliably even in extreme outdoor conditions, functioning in temperatures as low as 5°F to keep your home comfortable year-round. Compatibility with a variety of MRCOOL indoor units—including wall-mounted, ceiling cassette, and concealed duct options—means it’s easy to customize the setup to suit your home’s layout and aesthetic. Smart control options enhance everyday convenience, offering seamless operation through the MRCOOL SmartHVAC app, included remote control, or voice commands via Amazon Alexa and Google Assistant. Additional features like sleep mode, auto restart, and built-in refrigerant leak detection further improve safety, energy efficiency, and peace of mind. Backed by a 7-year limited warranty on the compressor and a 5-year parts warranty (when installed by a professional), the MRCOOL® Olympus MULTI5-36HP230C-O is a reliable, energy-efficient choice for those looking to achieve flexible, zone-specific heating and cooling throughout their home. |
WORKS WITH |
O-09-HP-WMAH-230C-O DUCT-09HP-230B-O CASSETTE09HP-230C-O O-12-HP-WMAH-230C-O DUCT-12HP-230B-O CASSETTE12HP-230C-O O-18-HP-WMAH-230C-O DUCT-18-HP-230B-O CASSETTE18HP-230C-O O-24-HP-WMAH-230C-O DUCT-24HP-230B-O CASSETTE24HP-230C-O |
FEATURE LIST |
Installation by a licensed professional required where applicable 7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional R-454B environmentally friendly friendly refrigerant Energy Star Certified |
SEER2 |
Up to 24 |
EER2 |
Up to 12 |
HSPF2-4 |
9.5 |
HSPF2-5 |
7 |
TONNAGE |
3 |
COOLING CAPACITY (BTU) |
36000 |
HEATING CAPACITY (BTU) |
37000 |
VOLTAGE (V) |
208/230 |
PHASE |
1 |
CYCLE |
60 |
MAX FUSE BREAKER (A) |
35 |
MIN CIRCUIT AMPACITY (A) |
30.5 |
COLOR |
White |
MAX COVERAGE AREA |
Up to 1500 |
ZONE CAPACITY |
5 |
REFRIGERANT TYPE |
R-454B |
REFRIGERANT VOLUME (OZ) |
120.63 |
DECIBEL RATING (DBA) |
64.5 |
INVERTER |
DC |
MAX LINESET LENGTH (FT) |
262.4 total |
LINESET FITTING TYPE |
Flare |
LIQUID LINE SIZE |
5 x 1/4 |
SUCTION LINE SIZE |
4 x 3/8 + 1 x 1/2 |
COMPRESSOR MOTOR TYPE |
Rotary |
CONDENSER FAN MOTOR RPM |
900/750/600 |
METERING DEVICE |
EXV |
UL LISTED |
Yes |
CSA LISTED |
Yes |
ETL LISTED |
Yes |
ENERGY STAR CERTIFIED |
Yes |
AHRI CERTIFIED |
Yes |
BASE WARRANTY |
5-Year Parts/7-Year Compressor |
BASE PARTS WARRANTY |
5-Year |
BASE COMPRESSOR WARRANTY |
7-Year |
BASE REMOTE WARRANTY |
5 Year |
REGISTERED LABOR WARRANTY |
None |
BASE LABOR WARRANTY |
None |
HAS BATTERIES |
Yes |
CONTAINS ELECTRONICS |
Yes |
CONTAINS CHEMICALS |
Yes |
CONTAINS COMPRESSED GAS |
Yes |
PROPOSITION 65 WARNING |
Yes |
RESTRICTED STATES |
GU, PR, VI |
NET DEPTH (IN) |
16.14 |
NET HEIGHT (IN) |
31.89 |
NET WIDTH (IN) |
37.24 |
NET WEIGHT (LBS) |
168.87 |
GROSS DEPTH (IN) |
19.68 |
GROSS HEIGHT (IN) |
34.84 |
GROSS WIDTH (IN) |
42.91 |
GROSS WEIGHT (LBS) |
180.12 |
