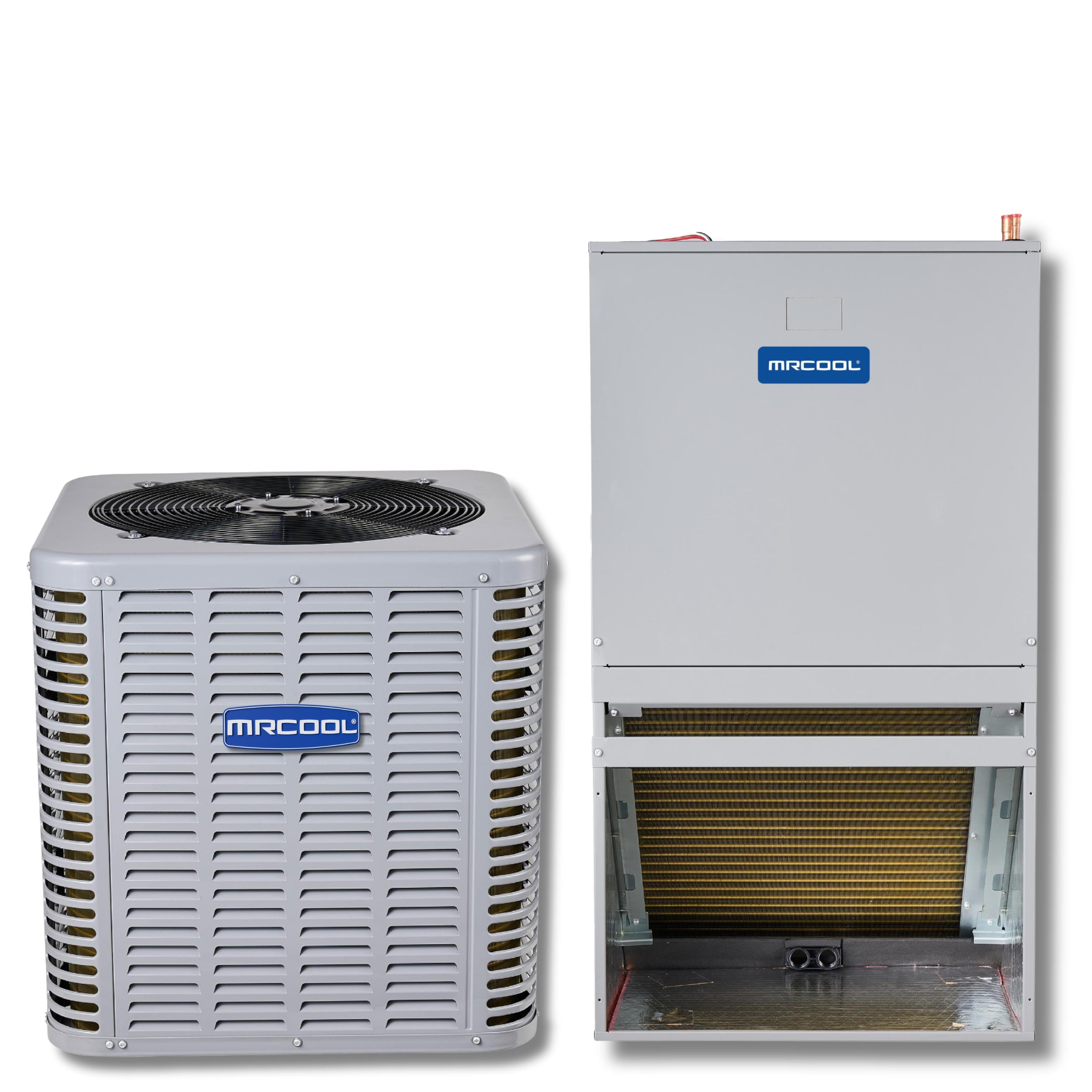

MRCOOL® Signature Series 1.5 Ton 14.3 SEER2 Central Heat Pump Split System - R-454B - Multi-position - Wall Mount Air Handler / Stud Mount
The MRCOOL® Signature Series 1.5 Ton 14.3 SEER2 Central Heat Pump Split System - R-454B - Multi-position - Wall Mount Air Handler / Stud Mount offers efficient, reliable comfort all year long. Rated at 14.3 SEER2 and 11.7 EER2, it delivers dependable heating and cooling while helping lower monthly energy bills. Whether replacing an old system or installing new, this unit balances performance, efficiency, and value.
Pre-charged with eco-friendly R-454B refrigerant, this unit supports reduced environmental impact while maintaining strong performance. The pre-charged design streamlines installation and cuts labor time, making it ideal for both contractors and homeowners.
At the heart of the system is a single-speed scroll compressor, engineered for stable, efficient operation. Inner-groove copper tubing enhances heat transfer, boosting responsiveness and energy efficiency. Built-in sensors monitor internal temperature and pressure, helping protect against extreme conditions. An intelligent defrost function keeps the unit running smoothly in cold weather.
Despite its power, the unit runs quietly at just 60 decibels for the outdoor unit, and 53 decibels for the indoor unit, about as loud as the average dishwasher, with a specially-engineered sound-dampening top to reduce noise. Compact and lightweight, the unit installs easily in tight spaces. And maintenance is simple with accessible service valves and gauge ports.
A 10-year limited parts warranty and a limited lifetime compressor warranty offers added peace of mind. The MRCOOL® Signature Series 1.5 Ton 14.3 SEER2 Central Heat Pump Split System - R-454B - Multi-position - Wall Mount Air Handler / Stud Mount is a durable, efficient, and smart investment in home comfort.
Find the Brochures here:
MRCOOL® Signature Series MCAESHS4T1821AA 1.5 Ton up to 14.3 SEER2 18,000 BTU Split System Heat Pump Condenser - R-454B
The MRCOOL® Signature Series 18k Heat Pump Condenser offers efficient, reliable comfort all year long. Rated at 14.3 SEER2 and 11.7 EER2, it delivers dependable heating and cooling while helping lower monthly energy bills. Whether upgrading an old system or installing new, this unit balances performance, efficiency, and value. Pre-charged with eco-friendly R-454B refrigerant, this unit supports reduced environmental impact while maintaining strong performance. The pre-charged design streamlines installation and cuts labor time, making it ideal for both contractors and homeowners. At the heart of the system is a single-speed scroll compressor, engineered for stable, efficient operation. Inner-groove copper tubing enhances heat transfer, boosting responsiveness and energy efficiency. Built-in sensors monitor internal temperature and pressure, helping protect against extreme conditions. An intelligent defrost function keeps the unit running smoothly in cold weather. Despite its power, the unit runs quietly at just 60 decibels, about as loud as the average dishwasher, with a specially-engineered sound-dampening top to reduce noise. Compact and lightweight, the unit installs easily in tight spaces. And maintenance is simple with accessible service valves and gauge ports. A 10-year limited parts warranty and a limited lifetime compressor warranty offers added peace of mind. The MRCOOL® Signature Series 18k Heat Pump Condenser is a durable, efficient, and smart investment in home comfort.
- Cooling/Heating Capacity: 1.5 Ton
- SEER2 Rating: 14.3
- EER2 Rating: 11.7
- Refrigerant: Pre-charged with eco-friendly R-454B
- Compressor: Single-speed scroll compressor for stable, efficient operation
- Heat Transfer: Inner-groove copper tubing for enhanced efficiency and responsiveness
- Built-in Protection: Sensors monitor temperature and pressure
- Defrost Function: Intelligent defrost keeps unit running smoothly in cold weather
- Noise Level: Quiet operation at 60 decibels, with sound-dampening top
- Installation: Compact and lightweight for tight spaces; accessible service valves and gauge ports for easy maintenance
-
Warranty: 10-year limited parts warranty and limited lifetime compressor warranty
- Steel Louver Coil Guard

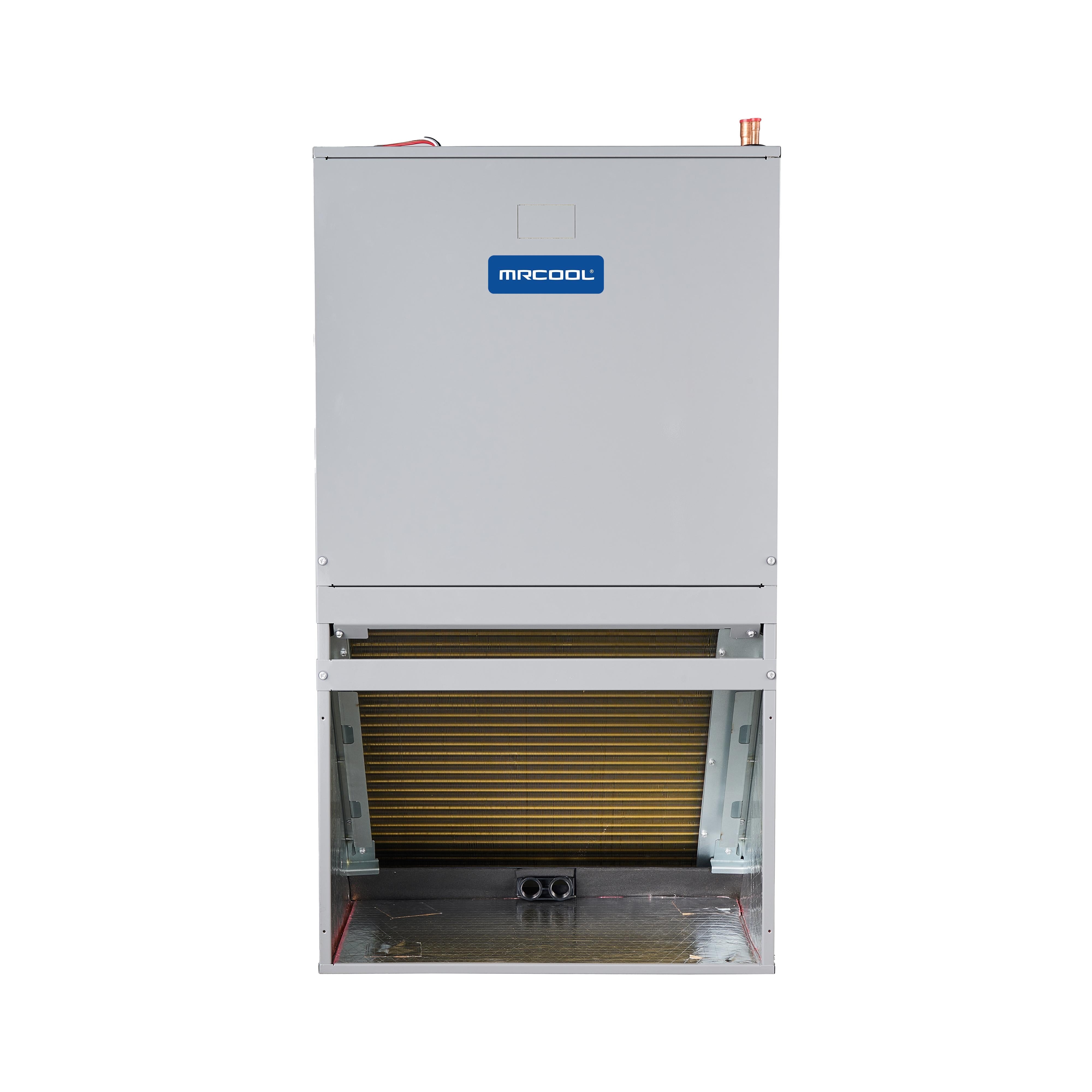

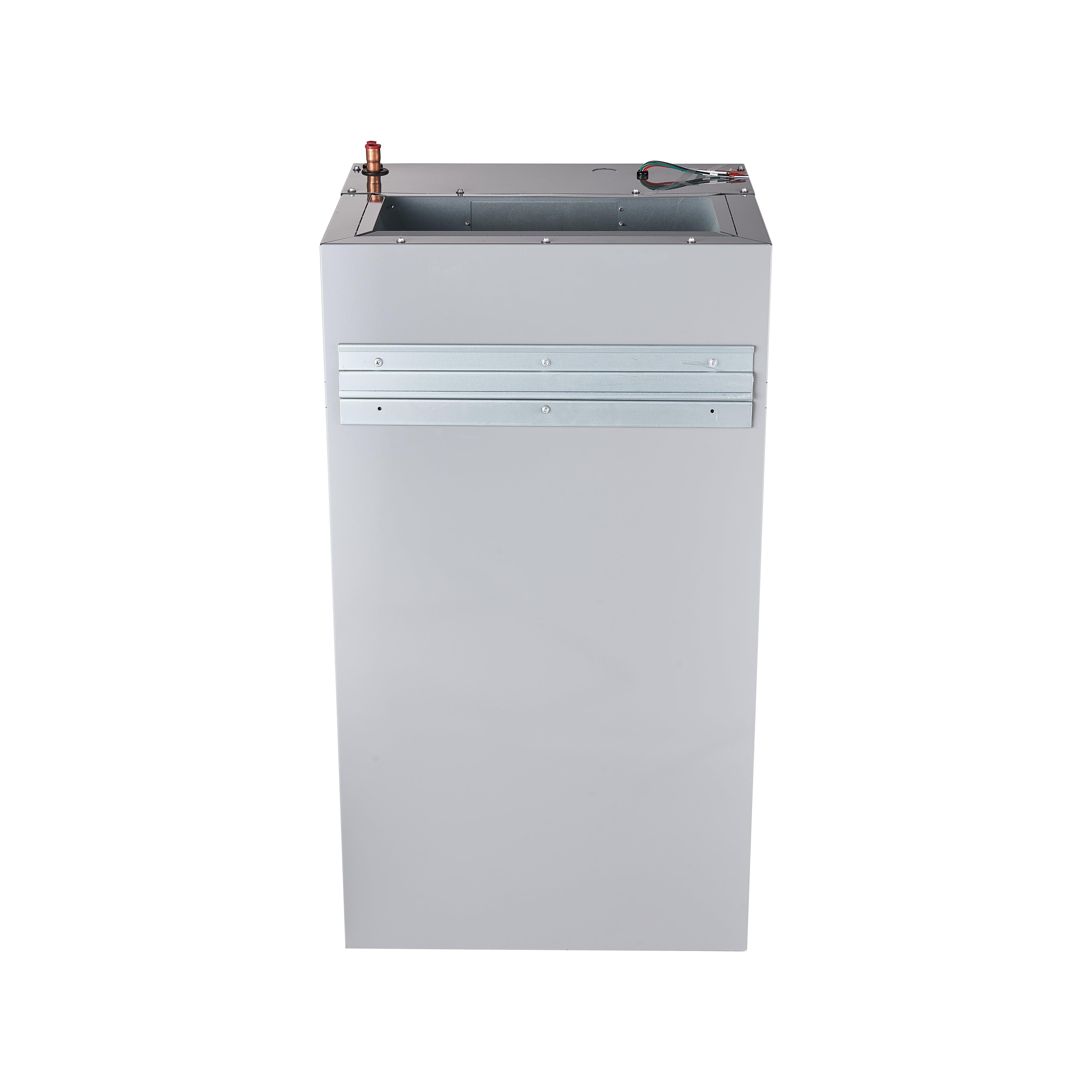

MRCOOL® Signature Series MCAEAWPEF18D21AA 1.5 Ton Split System Stud Mount Air Handler (Upflow) - R-454B
Enhance your HVAC setup with the MRCOOL® Signature Series 18K Stud Mount Air Handler—designed for exceptional versatility, efficiency, and simplified installation. Built to fit between standard wall studs, this compact and space-saving unit is ideal for areas where traditional air handlers can't be installed, offering flexible solutions for a variety of applications. Though slim in design, this air handler delivers robust heating and cooling performance when matched with a compatible heat pump or condenser. It offers both front and bottom return air configurations, allowing you to tailor the setup to your specific space and airflow needs. Constructed with a durable galvanized steel cabinet and featuring advanced blower technology, the MRCOOL® Signature Series 18k Stud Mount Air Handler ensures quiet operation and long-lasting reliability. Full cabinet insulation helps reduce condensation and energy loss, while the high-efficiency ECM motor provides consistent airflow and improved energy savings throughout your home. A built-in filter rack allows for quick and easy filter changes, and optional electric heat kits are available to boost performance during colder months. Backed by a 10-year limited parts warranty, this unit delivers peace of mind along with performance. Whether you're remodeling, upgrading, or building new, the MRCOOL® Signature Series 18k Stud Mount Air Handler is a dependable, space-conscious solution built for comfort and convenience.
- Capacity: 18,000 BTU (1.5 Ton) – compatible with matching heat pumps or condensers
- Installation: Fits between standard wall studs – ideal for tight or space-restricted areas
- Airflow Configuration: Supports front or bottom return air
- Cabinet: Durable galvanized steel with full insulation to reduce condensation and energy loss
- Blower Motor: High-efficiency ECM motor for consistent airflow and energy savings
- Noise Level: Quiet operation due to advanced blower technology
- Filter: Built-in filter rack for quick, easy filter changes
- Optional Upgrades: Electric heat kits available for enhanced heating in colder months
- Warranty: 10-year limited parts warranty for peace of mind
- Applications: Suitable for remodeling, new construction, or upgrades where space is limited
- Design: Compact, space-saving profile without sacrificing performance
- Compatible with most Third Party Thermostats, & modern HVAC Control Systems
Warranty
- 10 Year Parts, Limited Lifetime Compressor Warranty
- See full warranty details here
What's Included:
- 1x MRCOOL® Signature Series MCAESHS4T1821AA 1.5 Ton up to 14.3 SEER2 18,000 BTU Split System Heat Pump Condenser - R-454B
- 1x MRCOOL® Signature Series MCAEAWPEF18D21AA 1.5 Ton Split System Stud Mount Air Handler (Upflow) - R-454B
MRCOOL® Signature Series MCAESHS4T1821AA 1.5 Ton up to 14.3 SEER2 18,000 BTU Split System Heat Pump Condenser - R-454B Specifications:
|
BRAND NAME |
MRCOOL® |
|
SERIES |
Signature Series Heat Pump Condenser |
|
MODEL |
MCAESHS4T1821AA |
|
GTIN |
00840255595773 |
|
UPC |
840255595773 |
|
UNIT TYPE |
Split System Heat Pump Condenser |
|
SHORT DESCRIPTION |
Signature 1.5 Ton up to 14.3 SEER2 18,000 BTU Split System Heat Pump |
|
LONG DESCRIPTION |
The MRCOOL® Signature Series 18k Heat Pump Condenser offers efficient, reliable comfort all year long. Rated at 14.3 SEER2 and 11.7 EER2, it delivers dependable heating and cooling while helping lower monthly energy bills. Whether upgrading an old system or installing new, this unit balances performance, efficiency, and value. Pre-charged with eco-friendly R-454B refrigerant, this unit supports reduced environmental impact while maintaining strong performance. The pre-charged design streamlines installation and cuts labor time, making it ideal for both contractors and homeowners. At the heart of the system is a single-speed scroll compressor, engineered for stable, efficient operation. Inner-groove copper tubing enhances heat transfer, boosting responsiveness and energy efficiency. Built-in sensors monitor internal temperature and pressure, helping protect against extreme conditions. An intelligent defrost function keeps the unit running smoothly in cold weather. Despite its power, the unit runs quietly at just 60 decibels, about as loud as the average dishwasher, with a specially-engineered sound-dampening top to reduce noise. Compact and lightweight, the unit installs easily in tight spaces. And maintenance is simple with accessible service valves and gauge ports. A 10-year limited parts warranty and a limited lifetime compressor warranty offers added peace of mind. The MRCOOL® Signature Series 18k Heat Pump Condenser is a durable, efficient, and smart investment in home comfort. |
|
WORKS WITH |
Signature Series Multi-Position or Stud Mount Air Handlers |
|
SEER2 |
14.3 |
|
EER2 |
11.7 |
|
HSPF2 |
7.5 |
|
CFM |
1950 |
|
TONNAGE |
1.5 |
|
COOLING CAPACITY (BTU) |
17000 |
|
HEATING CAPACITY (BTU) |
17000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
12.2 |
|
COLOR |
Grey |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
81.1 |
|
DECIBEL RATING (DBA) |
60 |
|
INVERTER |
No |
|
MIN AMBIENT COOL (F) |
59 |
|
MIN AMBIENT HEAT (F) |
5 |
|
MAX LINESET LENGTH (FT) |
100 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
COMPRESSOR MOTOR TYPE |
Scroll |
|
CONDENSER FAN MOTOR TYPE |
PSC |
|
CONDENSER FAN MOTOR HP |
1/9 |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE WARRANTY |
10 Year Parts, Limited Lifetime Compressor Warranty |
|
BASE PARTS WARRANTY |
10 Year |
|
BASE COMPRESSOR WARRANTY |
Limited Lifetime |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
23.6 |
|
NET HEIGHT (IN) |
25 |
|
NET WIDTH (IN) |
23.6 |
|
NET WEIGHT (LBS) |
144 |
|
GROSS DEPTH (IN) |
24.8 |
|
GROSS HEIGHT (IN) |
26.2 |
|
GROSS WIDTH (IN) |
24.8 |
|
GROSS WEIGHT (LBS) |
150 |
| RESOURCES |
MRCOOL® Signature Series MCAEAWPEF18D21AA 1.5 Ton Split System Stud Mount Air Handler (Upflow) - R-454B
|
BRAND NAME |
MRCOOL® |
|
SERIES |
Signature Series Stud Mount Air Handler |
|
MODEL |
MCAEAWPEF18D21AA |
|
GTIN |
00840255595919 |
|
UPC |
840255595919 |
|
UNIT TYPE |
Air Handler |
|
CONFIGURATION |
Stud Mount |
|
SHORT DESCRIPTION |
Signature 18,000 BTU Split System Air Handler Stud Mount |
|
LONG DESCRIPTION |
Enhance your HVAC setup with the MRCOOL® Signature Series 18K Stud Mount Air Handler—designed for exceptional versatility, efficiency, and simplified installation. Built to fit between standard wall studs, this compact and space-saving unit is ideal for areas where traditional air handlers can't be installed, offering flexible solutions for a variety of applications. Though slim in design, this air handler delivers robust heating and cooling performance when matched with a compatible heat pump or condenser. It offers both front and bottom return air configurations, allowing you to tailor the setup to your specific space and airflow needs. Constructed with a durable galvanized steel cabinet and featuring advanced blower technology, the MRCOOL® Signature Series 18k Stud Mount Air Handler ensures quiet operation and long-lasting reliability. Full cabinet insulation helps reduce condensation and energy loss, while the high-efficiency ECM motor provides consistent airflow and improved energy savings throughout your home. A built-in filter rack allows for quick and easy filter changes, and optional electric heat kits are available to boost performance during colder months. Backed by a 10-year limited parts warranty, this unit delivers peace of mind along with performance. Whether you're remodeling, upgrading, or building new, the MRCOOL® Signature Series 18k Stud Mount Air Handler is a dependable, space-conscious solution built for comfort and convenience. |
|
WORKS WITH |
Signature Series Top Discharge Condensers |
|
CFM |
685 |
|
TONNAGE |
1.5 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
3 |
|
MIN CIRCUIT AMPACITY (A) |
2.5 |
|
MOUNT TYPE |
Stud Mount |
|
COLOR |
Grey |
|
REFRIGERANT TYPE |
R-454B |
|
DECIBEL RATING (DBA) |
53 |
|
AIR FLOW DIRECTION |
Upflow |
|
DRAIN CONNECTION SIZE |
3/4 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
BLOWER MOTOR TYPE |
ECM |
|
BLOWER MOTOR HP |
1/3 |
|
BLOWER MOTOR SPEEDS |
5 |
|
BLOWER MOTOR RPM |
960 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
15 * 19 * 1 |
|
METERING DEVICE |
Orifice |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5kW, 7.5kW, 10kW |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE WARRANTY |
10 Year Parts, Limited Lifetime Compressor Warranty |
|
BASE PARTS WARRANTY |
10 Year |
|
BASE COMPRESSOR WARRANTY |
Limited Lifetime |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
15 |
|
NET HEIGHT (IN) |
36 |
|
NET WIDTH (IN) |
20.5 |
|
NET WEIGHT (LBS) |
88 |
|
GROSS DEPTH (IN) |
18.11 |
|
GROSS HEIGHT (IN) |
39.375 |
|
GROSS WIDTH (IN) |
23.22 |
|
GROSS WEIGHT (LBS) |
97 |
| RESOURCES |
