MRCOOL® Universal Series 3 Ton 36,000 BTU 18 SEER2 Central Heat Pump Inverter Split System - R-454B - Multi-position
Introducing the New & Improved MRCOOL® Universal® Split System
Say hello to the all-new MRCOOL® Universal® Split System—a smarter way to heat and cool your home. With an efficiency rating of 18 SEER2, this system helps lower your energy costs without sacrificing performance.
Designed for year-round comfort, it delivers powerful cooling in the summer and reliable heating in the winter—all in one advanced, easy-to-install unit. The upgraded blower and innovative M-Coil work together to provide strong, consistent airflow and enhanced temperature control throughout your home
Why You'll Love It
- Installer-Friendly: Quick-connect panels and No-Vac® Quick Connect® line set compatibility means faster installs and fewer callbacks
- Flexible Power: Adaptive Multi-Voltage - 115V OR 208/230V, one product fits multiple job sites.
- Highly Efficiency: ENERGY STAR Most Efficient 2025, SEER2 up to 18 & HSPF2 up to 10.
- Smart Ready: Works seamlessly with the smart thermostat you already own.
Five Sizes, Endless Possibilities
Available in 2, 2.5, 3, 4, and 5 Ton configurations, the Universal® can scale to meet the demands of homes up to 3,000 square feet (1,500 - 1,800 Sq Ft for the 3 Ton Model) - giving you the flexibility to meet the needs of your home or business across a wide range of projects.
Operating Range:
- Cooling: -22℉ ~ 122℉
- Heating: -22℉ ~75℉
- 100% heat output at -13℉
- Chassis heater and crankcase heater equipped as standard
Warranty:
- 10 Year Parts + Compressor Warranty
- 2 Year Labor Warranty
- See full warranty details here: Warranty Document
What's Included:

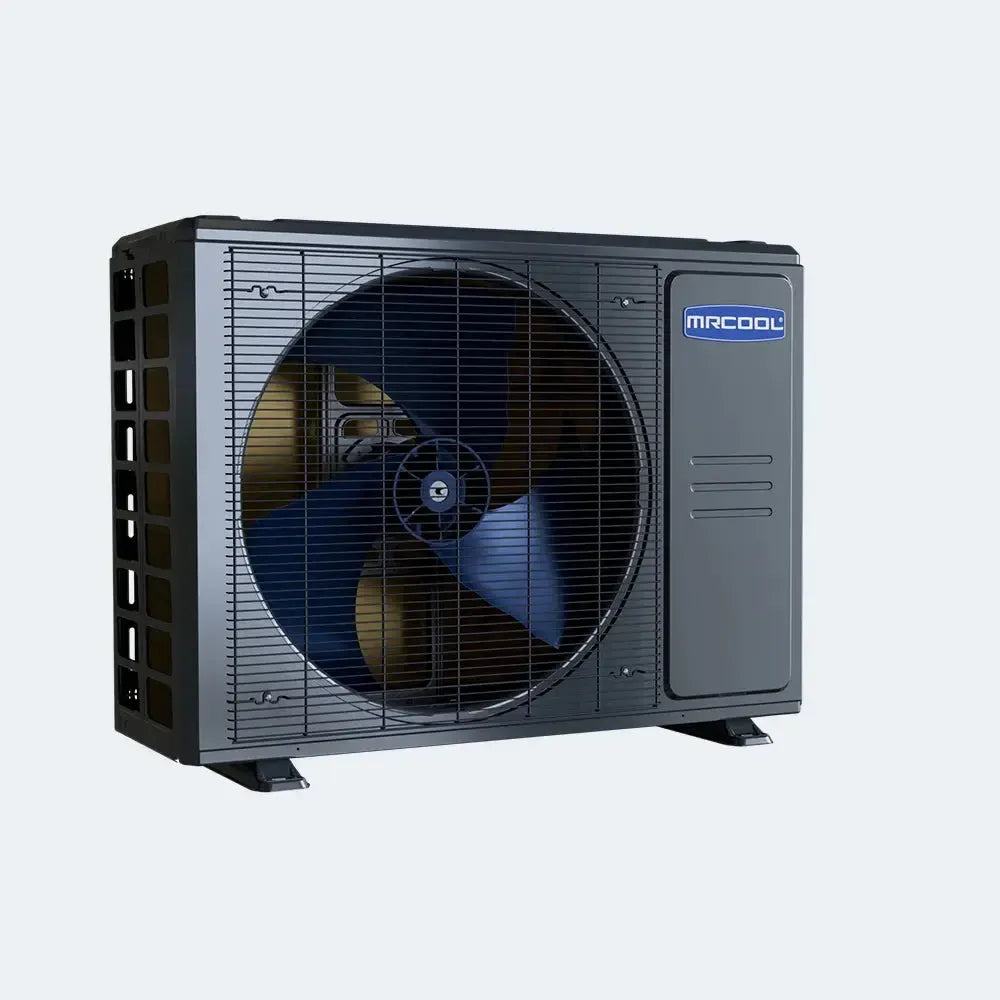

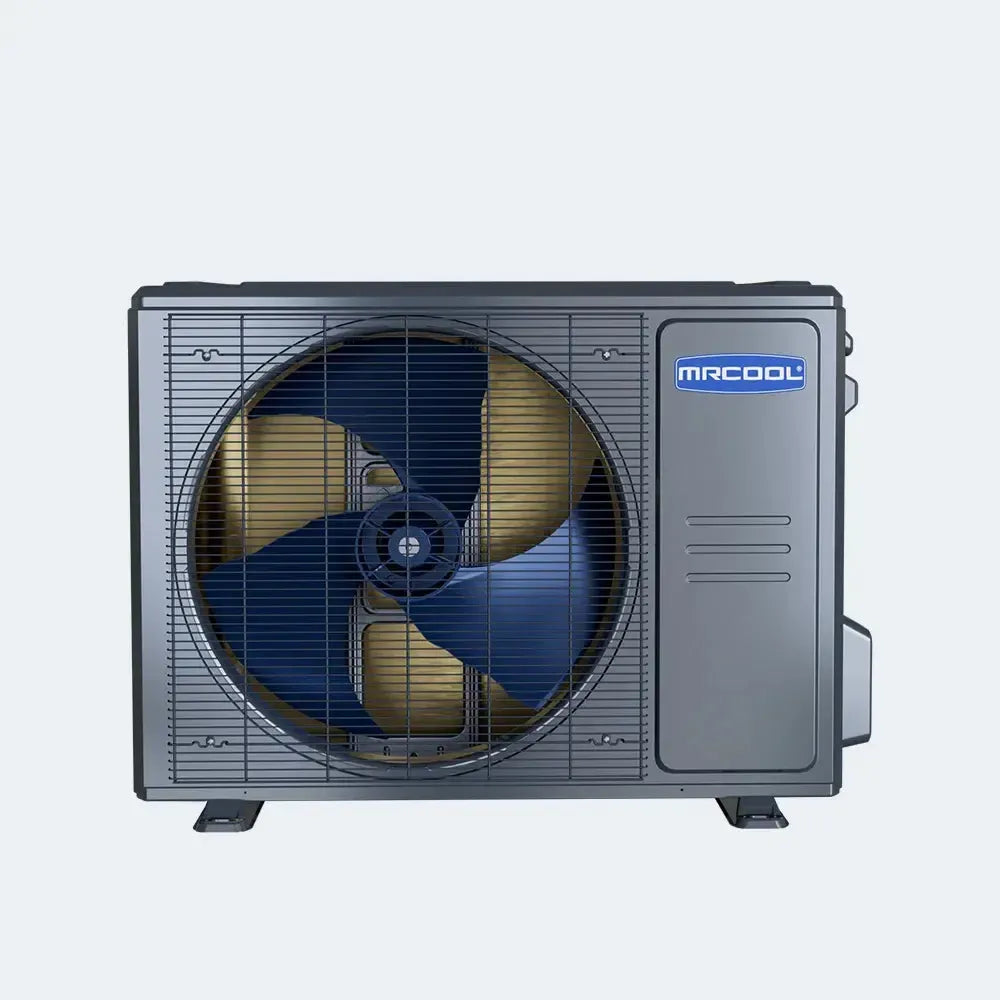

1x MRCOOL® Universal Series UHP18036-O 3 Ton 36,000 BTU Heat Pump Inverter Condenser - R-454B
The MRCOOL® Universal® Series 36K DC Inverter Heat Pump Condenser is designed to deliver dependable, high-efficiency heating and cooling—even in the most extreme weather conditions. Whether you're facing sweltering summer heat or freezing winter temperatures, this unit ensures steady, year-round comfort. With an impressive 18 SEER2 efficiency rating, it offers substantial energy savings without compromising performance, making it an ideal replacement for outdated, energy-hungry systems. Engineered for flexibility and convenience, the 36K Universal® condenser features a compact footprint that allows for installation in space-constrained areas. Its smaller size makes it an excellent fit for homes with limited outdoor clearance while still delivering powerful, whole-home comfort. Installation is quick and hassle-free—especially when paired with the optional MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This innovative, pre-charged line set eliminates the need for traditional vacuuming, flaring, or refrigerant handling, reducing installation time, labor costs, and complexity. At the heart of the system is advanced DC inverter technology, which allows the compressor to continuously modulate output based on your home’s real-time temperature demands. Unlike traditional systems that cycle on and off, this inverter-driven condenser maintains more consistent temperatures, reduces power consumption, minimizes component wear, and keeps noise levels to a minimum. Whether you're upgrading an aging system or installing a new HVAC solution, the MRCOOL® Universal® Series 36K Heat Pump Condenser offers a winning combination of efficiency, performance, and quiet operation. To ensure long-lasting confidence, it’s backed by a 10-year parts warranty and a 2-year limited labor warranty.

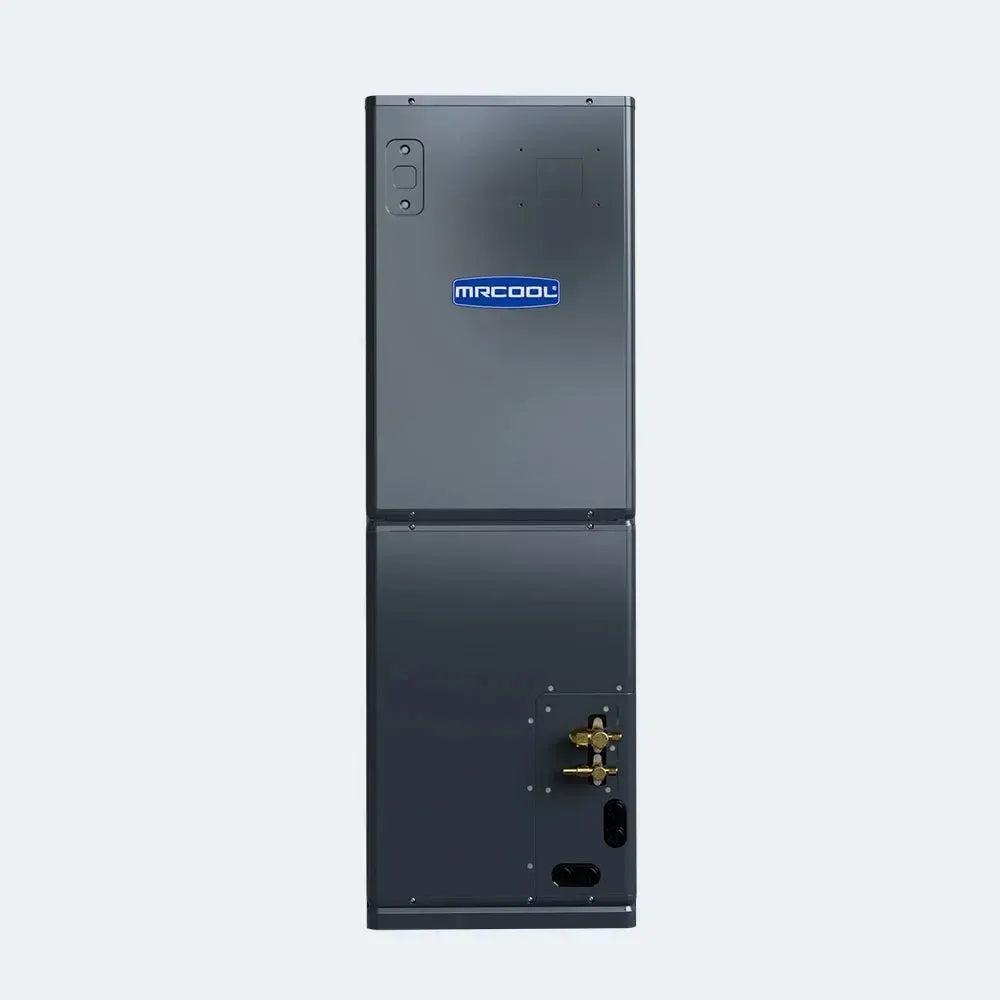

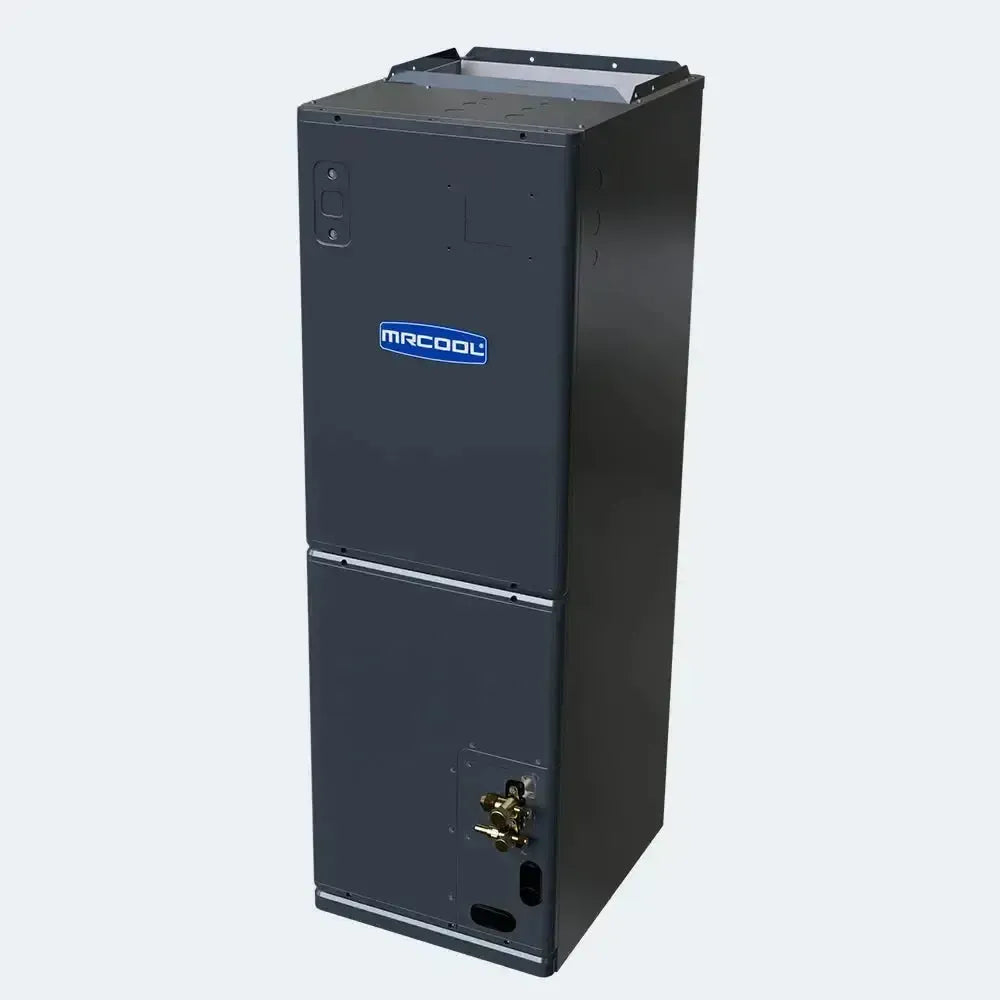

1x MRCOOL® Universal Series UAH18036-O 3 Ton 36,000 BTU Air Handler - R-454B - Multi-Position
The MRCOOL® Universal® Series 36K Air Handler offers a high-efficiency, performance-driven solution for year-round indoor comfort. Designed to meet the needs of modern homeowners, it’s the perfect upgrade for those looking to reduce energy costs without sacrificing heating and cooling performance. Built for flexibility, the air handler features a multi-position design that allows for vertical, horizontal, or downflow installation. This makes it adaptable to a wide range of home layouts and ideal for tight or limited spaces. Its compact footprint simplifies placement, while compatibility with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately) makes installation even easier. This innovative line set comes pre-charged and sealed, eliminating the need for vacuuming, flaring, or handling refrigerant—saving both time and installation cost. For enhanced functionality, the air handler supports optional Universal® Series Heat Kits, which can boost heating capacity during cold weather or serve as emergency backup heat during unexpected temperature drops. Inside, the system features an advanced M-shaped evaporator coil that increases the surface area for better heat exchange, improved airflow, and higher energy efficiency. Quiet operation ensures it blends seamlessly into your home environment, producing sound levels comparable to everyday conversation or a running dishwasher. The coil is constructed from 100% aluminum for superior corrosion resistance and long-term durability. Backed by a 10-year parts warranty and a 2-year limited labor warranty, the MRCOOL® Universal® 36K Air Handler delivers reliable performance and peace of mind.
MRCOOL® Universal Series UHP18036-O 3 Ton 36,000 BTU Heat Pump Inverter Condenser - R-454B Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
Universal R-454B |
|
MODEL |
UHP18036-O |
|
GTIN |
00840255587891 |
|
UPC |
840255587891 |
|
UNIT TYPE |
Universal Series Heat Pump |
|
SHORT DESCRIPTION |
Universal Series Heat Pump Inverter Condenser |
|
LONG DESCRIPTION |
The MRCOOL® Universal® Series 36K DC Inverter Heat Pump Condenser is designed to deliver dependable, high-efficiency heating and cooling—even in the most extreme weather conditions. Whether you're facing sweltering summer heat or freezing winter temperatures, this unit ensures steady, year-round comfort. With an impressive 18 SEER2 efficiency rating, it offers substantial energy savings without compromising performance, making it an ideal replacement for outdated, energy-hungry systems. Engineered for flexibility and convenience, the 36K Universal® condenser features a compact footprint that allows for installation in space-constrained areas. Its smaller size makes it an excellent fit for homes with limited outdoor clearance while still delivering powerful, whole-home comfort. Installation is quick and hassle-free—especially when paired with the optional MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This innovative, pre-charged line set eliminates the need for traditional vacuuming, flaring, or refrigerant handling, reducing installation time, labor costs, and complexity. At the heart of the system is advanced DC inverter technology, which allows the compressor to continuously modulate output based on your home’s real-time temperature demands. Unlike traditional systems that cycle on and off, this inverter-driven condenser maintains more consistent temperatures, reduces power consumption, minimizes component wear, and keeps noise levels to a minimum. Whether you're upgrading an aging system or installing a new HVAC solution, the MRCOOL® Universal® Series 36K Heat Pump Condenser offers a winning combination of efficiency, performance, and quiet operation. To ensure long-lasting confidence, it’s backed by a 10-year parts warranty and a 2-year limited labor warranty. |
|
SEER2 |
Up to 18 |
|
EER2 |
Up to 12 |
|
HSPF2-4 |
10 |
|
HSPF2-5 |
8.2 |
|
TONNAGE |
3 |
|
COOLING CAPACITY (BTU) |
36000 |
|
HEATING CAPACITY (BTU) |
37000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
30 |
|
MIN CIRCUIT AMPACITY (A) |
29 |
|
COLOR |
Dark Grey |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
126.99 |
|
DECIBEL RATING (DBA) |
63 |
|
INVERTER |
DC |
|
MAX LINESET LENGTH (FT) |
246 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
COMPRESSOR MOTOR TYPE |
Twin-Rotary |
|
CONDENSER FAN MOTOR RPM |
800/750/650 |
|
METERING DEVICE |
EXV |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
BASE WARRANTY |
10 Year Parts |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE LABOR WARRANTY |
2 Year |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
16.34 |
|
NET HEIGHT (IN) |
38.39 |
|
NET WIDTH (IN) |
38.58 |
|
NET WEIGHT (LBS) |
204.15 |
|
GROSS DEPTH (IN) |
19.68 |
|
GROSS HEIGHT (IN) |
42.52 |
|
GROSS WIDTH (IN) |
45.08 |
|
GROSS WEIGHT (LBS) |
235.23 |
| RESOURCES |
MRCOOL® Universal Series UAH18036-O 3 Ton 36,000 BTU Air Handler - R-454B - Multi-Position Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
Universal R-454B |
|
MODEL |
UAH18036-O |
|
GTIN |
00840255587846 |
|
UPC |
840255587846 |
|
UNIT TYPE |
Universal Series Air Handler |
|
SHORT DESCRIPTION |
Universal Series 36,000 BTU Air Handler |
|
LONG DESCRIPTION |
The MRCOOL® Universal® Series 36K Air Handler offers a high-efficiency, performance-driven solution for year-round indoor comfort. Designed to meet the needs of modern homeowners, it’s the perfect upgrade for those looking to reduce energy costs without sacrificing heating and cooling performance. Built for flexibility, the air handler features a multi-position design that allows for vertical, horizontal, or downflow installation. This makes it adaptable to a wide range of home layouts and ideal for tight or limited spaces. Its compact footprint simplifies placement, while compatibility with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately) makes installation even easier. This innovative line set comes pre-charged and sealed, eliminating the need for vacuuming, flaring, or handling refrigerant—saving both time and installation cost. For enhanced functionality, the air handler supports optional Universal® Series Heat Kits, which can boost heating capacity during cold weather or serve as emergency backup heat during unexpected temperature drops. Inside, the system features an advanced M-shaped evaporator coil that increases the surface area for better heat exchange, improved airflow, and higher energy efficiency. Quiet operation ensures it blends seamlessly into your home environment, producing sound levels comparable to everyday conversation or a running dishwasher. The coil is constructed from 100% aluminum for superior corrosion resistance and long-term durability. Backed by a 10-year parts warranty and a 2-year limited labor warranty, the MRCOOL® Universal® 36K Air Handler delivers reliable performance and peace of mind. |
|
CFM |
1236.1/1147.8/1059.5/971.2/N\A |
|
TONNAGE |
3 |
|
VOLTAGE (V) |
115/208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
8/6 |
|
MOUNT TYPE |
Multi-Position |
|
COLOR |
Dark Grey |
|
REFRIGERANT TYPE |
R-454B |
|
DECIBEL RATING (DBA) |
48/46.5/45/33/N\A |
|
DECIBEL RATING LOW (DBA) |
33 |
|
DECIBEL RATING HIGH (DBA) |
48 |
|
NUMBER OF SPEEDS |
4 |
|
MAX LINESET LENGTH (FT) |
246 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
16 x 20 x 1 |
|
METERING DEVICE |
EXV |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5 KW / 8 KW / 10 KW / 15 KW / 20 KW |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
BASE WARRANTY |
10 Year Parts |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE LABOR WARRANTY |
2 Year |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
21.5 |
|
NET HEIGHT (IN) |
53.98 |
|
NET WIDTH (IN) |
17.52 |
|
NET WEIGHT (LBS) |
149.25 |
|
GROSS DEPTH (IN) |
31.1 |
|
GROSS HEIGHT (IN) |
20.47 |
|
GROSS WIDTH (IN) |
57.09 |
|
GROSS WEIGHT (LBS) |
182.1 |
|
RESOURCES |
