The 1.5 Ton MRCOOL Central Air Conditioner and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system offers robust cooling through the MRCOOL condenser, combined with the efficiency of a gas furnace, delivering 96% AFUE with 80K BTU heating.

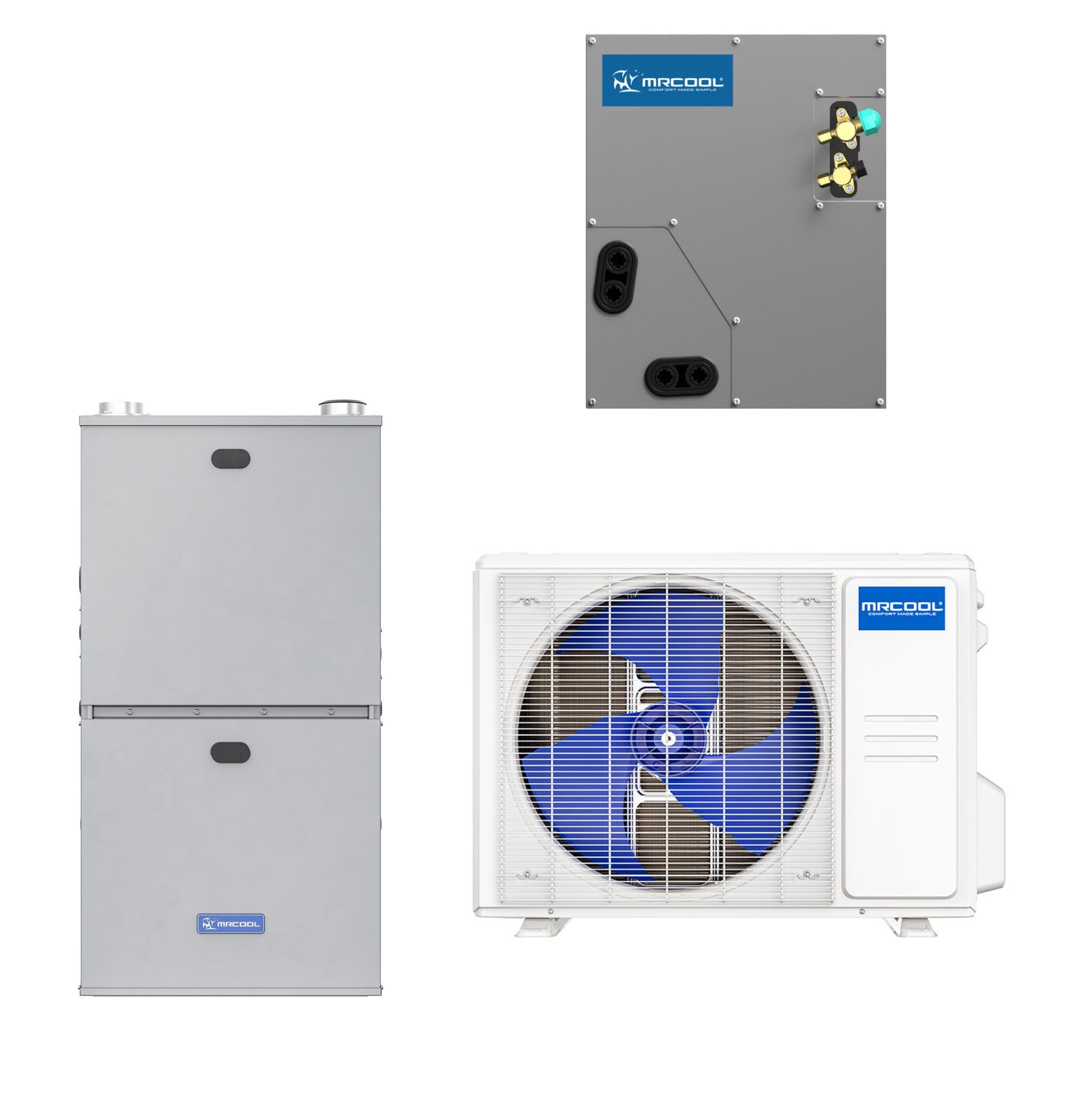

System Includes

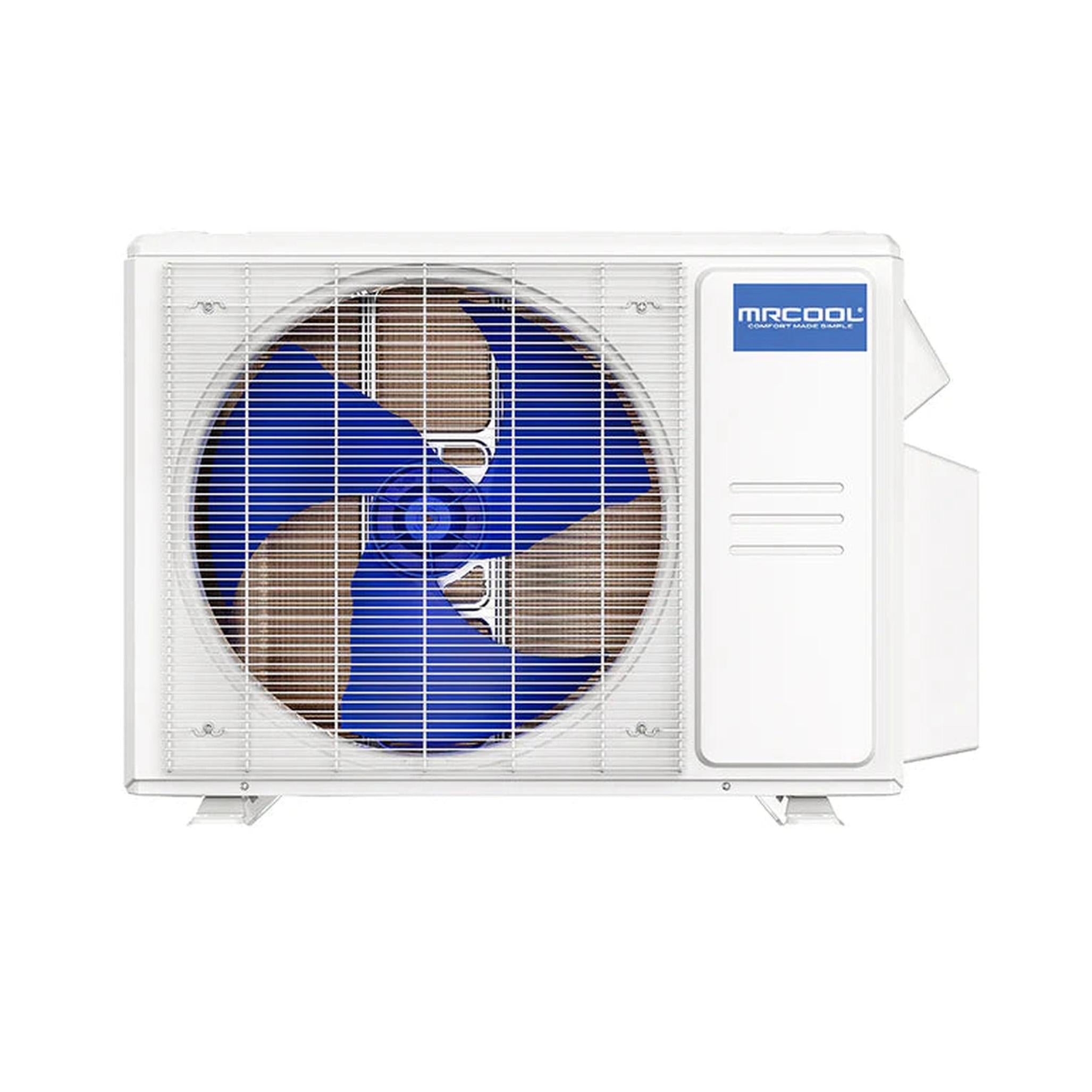

- MRCOOL 1.5 Ton VersaPro Heat Pump Condenser

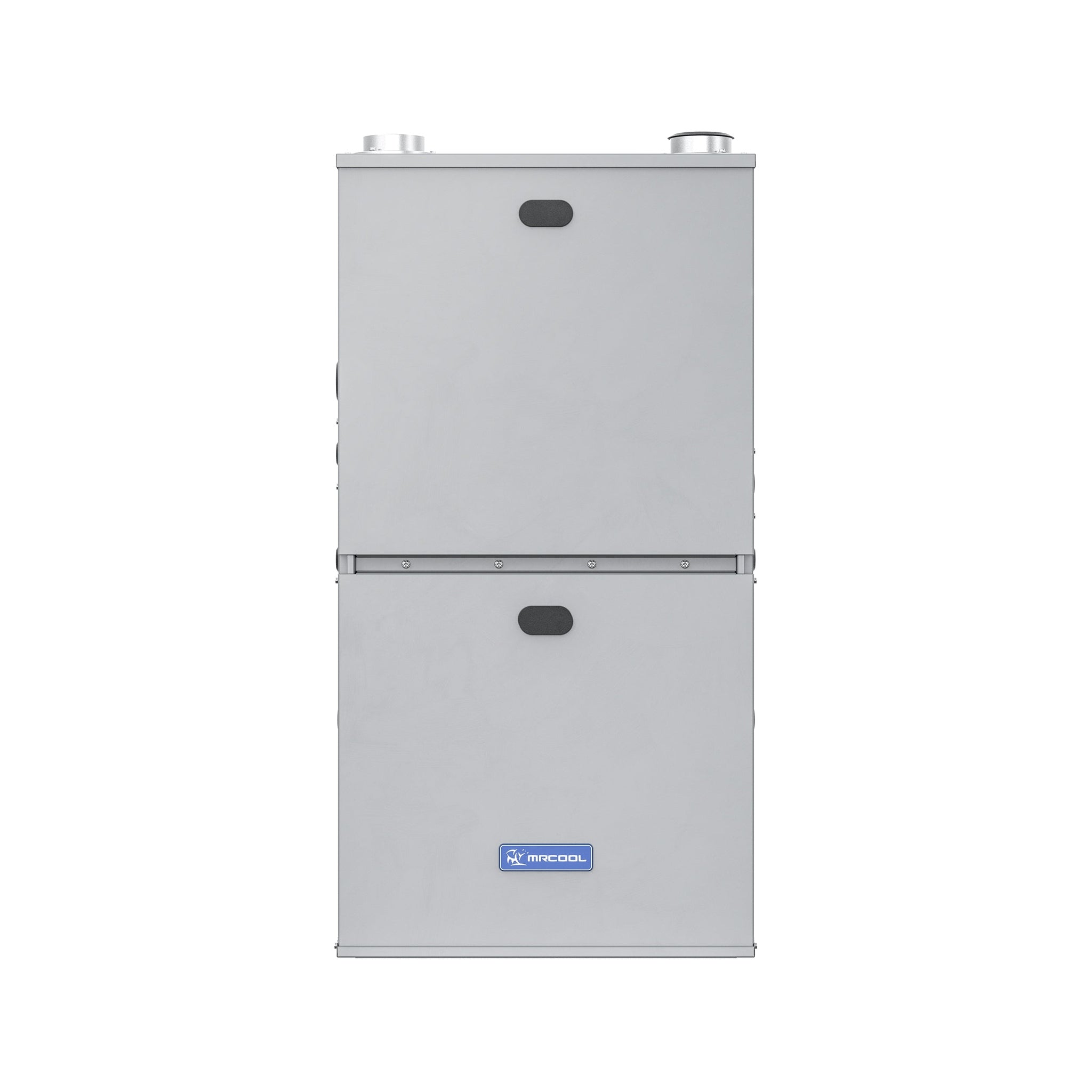

- MRCOOL 96% AFUE 80K BTU Multi-Position Furnace

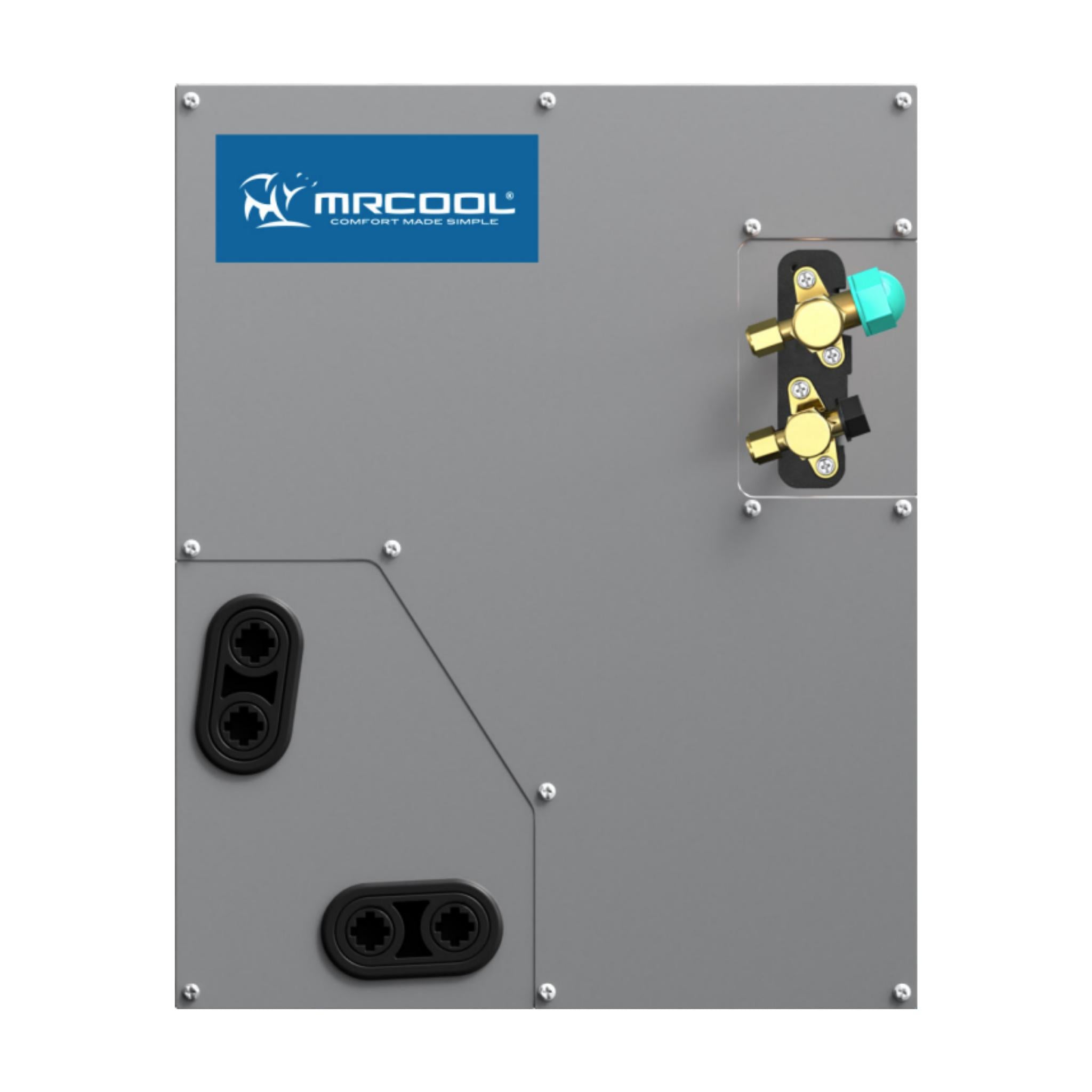

- MRCOOL 1.5 Ton A-Coil
Key Features
- Compatible with No-Vac Pre-Charged Line Sets
- Supports upflow, downflow, and horizontal left & right configurations
- Pre-charged coil eliminates the need for on-site charging
- A2L leak detection sensor for safety and peace of mind
- CoolGuard and Gold-Fin corrosion resistant casing
- Built in TXV
| Materials | Condenser and air handler casing: painted galvanized steel; furnace heat exchangers: aluminized steel primary, stainless steel secondary (per manufacturer listings). |
| Cooling capacity | Condenser: 1.5 Ton (≈18,000 BTU); SEER2 16.6; EER2 11.7; HSPF4 10.2. |
| Heating capacity & efficiency | Furnace: 80,000 BTU input (≈76,000 BTU output), 96% AFUE, two-stage ECM blower. |
| Evaporator coil & refrigerant | A-coil: pre-charged No-Vac Quick Connect line-set compatibility; refrigerant: R-410A (pre-charged, eliminates on-site charging). |
| Installation & orientation | Multiposition installation: condenser side-discharge outdoor; furnace and air handler support upflow, downflow and horizontal left/right configurations. |
| Corrosion & safety features | Condenser finish includes CoolGuard and Gold-Fin corrosion-resistant coating; built-in TXV; A2L leak detection sensor included (as listed). |
| Electrical | Condenser: 208-230V / 60Hz supply required; air handler: 208-230V / 60Hz (refer to product electrical specs for exact breaker/amperage). |
| Shipping (estimated) | Combined shipment estimated to include condenser, furnace and A-coil: 48 x 36 x 32 in; total shipping weight ~370 lb (estimated). |
