The 2.5 Ton MRCOOL Central Air Conditioner and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system offers robust cooling through the MRCOOL condenser, combined with the efficiency of a gas furnace, delivering 96% AFUE with 80K BTU heating.

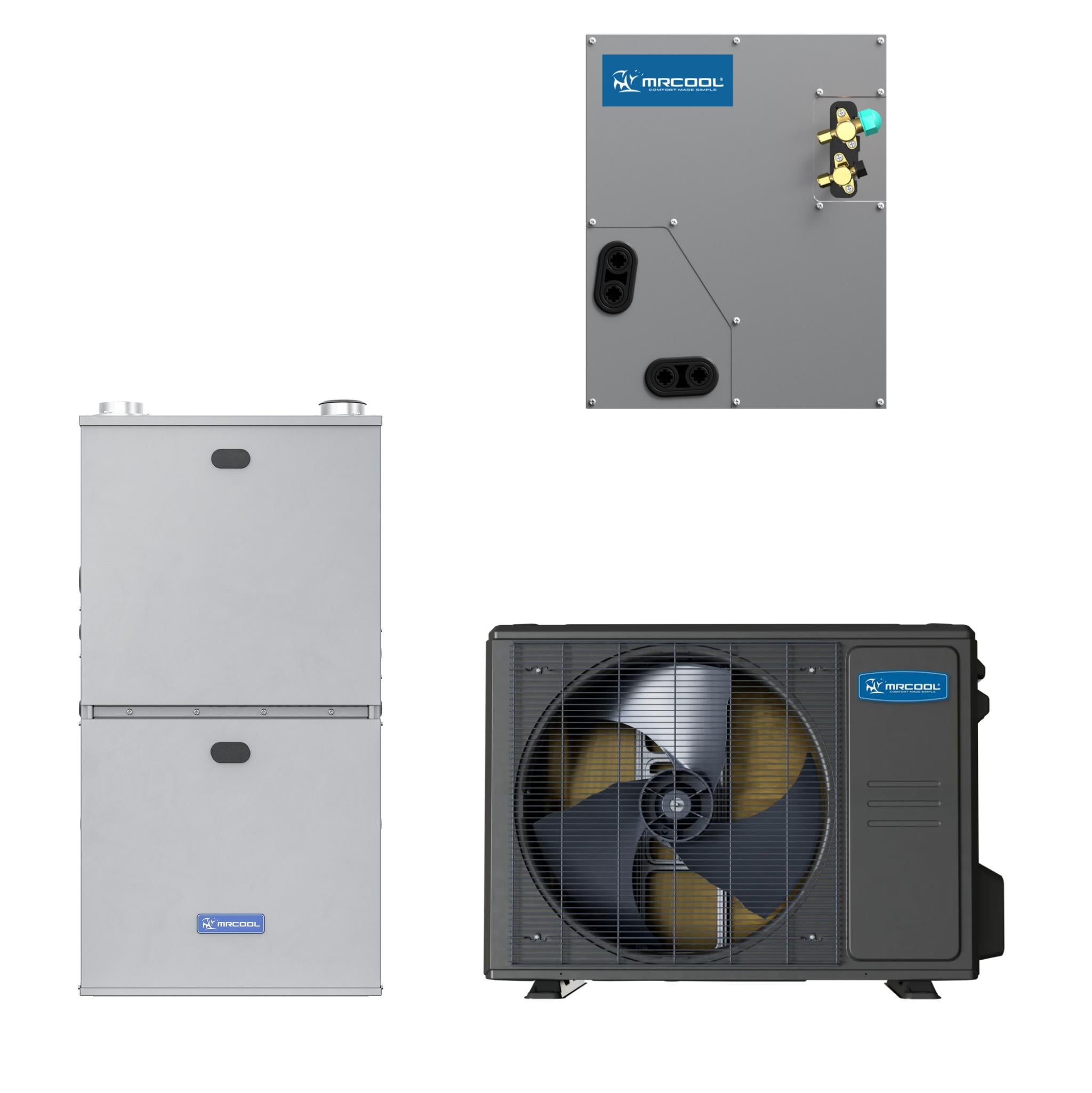

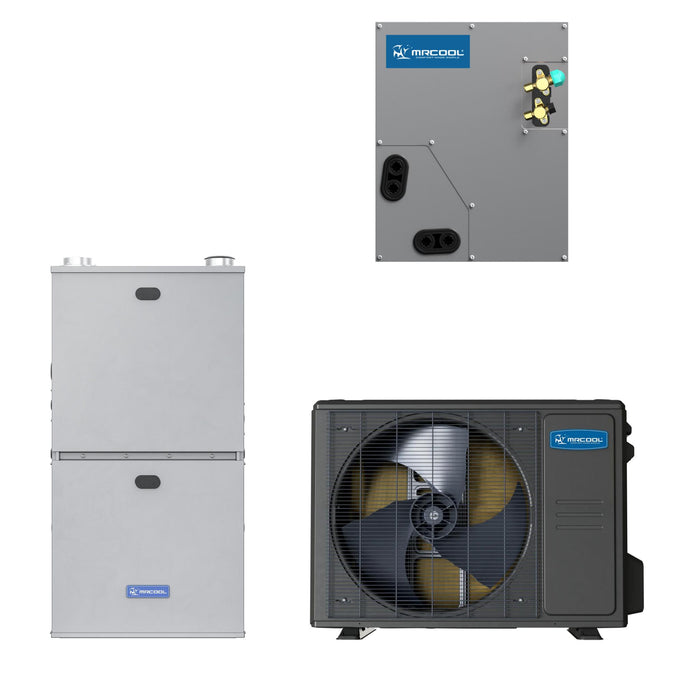

System Includes

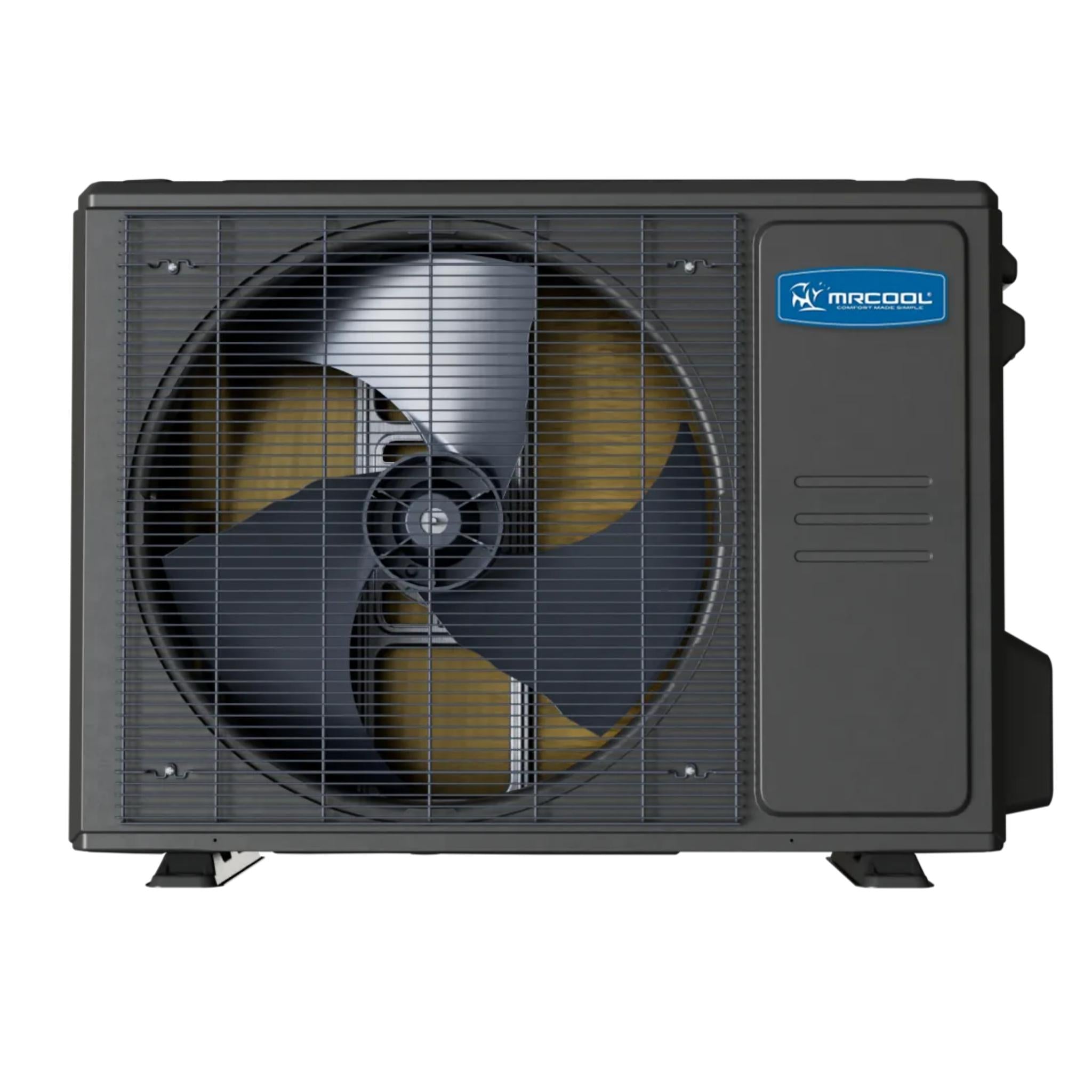

- MRCOOL 2.5 Ton Universal - Heat Pump Condenser

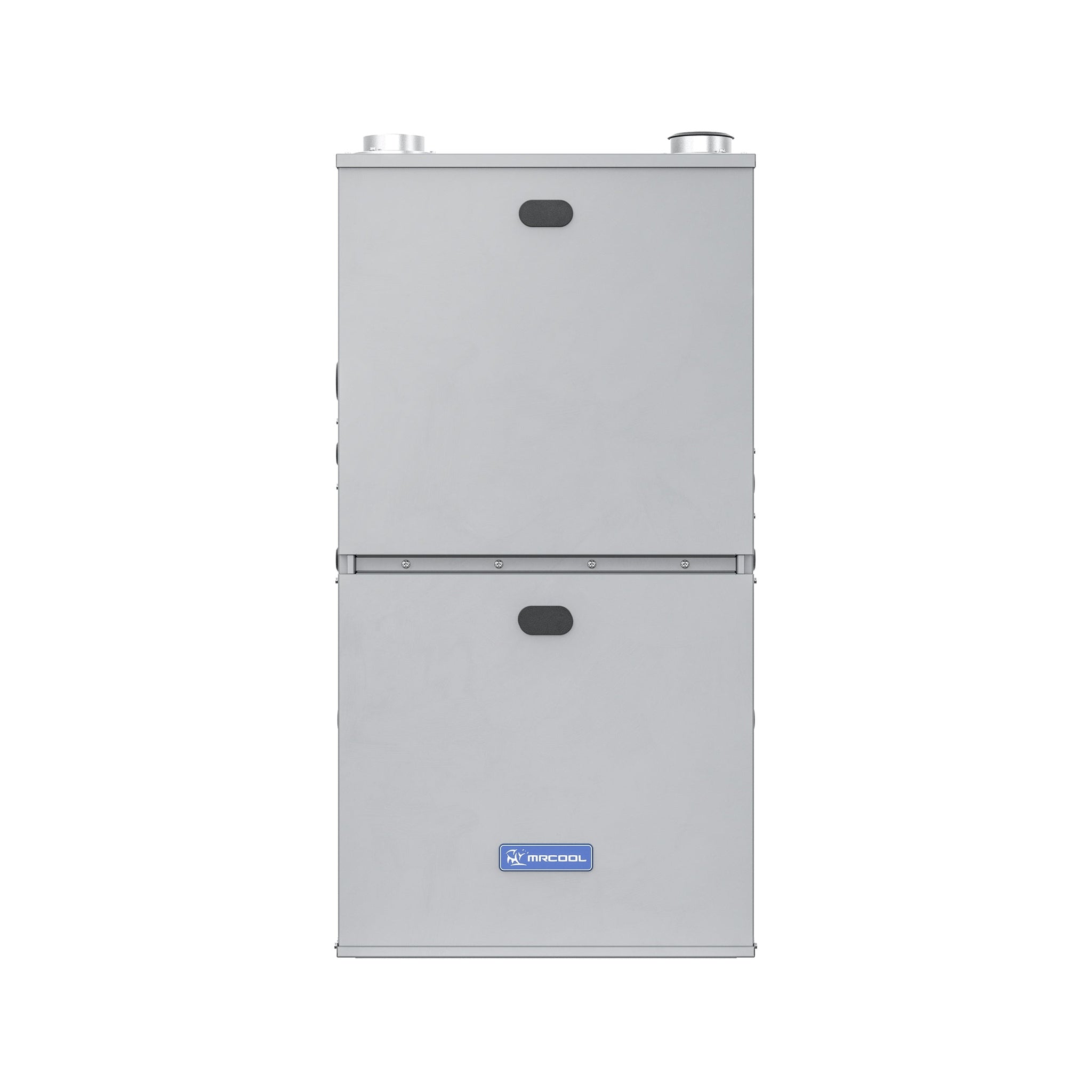

- MRCOOL 96% AFUE 80K BTU Multi-Position Furnace

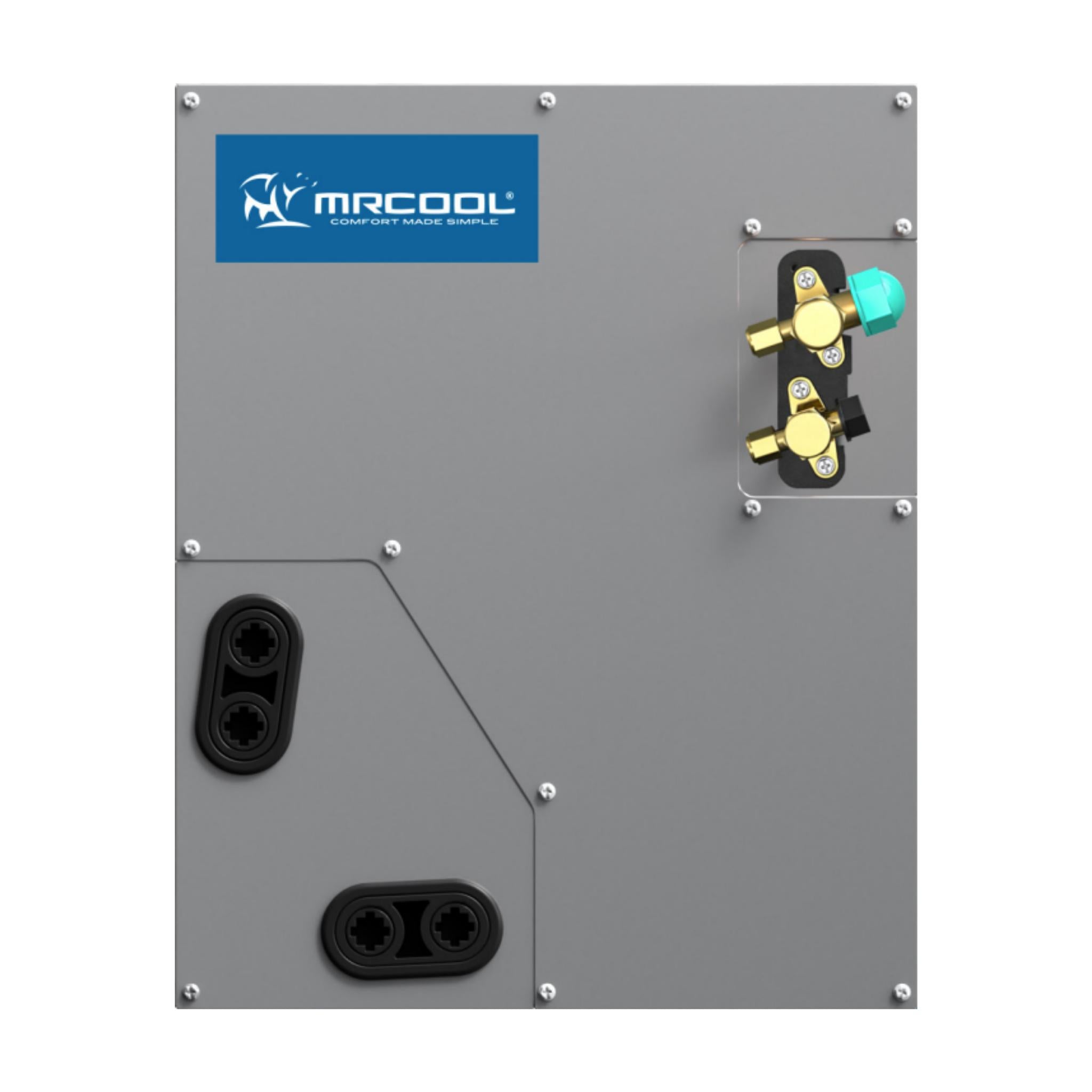

- MRCOOL 2.5 Ton A-Coil
Key Features
- Compatible with No-Vac Pre-Charged Line Sets
- Supports upflow, downflow, and horizontal left & right configurations
- Pre-charged coil eliminates the need for on-site charging
- A2L leak detection sensor for safety and peace of mind
- CoolGuard and Gold-Fin corrosion resistant casing
- Built in TXV
| Materials | Gold-Fin condenser coating; CoolGuard corrosion-resistant casing; aluminized-steel furnace components (as typical for MRCOOL universal line) |
| Cooling capacity | 2.5 Ton (approx. 30,000–36,000 BTU nominal); condenser selectable in field for 2–3 Ton range |
| Heating capacity | 80,000 BTU furnace, 96% AFUE (efficiency rating applies to furnace) |
| Condenser dimensions (unit) | 37.00 in length × 18.625 in width × 32.25 in height (condenser cabinet footprint) |
| Evaporator (A-coil) cabinet | Multi-position A-coil sized for 2.5 Ton universal series (17.5 in cabinet depth for matching furnace/coil) |
| Line set compatibility | No-Vac® pre-charged quick-connect line sets (15–50 ft available); also supports sweat or flare connections |
| Installation positions | Multi-position: upflow, downflow, horizontal left and right; supports standard multi-position furnace placement |
| Safety & controls | A2L leak detection sensor integrated (per product listing); built-in TXV for refrigerant control |
| Inclusions with system | Outdoor condenser, 96% AFUE 80K BTU multi-position gas furnace, matched 2.5 Ton A-coil (coil pre-charged when applicable) |
| Warranty & support | Factory limited parts warranty applies when registered (refer to MRCOOL warranty terms) |
