MRCOOL 5 Ton Central Hyper Heat Air Conditioner and 96% AFUE, 100K BTU 21" Gas Furnace Split System - Upflow or Horizontal

SKU: CENTRAL-60-HP-C-230B00-O
Your Price:
$6,438.00 $7,725.60
You Save: $1,287.60 17%
Checkout Secure

Quantity Remaining:

80 of 100 Sold
Order in the next to get it by

The 5 Ton MRCOOL Central Air Conditioner and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system offers robust cooling through the MRCOOL condenser, combined with the efficiency of a gas furnace, delivering 96% AFUE with 100K BTU heating.

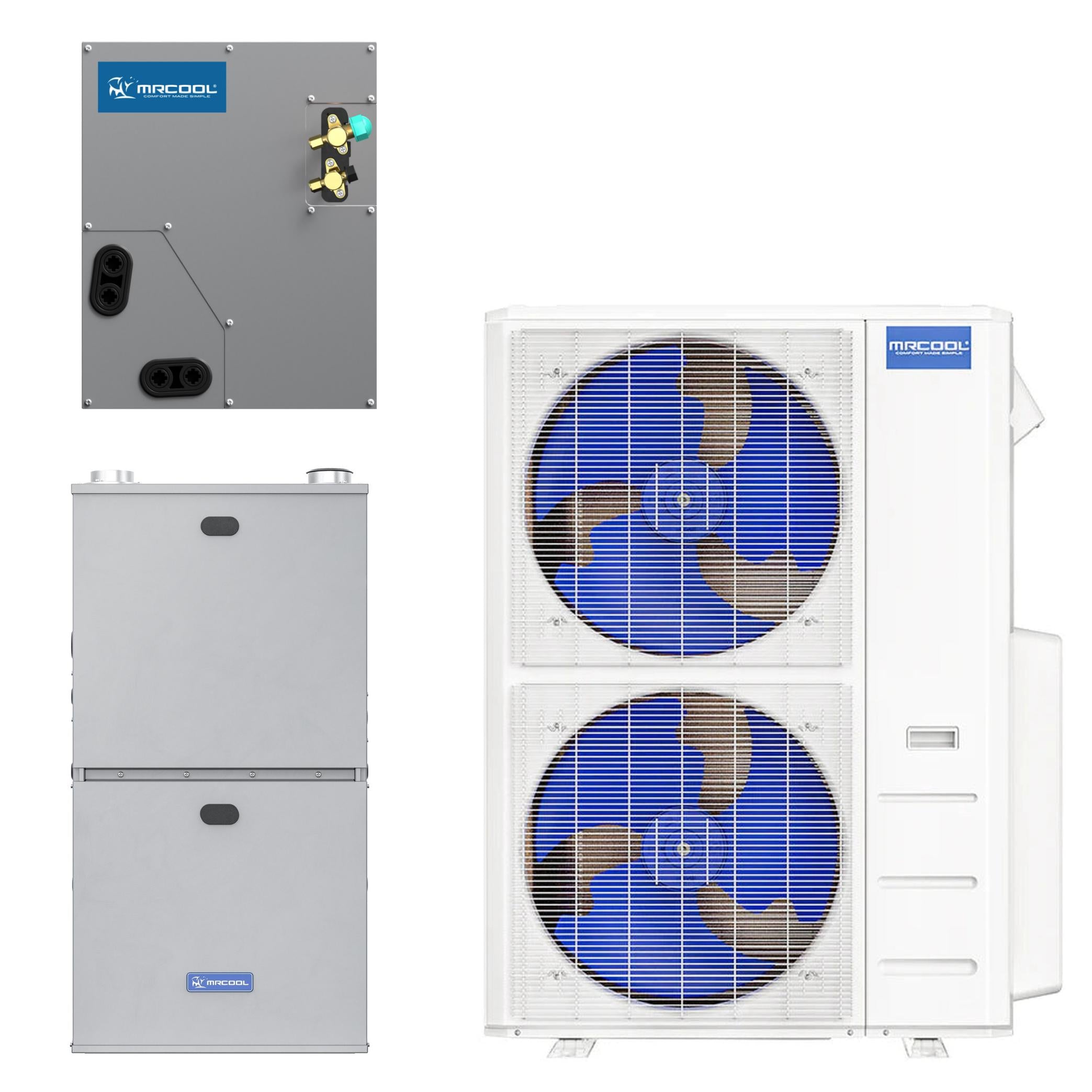

System Includes

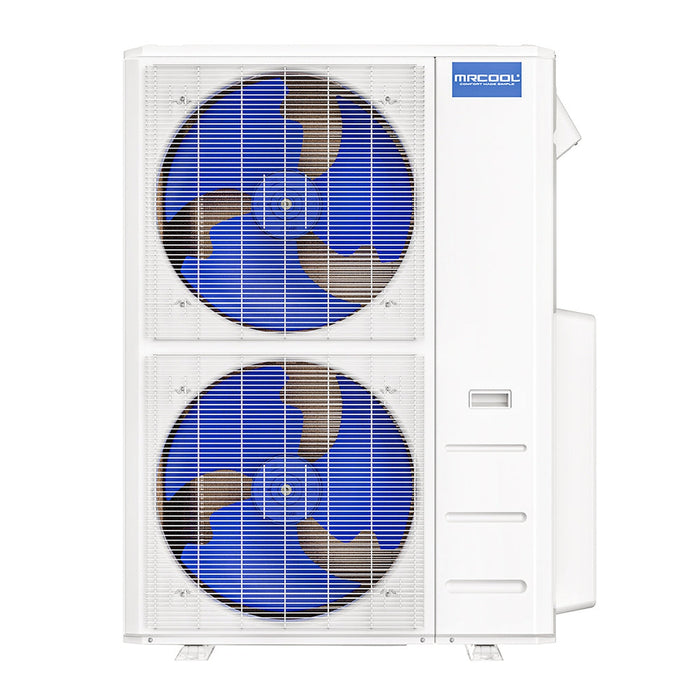

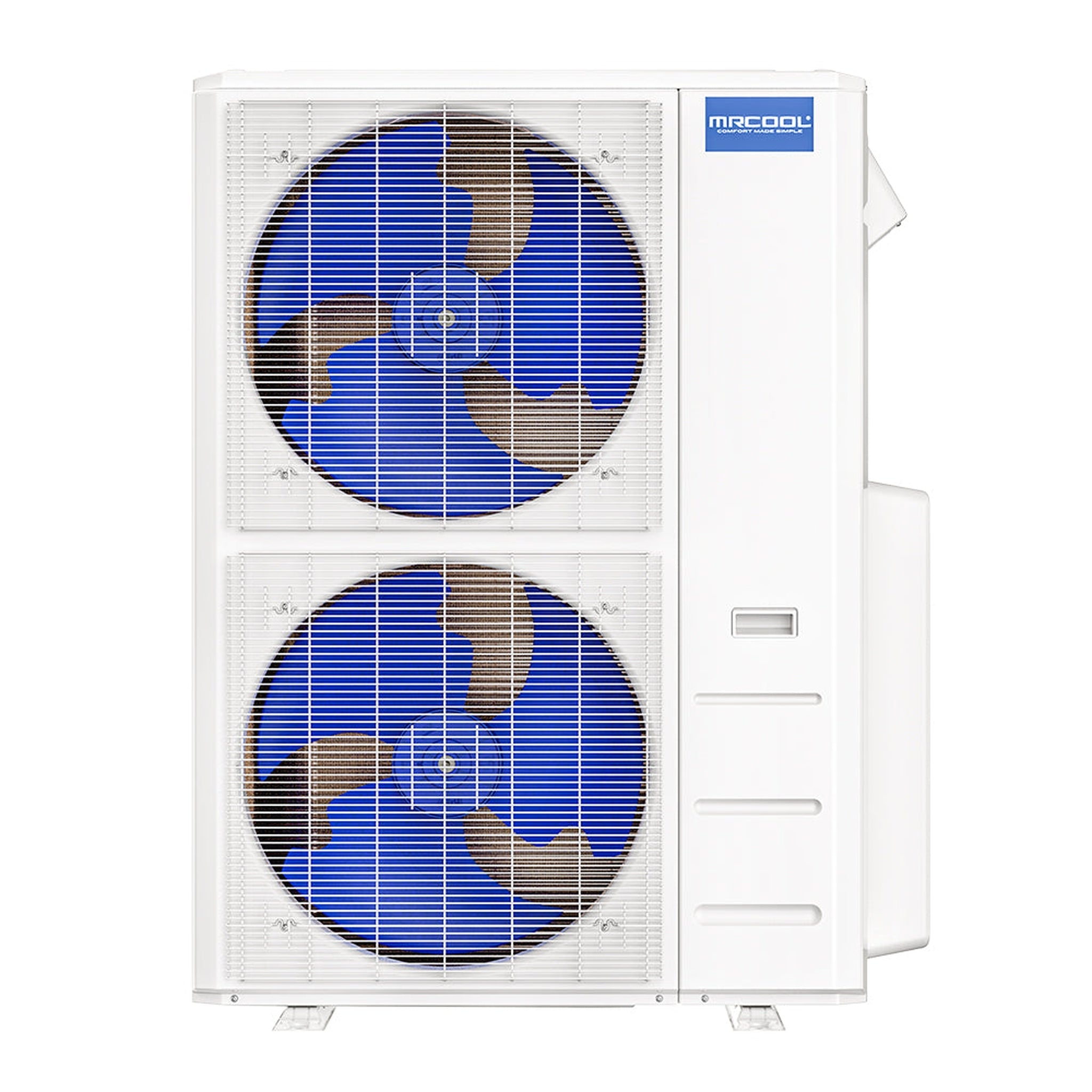

  • MRCOOL 5 Ton Hyper Heat - Heat Pump Condenser

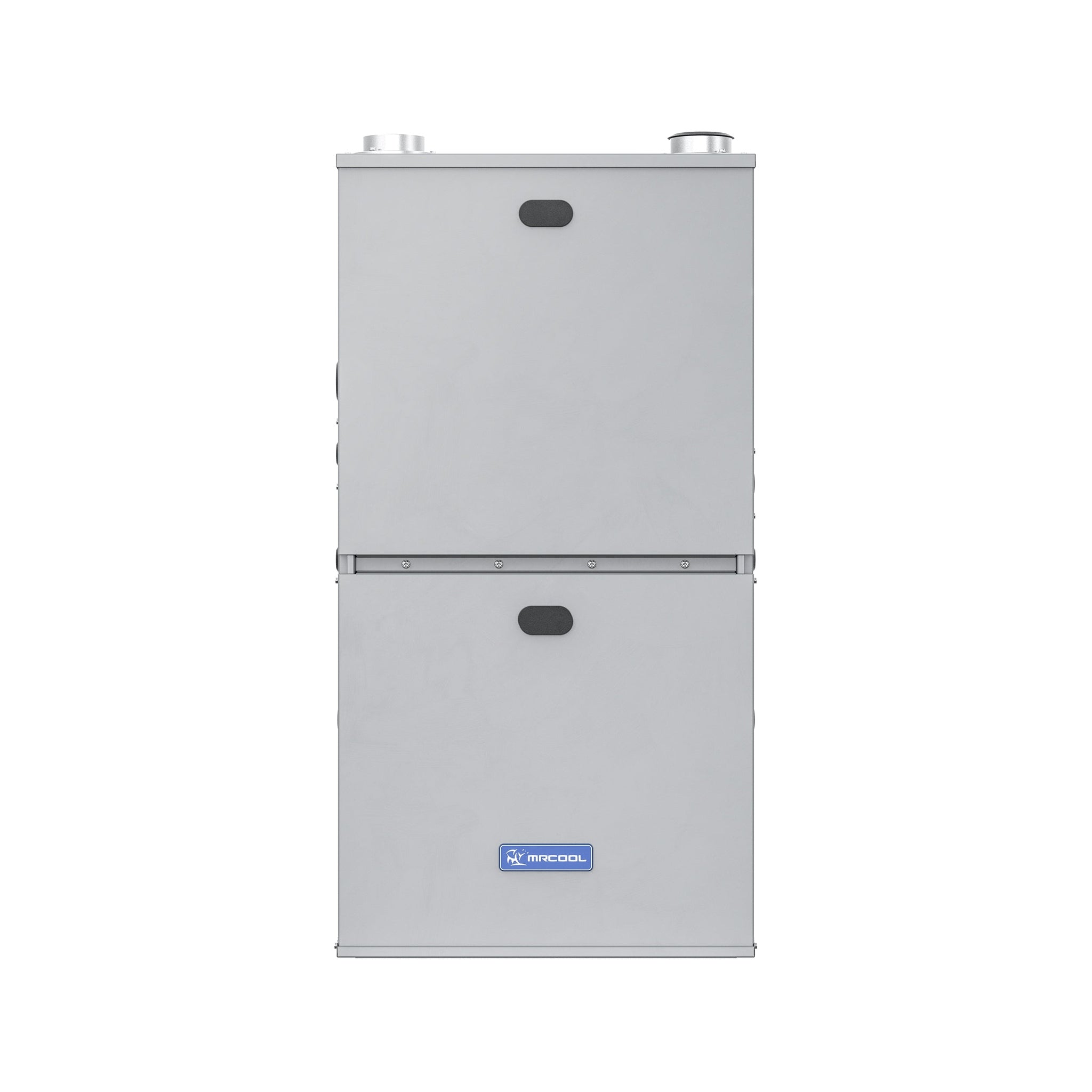

  • MRCOOL 96% AFUE 100K BTU Multi-Position Furnace

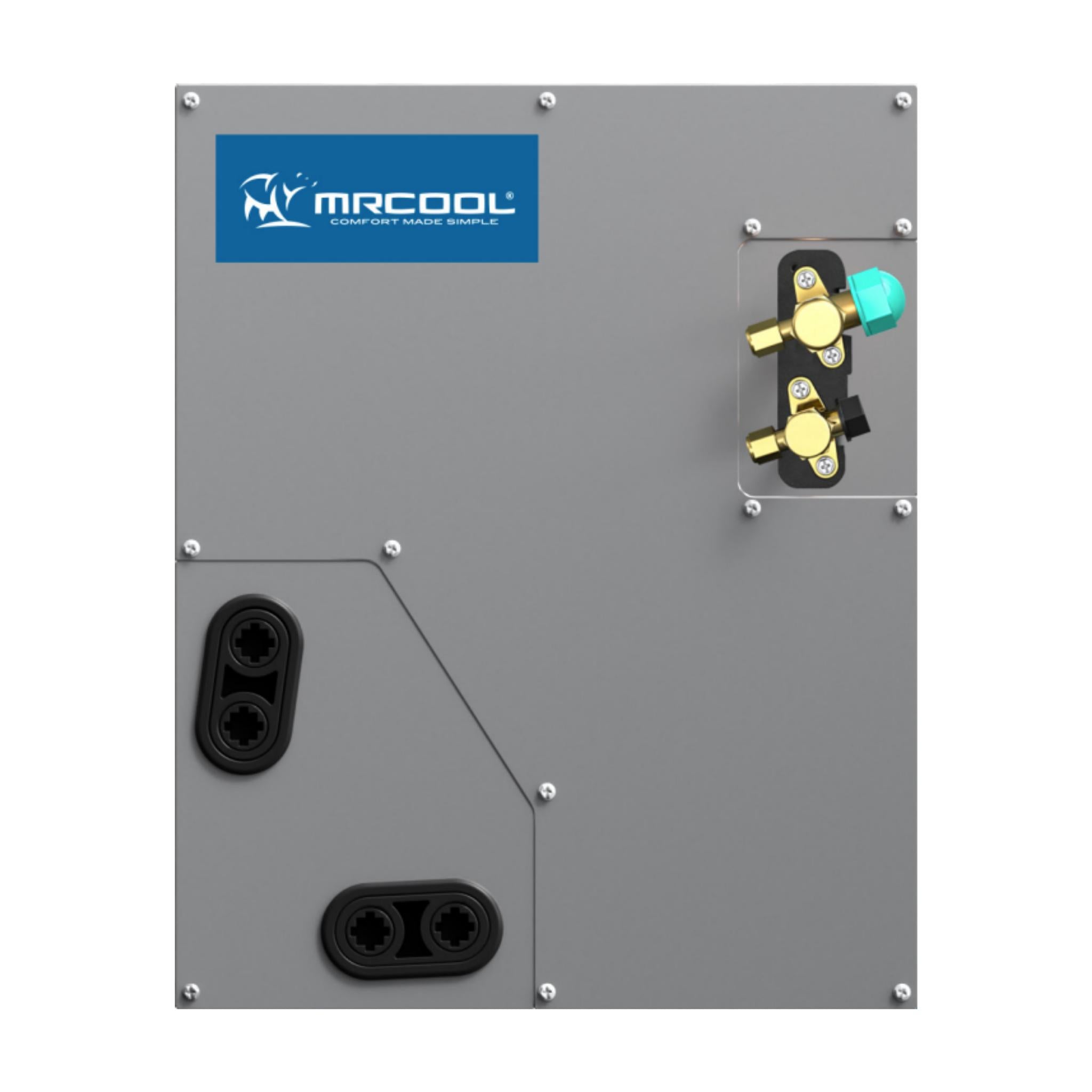

  • MRCOOL 5 Ton A-Coil

Key Features

  • Compatible with No-Vac Pre-Charged Line Sets
  • Supports upflow, downflow, and horizontal left & right configurations
  • Pre-charged coil eliminates the need for on-site charging
  • A2L leak detection sensor for safety and peace of mind
  • CoolGuard and Gold-Fin corrosion resistant casing
  • Built in TXV


Materials Painted galvanized steel exterior; Gold-Fin and CoolGuard corrosion-resistant coatings
Primary condenser dimensions (W x D x H) 37.48 in x 16.34 in x 52.48 in
Air handler dimensions (W x D x H) 21.02 in x 24.49 in x 52.99 in
Furnace cabinet width 21 in (cabinet specification from furnace model included in bundle)
Installation positions Multi-position air handler supports upflow, downflow, horizontal left and horizontal right
Refrigerant & coil R-454B refrigerant compatibility with pre-charged No-Vac Quick Connect A-coil (factory pre-charged)
Controls & safety Built-in TXV and A2L leak detection sensor; compatible with MRCOOL smart thermostat systems
Performance ratings 5 Ton (approx. 60,000 BTU) condenser; Furnace rated 100,000 BTU, 96% AFUE; SEER2 up to 16 (system dependent)
System inclusions MRCOOL 5 Ton Hyper Heat condenser, MRCOOL 96% AFUE 100K BTU multi-position gas furnace, MRCOOL 5 Ton A-Coil
