MRCOOL 5 Ton Central Hyper Heat Air Conditioner and 96% AFUE, 120K BTU 24.5" Gas Furnace Split System - Upflow or Horizontal

SKU: MGM96EE120D5NB
Your Price:
$6,564.00 $7,876.80
You Save: $1,312.80 17%
Checkout Secure

Quantity Remaining:

80 of 100 Sold
Order in the next to get it by

The 5 Ton MRCOOL Central Air Conditioner and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system offers robust cooling through the MRCOOL condenser, combined with the efficiency of a gas furnace, delivering 96% AFUE with 120K BTU heating.

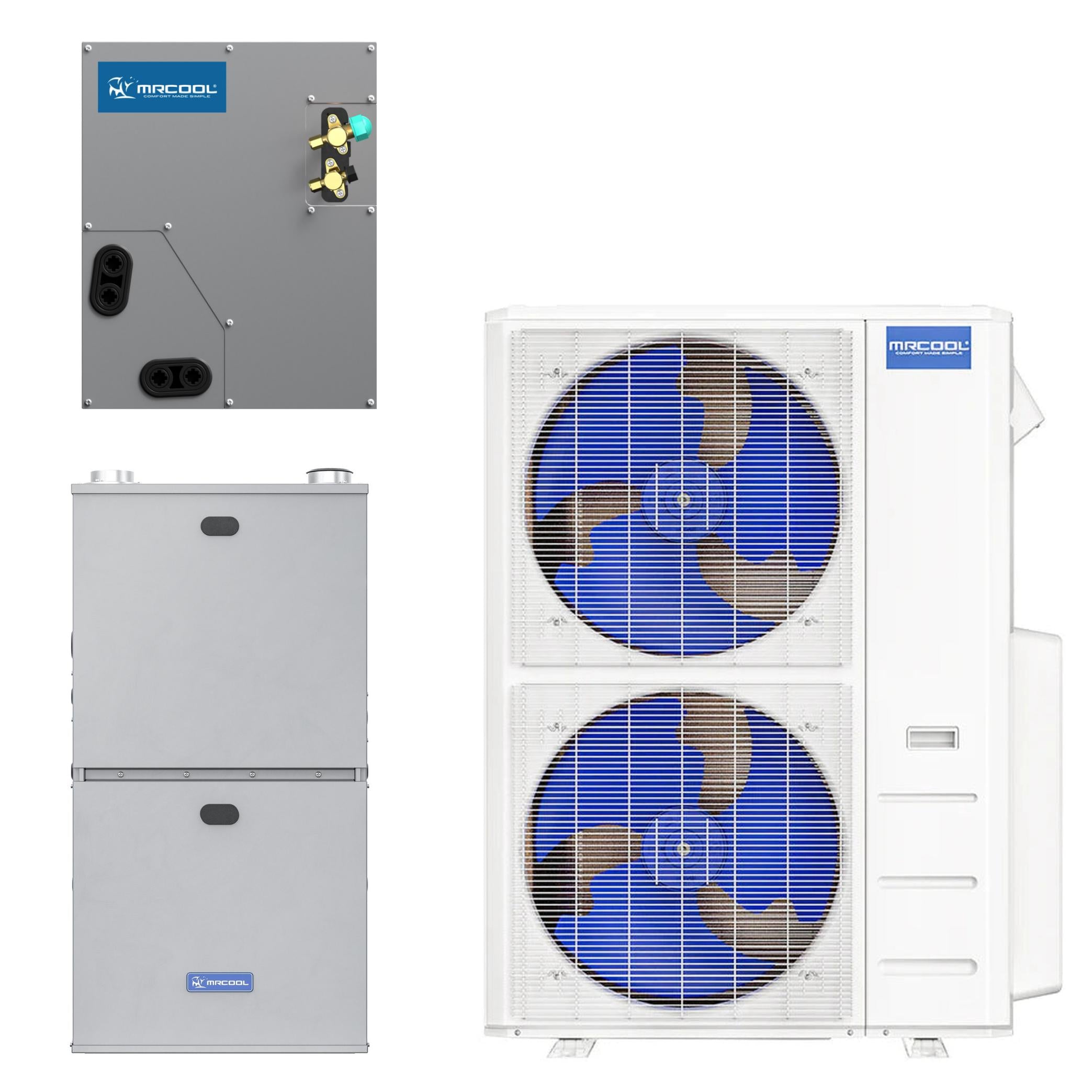

System Includes

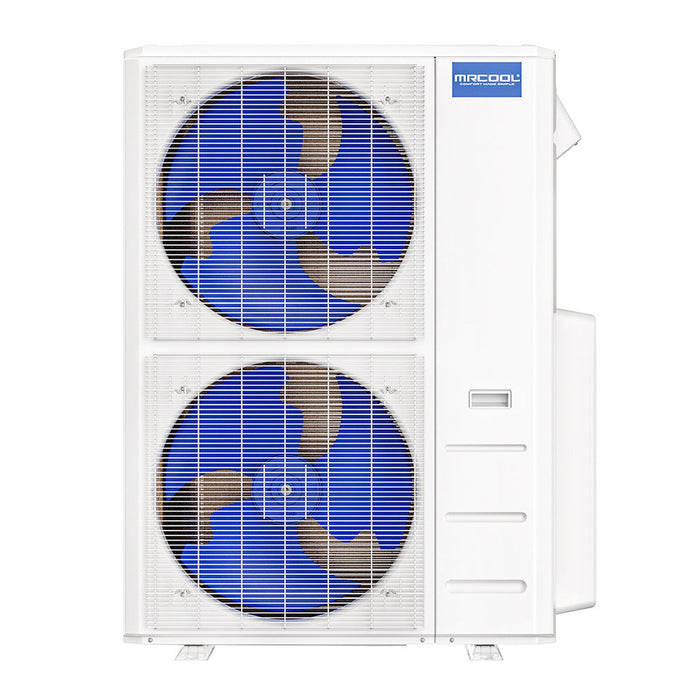

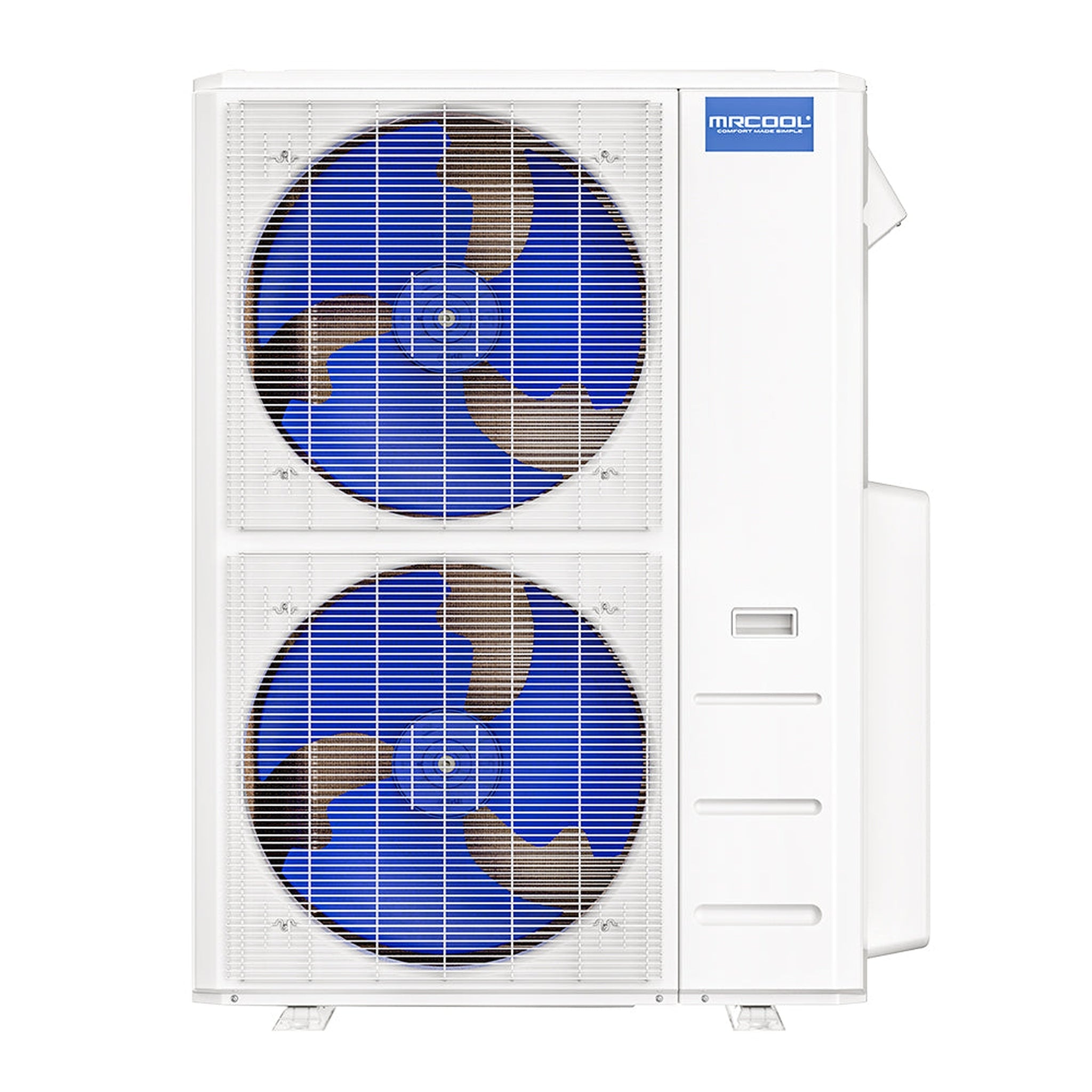

  • MRCOOL 5 Ton Hyper Heat - Heat Pump Condenser

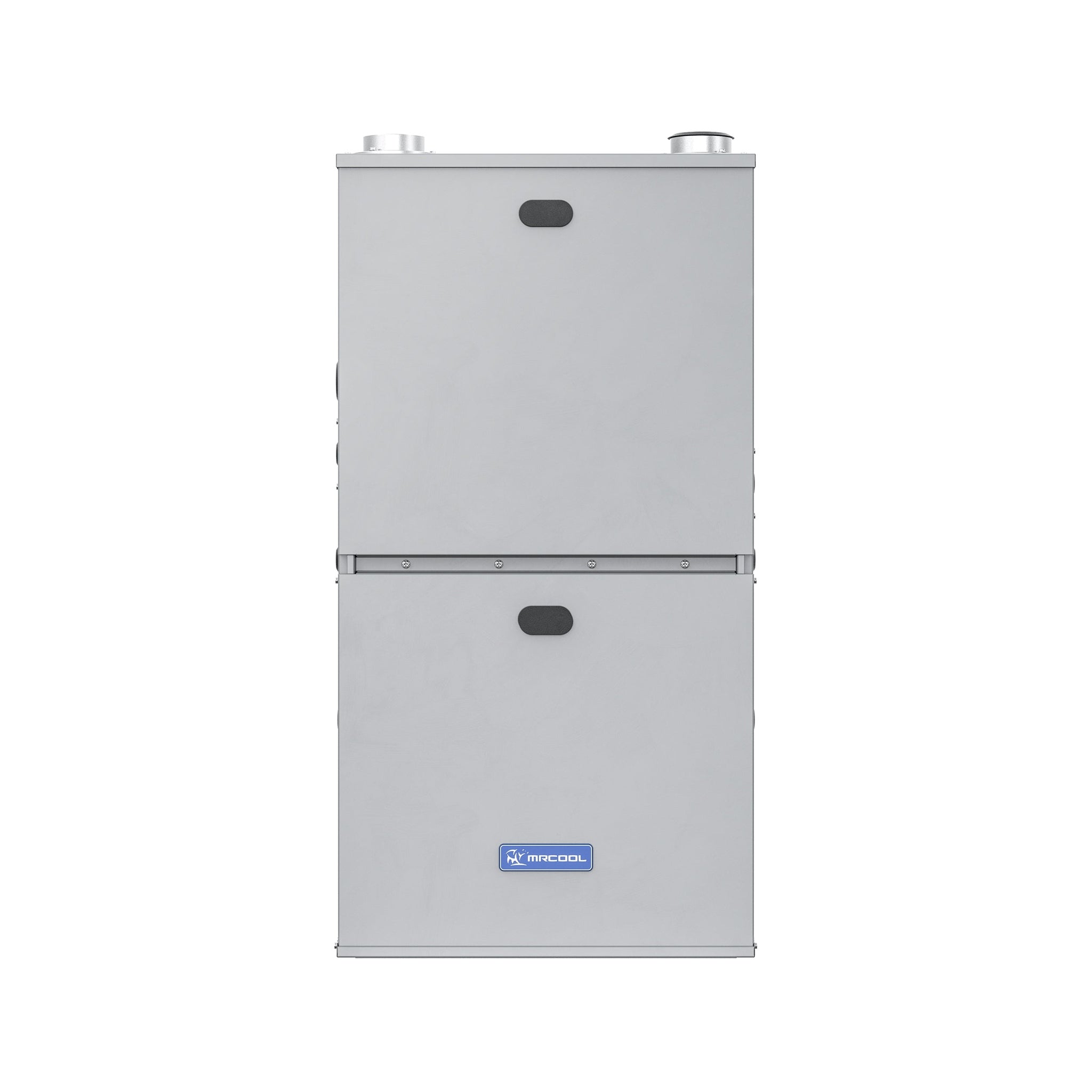

  • MRCOOL 96% AFUE 120K BTU Multi-Position Furnace

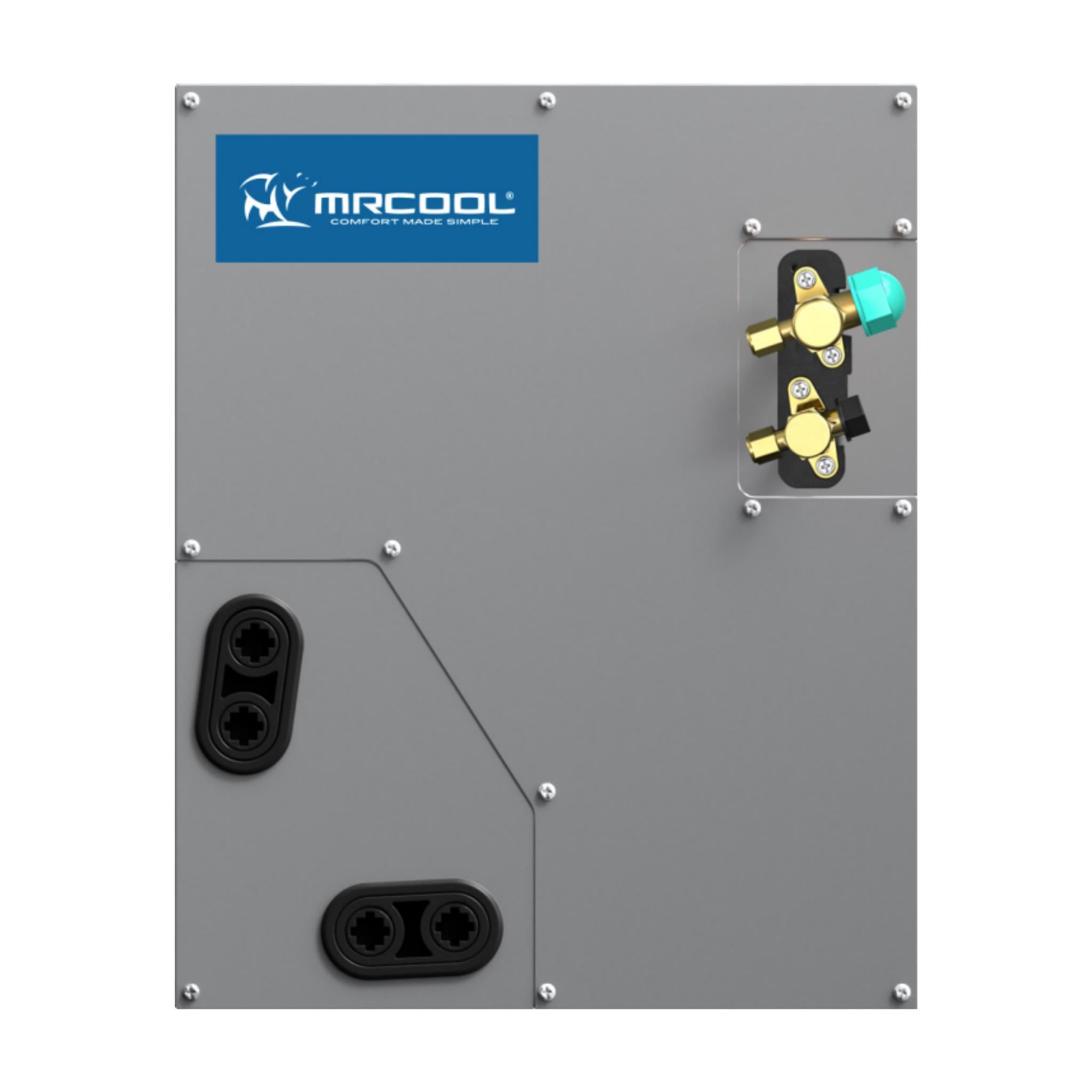

  • MRCOOL 5 Ton A-Coil

Key Features

  • Compatible with No-Vac Pre-Charged Line Sets
  • Supports upflow, downflow, and horizontal left & right configurations
  • Pre-charged coil eliminates the need for on-site charging
  • A2L leak detection sensor for safety and peace of mind
  • CoolGuard and Gold-Fin corrosion resistant casing
  • Built in TXV


Materials — Outdoor casing Painted galvanized steel with CoolGuard and Gold-Fin corrosion protection
Materials — Coil Factory pre-charged A-coil (factory-sealed; no on-site refrigerant charging required)
Dimensions — Condenser (W x D x H) 37.48 x 16.34 x 52.48 inches
Dimensions — Air handler (W x D x H) 21.02 x 24.49 x 52.99 inches
Installation — Supported configurations Upflow, downflow and horizontal (left & right) multi-position furnace compatibility
Installation — Line set compatibility Compatible with No‑Vac pre-charged R454B quick-connect line sets (pre-charged)
Performance — Heating capacity 120,000 BTU (furnace); 60,000 BTU (condenser) — 5 Ton system
Efficiency 96% AFUE (furnace) / SEER2 up to 16 (condensing unit compatibility per MRCOOL spec sheets)
Refrigerant R454B (2nd‑gen Hyper Heat compatibility)
Inclusions System includes: 5 Ton Hyper Heat condenser, 96% AFUE 120K BTU multi-position furnace, 5 Ton A-coil
