MRCOOL

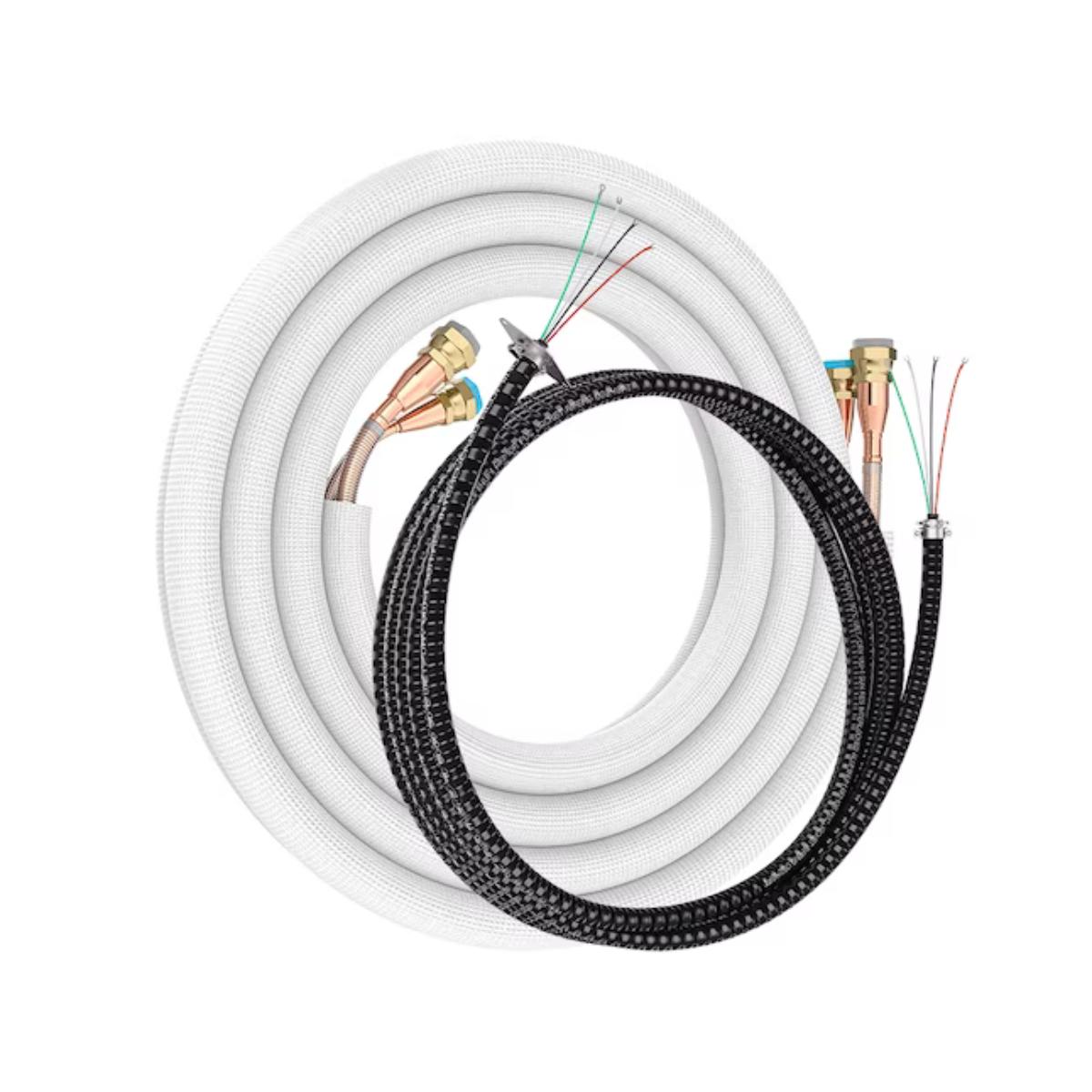

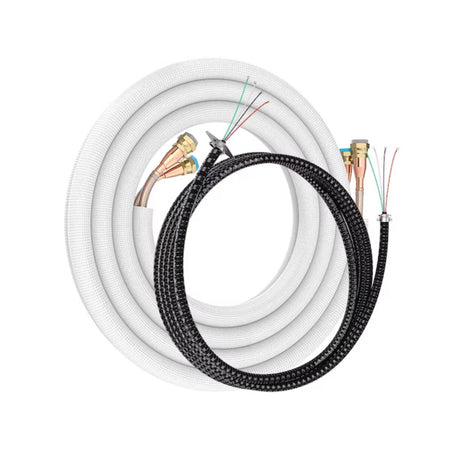

MRCOOL® 50 ft. 3/8 in. x 5/8 in. Pre-Charged Line-Set and DIY Pro Cable for DIY 24000 and 36000 BTU Systems
$565.00$762.75
Call for best pricing before large-system orders.
MRCOOL® 50 ft. 3/8 in. x 5/8 in. Pre-Charged Line-Set and DIY Pro Cable for DIY 24000 and 36000 BTU Systems
When 1-standard size DIY Quick Connect line set is not long enough, 2-standard quick connect line sets can be combined using the MRCOOL DIY coupler (sold separately) to increase the desired length of the quick connect line sets. This kit comes with 1x MRCOOL® 50 ft. 3/8 in. x 5/8 in. Pre-Charged Line-Set, and 50 ft of communication wire to connect your DIY air handler to your DIY condenser.
Features:
- Can be combined with other Pre-Charged DIY line sets to increase the desired length using the DIY coupler (sold separately)
- Simple to use screw-on quick connect valves
- Quicker installation than standard line sets, pre-charged means no vacuuming or charging will be necessary
- 3/4 in. UV protective insulation sleeve
Specifications:
| BRAND | MRCOOL® |
| MODEL | DIY50-3858C |
| UPC | 840255509886 |
| SERIES |
DIY Line Set |
|
LINE SET LENGTH |
50ft |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
NET WEIGHT (LBS) |
15 |
|
GROSS DEPTH (IN) |
38 |
|
GROSS HEIGHT (IN) |
5 |
|
GROSS WIDTH (IN) |
48 |
|
GROSS WEIGHT (LBS) |
35 |
