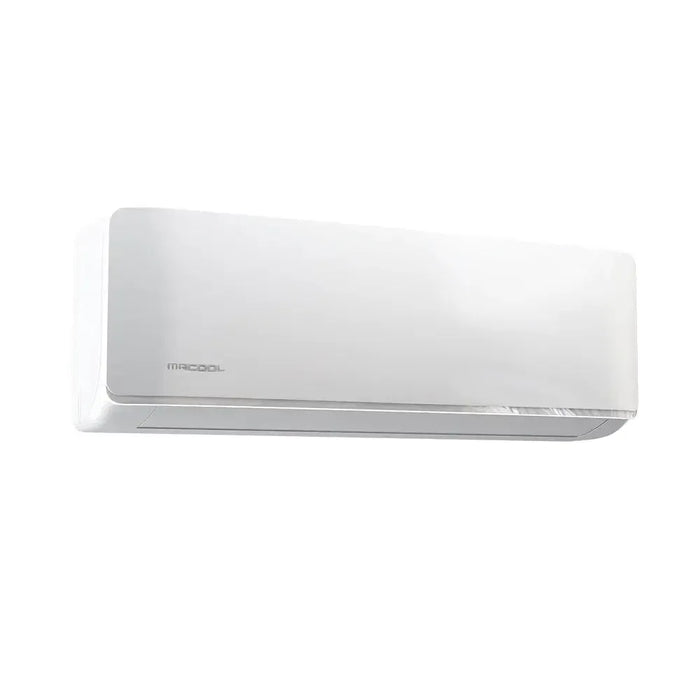

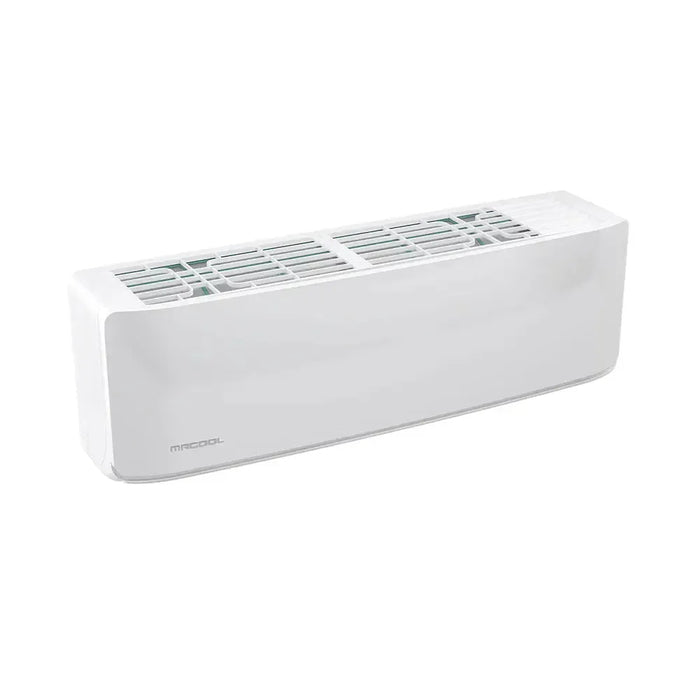

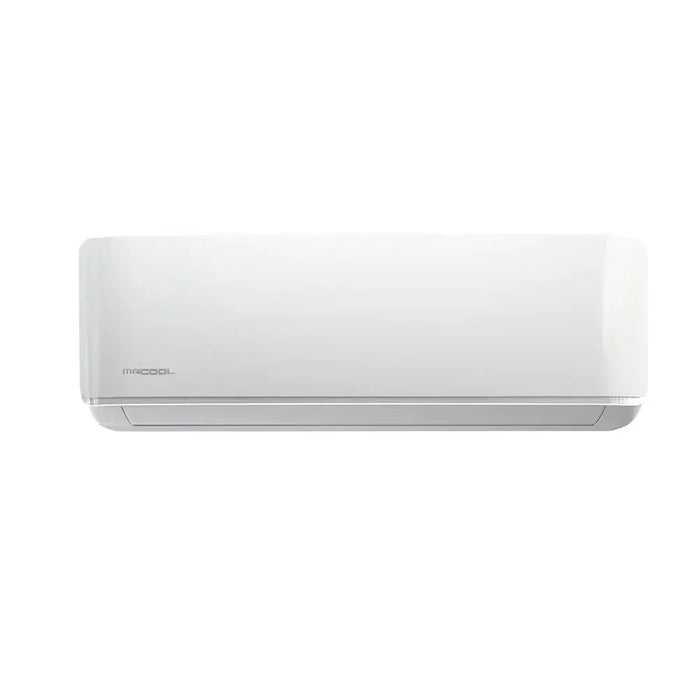

MRCOOL® DIY 4th Gen 12,000 BTU 22 SEER Ductless Mini-Split Wall Mounted Air Handler (DIY-12-HP-WMAH-230C25)

SKU: DIY-12-HP-WMAH-230C25
Your Price:
$574.00 $774.90
You Save: $200.90 26%
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source
Checkout Secure

Quantity Remaining:

Only 10 Left in Stock.
Order in the next to get it by

Get Extra 5% Off With Code: FLASH5 - Flash Sale Ends:

Days
Hours
Minutes
Seconds

FREE GIFTS FOR A LIMITED TIME ONLY! Order today and receive the following free with your purchase:

  • Free Shipping ($100 Value)
  • Expedited Processing ($50 Value)
  • Website Discount of $28.70 off the current discounted price (Use Code: FLASH5) ($28.70 Value)
  • Free 5-year Parts Warranty ($125 Value)
  • Free 7-year Compressor ($175 Value)
  • Free MRCOOL® 25 ft DIY PRO Cable - Armoured with Interlocked Aluminum PVC Jacket - Its Weather, Animal, and Garden Tool Proof ($149.99 Value)

MRCOOL® DIY 4th Gen 12,000 BTU 22 SEER Ductless Mini-Split Wall Mounted Air Handler (DIY-12-HP-WMAH-230C25)

TO CLAIM YOUR FREE GIFT CLICK ADD TO CART

Total Extra Savings With Us Today = $628.69

MRCOOL DIY 4th Gen 12,000 BTU 22 SEER Ductless Mini-Split Wall Mounted Air Handler (DIY-12-HP-WMAH-230C25)

The MRCOOL® 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL® DIY system. When paired with a MrCool Condenser, it is capable of achieving a 22 SEER efficiency rating and has the ability to heat and cool an area of up to 500 sq ft. It features multiple modes of operation such as COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP so it is sure to suit your needs. It can also be conveniently operated from anywhere using your Apple or Android smartphone with the Smart HVAC app. This air handler can be easily mounted with the included and easy-to-use wall mounting plate. It is also very compact, especially when compared to the components of a traditional ducted system, so it can be easily maneuvered into place. It was also designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. So, installing the refrigerant piping is as simple as turning a few wrenches. Since the line set comes pre-charged with the precise amount of R-410A refrigerant, no vacuuming or charging is required once connected. Select the MrCool 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler to be your home comfort solution.

Key Features

  • SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

Specifications & Dimensions

MODEL DIY-12-HP-WMAH-230C25
COOLING CAPACITY
12000 BTU
HEATING CAPACITY
12000 BTU
VOLTAGE
208-230 V
PHASE 1
CYCLE 60 Hz
MAX FUSE BREAKER
15 A
MIN CIRCUIT AMPACITY
3 A
MOUNT TYPE
Wall
COLOR White
COLOR FAMILY
White
MAX COVERAGE AREA
Up to 500 sqft
REFRIGERANT TYPE
R-410A
DECIBEL RATING
35 dBA
DECIBEL RATING LOW
25 dBA
DECIBEL RATING HIGH
40 dBA
INVERTER Yes
LIQUID LINE SIZE
1/4 in
SUCTION LINE SIZE
1/2 in
BLOWER MOTOR RPM
1050/850/650
FAN ONLY OPTION
Yes
QUIET MODE
Yes
AUTO COOL
Yes
WIFI COMPATIBILITY
Yes
APP COMPATIBILITY
Yes
WORKS WITH IOS
Yes
WORKS WITH ANDROID
Yes
REMOTE CONTROL INCLUDED
Yes
ENERGY STAR CERTIFIED
Yes
AHRI CERTIFIED
Yes
REGISTERED WARRANTY
Limited Lifetime Compressor
BASE WARRANTY
5-year Parts/7-year Compressor
BASE PARTS WARRANTY
5-year Parts
REGISTERED COMPRESSOR WARRANTY
Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY
7-year Compressor
HAS BATTERIES
Yes
CONTAINS ELECTRONICS
Yes
CONTAINS CHEMICALS
Yes
CONTAINS AEROSOL
Yes
CONTAINS COMPRESSED GAS
Yes
PROPOSITION 65 WARNING
Yes
RESTRICTED STATES
GU;PR;VI
NET DEPTH
7.44 in
NET HEIGHT
11.69 in
NET WIDTH
31.57 in
NET WEIGHT
23.81 lbs
GROSS DEPTH
16.34 in
GROSS HEIGHT
13.98 in
GROSS WIDTH
36.02 in
GROSS WEIGHT
34.39 lbs
