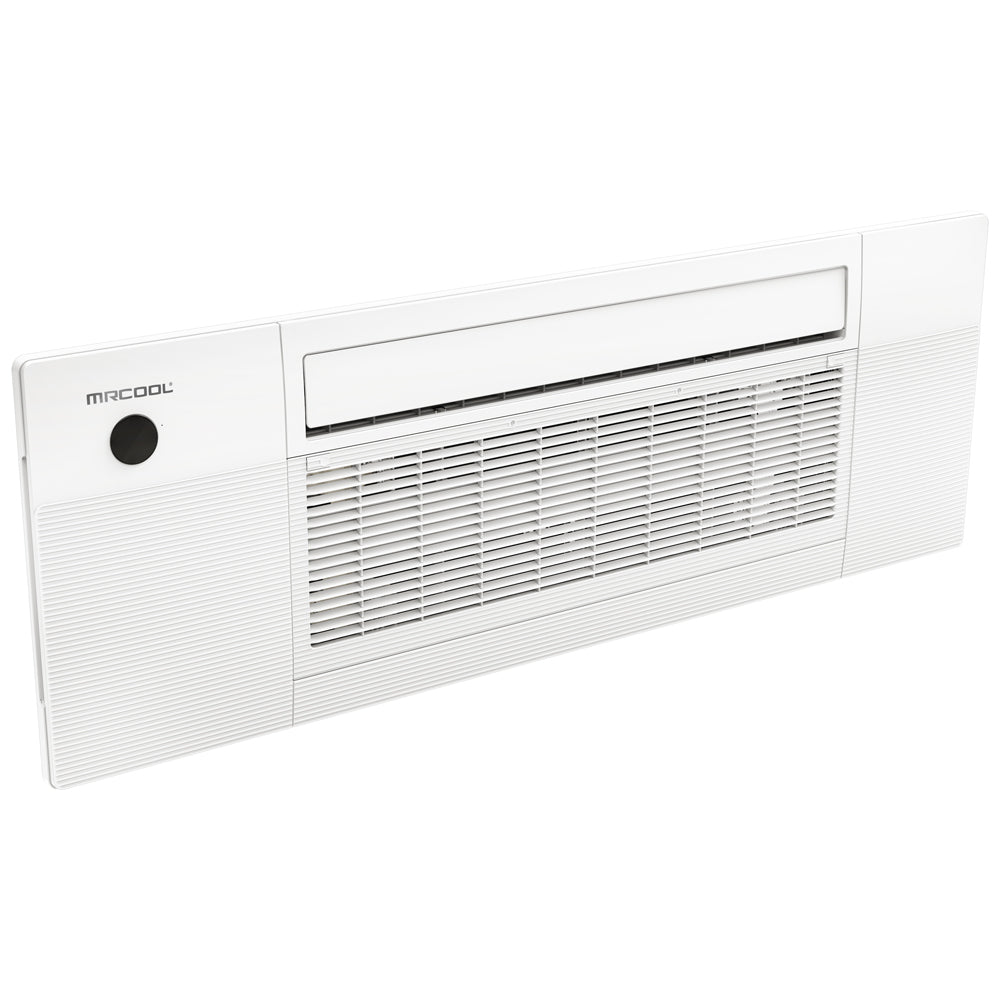

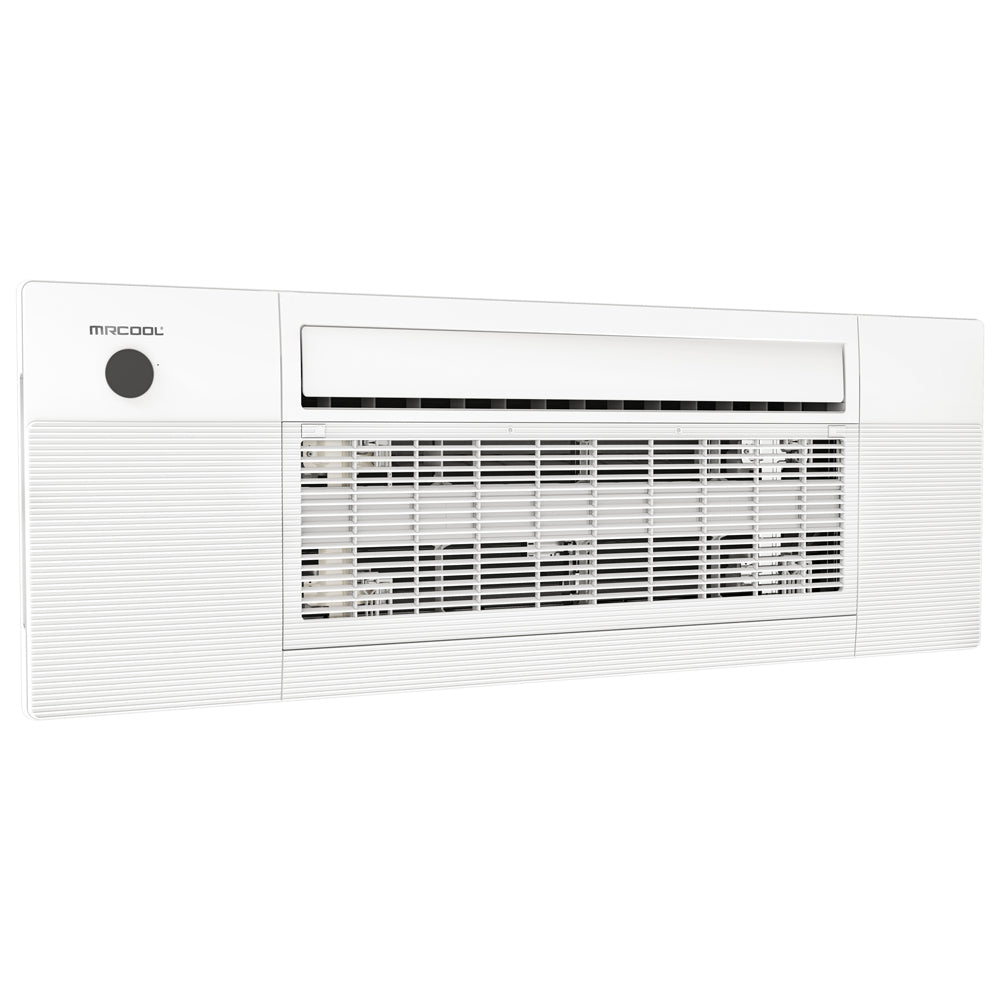

MRCOOL® DIY 4th Gen 12,000 BTU 20.75 SEER Ductless Mini-Splits Ceiling Cassette Air Handler (DIYCASSETTE12HP-230C25)

SKU: DIYCASSETTE12HP-230C25
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source

MRCOOL® DIY 4th Gen 12,000 BTU 20.75 SEER Ductless Mini-Splits Ceiling Cassette Air Handler (DIYCASSETTE12HP-230C25)


With an easy, low profile installation, the MRCOOL® DIY® Series 12k BTU Ceiling Cassette provides efficient heating and cooling that is perfect for any space, making it one of the most versatile ceiling units ever. The cassette is offered in multi-zone options. Unlike other ceiling cassettes, the MrCool® DIY® Series 12k BTU Ceiling Cassette doesn’t have strict installation requirements in less than ideal locations and can be recessed between all types of joists on 16 inch center, including pre-manufactured I-joists. Since it doesn’t require ductwork or wall space, it is perfect for both new construction or retrofits. The cassette works with the MrCool® DIY® Quick Connect® line set which comes precharged with R-410A refrigerant. The No-Vac® Coupler can be used to increase the length of the line set if needed. In addition to the many operational modes and quiet operation, the cassette features swing technology and an Elevation function that lowers the filter panel for easy maintenance of the air filter. All of these features can be controlled with the included remote. For peace of mind, the cassette offers a limited lifetime warranty along with a 7-year compressor warranty and 5-year parts warranty.

Key Features

  • WORKS WITH MRCOOL DIY 4th Gen Multi-Zone Condensers
  • Fits between 16" Ceiling Joists
  • Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.
  • Low Profile Installation
  • Pair with your DIY 4th gen Multi-Zone system
  • Designed to work with current and future joist standards, it can be recessed between all types of joists on 16-inch center - including pre-manufactured I-joists.

Specifications & Dimensions

MODEL DIYCASSETTE12HP-230C25
SEER Up to 20.75
EER Up to 12.5
HSPF hsph4/hspf5: 11/8.6
COOLING CAPACITY
12000
HEATING CAPACITY
12000
VOLTAGE
208/230
PHASE 1
CYCLE 60 Hz
MAX FUSE BREAKER
15 A
MIN CIRCUIT AMPACITY
3 A
RATED LOAD
1.5 A
DECIBEL RATING
41/35
DECIBEL RATING LOW
26 dBA
DECIBEL RATING HIGH
43 dBA
BLOWER MOTOR HP
620/560/450/350
BLOWER MOTOR SPEEDS
4
BLOWER MOTOR RPM
1064/974/884
FILTER TYPE
Reusable
FAN ONLY OPTION
Yes
QUIET MODE
Yes
SLEEP MODE
Yes
AUTO COOL
Yes
WIFI COMPATIBILITY
Yes
APP COMPATIBILITY
Yes
WORKS WITH IOS
Yes
WORKS WITH ANDROID
Yes
REMOTE CONTROL INCLUDED
Yes
REGISTERED WARRANTY
Limited Lifetime Compressor
BASE WARRANTY
5-year Parts/7-year Compressor
BASE PARTS WARRANTY
5-year Parts
REGISTERED COMPRESSOR WARRANTY
Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY
7-year Compressor
HAS BATTERIES
Yes
CONTAINS ELECTRONICS
Yes
CONTAINS CHEMICALS
Yes
CONTAINS AEROSOL
Yes
CONTAINS COMPRESSED GAS
Yes
PROPOSITION 65 WARNING
Yes
RESTRICTED STATES
GU;PR;VI
NET DEPTH
13.19 in
NET HEIGHT
8.98 in
NET WIDTH
50.31 in
NET WEIGHT
45.42 lbs
GROSS DEPTH
22.48 in
GROSS HEIGHT
22.64 in
GROSS WIDTH
57.60 in
GROSS WEIGHT
88.85 lbs
