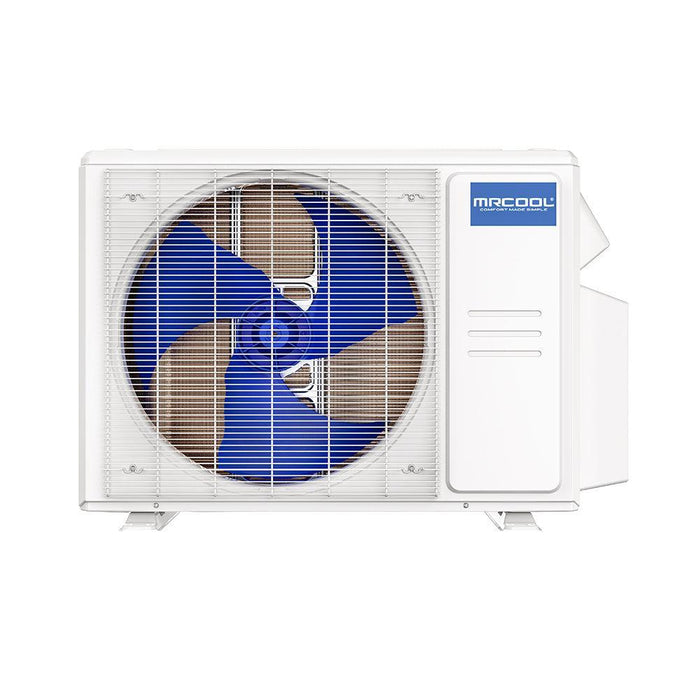

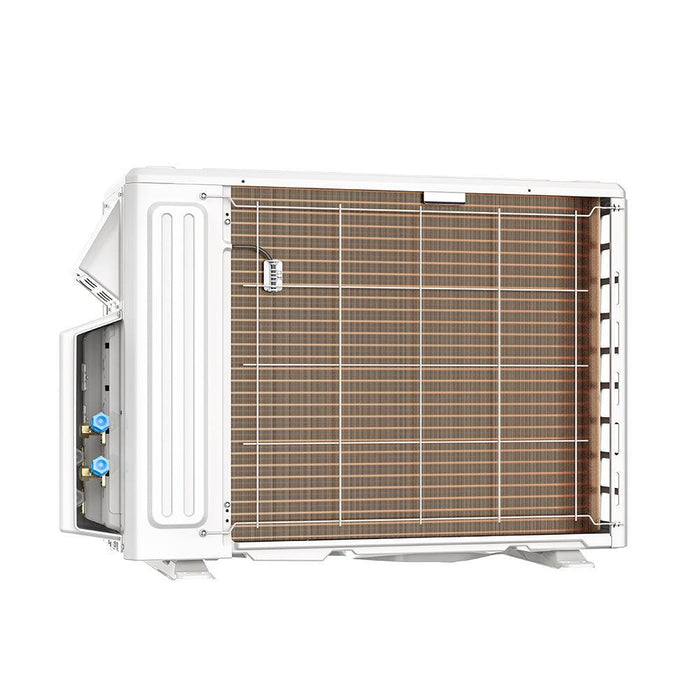

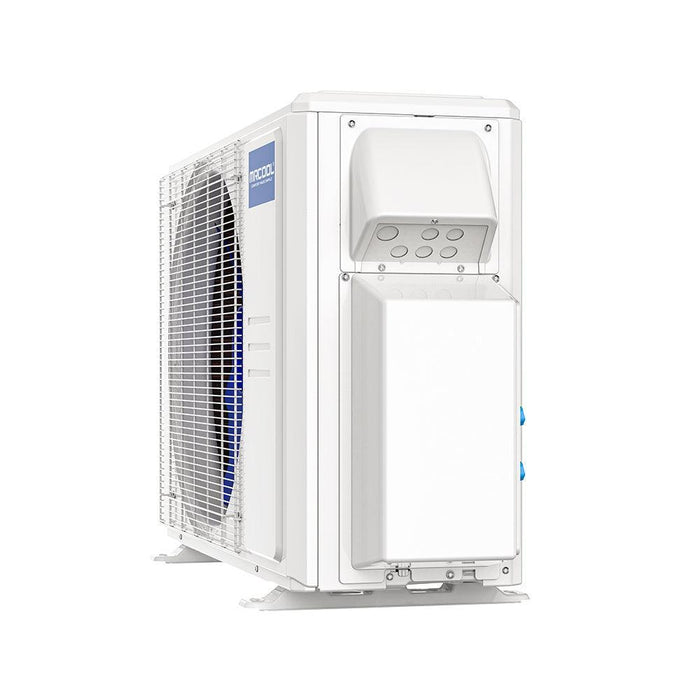

MRCOOL DIY 4th Gen 18K BTU, 2-Zone, 21 SEER, Ductless Heat Pump Condenser (DIY-MULTI2-18HP230C)
The 4th Generation MRCOOL® DIY 18K BTU 2-Zone Ductless Heat Pump Condenser is the latest in heat pump technology. This 2-zone condenser, when paired with select MrCool air handlers, is capable of producing an impressive 21 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13°F. It features robust construction which includes a Gold Fin Condenser coating so it is sure to withstand exposure to the elements. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. As a MrCool DIY product, this heat pump is designed specifically to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with the precise amount of R-410A refrigerant. They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches. This means the installation process can be performed without retaining the services of a certified technician. Let the 4th Generation MrCool DIY 18K BTU 2-Zone Ductless Heat Pump Condenser be the solution to your home’s heating and cooling needs.
Key Features
- Up to 21 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion
- Energy-Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Line sizes 1/4”, 1/2” & 3/8”, 5/8”
- Multi-Zone Condenser includes adapter for the 24K Air Handler (3/8", 5/8" Line Size) - see liquid line and suction line size columns
Specifications & Dimensions
| MODEL | DIY-MULTI2-18HP230C |
| SEER | 21 |
| EER | 12.5 |
| HSPF | hspf4/hspf5 : 10.6/8.6 |
| CFM | 1764.71 |
|
COOLING CAPACITY |
18000 BTU |
|
HEATING CAPACITY |
19000 BTU |
|
VOLTAGE |
208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
|
MAX FUSE BREAKER |
25 A |
|
MIN CIRCUIT AMPACITY |
18 A |
| COLOR | White |
|
COLOR FAMILY |
White |
|
ZONE CAPACITY |
2 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
65.26 oz |
|
DECIBEL RATING |
59 dBA |
| INVERTER | Yes |
|
MIN AMBIENT COOL |
5F ~ 122F |
|
MIN AMBIENT HEAT |
-13F ~ 75.2F |
|
MAX LINESET LENGTH |
123 ft TOTAL |
|
LIQUID LINE SIZE |
1/4in |
|
SUCTION LINE SIZE |
1/2in |
|
COMPRESSOR MOTOR TYPE |
Twin - Rotary |
|
CONDENSER FAN MOTOR RPM |
750/600/500 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH |
13.46 in |
|
NET HEIGHT |
26.50 in |
|
NET WIDTH |
35.04 in |
|
NET WEIGHT |
100.53 lbs |
|
GROSS DEPTH |
17.64 in |
|
GROSS HEIGHT |
29.33 in |
|
GROSS WIDTH |
40.94 in |
|
GROSS WEIGHT |
111.11 lbs |
