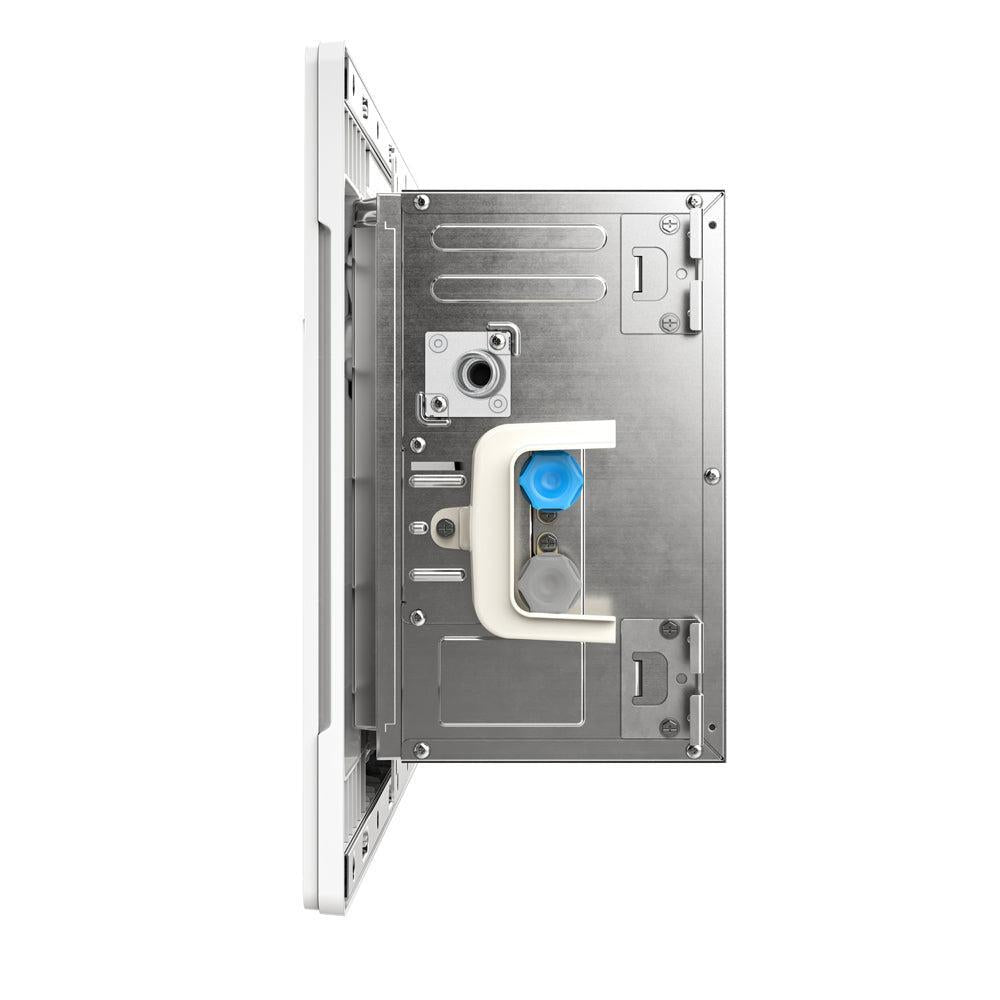

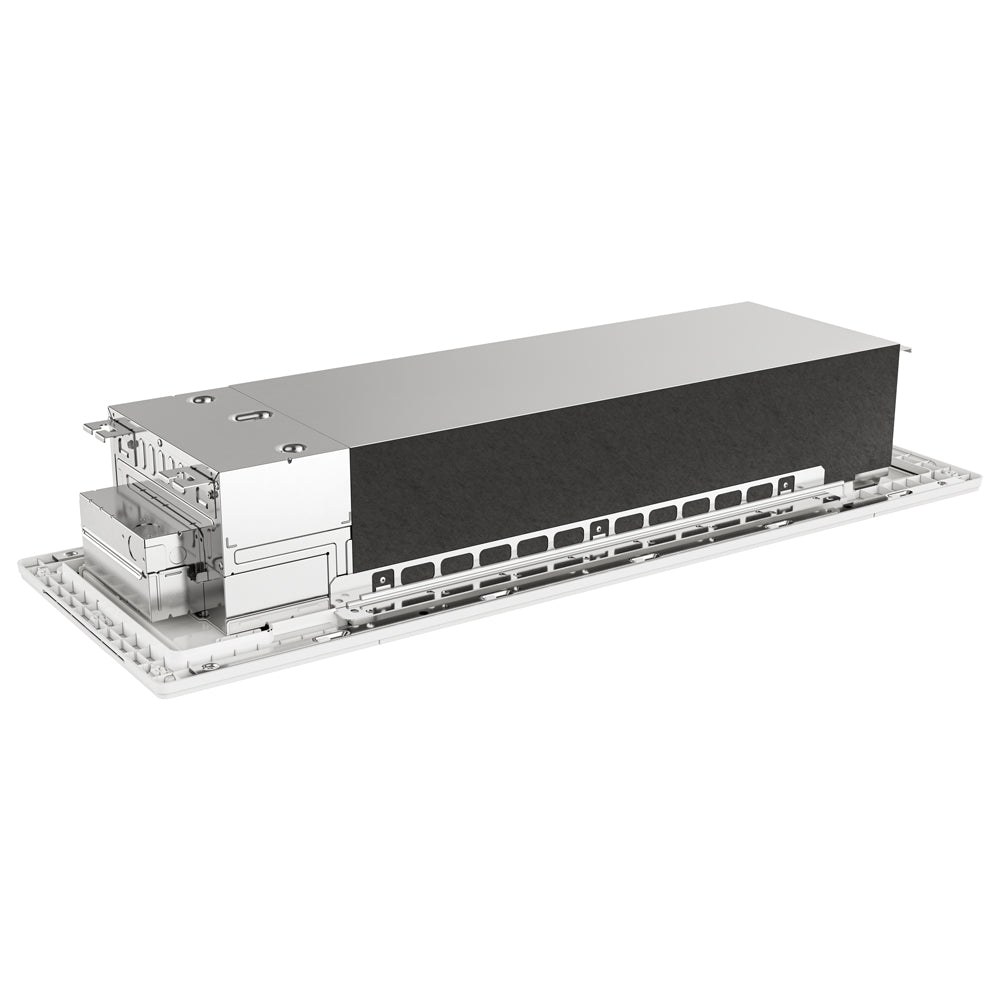

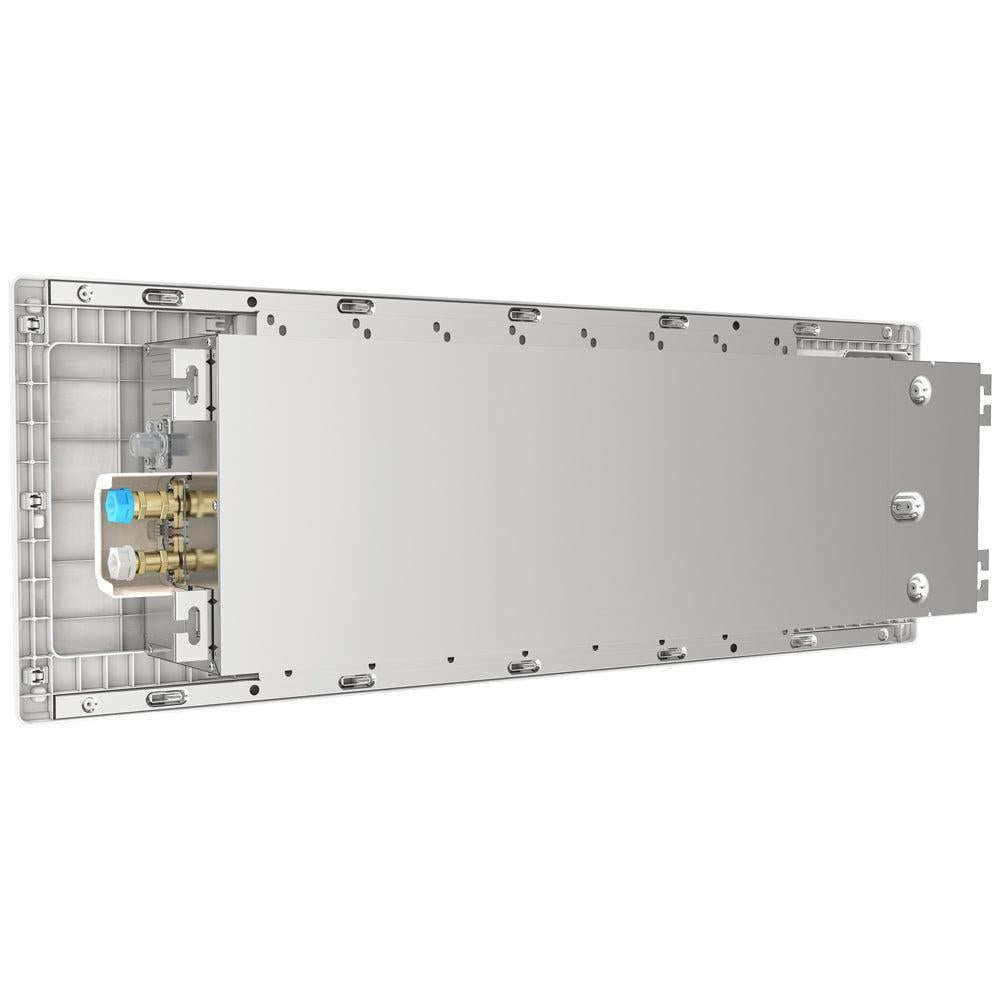

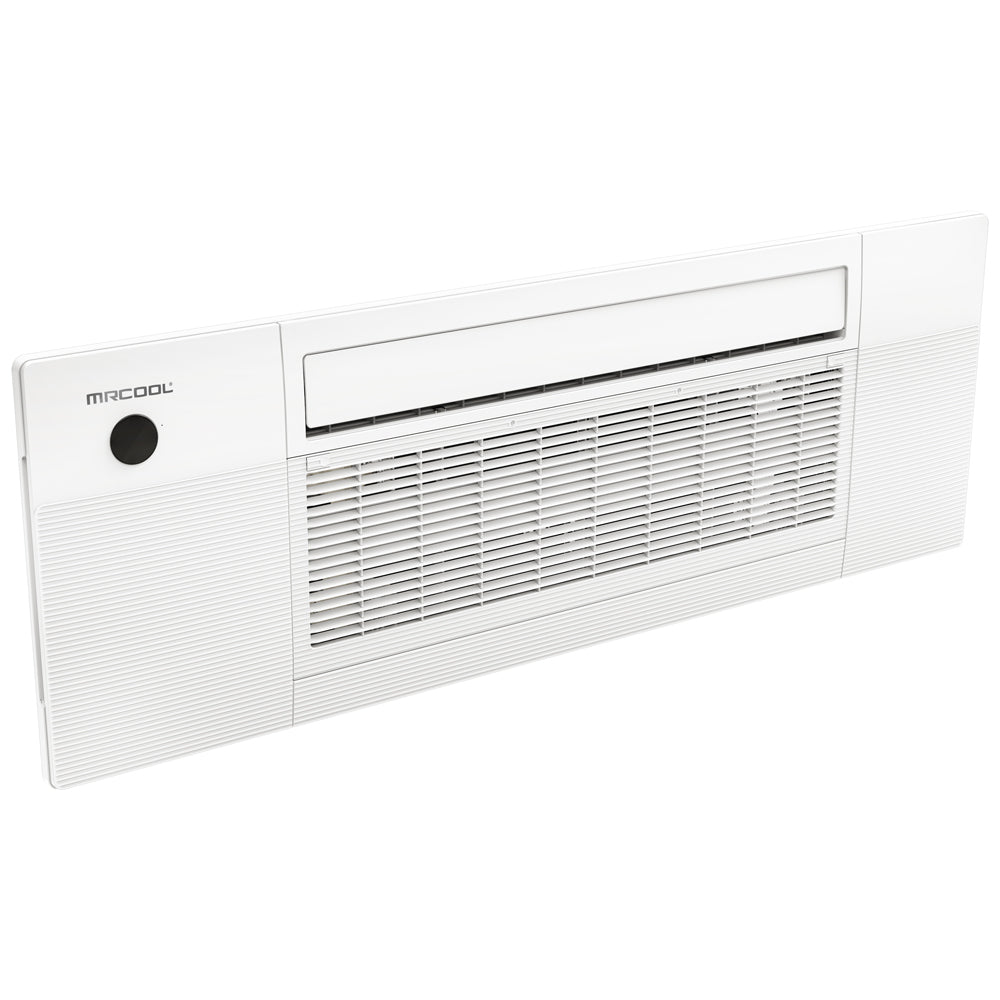

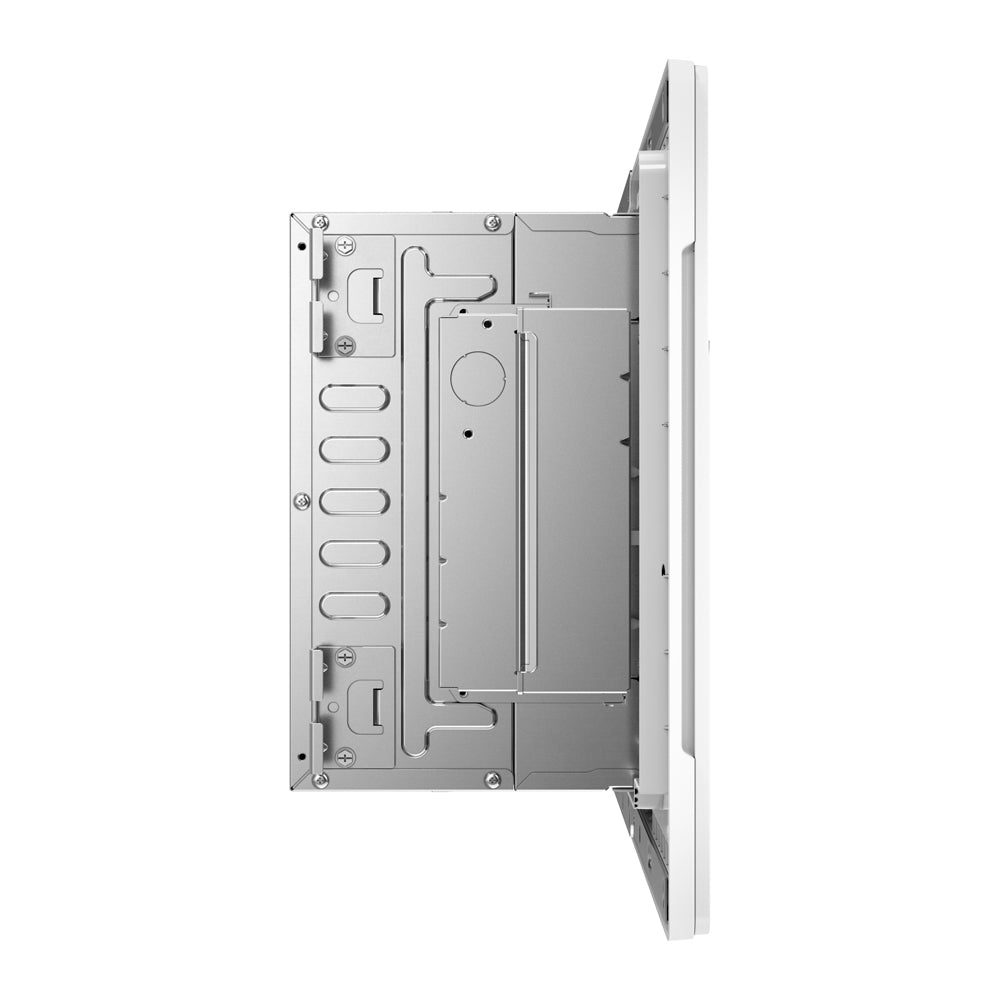

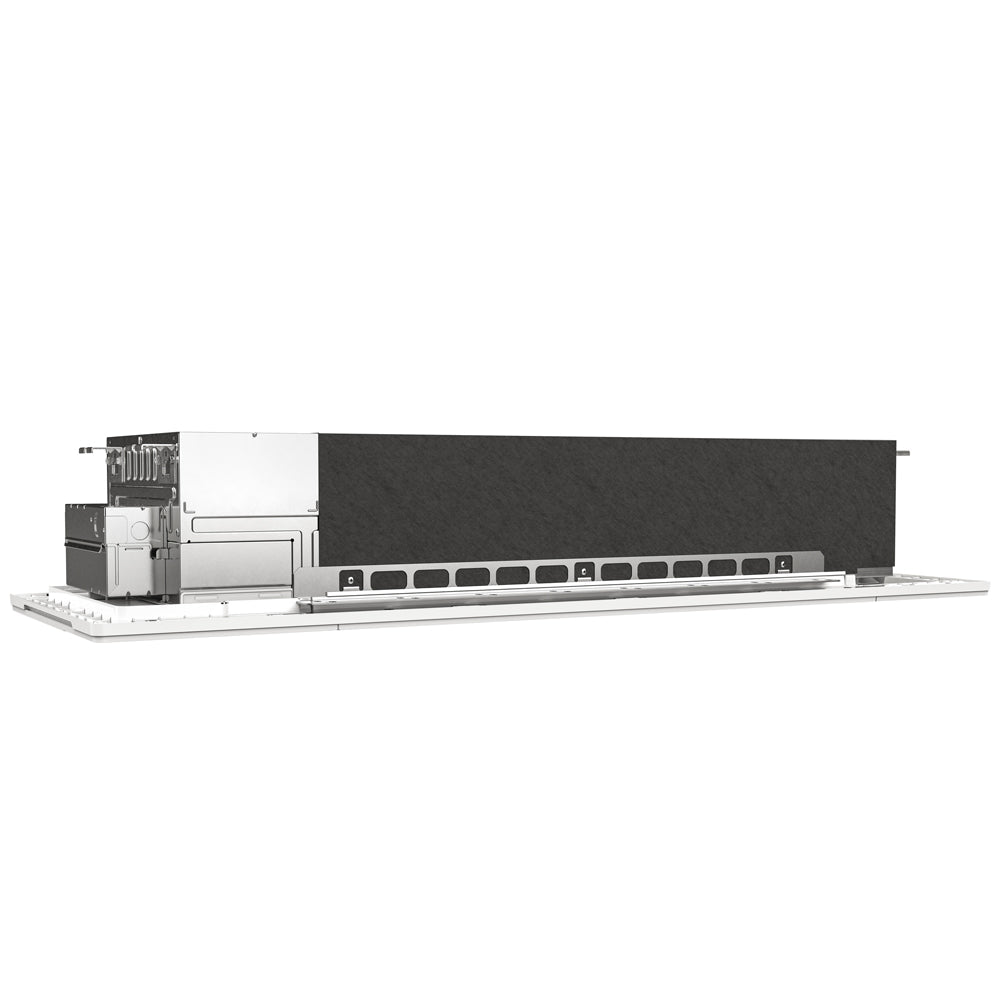

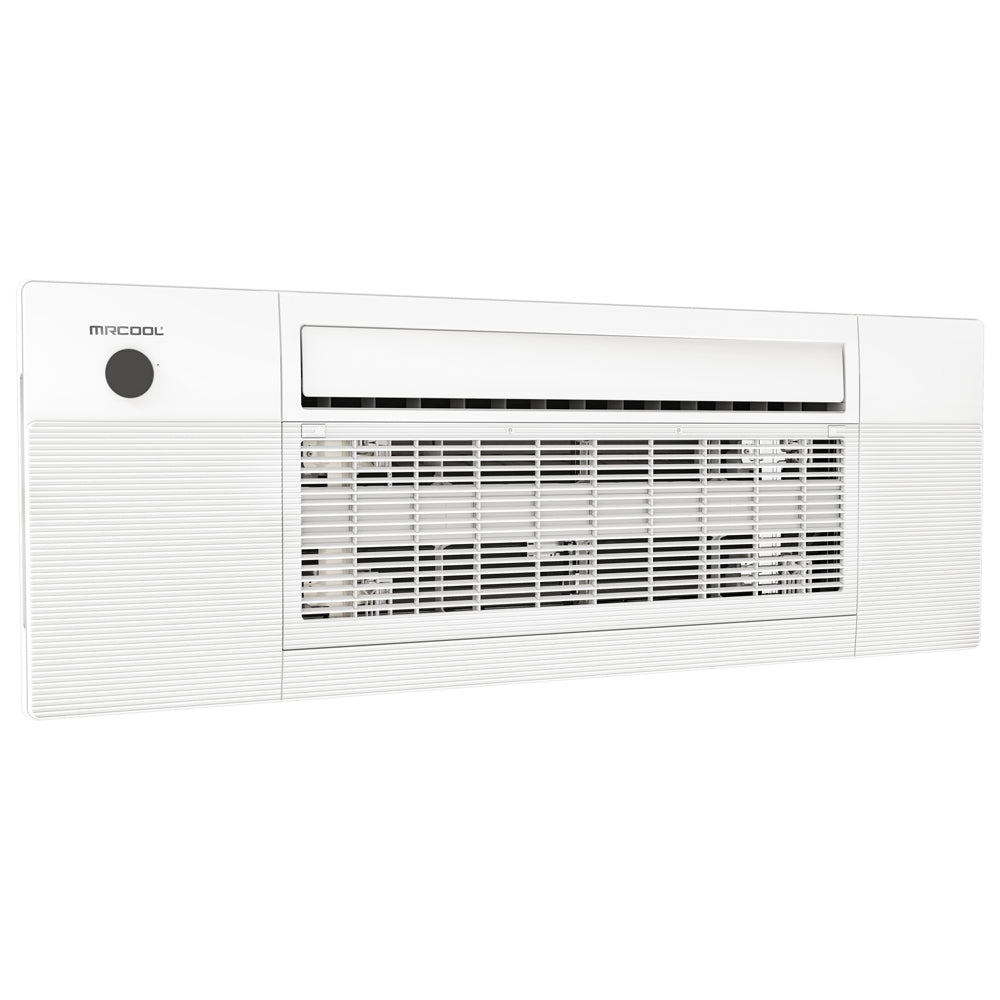

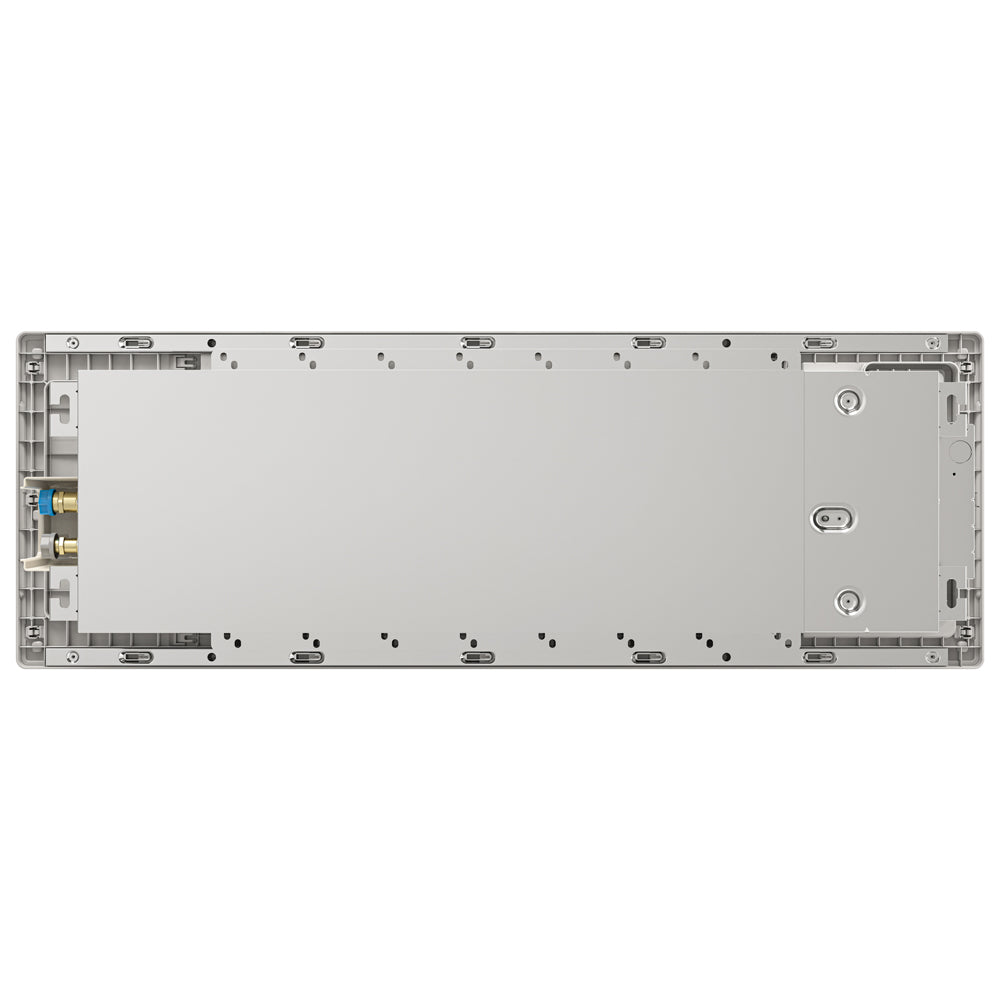

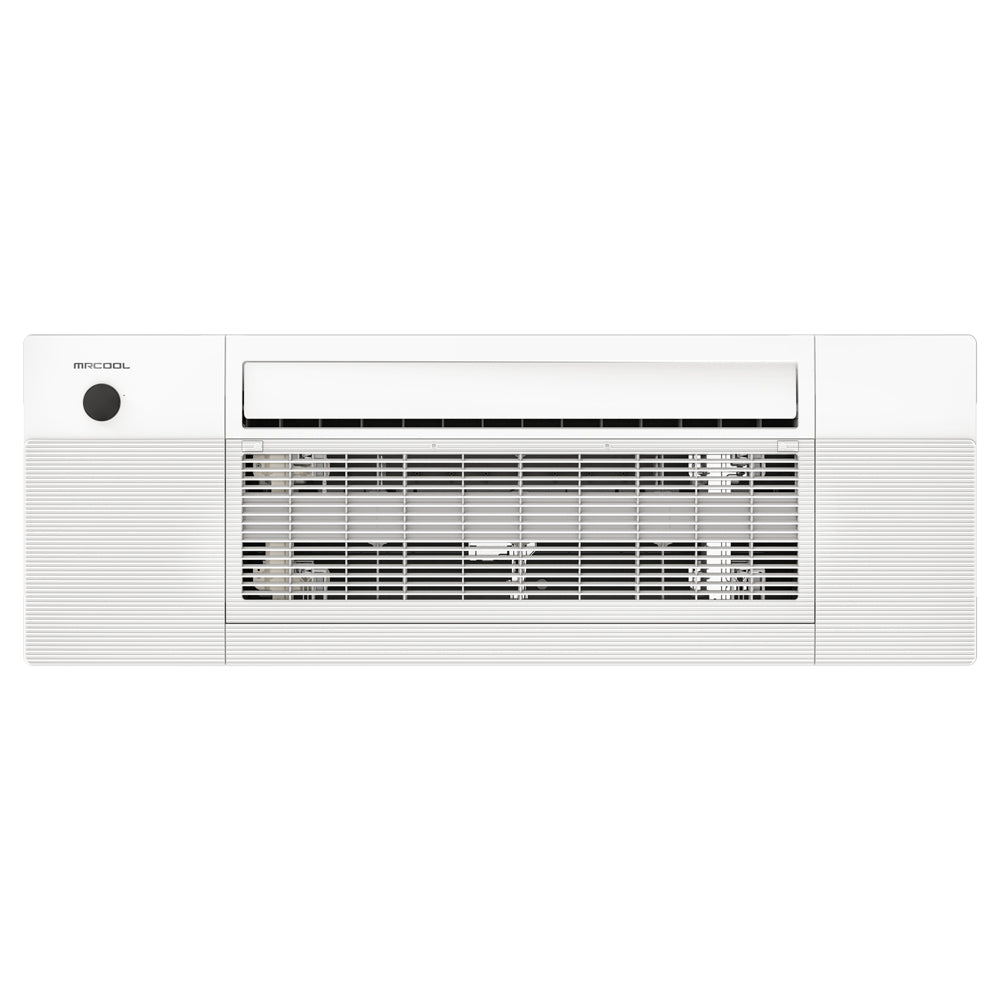

MRCOOL® DIY 4th Gen 9,000 BTU 20.75 SEER Ductless Mini-Splits Ceiling Cassette Air Handler (DIYCASSETTE09HP-230C25)

MrCool  |  SKU: DIYCASSETTE09HP-230C25
Sale price $1,177.00 Regular price $1,499.00
  • FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Goodman - Daikin and ACiQ Excluded)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source

MRCOOL® DIY 4th Gen 9,000 BTU 20.75 SEER Ductless Mini-Splits Ceiling Cassette Air Handler (DIYCASSETTE09HP-230C25)

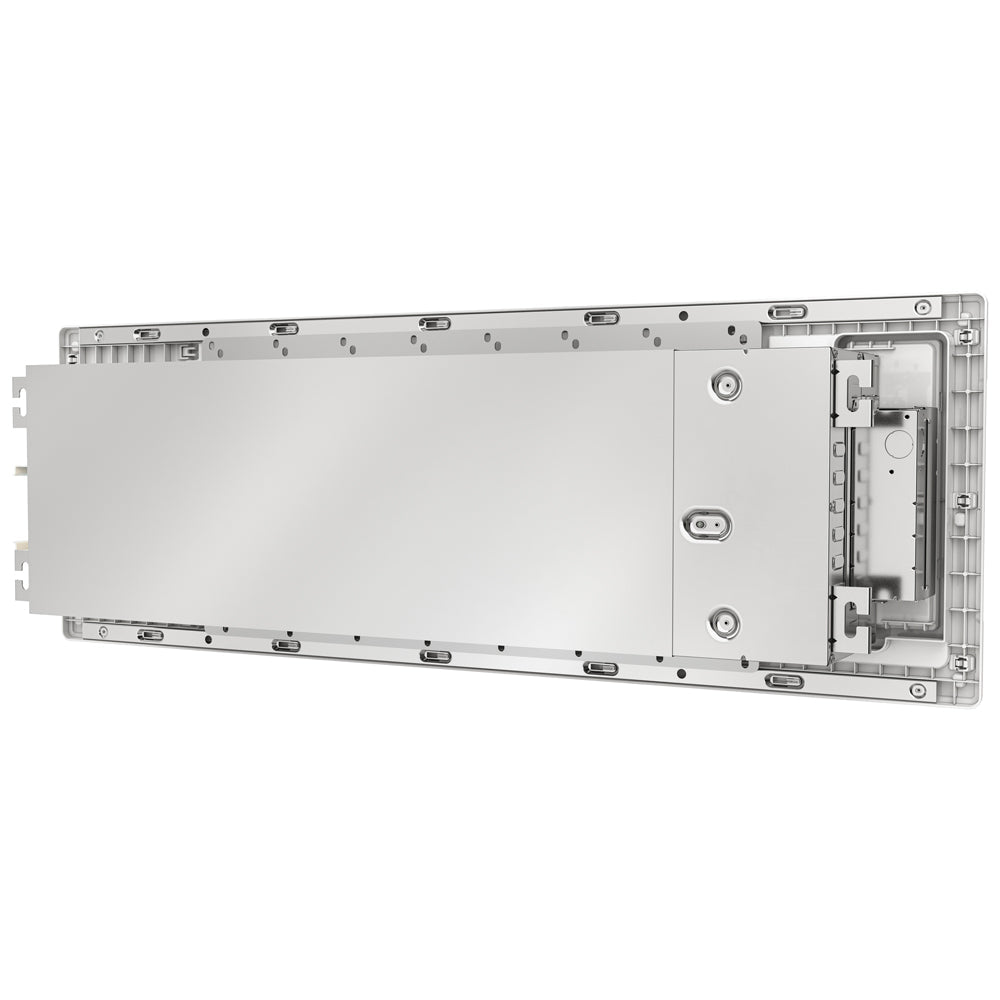

The MRCOOL® DIY® Series 9k BTU Ceiling Cassette is perfect for any space and provide discreet and out of sight heating and cooling. It is available in multi-zone options and is easy to install, fitting between 16” ceiling joists. The cassette is designed to work with both current and future joist standards and can be recessed between all types of joists on 16 inch center, including pre-manufactured I-joists. Other ceiling cassettes have strict installation requirements in less ideal locations, but the MrCool® cassette doesn't require ductwork or wall space and is perfect for new constructions or retrofits. The cassette works with the MrCool® DIY® Quick Connect® line set which makes installation even easier since it is precharged with refrigerant, eliminating the need for vacuuming. The No-Vac® Coupler can be used to increase length. With advanced filtration, each cassette offers an Elevation function that lowers the filter panel for easy filter maintenance. Not only does this cassette feature quiet operation and multiple operating modes, but also provided is a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty, so you can feel confident in your investment.

Key Features

  • WORKS WITH MRCOOL DIY 4th Gen Multi-Zone Condensers
  • Fits between 16" Ceiling Joists
  • Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.
  • Low Profile Installation
  • Pair with your DIY 4th gen Multi-Zone system
  • Designed to work with current and future joist standards, it can be recessed between all types of joists on 16-inch center - including pre-manufactured I-joists.

Specifications & Dimensions

MODEL DIYCASSETTE09HP-230C25
SEER Up to 20.75
EER Up to 12.5
HSPF hsph4/hspf5: 11/8.6
COOLING CAPACITY
9000
HEATING CAPACITY
9000
VOLTAGE
208/230
PHASE 1
CYCLE 60 Hz
MAX FUSE BREAKER
15 A
MIN CIRCUIT AMPACITY
3 A
RATED LOAD
1.5 A
DECIBEL RATING
40/35.5
DECIBEL RATING LOW
24.5 dBA
DECIBEL RATING HIGH
42 dBA
BLOWER MOTOR HP
570/537/488/350
BLOWER MOTOR SPEEDS
4
BLOWER MOTOR RPM
1024/944/864
FILTER TYPE
Reusable
FAN ONLY OPTION
Yes
QUIET MODE
Yes
SLEEP MODE
Yes
AUTO COOL
Yes
WIFI COMPATIBILITY
Yes
APP COMPATIBILITY
Yes
WORKS WITH IOS
Yes
WORKS WITH ANDROID
Yes
REMOTE CONTROL INCLUDED
Yes
REGISTERED WARRANTY
Limited Lifetime Compressor
BASE WARRANTY
5-year Parts/7-year Compressor
BASE PARTS WARRANTY
5-year Parts
REGISTERED COMPRESSOR WARRANTY
Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY
7-year Compressor
HAS BATTERIES
Yes
CONTAINS ELECTRONICS
Yes
CONTAINS CHEMICALS
Yes
CONTAINS AEROSOL
Yes
CONTAINS COMPRESSED GAS
Yes
PROPOSITION 65 WARNING
Yes
RESTRICTED STATES
GU;PR;VI
NET DEPTH
13.19 in
NET HEIGHT
8.98 in
NET WIDTH
50.31 in
NET WEIGHT
44.31 lbs
GROSS DEPTH
22.48 in
GROSS HEIGHT
22.64 in
GROSS WIDTH
57.60 in
GROSS WEIGHT
87.96 lbs
