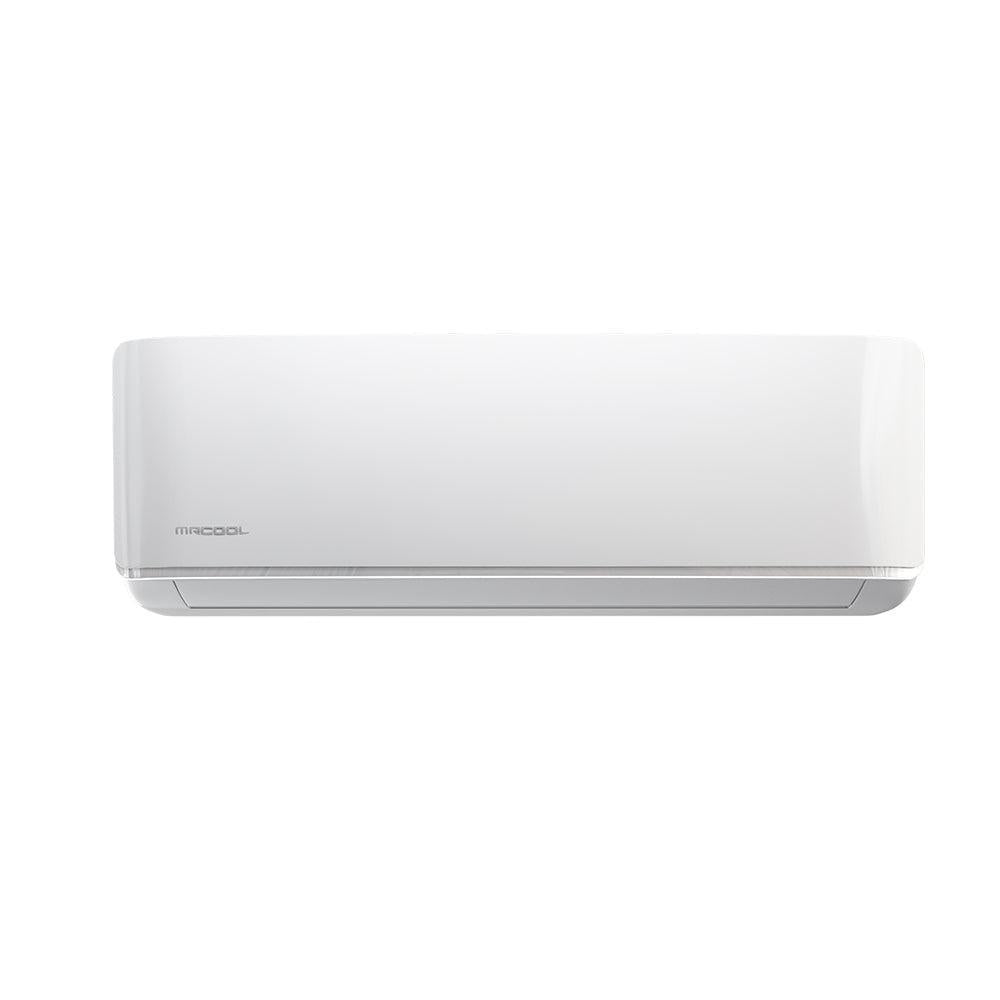

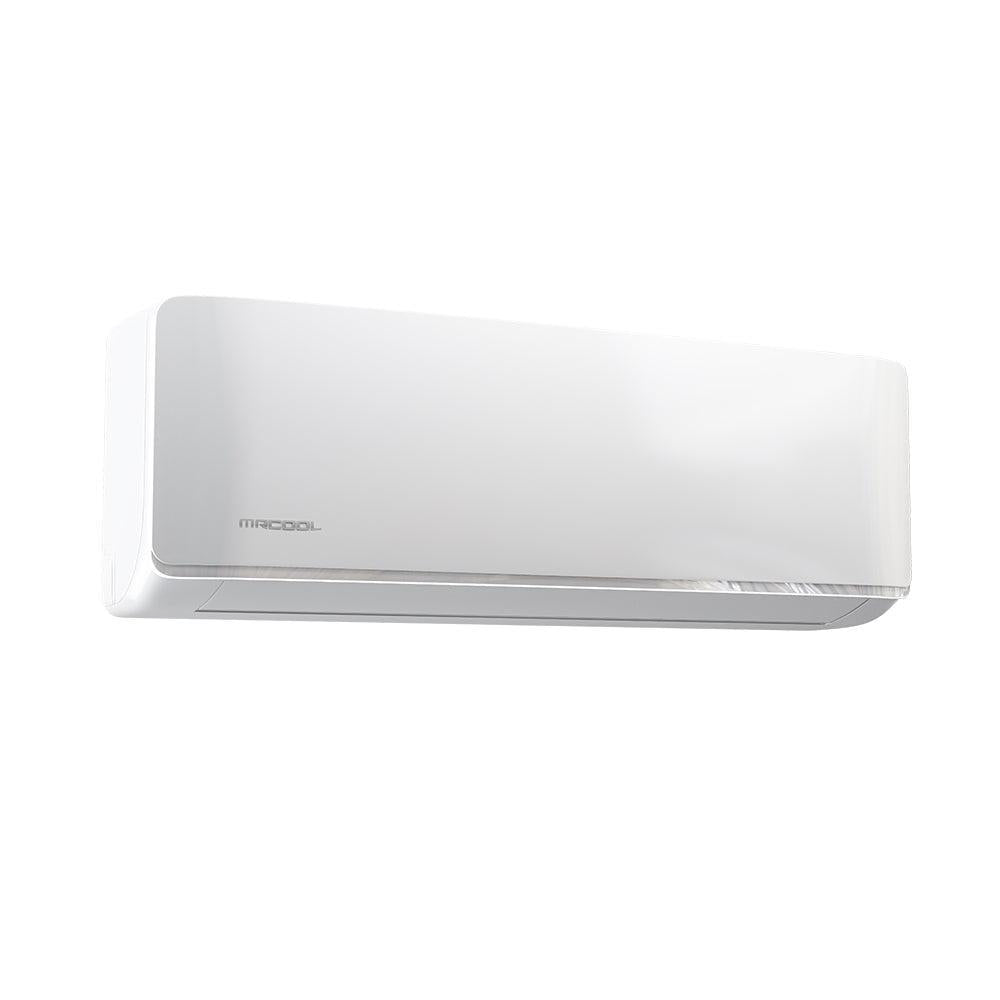

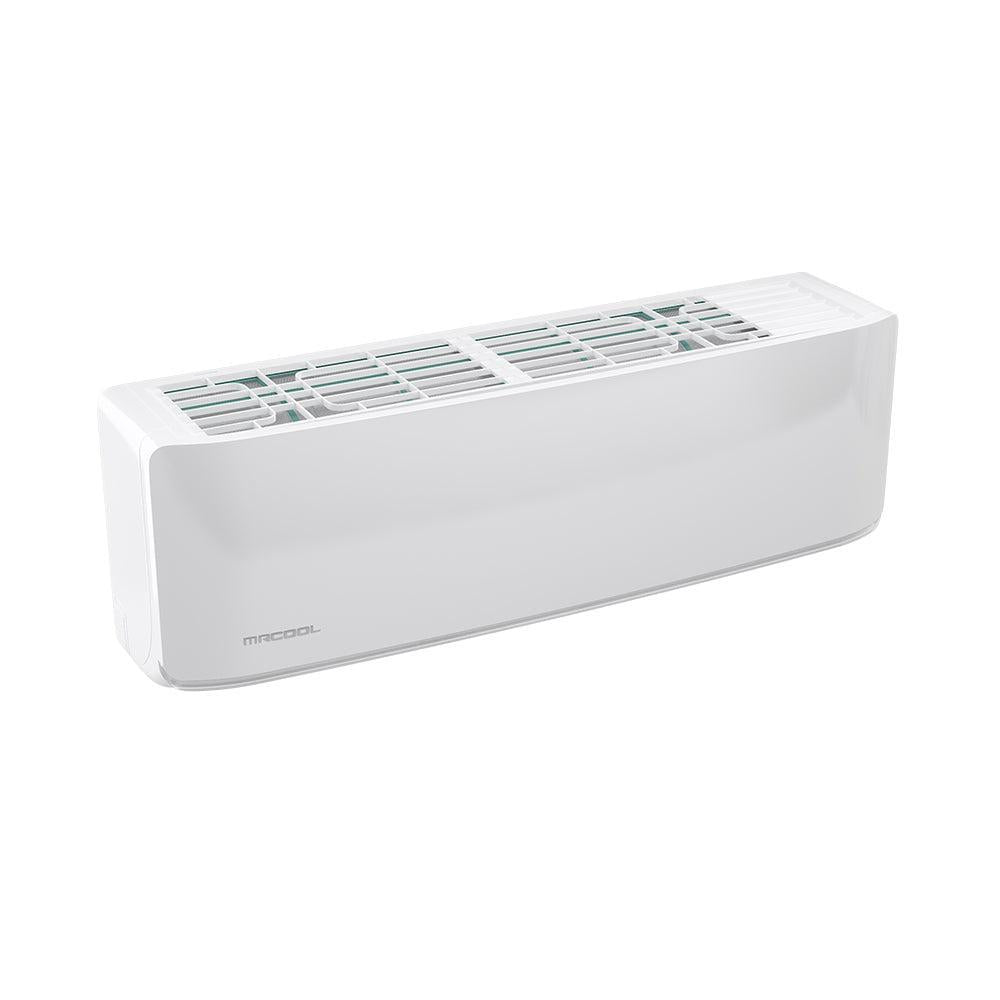

MRCOOL® DIY 4th Gen 9,000 BTU 22 SEER Ductless Mini-Split Wall Mounted Air Handler (DIY-09-HP-WMAH-230C25)
As part of a MRCOOL® DIY system, the MRCOOL® DIY 9K BTU Ductless Wall Mounted Air Handler is one of the most efficient air handlers available. Not only can it produce a 22 SEER efficiency rating it can also cover an area up to 375 sq. ft. It is also incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate. To take the simplicity of the installation even further, this air handler is designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. The line set is equipped with quick connectors which give a DIY installer the ability to connect the refrigerant piping with wrenches. The line set comes from the factory pre-charged with the correct amount of R-410A refrigerant, so no vacuuming is necessary. Let the MrCool 4th Generation 9K BTU Ductless Wall Mounted Air Handler all of the heating and cooling necessities of your home.
Key Features
- SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
Specifications & Dimensions
MODEL |
DIY-09-HP-WMAH-230C25 |
COOLING CAPACITY
|
9000 BTU
|
HEATING CAPACITY
|
9000 BTU
|
VOLTAGE
|
208-230 V
|
PHASE |
1 |
CYCLE |
60 Hz
|
MAX FUSE BREAKER
|
15 A
|
MIN CIRCUIT AMPACITY
|
3 A
|
MOUNT TYPE
|
Wall |
COLOR |
White |
COLOR FAMILY
|
White |
MAX COVERAGE AREA
|
Up to 375 sqft
|
REFRIGERANT TYPE
|
R-410A
|
DECIBEL RATING
|
35 dBA
|
DECIBEL RATING LOW
|
25 dBA
|
DECIBEL RATING HIGH
|
40 dBA
|
INVERTER |
Yes |
LIQUID LINE SIZE
|
1/4 in
|
SUCTION LINE SIZE
|
1/2 in
|
BLOWER MOTOR RPM
|
1050/850/650
|
FAN ONLY OPTION
|
Yes |
QUIET MODE
|
Yes |
AUTO COOL
|
Yes |
WIFI COMPATIBILITY
|
Yes |
APP COMPATIBILITY
|
Yes |
WORKS WITH IOS
|
Yes |
WORKS WITH ANDROID
|
Yes |
REMOTE CONTROL INCLUDED
|
Yes
|
ENERGY STAR CERTIFIED
|
Yes |
AHRI CERTIFIED
|
Yes |
REGISTERED WARRANTY
|
Limited Lifetime Compressor
|
BASE WARRANTY
|
5-year Parts/7-year Compressor
|
BASE PARTS WARRANTY
|
5-year Parts
|
REGISTERED COMPRESSOR WARRANTY
|
Limited Lifetime Compressor
|
BASE COMPRESSOR WARRANTY
|
7-year Compressor
|
HAS BATTERIES
|
Yes |
CONTAINS ELECTRONICS
|
Yes |
CONTAINS CHEMICALS
|
Yes |
CONTAINS AEROSOL
|
Yes |
CONTAINS COMPRESSED GAS
|
Yes |
PROPOSITION 65 WARNING
|
Yes |
RESTRICTED STATES
|
GU;PR;VI
|
NET DEPTH
|
7.44 in
|
NET HEIGHT
|
11.69 in
|
NET WIDTH
|
31.57 in
|
NET WEIGHT
|
23.81 lbs
|
GROSS DEPTH
|
16.34 in
|
GROSS HEIGHT
|
13.98 in
|
GROSS WIDTH
|
36.02 in
|
GROSS WEIGHT
|
34.39 lbs
|
