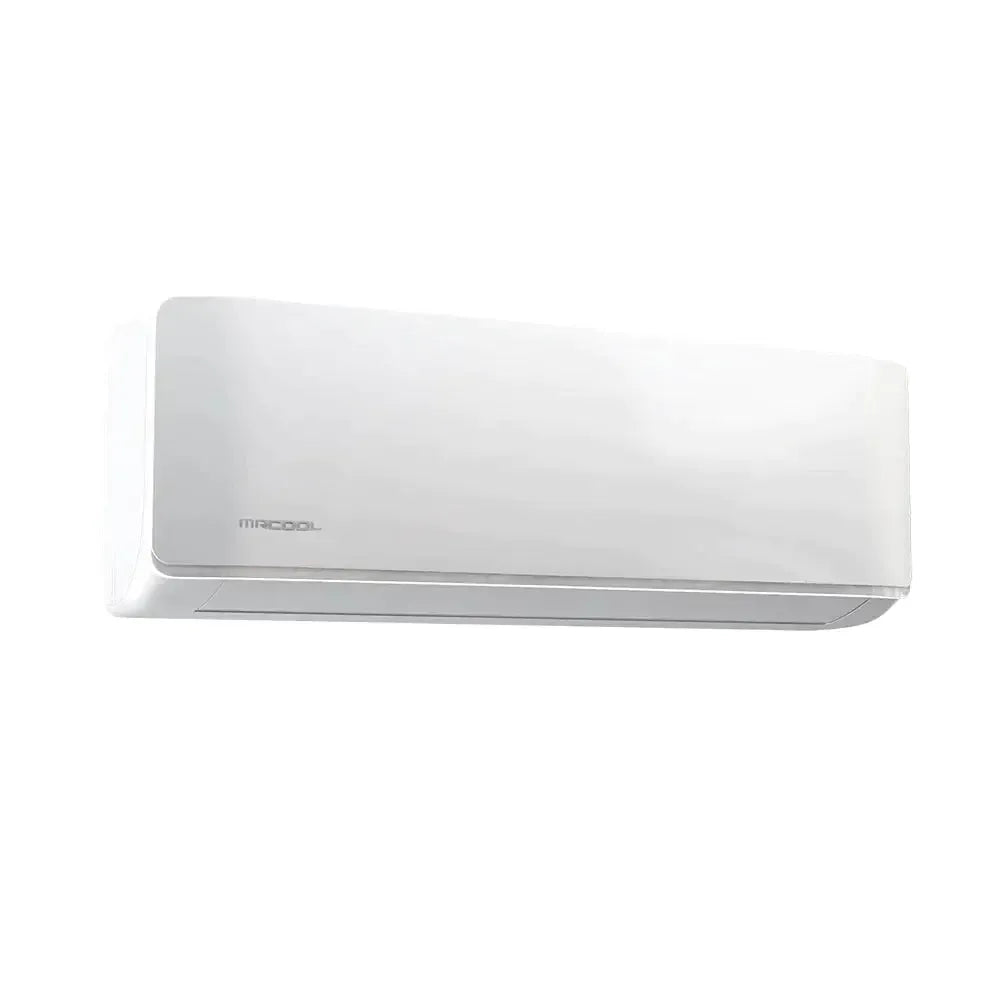

MRCOOL® DIY 4th Generation 24,000 BTU 230 Volt Wall Mount Air Handler with Enhanced WiFi DIY-24-HP-WMAH-230C25

SKU: DIY-24-HP-WMAH-230C25
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source

FREE GIFTS FOR A LIMITED TIME ONLY! Order today and receive the following free with your purchase:

  • Free Shipping ($100 Value)
  • Expedited Processing ($50 Value)
  • Website Discount of $41.20 off the current discounted price (Use Code: FLASH5) ($41.20 Value)
  • Free 5-year Parts Warranty ($125 Value)
  • Free Limited Lifetime Compressor ($200 Value)
  • Free Lifetime Technical Support ($500 Value)
  • Free Universal MRCOOL Remote Control and MRCOOL Smart Wi-Fi Controller ($114.99 Value)

MRCOOL® DIY 4th Generation 24,000 BTU 230 Volt Wall Mount Air Handler with Enhanced WiFi DIY-24-HP-WMAH-230C25

TO CLAIM YOUR FREE GIFT CLICK ADD TO YOUR CART

Total Extra Savings With Us Today = $1,131.19

MRCOOL® DIY 4th Generation 24,000 BTU 230 Volt Wall Mount Air Handler with Enhanced WiFi DIY-24-HP-WMAH-230C25

The MRCOOL® 4th Generation DIY 24K BTU Ductless Wall Mounted Air Handler offers the performance you need to compliment your MRCOOL® DIY system. When connected to a MRCOOL® condenser, this air handler has the ability to reach a 20.5 SEER efficiency rating. It also has the power to deliver air to an area of up to 1,000 sq. ft. To make sure it can handle your needs, it is also equipped with multiple operating modes which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. With the use of the Smart HVAC app, it also has the ability to be operated from your Apple or Android smartphone. With its compact design and easy to use mounting plate, this air handler can be mounted to most interior walls. It is also meant to be used with the MrCool Pre-Charged Quick Connect Line Set to further the ease of installation. This line set is equipped with MrCool’s patented quick connectors, so it can be connected with use of only simple hand tools. It also precharged from the factory with the correct amount of R-410A refrigerant and requires no vacuuming once connected. The MrCool 4th Generation DIY 24 BTU Ductless Wall Mounted Air Handler is equipped with the power and performance to satisfy air conditioning needs of your home.

Key Features

  • SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

Specifications & Dimensions

MODEL DIY-24-HP-WMAH-230C25
COOLING CAPACITY
23000 BTU
HEATING CAPACITY
25000 BTU
VOLTAGE
208-230 V
PHASE 1
CYCLE 60 Hz
MOUNT TYPE
Wall
COLOR White
COLOR FAMILY
White
MAX COVERAGE AREA
Up to 1000 sqft
REFRIGERANT TYPE
R-410A
DECIBEL RATING
48.5/43.5/33
DECIBEL RATING LOW
33 dBA
DECIBEL RATING HIGH
48.5 dBA
INVERTER Yes
MAX LINESET LENGTH
98.42 ft
LIQUID LINE SIZE
3/8 in
SUCTION LINE SIZE
5/8 in
BLOWER MOTOR RPM
1200/1000/700
FAN ONLY OPTION
Yes
QUIET MODE
Yes
AUTO COOL
Yes
WIFI COMPATIBILITY
Yes
APP COMPATIBILITY
Yes
WORKS WITH IOS
Yes
WORKS WITH ANDROID
Yes
REMOTE CONTROL INCLUDED
Yes
ENERGY STAR CERTIFIED
Yes
AHRI CERTIFIED
Yes
REGISTERED WARRANTY
Limited Lifetime Compressor
BASE WARRANTY
5-year Parts/7-year Compressor
BASE PARTS WARRANTY
5-year Parts
REGISTERED COMPRESSOR WARRANTY
Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY
7-year Compressor
HAS BATTERIES
Yes
CONTAINS ELECTRONICS
Yes
CONTAINS CHEMICALS
Yes
CONTAINS AEROSOL
Yes
CONTAINS COMPRESSED GAS
Yes
PROPOSITION 65 WARNING
Yes
RESTRICTED STATES
GU;PR;VI
NET DEPTH
8.90 in
NET HEIGHT
13.19 in
NET WIDTH
42.52 in
NET WEIGHT
35.27 lbs
GROSS DEPTH
19.57 in
GROSS HEIGHT
17.32 in
GROSS WIDTH
49.09 in
GROSS WEIGHT
60.19 lbs
