MRCOOL DIY® 5th Gen E Star 36,000 BTU 18 SEER2 Ductless Mini Split Heat Pump Complete System 208-230V with 25 ft. Pre-Charged Line Set and DIYPRO Cable - DIY-36-HP-WM-230D25-O
The MRCOOL® Series heat pumps is the only ductless mini-split system on the market specifically designed for amateur installation. No special tools or training are necessary to install this high-efficiency, DC Inverter heat pump.
Features:
- Quick Connect: With MRCOOL®'s patented, simple quick connect lines you'll be able to install your MRCOOL® DIY® without needing specialized training or expensive tools. Accurately pre-charged with R-454B refrigerant, and no vacuum required, the MRCOOL® DIY line sets are fully ready to install right out the box!
- Smartphone App: Control your MRCOOL® DIY® anywhere with your Apple or Android smart device and an internet connection.
- DIYPRO® Armored Cable: Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
-
Leakage detection: In the unlikely event the MRCOOL® DIY® detects low coolant, an alarm will sound to alert you to the problem. This will prevent damage to the compressor while you maintain high air comfort.
-
Low ambient cooling: Keep cool in 5° weather - This feature makes the MRCOOL® DIY® the ideal system for server rooms, greenhouses, and any other application that requires cooling all year.
-
Optimized for comfort in all conditions: MRCOOL® DIY® units go beyond seasonal adaptability, delivering tailored comfort even in the most challenging climates. From extreme cold to sweltering heat, their innovative design ensures consistent and efficient operation, allowing you to create the perfect indoor environment regardless of external conditions.
-
Comfort in the cold: The MRCOOL® DIY® can heat even when temperatures drop below freezing, being able to provide warmth even when it's -13° F outside.
- Louver Position Memory: The air handler's horizontal louver will automatically reset to the same position that was set the last time the unit was powered on.
- Corrosion Resistant: Live on the coast? Don't worry, our condenser features Gold Fin® condensers built to resist long term corrosion.
- Digital Assistant Ready: The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- Follow Me® Function: Keep the included remote close by, and MRCOOL DIY® will track the air temperature around you to ensure maximum comfort.
- Auto Restart: Power outage? No worries…the MRCOOL® DIY® auto restart will have the unit running again in no time.
- Sleep mode: We made Sleep Mode easy to program. This saves you money and lets you and your family sleep a little easier.
- Energy Star Certified: Going above and beyond for efficiency while maintaining optimum performance and reliability, the 9K, 12K, 18K, and 24K models are Energy Star Certified.
-
Best warranty in the business: The 5th Gen DIY® units offer an optional Limited Lifetime Compressor Warranty, providing longer lasting protection for your system than any competing brand. See rules and restrictions here.

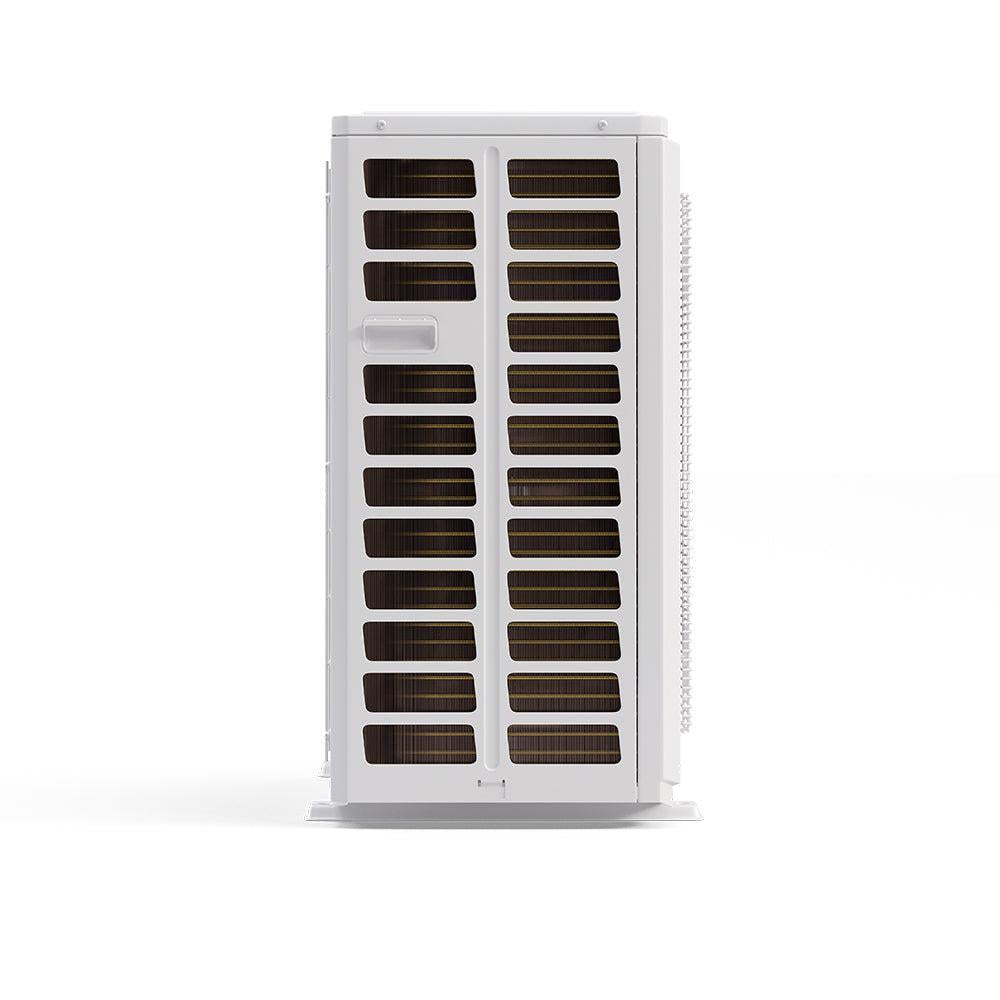

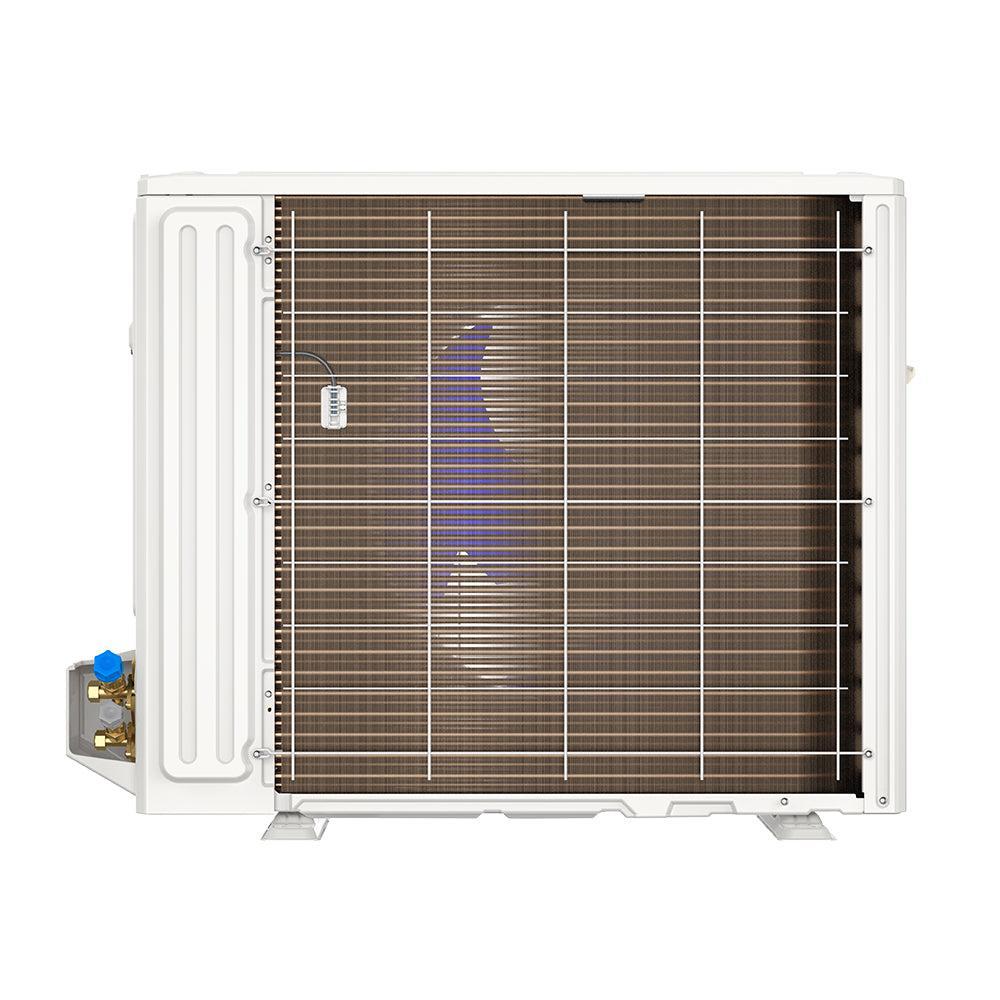

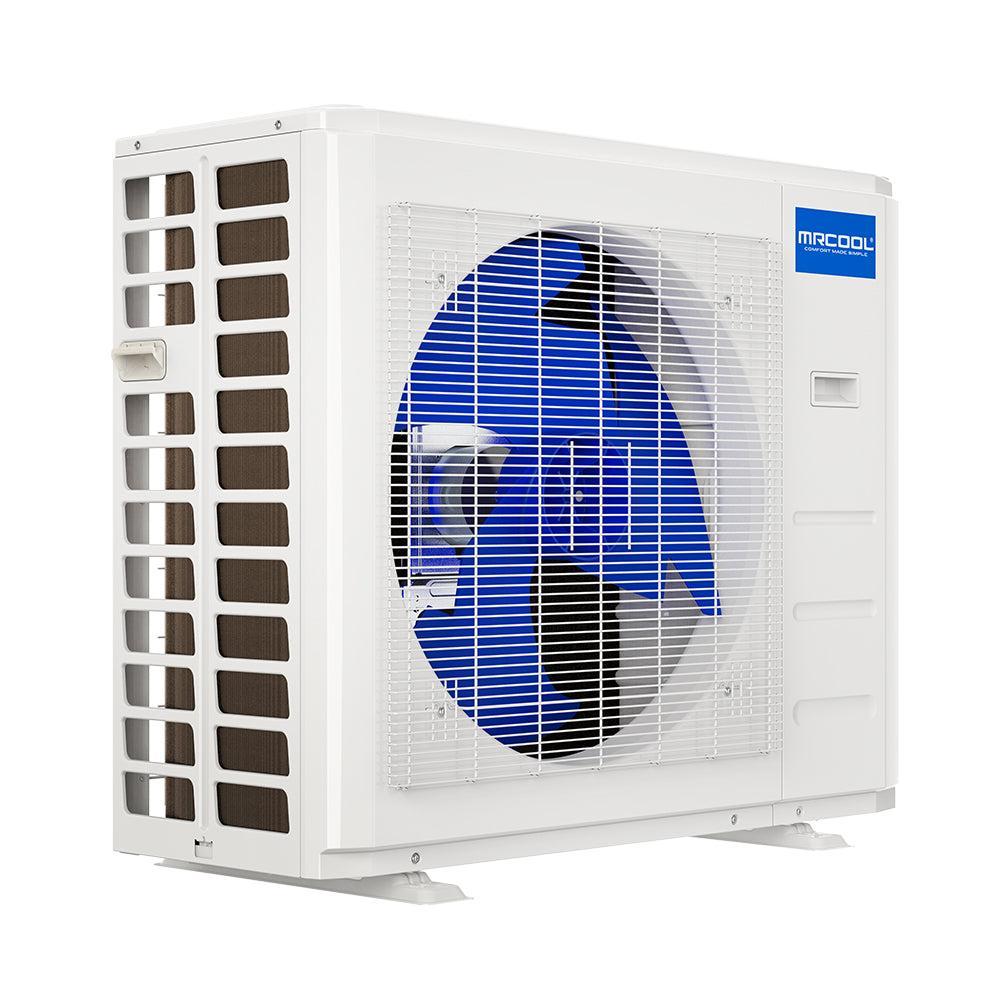

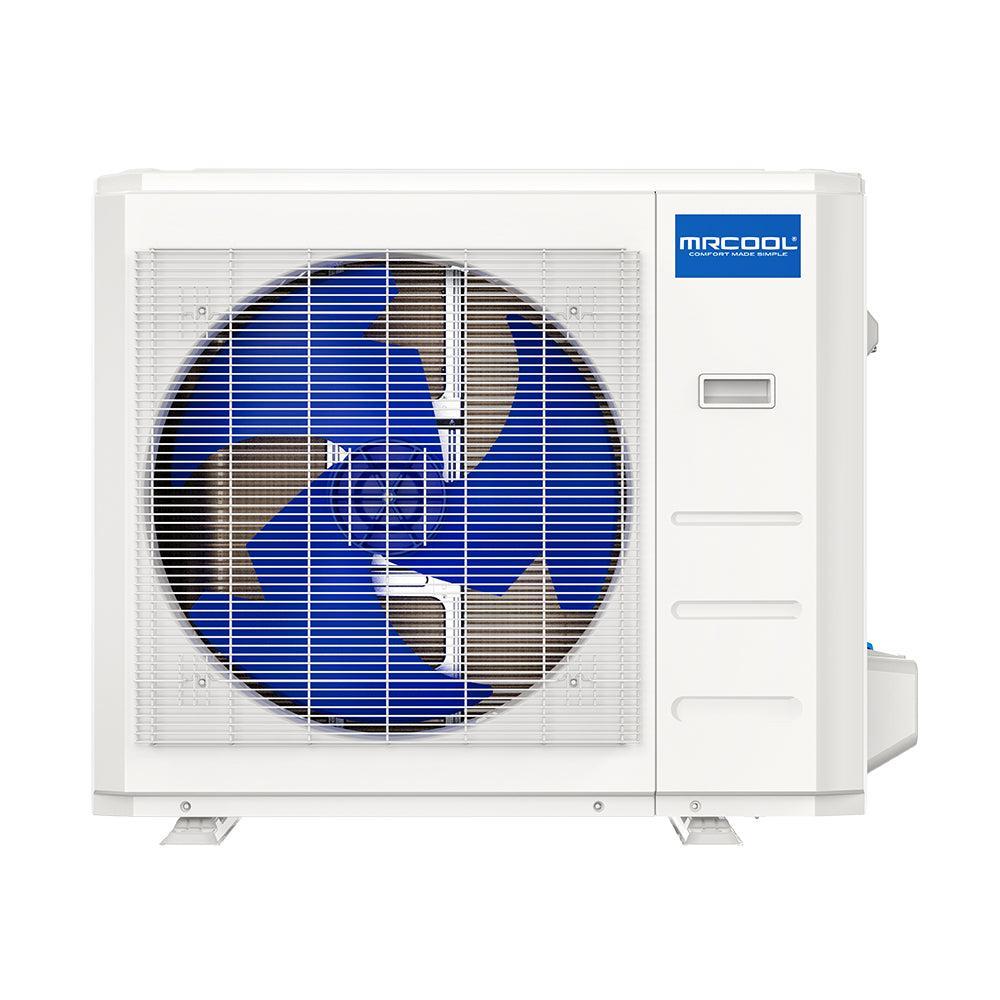

MRCOOL® DIY 36,000 BTU 18 SEER2 DC Inverter Ductless Mini Split Air Conditioner and Heat Pump Condenser - 208/230V - 5th Generation (DIY-36-HP-C-230D25-O)
The 5th Generation MRCOOL® DIY® 36k BTU 18 SEER Ductless Heat Pump Single Zone Mini Split Condenser makes it easy to stay comfortable year-round. Designed for straightforward installation, this system requires no special tools or professional expertise, making it a great choice for spaces between 1,000-1,500 sq. ft. Installation is hassle-free thanks to the pre-charged 25-foot QuickConnect® line set, which comes filled with R-454B refrigerant, eliminating the need for vacuuming. The DIYPRO® cable adds extra durability, replacing traditional electrical conduit to safeguard against weather, animals, and yardwork damage. Multiple control options let you adjust settings with ease. Use the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. If you live near the coast, the Gold Fin Condenser offers excellent corrosion resistance, ensuring long-lasting performance. This system includes features that enhance both comfort and efficiency. The Timer function helps manage energy use, while Auto mode keeps your space at your preferred temperature without manual adjustments. After a power outage, the system automatically restores its previous settings. Plus, the anti-mildew function prevents excess condensation buildup inside the air handler. Designed for reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading limited lifetime warranty, along with a 7-year compressor and 5-year parts warranty. With innovative technology, easy setup, and long-term dependability, this system delivers efficient climate control without the stress.
Features:
- NEEP ccASHP Listed
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

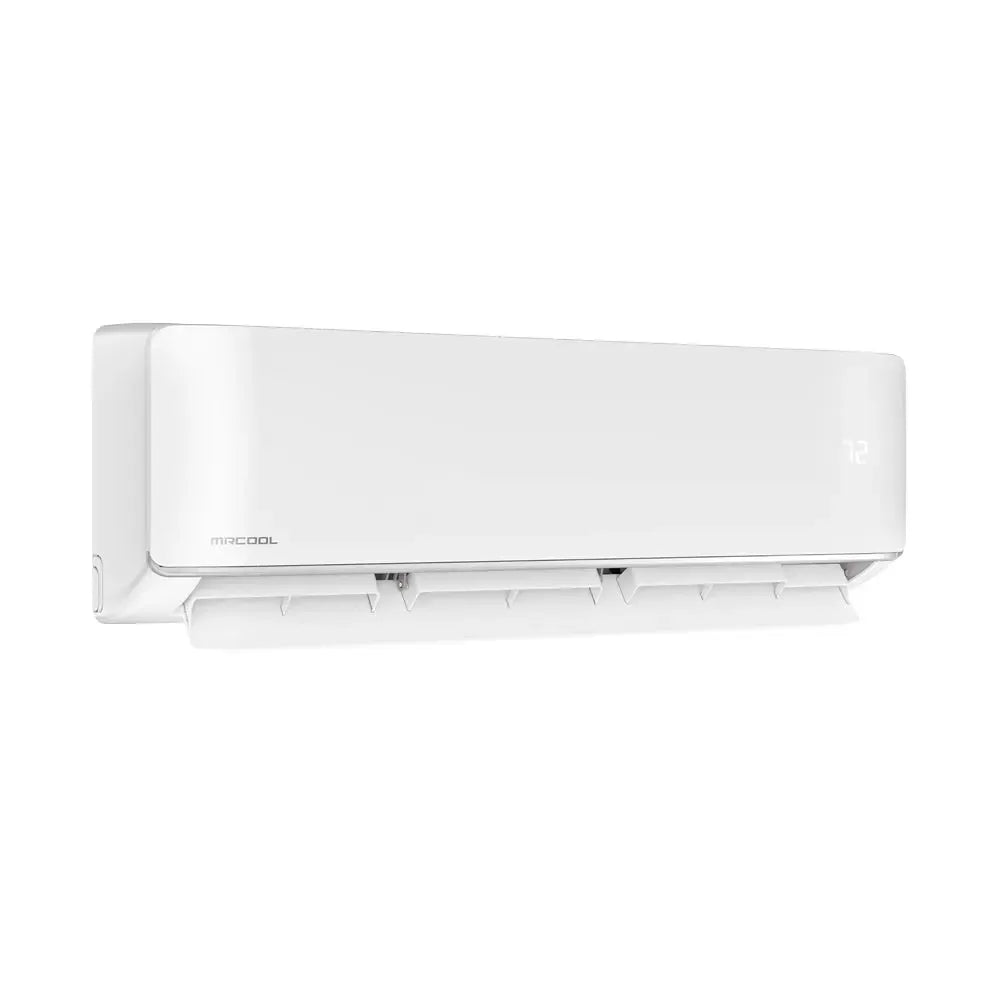

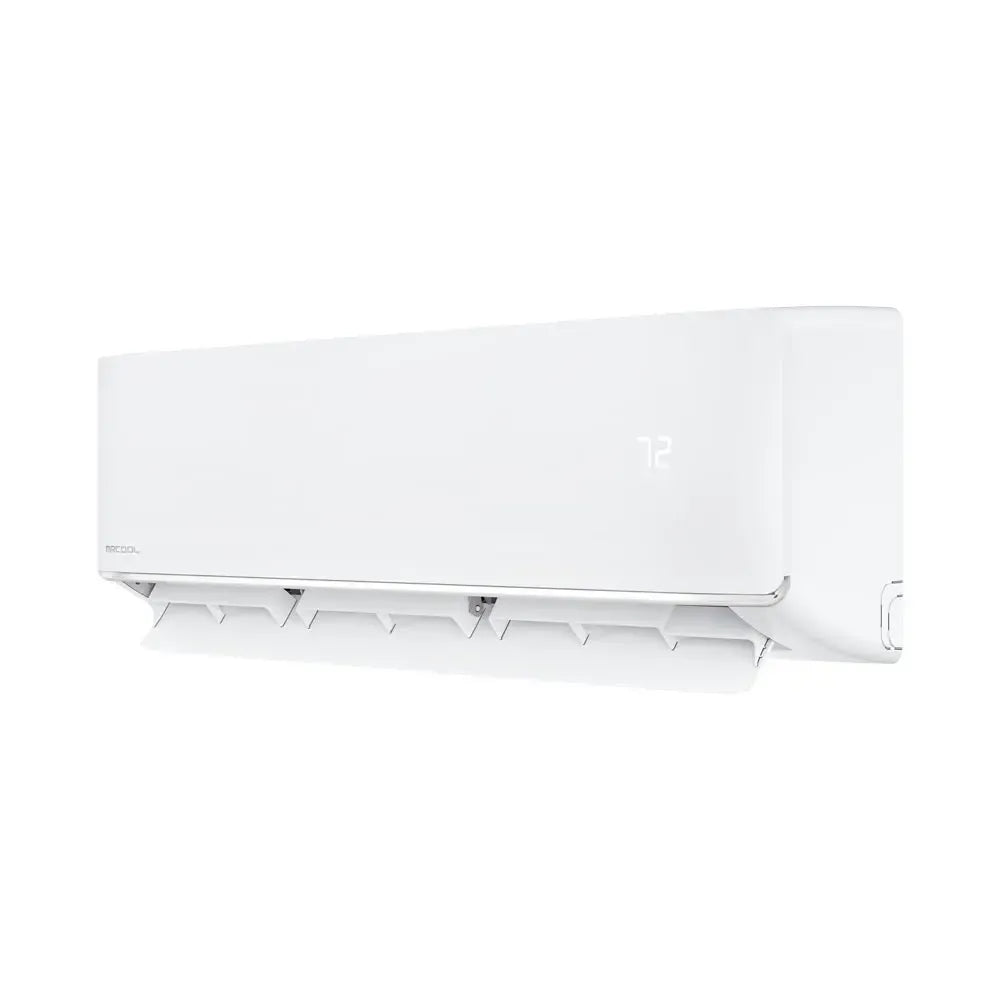

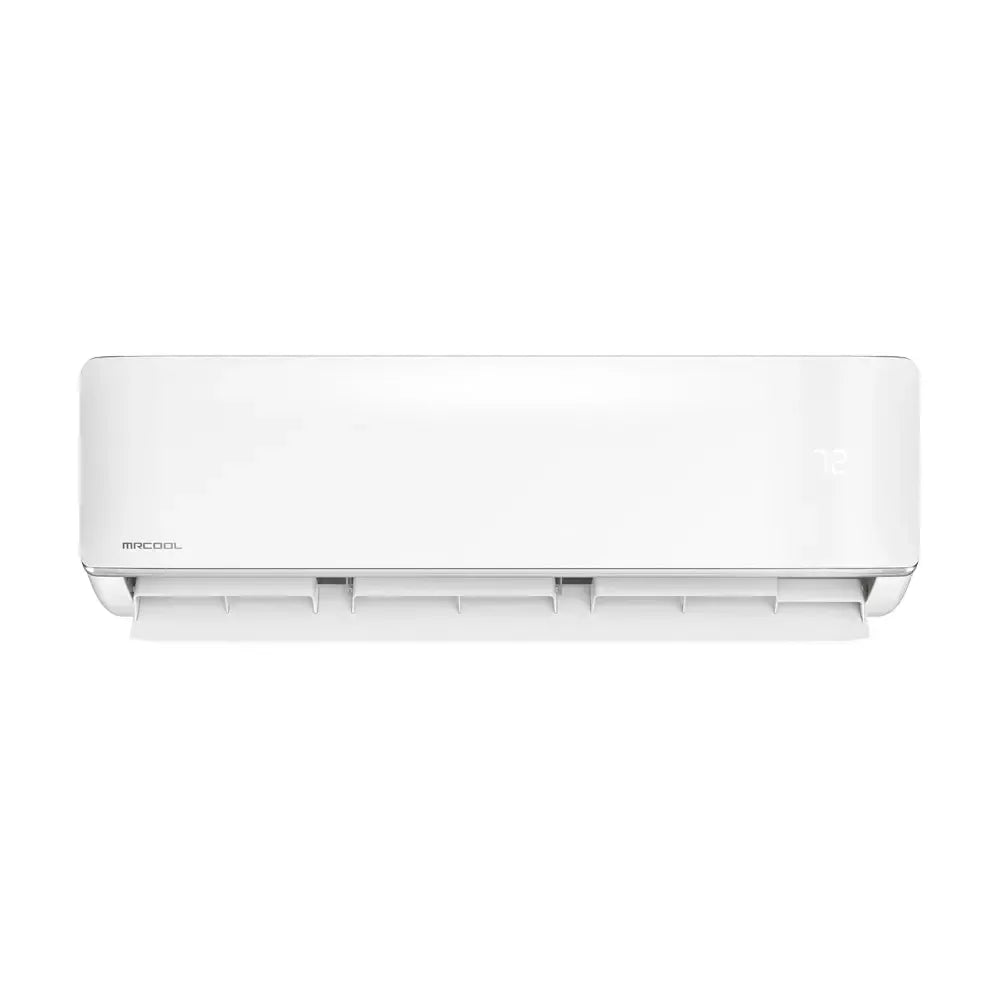

MRCOOL® DIY 36,000 BTU DC Inverter Single Zone Air Handler with Smart HVAC Controller and Wireless Remote Control - 208/230V - 5th Generation (DIY-36-HP-WMAH-230D25-O)
The 5th Generation MRCOOL® DIY® 36K BTU Ductless Mini-Split Heat Pump is an efficient and versatile heating and cooling solution for spaces up to 1550 sq. ft. Designed for true do-it-yourself installation, it requires no special tools or professional help, making setup quick, straightforward, and cost-effective. A key feature of this system is the pre-charged 25-foot DIY® QuickConnect® line set, arriving to you already filled with R-454B refrigerant. This eliminates the need for vacuuming, reducing both installation time and expense. The included DIYPRO® cable further simplifies setup by removing the need for electrical conduit while enhancing durability against outdoor elements and wildlife. You can easily control the system using the included wireless remote, the SmartHVAC app on Apple and Android devices, or voice commands through Amazon Alexa and Google Assistant. For enhanced comfort, the Follow Me function ensures even temperature distribution by adjusting airflow based on the remote’s location. Dry Mode helps maintain a pleasant indoor environment by reducing excess humidity. Built for longevity, the Gold Fin® Condenser resists corrosion, making it ideal for coastal areas. This system is backed by a robust warranty package, including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty. Experience effortless installation, smart features, and reliable year-round comfort with MRCOOL® DIY®.
Features:
- NEEP ccASHP Listed
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Warranty:
- The unit comes standard with a 5 year parts and 7 year compressor warranty. This system can qualify for the Extended Limited Lifetime Replacement Warranty only if enrolled in the MRCOOL® Care Kit Program, which has a fee to be covered by the system owner, and certain conditions/ requirements are met. See warranty details here.

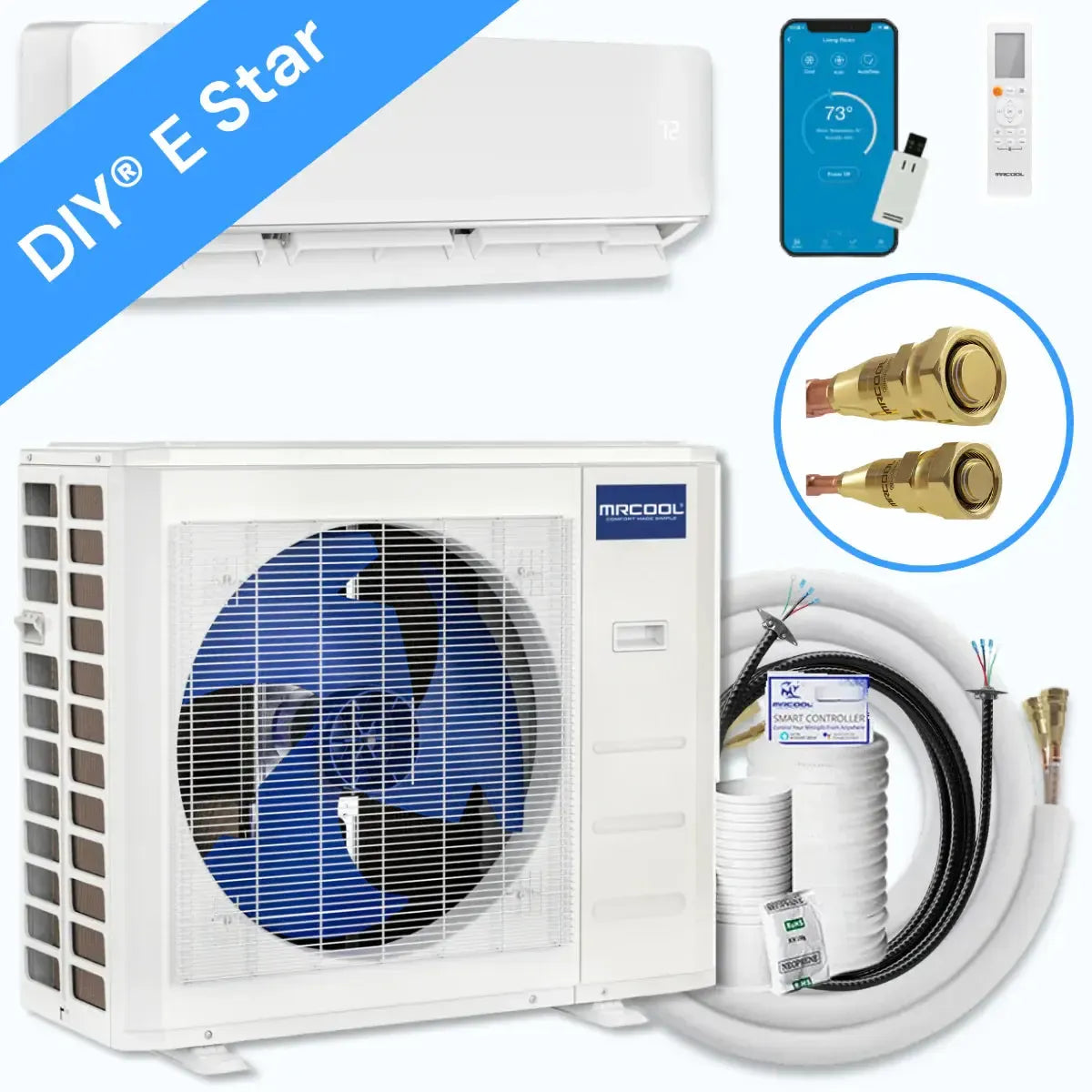

What's Included:
- 1x MRCOOL® DIY 36,000 BTU 18 SEER2 DC Inverter Ductless Mini Split Air Conditioner and Heat Pump Condenser - 208/230V - 5th Generation (DIY-36-HP-C-230D25-O)
- 1x MRCOOL® DIY 36,000 BTU DC Inverter Single Zone Air Handler with Smart HVAC Controller and Wireless Remote Control - 208/230V - 5th Generation (DIY-36-HP-WMAH-230D25-O)
- 1x Free Condenser Wall Mounting Bracket ($119.99 Value)

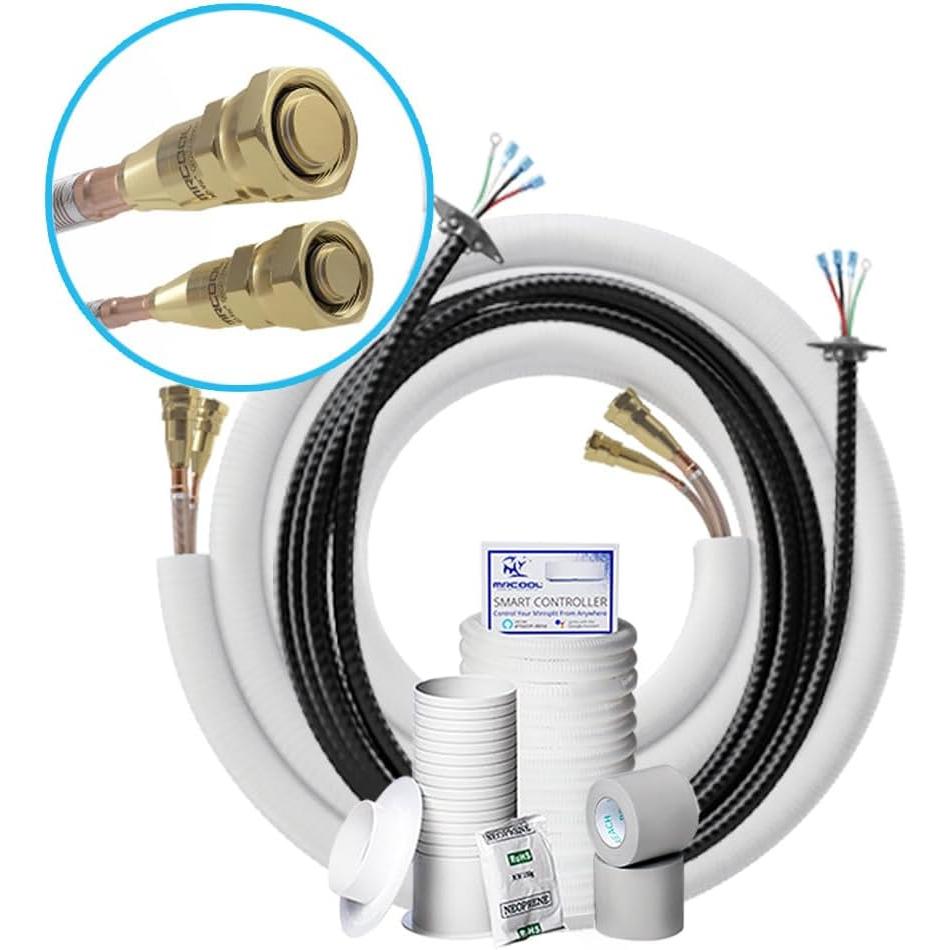

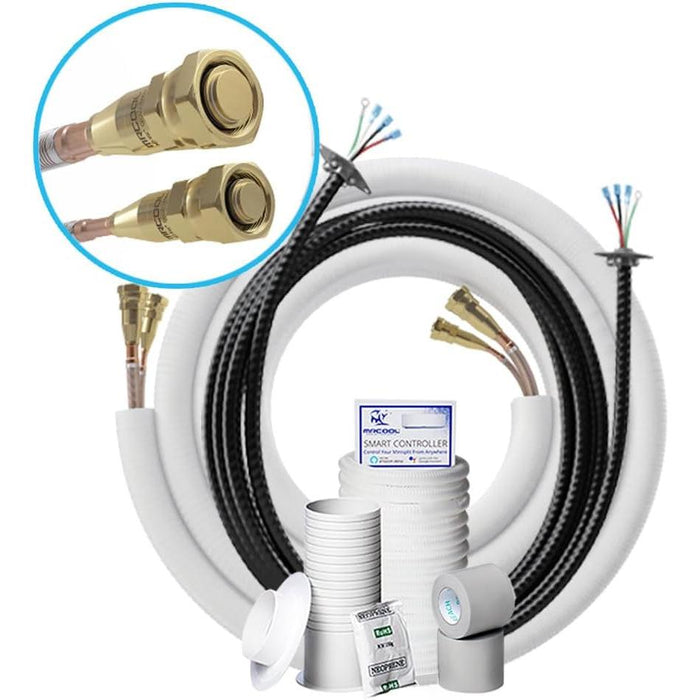

- 1x MRCOOL® 25 ft Pre-Charged Quick Connect Refrigerant Line Set
- 1x MRCOOL® 25 ft DIYPro Cable (Communication Wire)

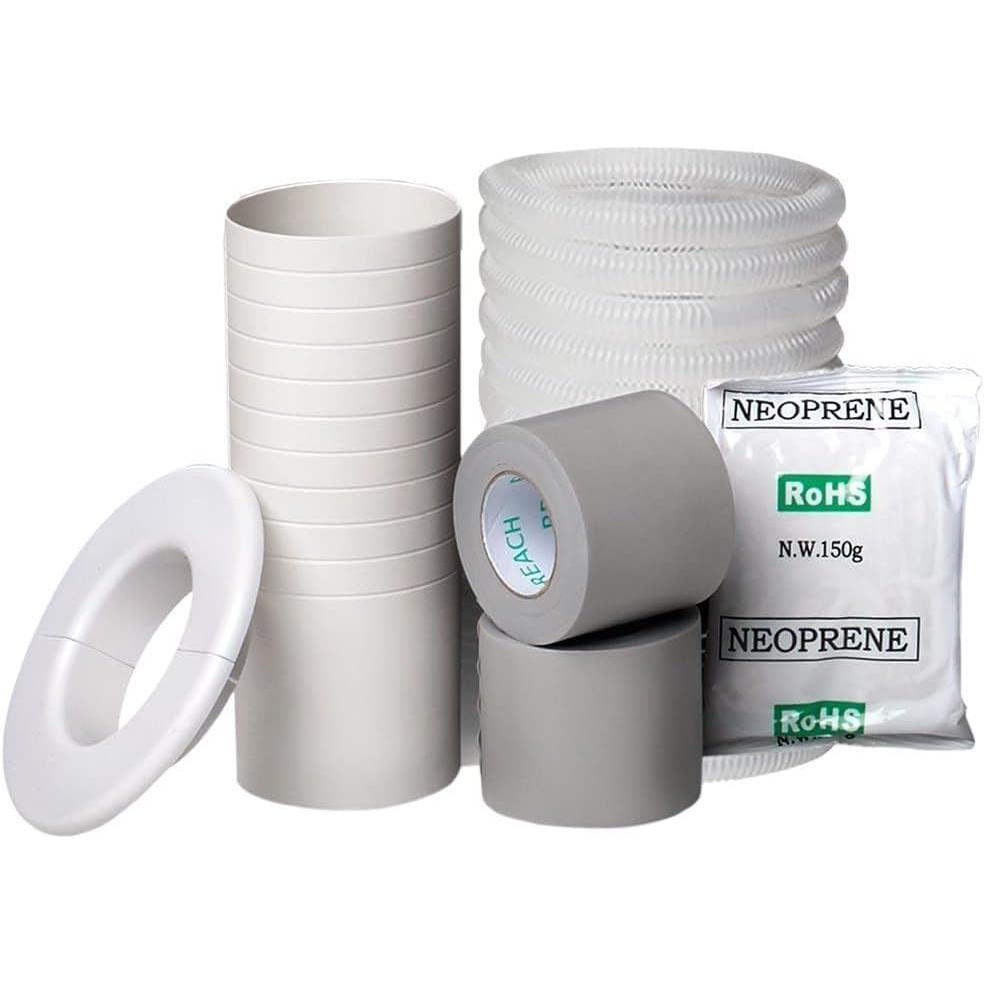

- 1x MRCOOL® DIY Mini Split Installation Kit (Includes: Mounting Plate & Template, Condensate Hose, Anchor, Mounting Plate Fixing Screws, Small Filter, Allen Wrench, Non-Adhesive Tape, Insulation Sleeves, Sound Absorbent Pads, Seal, Drain Joint, Plastic Wall Sleeve & Cap, Neoprene)
- 1x Smart HVAC Controller (Wi-fi Adapter)

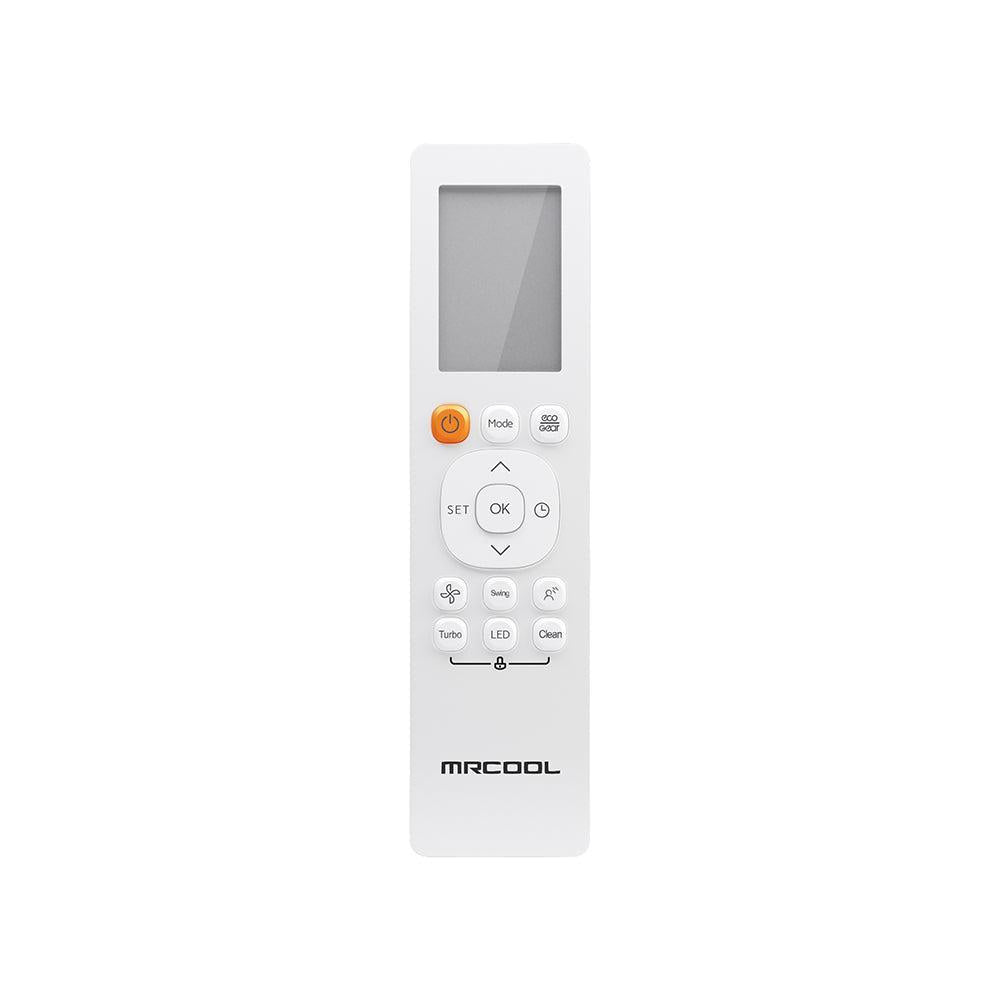

- 1x MRCOOL® Wireless Remote Control with batteries and remote control holder
Condenser Specifications:
|
BRAND
|
MRCOOL®
|
|
SERIES
|
DIY 5th gen Single-Zone Mini-splits |
|
MODEL
|
DIY-36-HP-C-230D25-O |
|
GTIN
|
00840255586986
|
|
UPC
|
840255586986
|
|
SEER2
|
18
|
|
EER2
|
8.5 |
|
HSPF2-4 |
8.5 |
|
HSPF2-5 |
6.5
|
|
TONNAGE
|
3
|
|
COOLING CAPACITY (BTU) |
36000
|
|
HEATING CAPACITY (BTU) |
36000
|
|
VOLTAGE (V) |
208/230 |
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A) |
35
|
|
MIN CIRCUIT AMPACITY (A) |
33
|
|
COLOR
|
White
|
|
ZONE CAPACITY
|
1
|
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
109.7
|
|
DECIBEL RATING (DBA) |
60.5
|
|
INVERTER
|
DC
|
|
LINE SET LENGTH
|
25 ft
|
|
MAX LINESET LENGTH (FT) |
213.2
|
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
COMPRESSOR MOTOR TYPE
|
Rotary
|
|
AUXILIARY HEATER INCLUDED |
No
|
|
AUXILIARY HEATER AVAILABLE |
No
|
|
FAN ONLY OPTION |
Yes
|
|
QUIET MODE |
Yes
|
|
AUTO COOL |
Yes
|
|
WIFI COMPATIBILITY |
Yes
|
|
APP COMPATIBILITY |
Yes
|
|
WORKS WITH IOS |
Yes
|
|
WORKS WITH ANDROID |
Yes
|
|
UL LISTED |
Yes
|
|
ETL LISTED |
Yes
|
|
AHRI CERTIFIED |
Yes
|
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
5 years
|
|
BASE COMPRESSOR WARRANTY |
7 years
|
|
HAS BATTERIES |
Yes
|
|
CONTAINS ELECTRONICS |
Yes
|
|
CONTAINS CHEMICALS |
Yes
|
|
CONTAINS AEROSOL |
Yes
|
|
CONTAINS COMPRESSED GAS |
Yes
|
|
PROPOSITION 65 WARNING |
Yes
|
|
NET DEPTH (IN) |
16.14
|
|
NET HEIGHT (IN) |
31.89
|
|
NET WIDTH (IN) |
37.24
|
|
NET WEIGHT (LBS) |
152.12
|
|
GROSS DEPTH (IN) |
19.88
|
|
GROSS HEIGHT (IN) |
37.01
|
|
GROSS WIDTH (IN) |
42.91
|
|
GROSS WEIGHT (LBS) |
183.42
|
|
RESOURCES
|
Air Handler Specifications:
|
BRAND
|
MRCOOL®
|
|
SERIES
|
DIY 5th gen Single-Zone Mini-splits |
|
MODEL
|
DIY-36-HP-WMAH-230D25-O |
|
GTIN
|
00840255587068
|
|
UPC
|
840255587068
|
|
TONNAGE
|
3
|
|
VOLTAGE (V) |
208/230 |
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A) |
15
|
|
MIN CIRCUIT AMPACITY (A) |
3
|
|
MOUNT TYPE |
Wall
|
|
COLOR
|
White
|
|
MAX COVERAGE AREA |
1550 sqft |
|
DECIBEL RATING LOW (DBA) |
27.5
|
|
DECIBEL RATING HIGH (DBA) |
55.5 |
|
NUMBER OF SPEEDS |
5
|
|
OSCILLATION
|
Yes
|
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
FILTER TYPE |
Reusable
|
|
AUXILIARY HEATER INCLUDED |
No
|
|
AUXILIARY HEATER AVAILABLE |
No
|
|
FAN ONLY OPTION |
Yes
|
|
QUIET MODE |
Yes
|
|
AUTO COOL |
Yes
|
|
WIFI COMPATIBILITY |
Yes
|
|
APP COMPATIBILITY |
Yes
|
|
WORKS WITH IOS |
Yes
|
|
WORKS WITH ANDROID |
Yes
|
|
REMOTE CONTROL INCLUDED |
Yes
|
|
UL LISTED |
Yes
|
|
ETL LISTED |
Yes
|
|
AHRI CERTIFIED |
Yes
|
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
5 years
|
|
BASE COMPRESSOR WARRANTY |
7 years
|
|
HAS BATTERIES |
Yes
|
|
CONTAINS ELECTRONICS |
Yes
|
|
CONTAINS CHEMICALS |
Yes
|
|
CONTAINS AEROSOL |
Yes
|
|
CONTAINS COMPRESSED GAS |
Yes
|
|
PROPOSITION 65 WARNING |
Yes
|
|
NET DEPTH (IN) |
11.1 |
|
NET HEIGHT (IN) |
14.25
|
|
NET WIDTH (IN) |
49.57
|
|
NET WEIGHT (LBS) |
48.72
|
|
GROSS DEPTH (IN) |
18.74
|
|
GROSS HEIGHT (IN) |
16.57
|
|
GROSS WIDTH (IN) |
53.94
|
|
GROSS WEIGHT (LBS) |
67.9
|
|
RESOURCES
|
