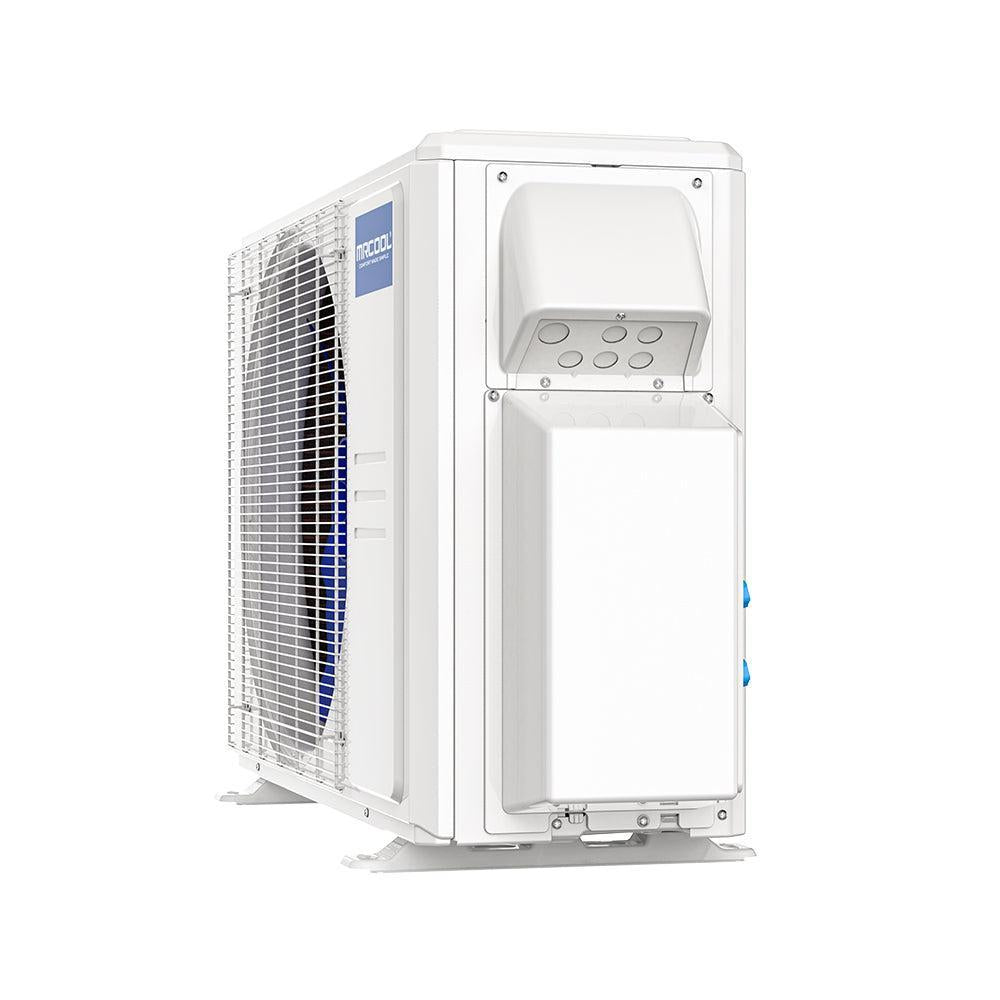

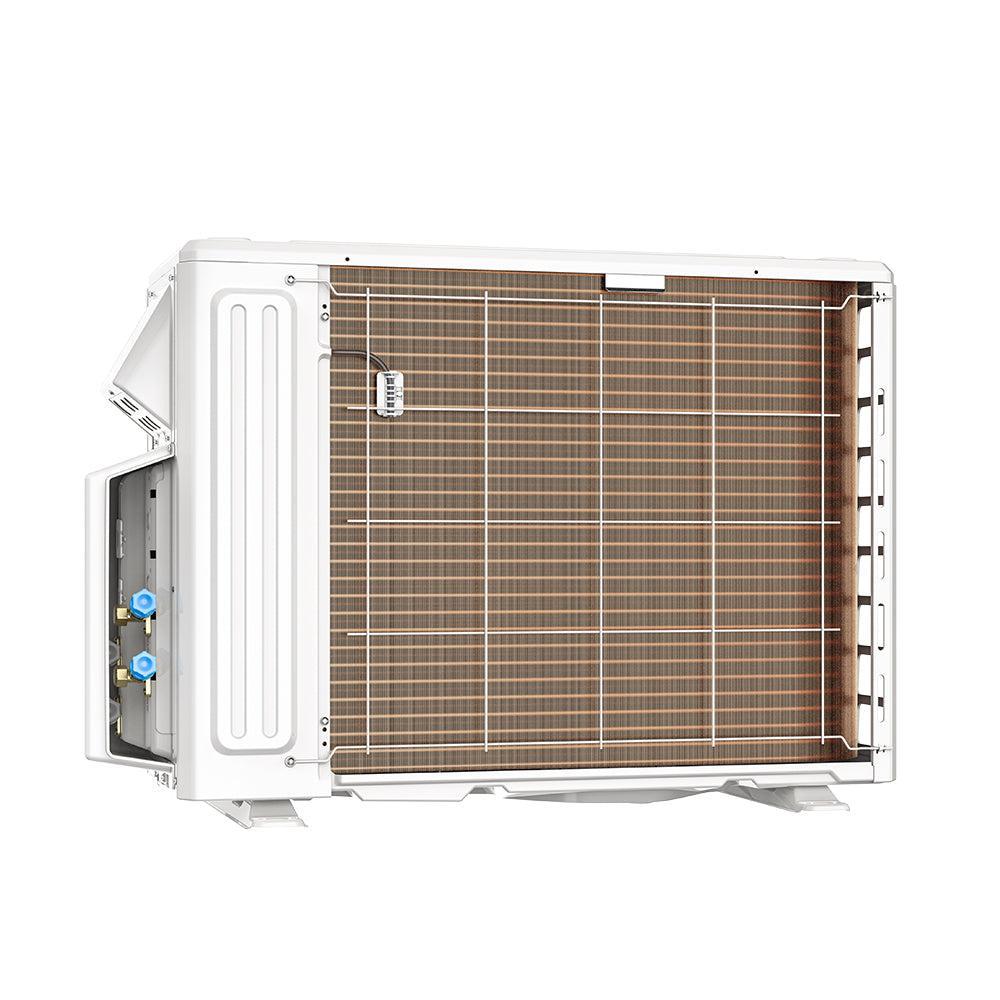

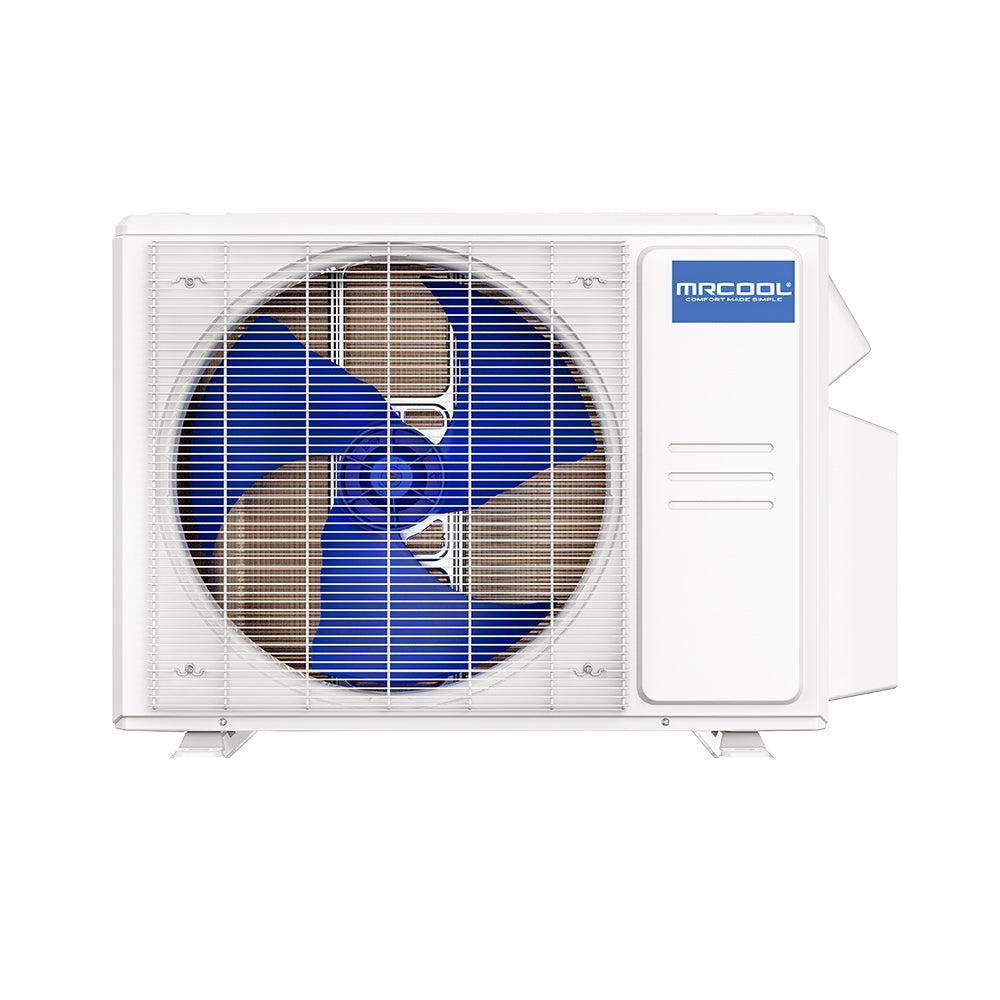

MRCOOL DIY 4th Gen 18K BTU, 2-Zone, 21 SEER, Ductless Heat Pump Condenser (DIY-MULTI2-18HP230C)

SKU: DIY-MULTI2-18HP230C
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source

MRCOOL DIY 4th Gen 18K BTU, 2-Zone, 21 SEER, Ductless Heat Pump Condenser (DIY-MULTI2-18HP230C)

The 4th Generation MRCOOL® DIY 18K BTU 2-Zone Ductless Heat Pump Condenser is the latest in heat pump technology. This 2-zone condenser, when paired with select MrCool air handlers, is capable of producing an impressive 21 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13°F. It features robust construction which includes a Gold Fin Condenser coating so it is sure to withstand exposure to the elements. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. As a MrCool DIY product, this heat pump is designed specifically to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with the precise amount of R-410A refrigerant. They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches. This means the installation process can be performed without retaining the services of a certified technician. Let the 4th Generation MrCool DIY 18K BTU 2-Zone Ductless Heat Pump Condenser be the solution to your home’s heating and cooling needs.

Key Features

  • Up to 21 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion
  • Energy-Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Line sizes 1/4”, 1/2” & 3/8”, 5/8”
  • Multi-Zone Condenser includes adapter for the 24K Air Handler (3/8", 5/8" Line Size) - see liquid line and suction line size columns

Specifications & Dimensions

MODEL DIY-MULTI2-18HP230C
SEER 21
EER 12.5
HSPF hspf4/hspf5 : 10.6/8.6
CFM 1764.71
COOLING CAPACITY
18000 BTU
HEATING CAPACITY
19000 BTU
VOLTAGE
208-230 V
PHASE 1
CYCLE 60 Hz
MAX FUSE BREAKER
25 A
MIN CIRCUIT AMPACITY
18 A
COLOR White
COLOR FAMILY
White
ZONE CAPACITY
2
REFRIGERANT TYPE
R-410A
REFRIGERANT VOLUME
65.26 oz
DECIBEL RATING
59 dBA
INVERTER Yes
MIN AMBIENT COOL
5F ~ 122F
MIN AMBIENT HEAT
-13F ~ 75.2F
MAX LINESET LENGTH
123 ft TOTAL
LIQUID LINE SIZE
1/4in
SUCTION LINE SIZE
1/2in
COMPRESSOR MOTOR TYPE
Twin - Rotary
CONDENSER FAN MOTOR RPM
750/600/500
WIFI COMPATIBILITY
Yes
APP COMPATIBILITY
Yes
WORKS WITH IOS
Yes
WORKS WITH ANDROID
Yes
REGISTERED WARRANTY
Limited Lifetime Compressor
BASE WARRANTY
5-year Parts/7-year Compressor
BASE PARTS WARRANTY
5-year Parts
REGISTERED COMPRESSOR WARRANTY
Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY
7-year Compressor
CONTAINS ELECTRONICS
Yes
CONTAINS CHEMICALS
Yes
CONTAINS AEROSOL
Yes
CONTAINS COMPRESSED GAS
Yes
PROPOSITION 65 WARNING
Yes
NET DEPTH
13.46 in
NET HEIGHT
26.50 in
NET WIDTH
35.04 in
NET WEIGHT
100.53 lbs
GROSS DEPTH
17.64 in
GROSS HEIGHT
29.33 in
GROSS WIDTH
40.94 in
GROSS WEIGHT
111.11 lbs
