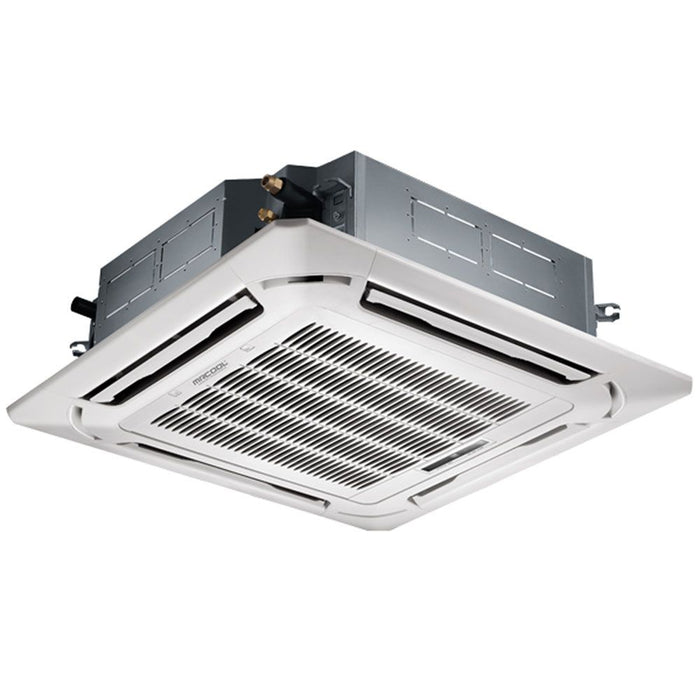

MRCOOL® Olympus 24,000 BTU 2 Ton Ductless Mini-Split Ceiling Cassette Air Handler with Panel - 230V/60HZ

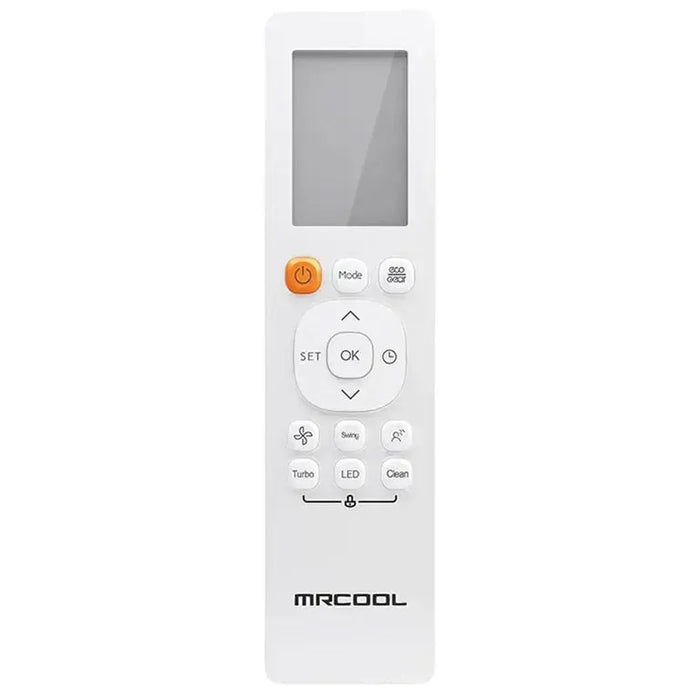

If you want pinpoint temperature control with no boxy components in sight, try the Olympus 24K BTU Ductless Ceiling Cassette Air Handler from MRCOOL. This is not your old school system where there's a draft under the vent and it's hot everywhere else. With this unit, you can use your remote control to program the direction of the airflow, and deliver your chosen temperature at your exact location in the room thanks to the Follow-Me feature. Want more? Try features like Auto Swing and Louver Position Memory.
Features:
- Ideal for spaces up to 2,000 square feet
- Near silent operation, with noise levels as low as 40.5 DBA you can watch TV or nap in peace!
- Fresh Air Intake - The MRCOOL Olympus cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.
- Built-in drain pump
- Energy Star Certified, AHRI Certified, UL Listed, and ETL Listed
- 5 Year Parts Warranty
Specifications:
| BRAND | MRCOOL® |
| SERIES | Olympus Multi |
| MODEL | CASSETTE24HP-230B-P |
| UNIT TYPE | AIR HANDLER |
| CFM | 683.93/613.30/540.32 |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) |
24000 |
| HEATING CAPACITY (BTU) |
25000 |
| VOLTAGE (V) |
208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) |
15 |
| MIN CIRCUIT AMPACITY (A) |
2.5 |
| MOUNT TYPE |
Ceiling |
| COLOR | White |
| COLOR FAMILY |
White |
| MAX COVERAGE AREA |
2000 |
| ZONE CAPACITY |
1 |
| REFRIGERANT TYPE |
R-410A |
| DECIBEL RATING (DBA) |
48.5/46.5/40.5 |
| DECIBEL RATING LOW (DBA) |
40.5 |
| DECIBEL RATING HIGH (DBA) |
58.5 |
| AIR FLOW DIRECTION |
Downflow |
| NUMBER OF SPEEDS |
4 (Variable) |
| OSCILLATION | No |
| INVERTER | Yes |
| LIQUID LINE FITTING |
1/2 |
| LIQUID LINE SIZE |
3/8 |
| SUCTION LINE FITTING |
3/4 |
| SUCTION LINE SIZE |
5/8 |
| CONTROL TYPE |
LED |
| BLOWER MOTOR RPM |
600/520/450 |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
No |
| LOW VOLTAGE COMPENSATION |
No |
| OVERLOAD PROTECTION |
Yes |
| ADJUSTABLE THERMOSTAT |
Yes |
| FAN ONLY OPTION |
Yes |
| QUIET MODE |
Yes |
| SLEEP MODE |
No |
| AUTO COOL |
Yes |
| WIFI COMPATIBILITY |
No |
| APP COMPATIBILITY |
No |
| WORKS WITH IOS |
No |
| WORKS WITH ANDROID |
No |
| REMOTE CONTROL INCLUDED |
Yes |
| UL LISTED |
Yes |
| CSA LISTED |
No |
| ETL LISTED |
Yes |
| ENERGY STAR COMPLIANT |
Yes |
| ENERGY STAR CERTIFIED |
Yes |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
5-year Parts/7-year Compressor/1-year Remote |
| BASE WARRANTY |
None |
| REGISTERED PARTS WARRANTY |
5-year |
| BASE PARTS WARRANTY |
None |
| REGISTERED COMPRESSOR WARRANTY |
7-year |
| BASE COMPRESSOR WARRANTY |
None |
| REGISTERED REMOTE WARRANTY |
1-year |
| BASE REMOTE WARRANTY |
None |
| REGISTERED LABOR WARRANTY |
None |
| BASE LABOR WARRANTY |
None |
| HAS BATTERIES |
Yes |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
| PROPOSITION 65 WARNING |
Yes |
| RESTRICTED STATES |
GU PR;VI |
| NET DEPTH (IN) |
32.68 |
| NET HEIGHT (IN) |
8.07 |
| NET WIDTH (IN) |
32.68 |
| NET WEIGHT (LBS) |
47.18 |
| GROSS DEPTH (IN) |
35.83 |
| GROSS HEIGHT (IN) |
9.84 |
| GROSS WIDTH (IN) |
35.83 |
| GROSS WEIGHT (LBS) |
55 |
| FREIGHT CLASS |
92.5 |
