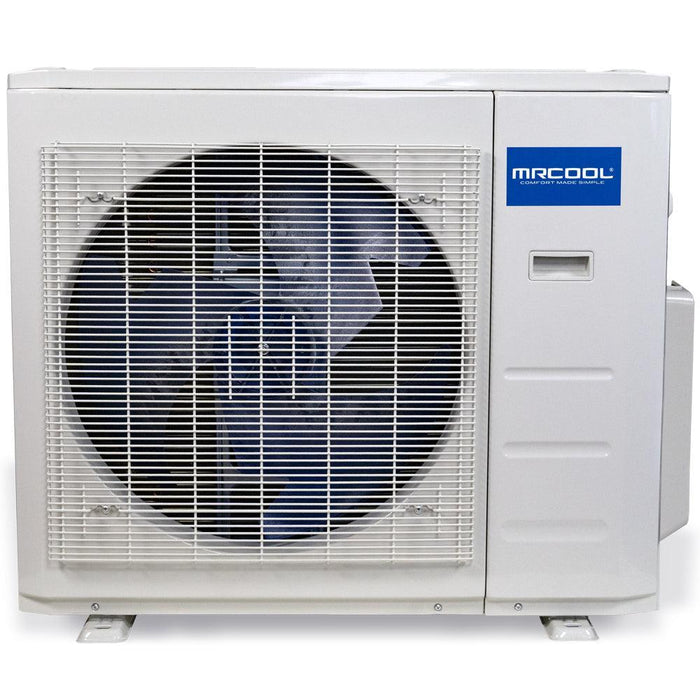

MRCOOL® Olympus Energy Star 36,000 BTU 4 Zone 3 Ton 23 SEER Ductless Mini Split Air Conditioner and Heat Pump Condenser (MULTI4-36HP230V1)
NOTE: This item is the Condenser only. Browse our complete Mini Split systems here.
If you’re looking for affordability and efficiency, you’ll find just that with the MRCOOL® Olympus 36k Ductless Mini-Split Condenser. This Energy-Star certified condenser features a 23 SEER and 11.3 HSPF. Simply match this unit with an Olympus ceiling cassette or wall-mounted air handler and experience exceptional heating and cooling performance, while remaining eco-friendly with R-410A refrigerant. Once installed by a licensed professional and registered online, you can have peace of mind thanks to the 7-year compressor warranty, 5-year parts warranty, and 1-year remote warranty.
Key Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
Specifications & Dimensions
| MODEL | MULTI4-36HP230V1 |
| COVERAGE AREA | 1,500 - 1,800 Sq Ft |
| SEER | Up To 23 |
| SEER2 | 23.9 |
| EER | Up To 11.5 |
| EER2 | 11.7 |
| HSPF | hspf4/hspf5: 11.3/9.2 |
| HSPF2 | hspf2-4/hspf2-5: 9.3/7.1 |
|
COOLING CAPACITY |
36000 BTU |
|
HEATING CAPACITY |
37000 BTU |
|
VOLTAGE |
208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
|
MAX FUSE BREAKER |
40 A |
|
MIN CIRCUIT AMPACITY |
25 A |
|
ZONE CAPACITY |
4 |
| REFRIGERANT TYPE |
R410A |
| REFRIGERANT VOLUME |
134.04 oz |
|
DECIBEL RATING |
63 dBA |
|
LIQUID LINE SIZE |
1/4in |
| SUCTION LINE SIZE |
3/8in & 1/2in |
|
COMPRESSOR MOTOR TYPE |
ROTARY |
|
CONDENSER FAN MOTOR RPM |
1000/900/750 |
| OVERLOAD PROTECTION |
Yes |
| ENERGY STAR COMPLIANT |
Yes |
| ENERGY STAR CERTIFIED |
Yes |
| AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
5-year Parts/7-year Compressor/1-year Remote |
| REGISTERED PARTS WARRANTY |
5-year |
|
REGISTERED COMPRESSOR WARRANTY |
7-year |
| REGISTERED REMOTE WARRANTY |
1-year |
| HAS BATTERIES |
Yes |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
|
RESTRICTED STATES |
GU, PR, VI |
|
NET DEPTH |
16.14 in |
|
NET HEIGHT |
31.89 in |
|
NET WIDTH |
37.24 in |
|
NET WEIGHT |
169.09 lbs |
|
GROSS DEPTH |
19.69 in |
|
GROSS HEIGHT |
34.84 in |
|
GROSS WIDTH |
42.91 in |
|
GROSS WEIGHT |
181.44 lbs |
