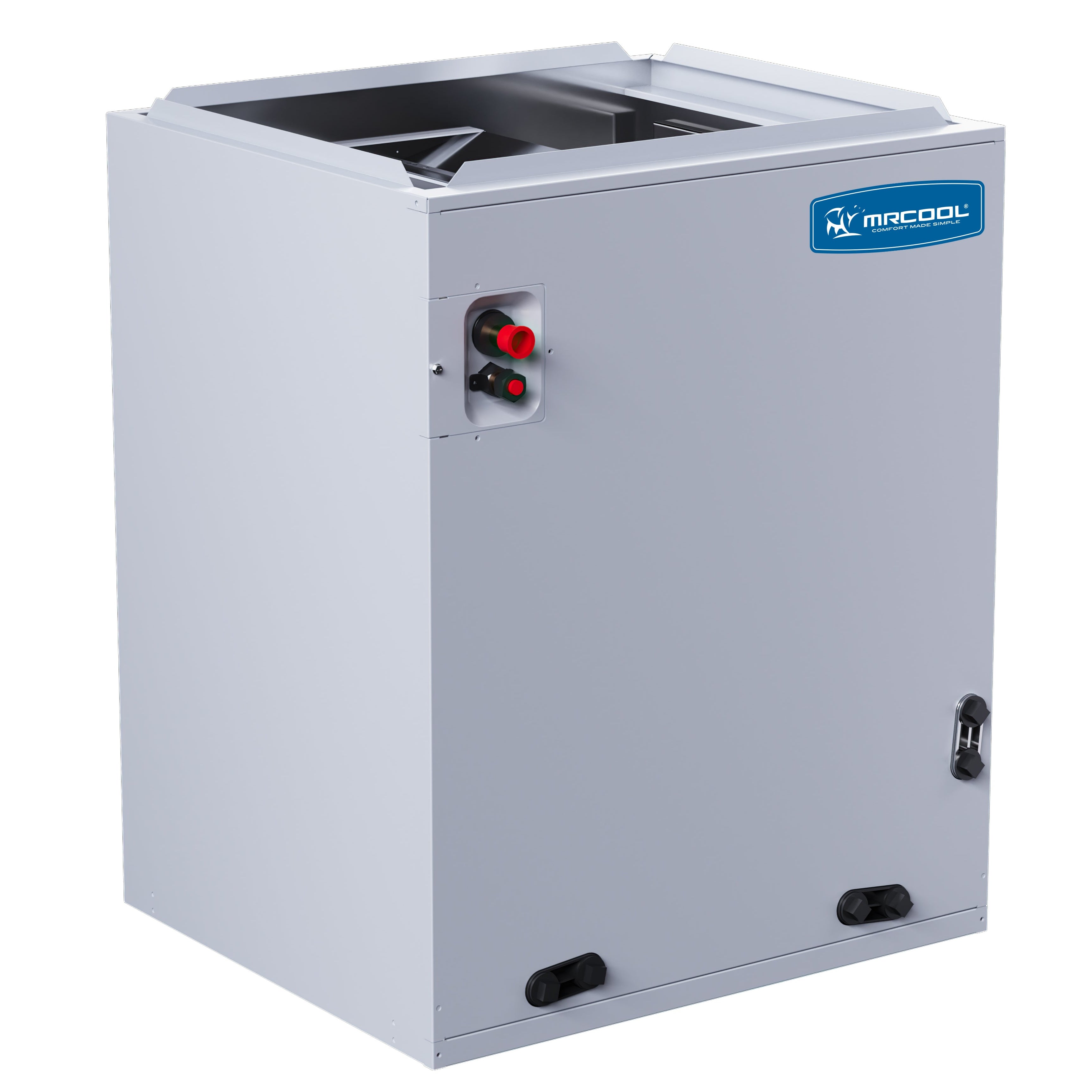

MRCOOL® ProDirect 3.5 - 4 Ton Cased A Coil - 21 in (HCMP4248CFOA)
The PRODIRECT™ Series A Coil is the ultimate solution for maximizing the performance and efficiency. Built for compatibility with both R410A and R22 refrigerants, this coil seamlessly integrates into PRODIRECT™ systems. It features a robust heat exchanger with advanced aluminum fins and internally grooved copper tubing, ensuring superior heat transfer and exceptional durability. Designed with practicality in mind, the coil is housed in a thermally insulated cabinet lined with foil-faced insulation, effectively preventing condensation and boosting overall system efficiency. Its versatile multi-positional design allows for easy installation in various settings, and dual drain pans simplify maintenance tasks. With a 19-½ inch supply duct, you can easily adapt it to fit diverse HVAC configurations. Measuring 30 inches in height and 21 inches in width, the PRODIRECT™ Series A Coil is versatile enough to accommodate a range of systems. It includes a 3/8-inch liquid line and a 7/8-inch suction line for standard HVAC compatibility. Plus, with UL certification, you can trust that it meets the highest safety and quality standards. Backed by a standard 5-year warranty plus an additional 5-year extended warranty when installed with an approved MRCOOL® Condenser, this coil is your reliable choice for your home.
Features:
- Multiposition installation
- Evaporator Coil Tube Material: Aluminum
- Evaporator Coil Tube Size(in.): 9/32
- Supply Duct(in.): 19 1/2
Warranty:
Unless otherwise required or prohibited under applicable state or province law, this non-transferable warranty provides for a total of 10 years (Standard 5-year plus an additional 5-year extended warranty when installed with an approved MRCOOL Condenser) of limited warranty coverage. This warranty applies to all units installed in owner-occupied residences, multi-family residences, and limited commercial applications which use a 1-Phase power supply. Proof of purchase may be required to file a warranty claim.
Specifications:
| BRAND | MRCOOL® |
| SERIES |
PRODIRECT Series Cased Coils |
| MODEL | HCMP4248CFOA |
| GTIN | 00840255585866 |
| UPC | 840255585866 |
|
COOLING CAPACITY (BTU) |
42,000/48,000 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
7/8 |
|
BASE WARRANTY |
5 Years (Standard 5-year plus an additional 5-year extended warranty when installed with an approved MRCOOL Condenser) |
|
NET DEPTH (IN) |
21 |
|
NET HEIGHT (IN) |
30 |
|
NET WIDTH (IN) |
21 |
|
NET WEIGHT (LBS) |
73 |
| RESOURCES |
