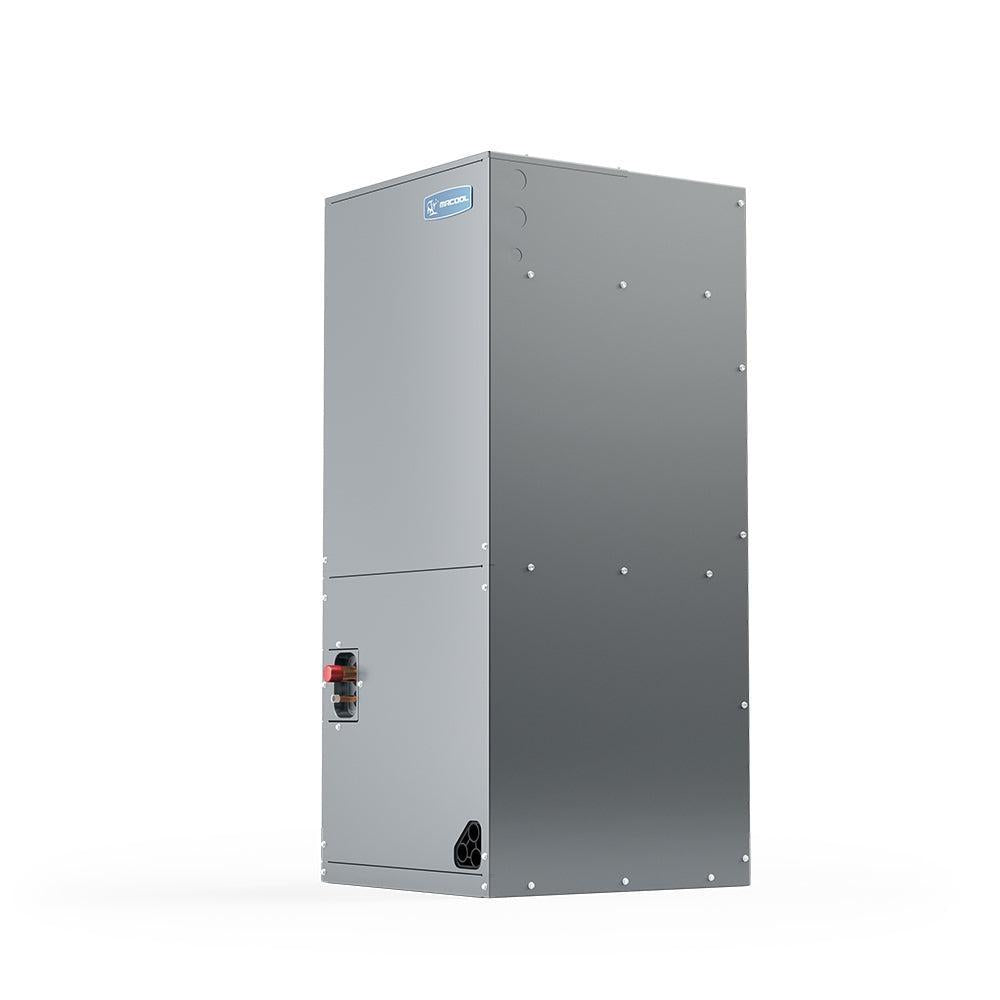

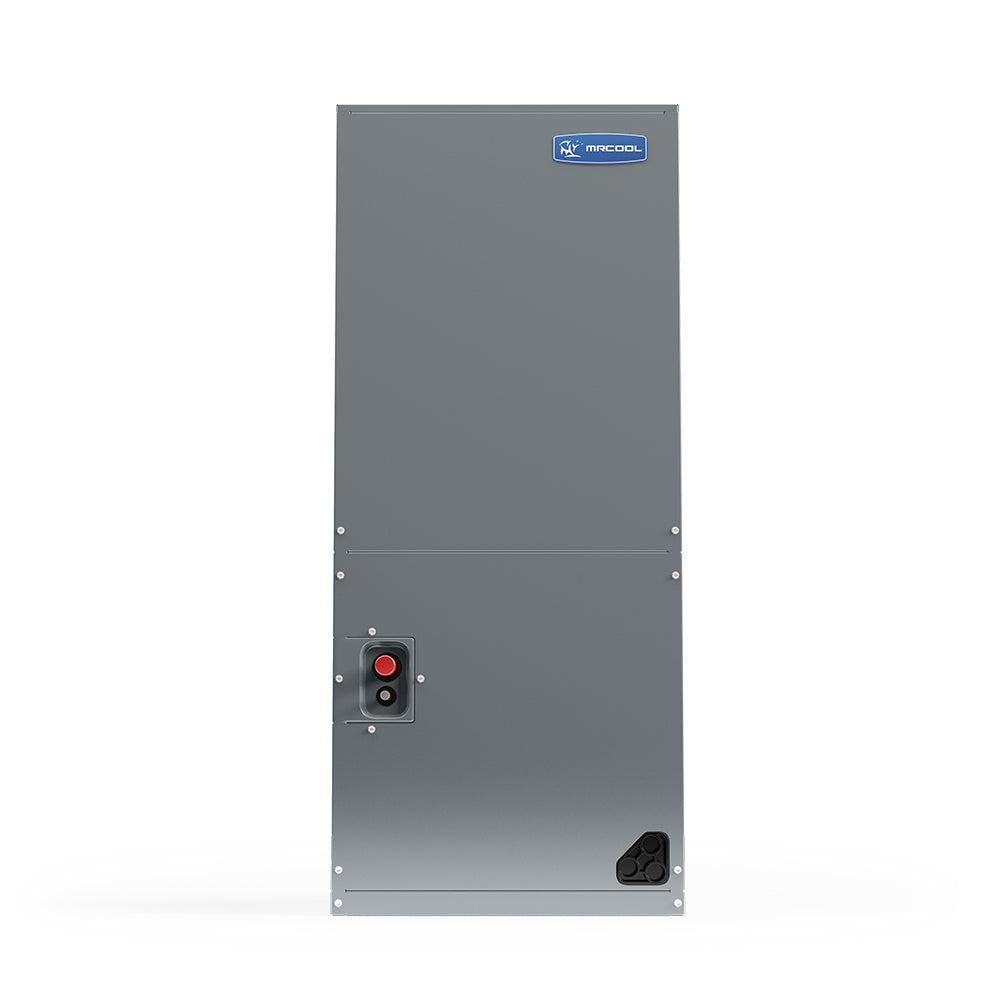

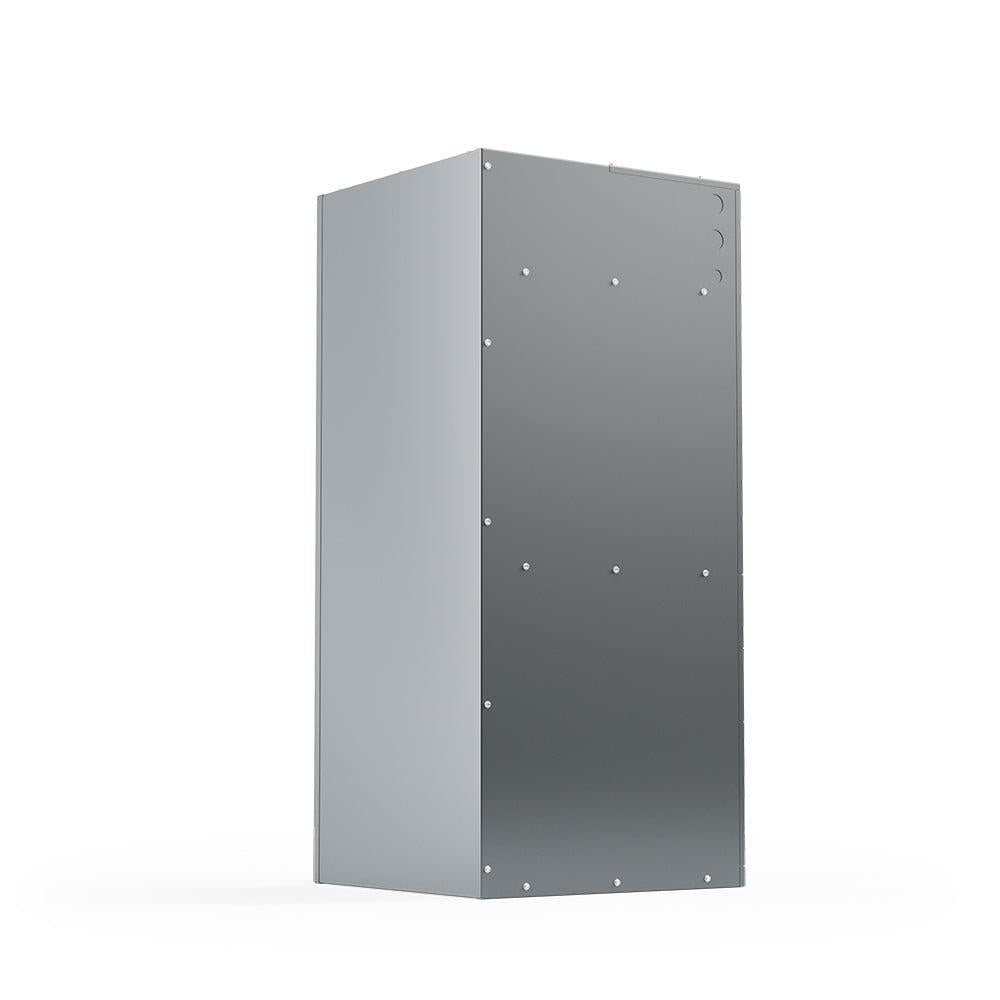

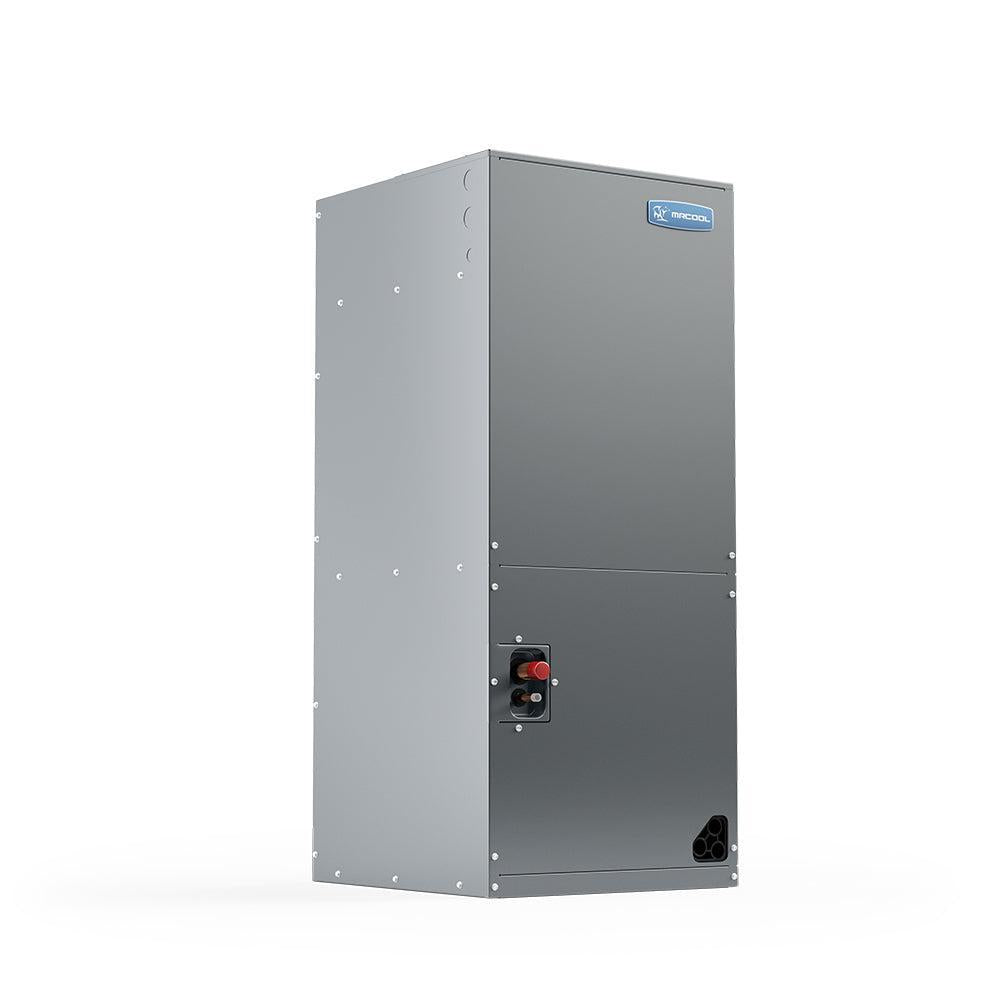

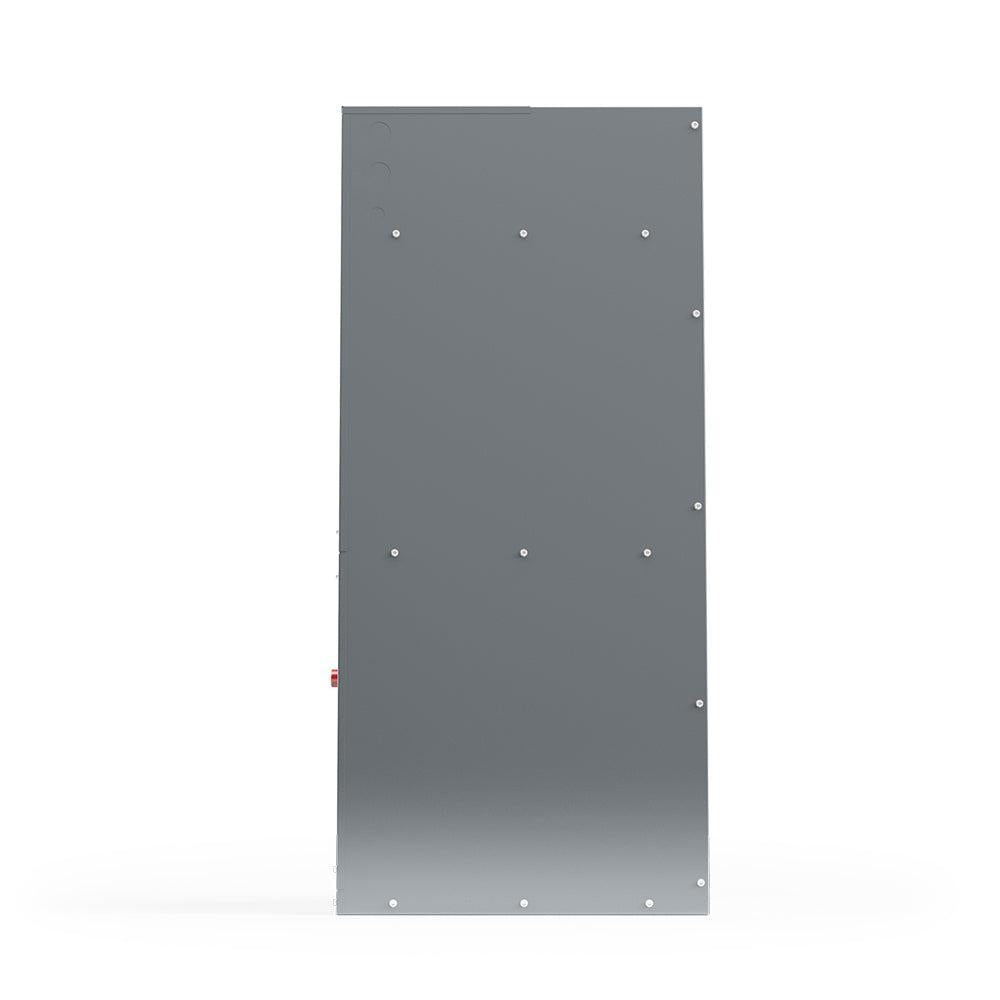

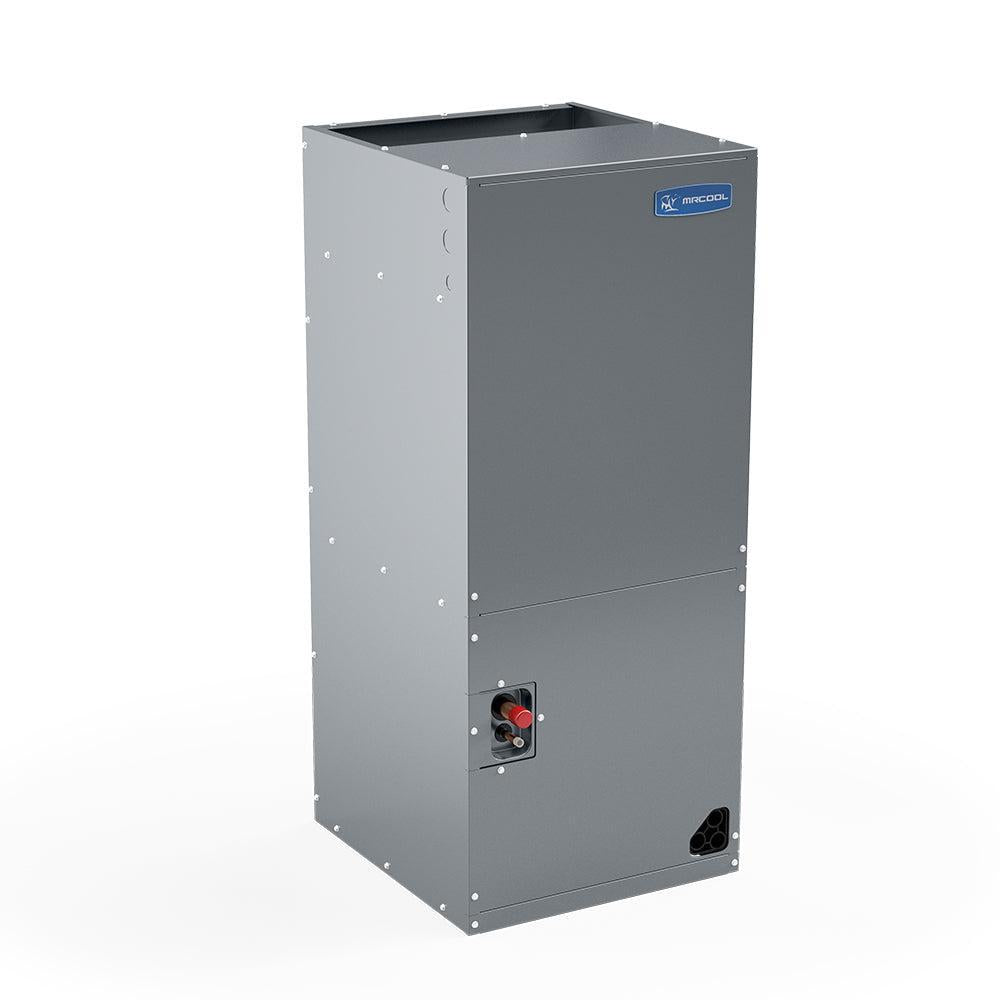

MRCOOL® MRCOOL® ProDirect 5 Ton 14 SEER Split System A/C Air Handler - Multiposition
Maintaining a consistent temperature in your home shouldn't be a strenuous, stressful task, so if you find yourself pulling out your hair over your current home comfort system, you might need the MRCOOL ProDirect 5 Ton 14 SEER Multiposition Split System Air Handler. This air handler uses its sturdy “A” shaped evaporator coil to draw out whatever is making your home uncomfortable. To spread comfort throughout your home, the three-speed direct drive blower motor can work quickly without boosting your energy bills. When it goes out into your home, you know that the air is clean, because it goes through a removable filter. The electric heat kits that you can install in this system also help to provide extra comfort when it’s a little too cold outside. This strong, AHRI certified, ETL listed unit is well protected by a galvanized steel cabinet that guards the system from corrosion and other harm that would halt a different unit in its tracks. It's further protected by a superior warranty when you register it online. Stress and discomfort have no place in your home, so remove both entirely with the MRCOOL ProDirect 5 ton split system air handler.
Features:
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- AHRI Certified & ETL listed
Specifications:
| BRAND | MRCOOL® |
| MODEL | HAH14060 |
| SERIES | PRODIRECT Air Handler |
| GTIN | 00810063861957 |
| UPC | 810063861957 |
| UNIT TYPE |
Air Handler |
| CONFIGURATION | Multi-position |
| SEER | 14 |
| CFM | 1695/1574/1434 |
| COOLING CAPACITY (BTU) |
56500 |
| VOLTAGE (V) |
208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| DECIBEL RATING (DBA) |
51-55 |
| DECIBEL RATING LOW (DBA) |
51 |
| DECIBEL RATING HIGH (DBA) |
55 |
| NUMBER OF SPEEDS |
3 Speed |
| BLOWER MOTOR SPEEDS |
3 |
| BLOWER MOTOR RPM |
920/870/820 |
| FILTER TYPE |
Replaceable |
| ETL LISTED |
Yes |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
10 Year Limited Warranty |
| NET DEPTH (IN) |
24.00 |
| NET HEIGHT (IN) |
53.13 |
| NET WIDTH (IN) |
22.00 |
| NET WEIGHT (LBS) |
176.00 |
| GROSS DEPTH (IN) |
25.20 |
| GROSS HEIGHT (IN) |
54.75 |
| GROSS WIDTH (IN) |
28.00 |
| GROSS WEIGHT (LBS) |
190 |
Product Information and Guides:
